Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#6134) — 452 parça

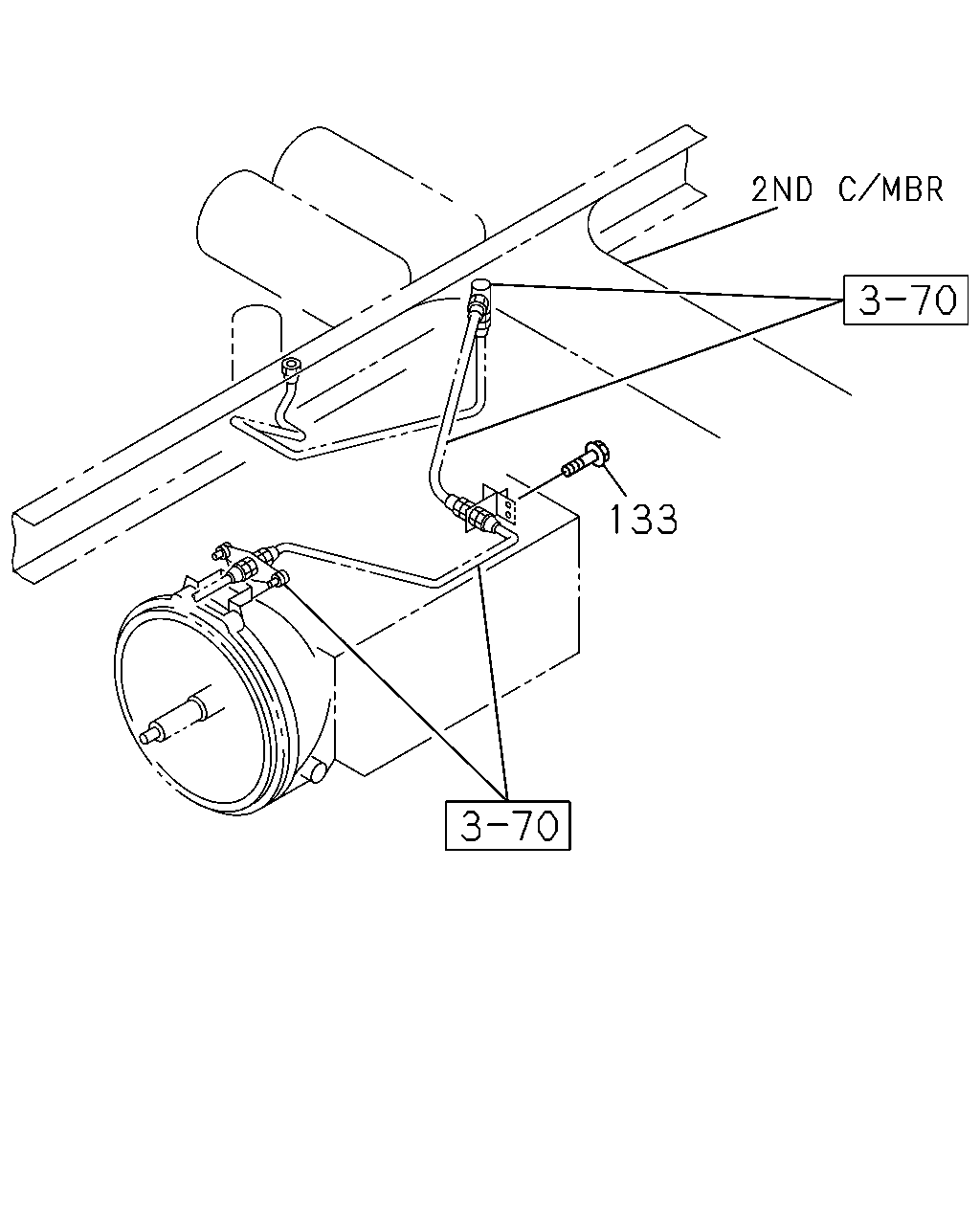

133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0602
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0603-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-0103
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0104-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-0602
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-0602
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0302-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-

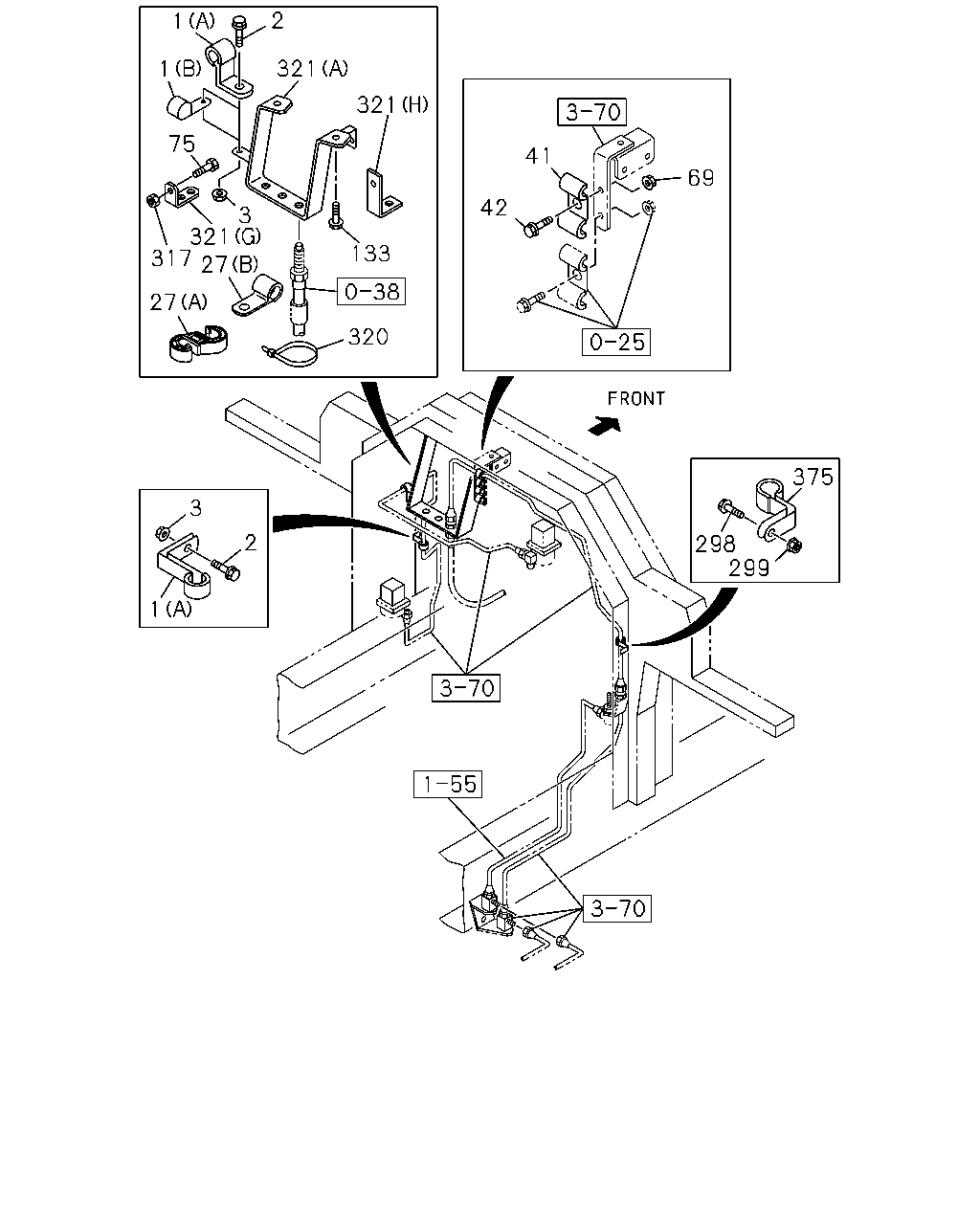

2 1 1 321 321 75 41 69 42 3 321 317 27 133 27 320 375 3 298 299 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-9910
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-0301
1	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9911-0301
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9905-0301
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0104
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0301
27	CLIP; FLEX HOSE (A) ID=10 & 10	1-09709-277-1	01	1	0105-0301
27	CLIP; FLEX HOSE (B) ID=15 L=28	1-09701-216-0	02	1	0302-
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-0104
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-0301
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	9905-0104
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0105-0301
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0104
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0301
75	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0302-0512
75	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0602
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0603-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-0103
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0104-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-0602
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-0602
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0302-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-0301
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0301
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0302-0602
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9905-0103
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	9905-0301
321	BRACKET; CLIP (G)	1-47477-337-1	01	1	0302-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	9905-0104
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0105-0602
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0603-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	08	1	9905-0104
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (D)	1-47477-694-0	01	1	9905-
321	BRACKET; CLIP (E)	1-47477-810-0	01	1	9905-0609
321	BRACKET; CLIP (F)	1-47478-519-0	01	1	9905-0204
321	BRACKET; CLIP (F)	1-47478-519-0	02	1	0205-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	0105-0301
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (H) L=75	1-47478-328-0	01	1	0302-
375	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0301

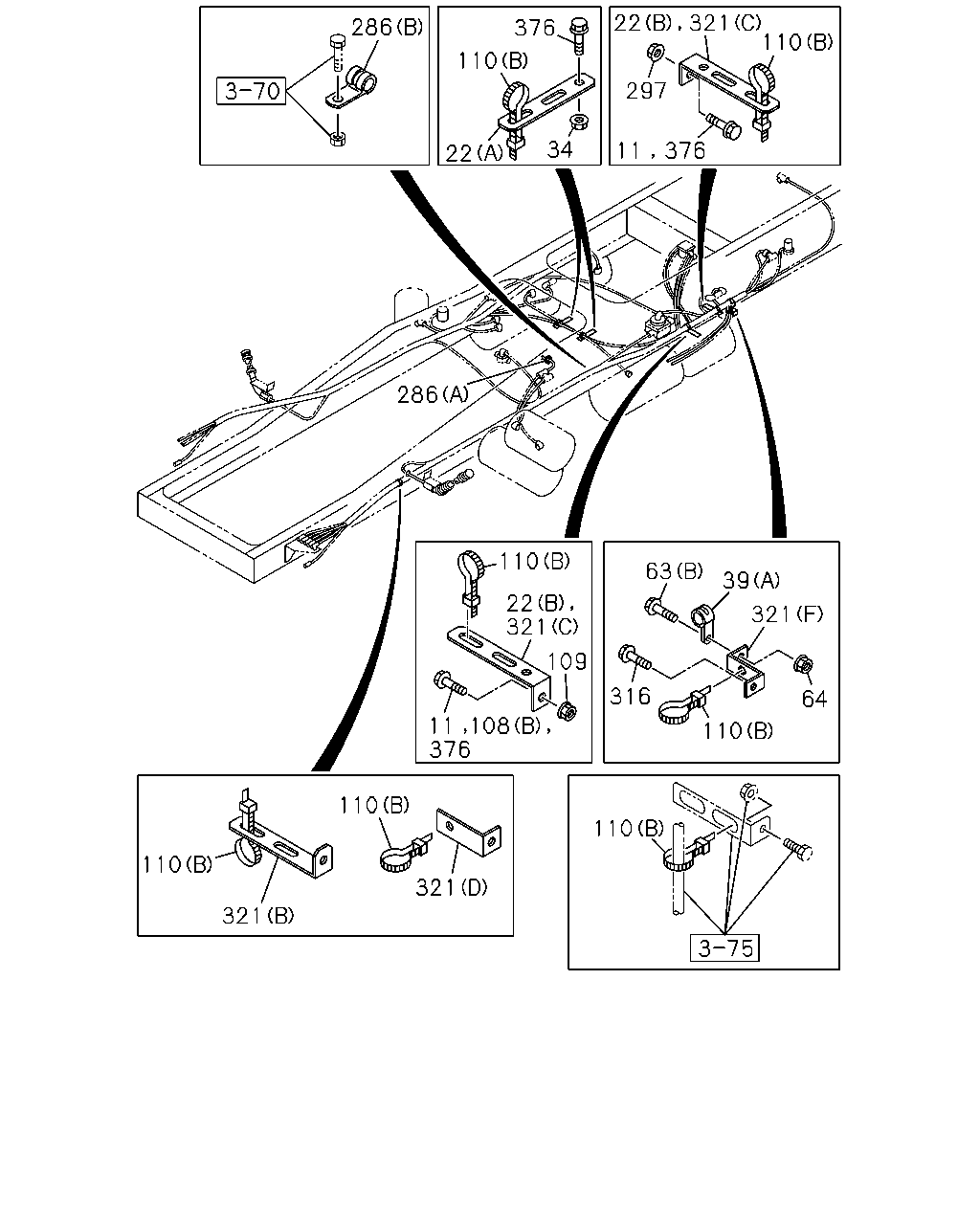

110 286 376 110 297 34 376 11 22 286 110 63 39 22 321 321 109 316 64 11 108 376 110 110 110 110 321 321 22 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0202-0512
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9905-0104
22	BRACKET; CLIP (A) L=125	1-47477-975-1	02	1	0105-
22	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	0202-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9905-0204
34	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0205-0602
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
34	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0603-0603
34	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
39	CLIP; AIR PIPE (A) ID=28 L=40	1-09701-261-0	01	1	9905-
39	CLIP; AIR PIPE (A) ID=15 L=28	1-09701-216-0	01	1	0205-
39	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0111-0301
39	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0302-0602
39	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-
63	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0204
63	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0205-0512
63	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
63	BOLT; CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
63	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0204
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0602
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9905-0002
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0003-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	05	1	0003-0103
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0104-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0108-0203
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9905-0002
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0003-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0003-0104
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0203
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0302-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	9905-0104
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0105-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	15	1	9905-0104
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	46	1	0302-0304
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	22	1	9905-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-0301
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0302-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0104-0104
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0105-0301
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9905-
286	CLIP; NYLON TUBE (B) ID=15 L=28	1-09701-216-0	01	1	0204-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	9905-0104
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0111
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0602
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	04	1	9905-0204
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	05	1	0205-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	05	1	0601-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	9905-0301
321	BRACKET; CLIP (G)	1-47477-337-1	01	1	0302-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	9905-0104
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0105-0602
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0603-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	08	1	9905-0104
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (D)	1-47477-694-0	01	1	9905-
321	BRACKET; CLIP (E)	1-47477-810-0	01	1	9905-0609
321	BRACKET; CLIP (F)	1-47478-519-0	01	1	9905-0204
321	BRACKET; CLIP (F)	1-47478-519-0	02	1	0205-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	0105-0301
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (H) L=75	1-47478-328-0	01	1	0302-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	9905-0104
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9905-0206
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0207-

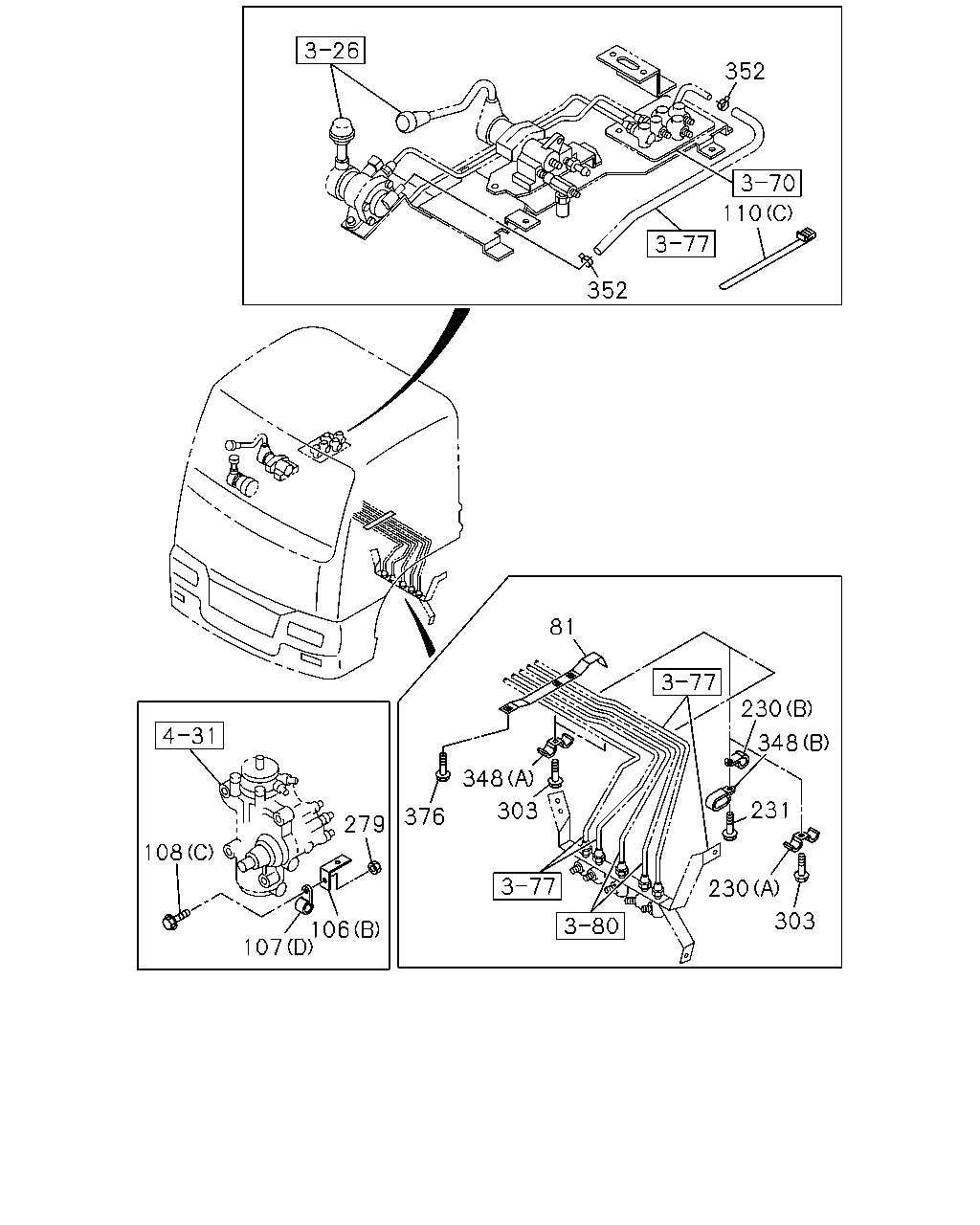

352 110 352 81 230 348 348 231 303 376 279 108 230 303 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP	1-47477-483-0	01	1	9905-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	9905-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-0602
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-0602
107	CLIP; NYLON TUBE (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-0107
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE (B) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-0104
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0302-0602
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0603-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0204-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0302-0602
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9905-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9905-0002
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0003-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	05	1	0003-0103
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0104-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0108-0203
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	9905-0104
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0105-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	15	1	9905-0104
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	46	1	0302-0304
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	22	1	9905-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-0301
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0302-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0104-0104
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0105-0301
230	CLIP; PIPE,AIR (A) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9905-0003
230	CLIP; PIPE,AIR (B) ID=9 L=16	9-09524-822-0	02	1	9905-0301
230	CLIP; PIPE,AIR (A) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0302-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-
348	CLIP; AIR PIPE (A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9905-
348	CLIP; AIR PIPE (B) ID=13X2 L=16	9-09535-225-0	02	1	9905-0301
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9905-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	9905-0104
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9905-0206
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0207-

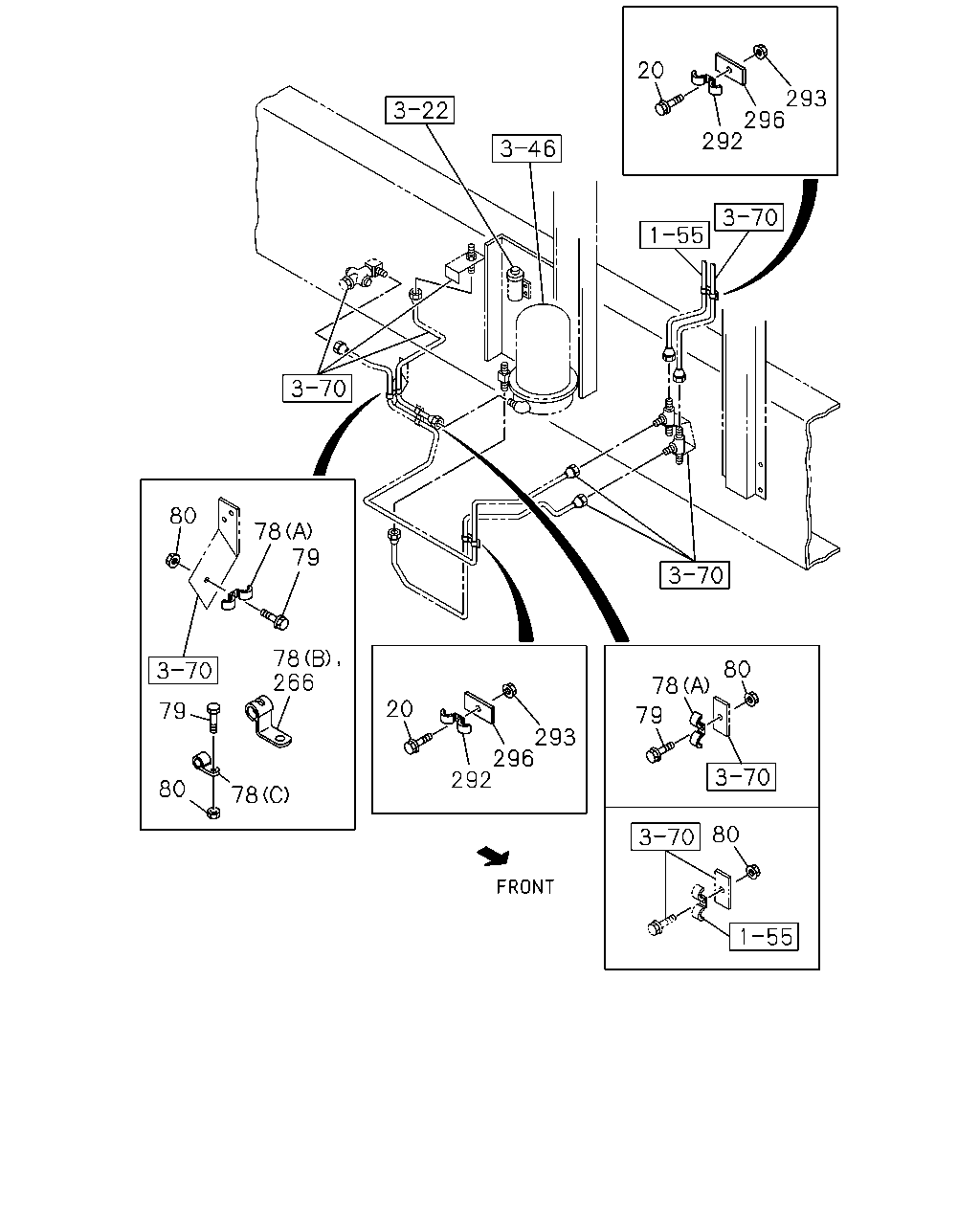

20 293 296 292 80 78 79 78 266 80 78 20 79 79 293 296 292 80 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9905-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
78	CLIP; AIR PIPE (A) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9905-0104
78	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0110
78	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0111-0301
78	CLIP; AIR PIPE (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0302-0602
78	CLIP; AIR PIPE (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0603-
78	CLIP; AIR PIPE AIR DRYER<PS7> (C) ID=16 L=20	9-09525-535-0	01	1	0111-0301
78	CLIP; AIR PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0302-0602
78	CLIP; AIR PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0603-0606
78	CLIP; AIR PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0105-0110
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	02	1	0111-0301
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0302-0512
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0104
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0110
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	0111-0301
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0302-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
266	CLIP; NYLON TUBE ID=12 & 12	1-09709-280-1	01	1	0205-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9905-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
296	BRACKET; CLIP L=50	1-47475-299-2	02	1	9905-

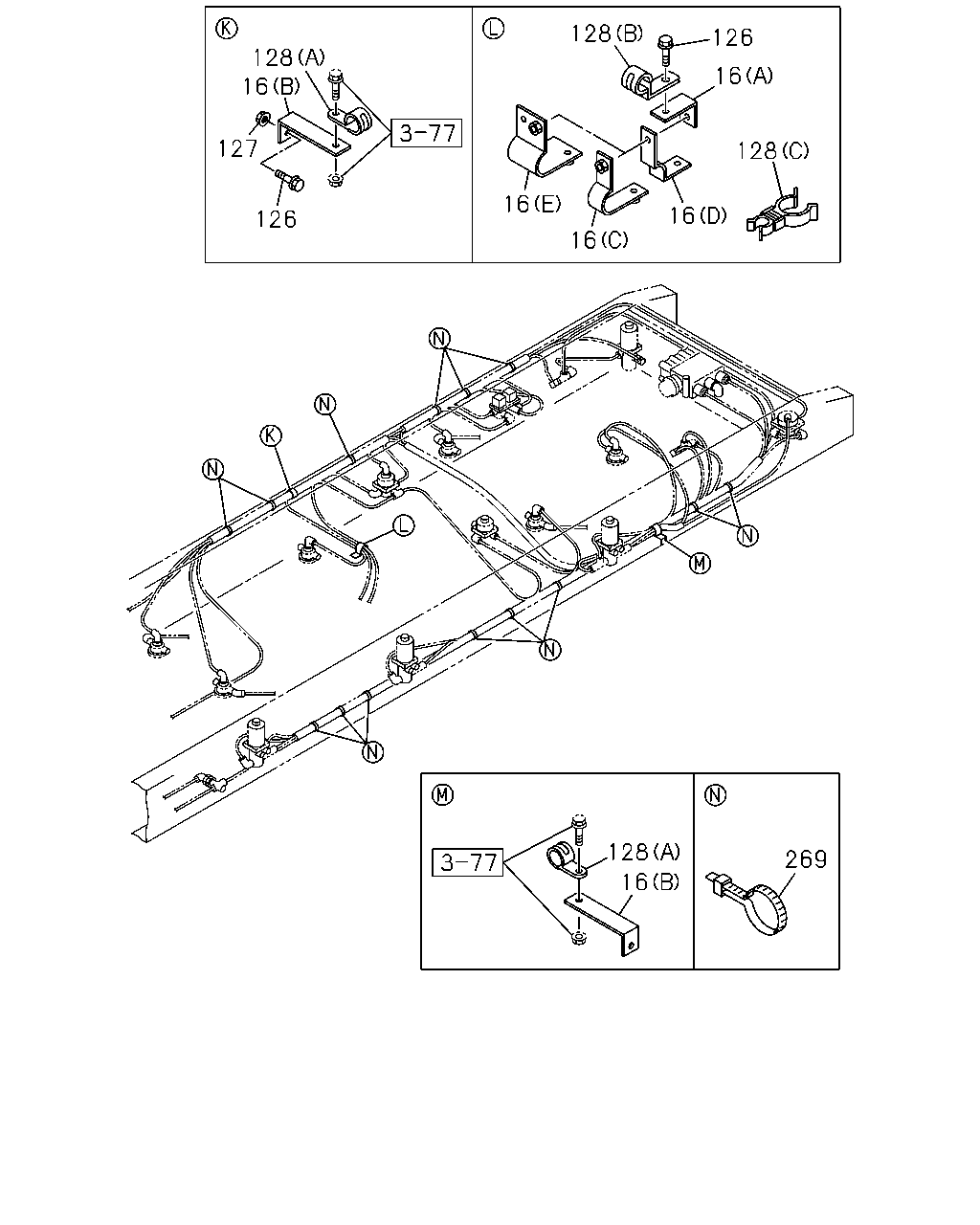

128 126 128 16 16 127 128 16 16 126 16 128 269 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A) 25X37	1-34656-004-0	02	1	9905-9905
16	BRACKET; PIPE CLIP (D)	1-47478-588-0	02	1	9905-
16	BRACKET; PIPE CLIP (C)	1-47478-589-0	02	1	9905-0104
16	BRACKET; PIPE CLIP (C)	1-47478-589-0	01	1	0105-
16	BRACKET; PIPE CLIP (B) L=95	1-82699-085-0	02	1	9905-
16	BRACKET; PIPE CLIP (E)	1-47479-249-0	01	1	0105-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9905-9905
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	06	1	9906-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	9905-9905
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	9906-0104
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
128	CLIP; NYLON TUBE (A) ID=24 L=24	1-09701-001-1	02	1	9905-9905
128	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	02	1	9906-0103
128	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	04	1	0104-
128	CLIP; NYLON TUBE (B) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9905-9905
128	CLIP; NYLON TUBE (A) ID=19 L=32	1-09701-235-0	02	1	9905-9905
128	CLIP; NYLON TUBE (A) ID=23 L=27	1-09700-946-0	02	1	9906-0103
128	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0105-
128	CLIP; NYLON TUBE (C) ID=11.8 & 7.5	1-09709-182-0	02	1	0105-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	26	1	9905-0104
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	40	1	0105-0111
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	42	1	0112-0204
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	43	1	0205-0304
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	43	1	0305-

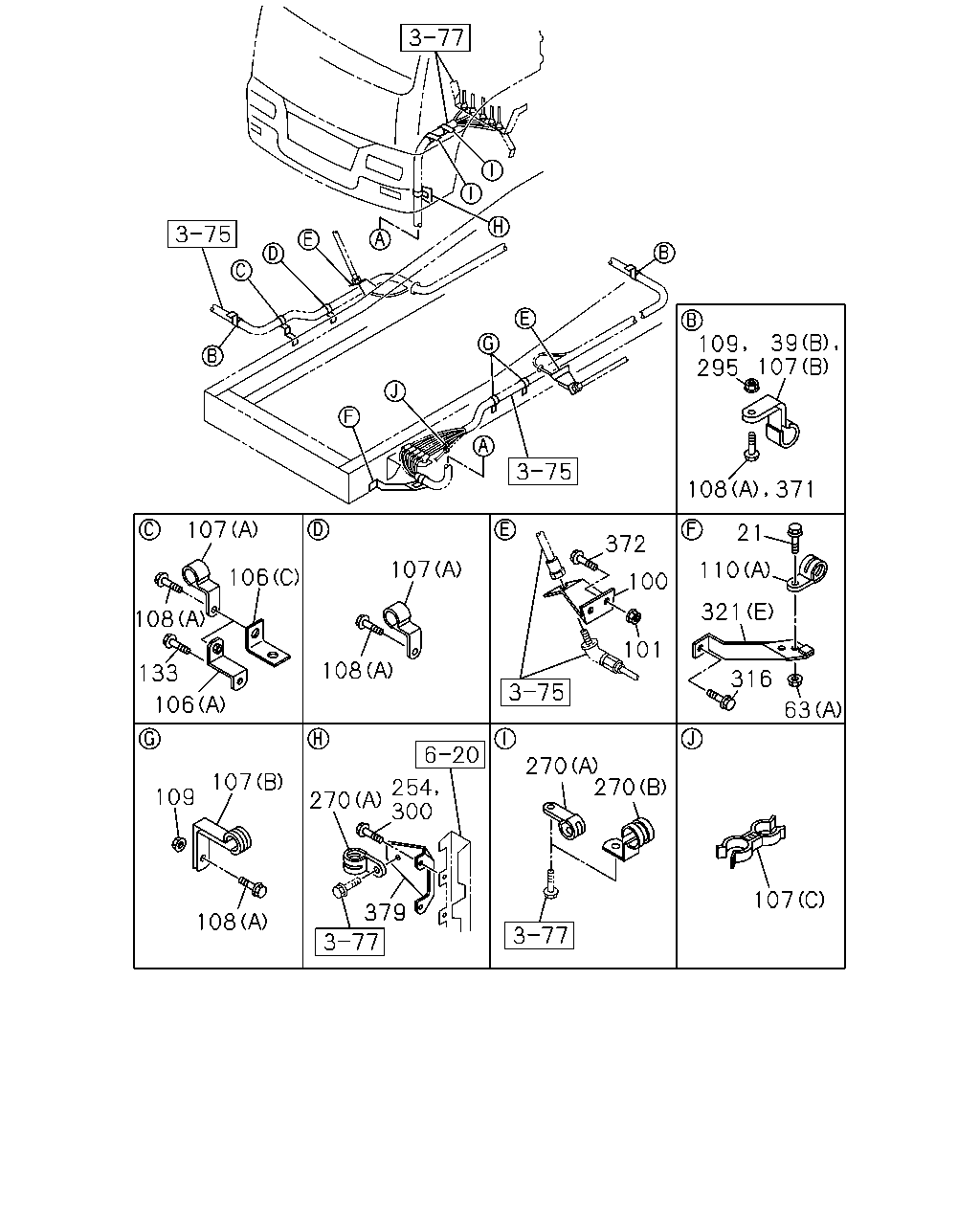

108 371 107 21 372 107 110 106 100 108 321 101 108 133 316 106 63 270 270 107 254 300 109 270 107 379 108 109 39 295 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
39	CLIP; AIR PIPE (A) ID=28 L=40	1-09701-261-0	01	1	9905-
39	CLIP; AIR PIPE (A) ID=15 L=28	1-09701-216-0	01	1	0205-
39	CLIP; AIR PIPE AIR DRYER<PS7> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0111-0301
39	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0302-0602
39	CLIP; AIR PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0603-
63	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0204
63	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0205-0512
63	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
63	BOLT; CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
63	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9905-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9905-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9905-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	9905-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-0602
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-0602
107	CLIP; NYLON TUBE (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-0107
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE (B) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-0104
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0302-0602
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0603-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0204-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0302-0602
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9905-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9905-0002
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0003-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (A) M8X30 FLANGE	0-28680-830-0	05	1	0003-0103
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0104-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0108-0203
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0204-0204
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9905-0002
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0003-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0003-0104
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0203
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0204-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0302-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	9905-0104
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0105-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	15	1	9905-0104
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	46	1	0302-0304
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	22	1	9905-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-0301
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0302-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0104-0104
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0105-0301
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0104
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0602
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0603-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-0103
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0104-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-0602
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-0602
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0302-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9905-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	0205-0205
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	9905-0301
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0302-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0111-0301
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0302-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0603-0603
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0206-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	04	1	9905-0204
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	05	1	0205-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	05	1	0601-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	9905-0301
321	BRACKET; CLIP (G)	1-47477-337-1	01	1	0302-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	9905-0104
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0105-0602
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0603-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	08	1	9905-0104
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (D)	1-47477-694-0	01	1	9905-
321	BRACKET; CLIP (E)	1-47477-810-0	01	1	9905-0609
321	BRACKET; CLIP (F)	1-47478-519-0	01	1	9905-0204
321	BRACKET; CLIP (F)	1-47478-519-0	02	1	0205-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	0105-0301
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	03	1	0302-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (H) L=75	1-47478-328-0	01	1	0302-
371	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0111-0301
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0302-0512
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9905-0104
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9905-

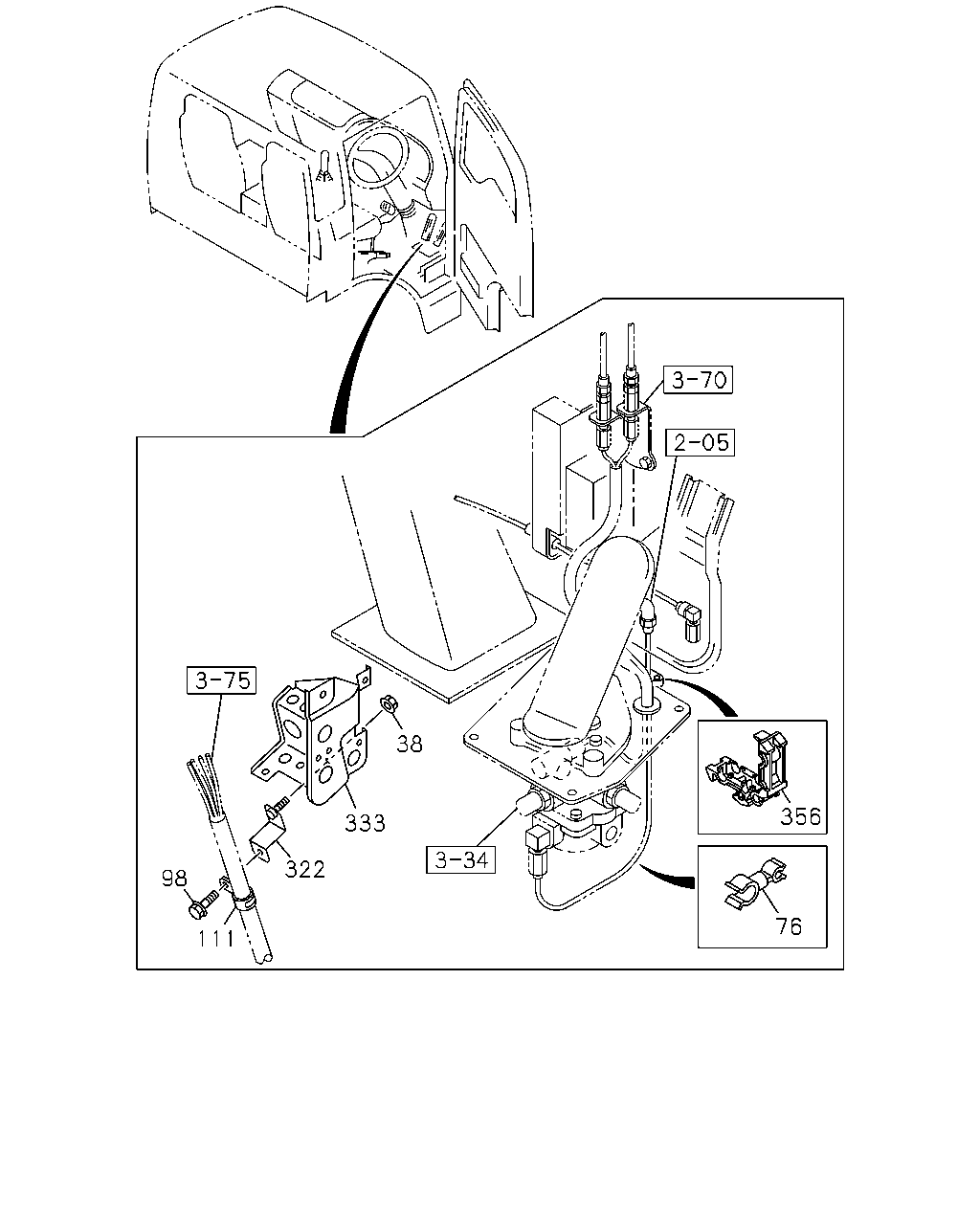

38 356 333 322 98 76 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-0301
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0302-0602
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0302-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0703-
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	9905-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-0512
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
111	CLIP; AIR PIPE ID=32 L=35	1-09701-244-0	01	1	9905-9911
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9912-0602
111	CLIP; AIR PIPE ID=32 L=50	1-09701-055-1	01	1	0603-
322	BRACKET; CLIP	1-79996-360-0	01	1	9905-0601
322	BRACKET; CLIP	1-79996-659-1	01	1	0602-0702
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	9905-0702
333	BRACKET; BRK AIR PIPE	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE	1-79907-150-0	01	1	0802-
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	9905-0104
356	CLIP; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0105-0301
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
