◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#61332) — 84 parça

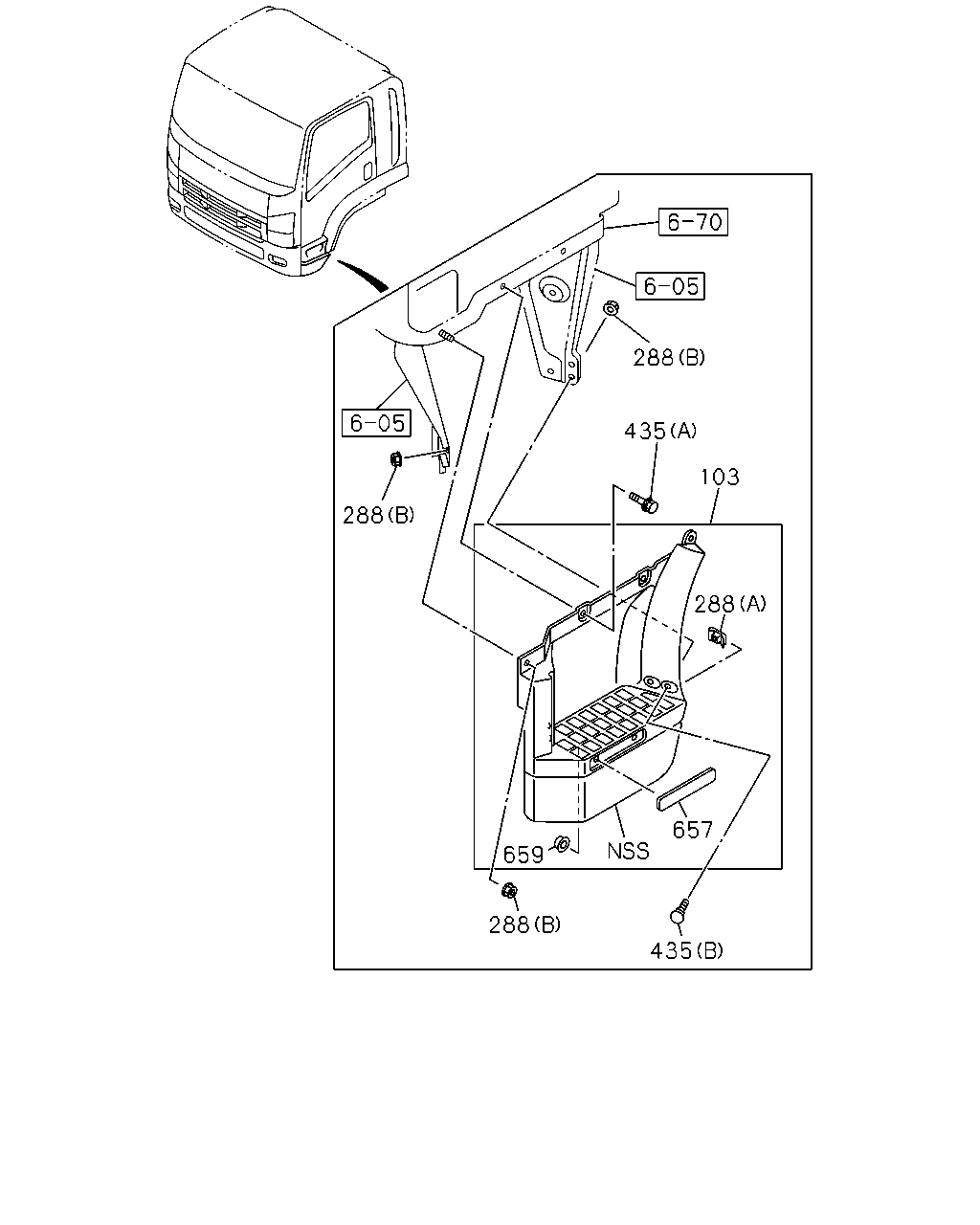

çizim 150250
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-326-3 01 1 1110-
103 PLATE; STEP 8-98037-325-3 01 1 1110-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1110-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1110-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1110-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1110-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1110-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1110-

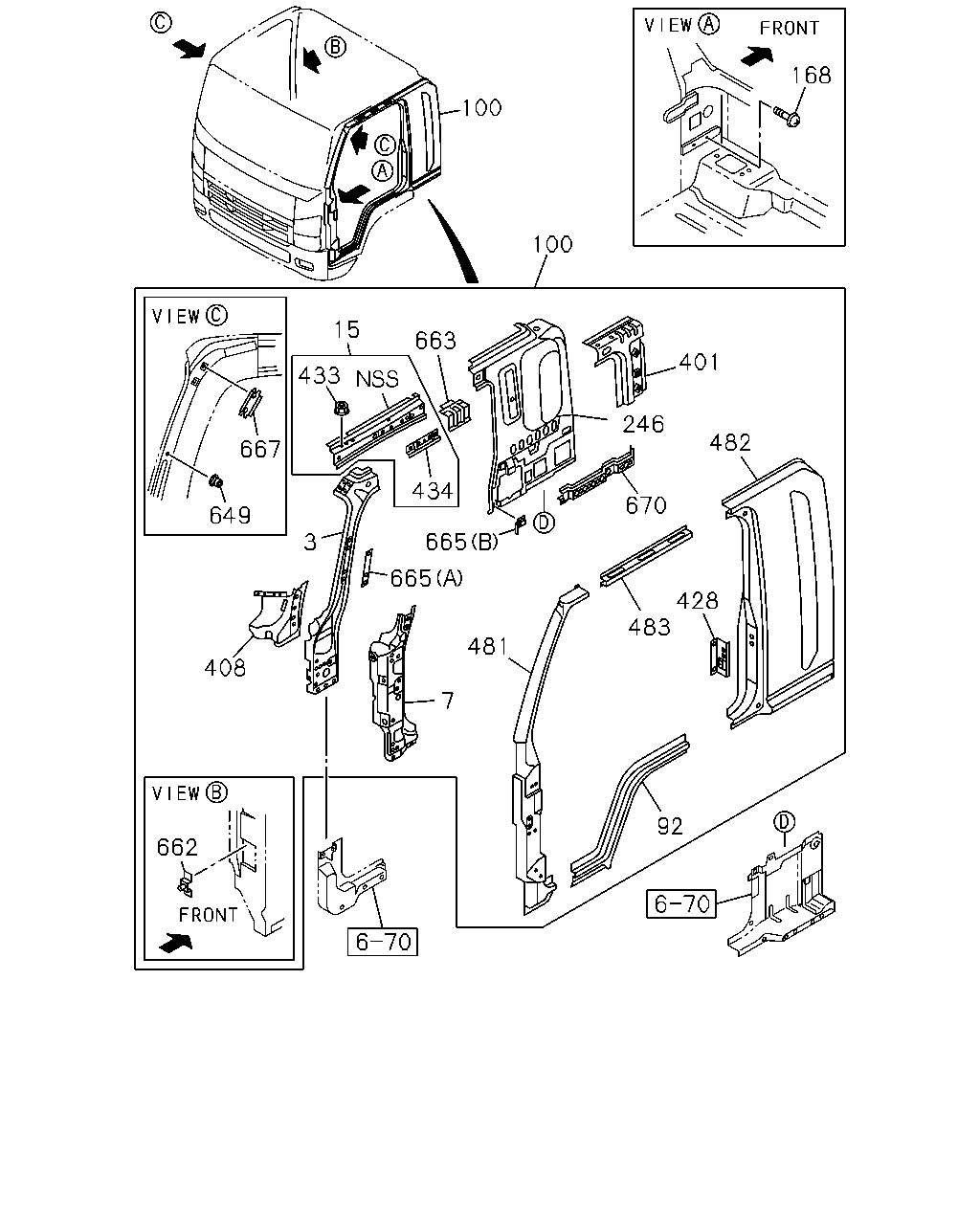

çizim 150267
168 100 100 15 663 401 433 246 482 667 434 670 649 665 3 665 428 483 481 408 7 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1110-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1110-1204
3 PANEL; CLOSING,FRT PILLAR
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98058-236-1 01 1 1205-
3 PANEL; CLOSING,FRT PILLAR
EXC. COUNTRY ALGERIA<D2G> 		8-98058-236-1 01 1 1205-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1110-
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 1110-1204
7 REINFORCEMENT; HINGE
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97585-240-3 01 1 1205-
7 REINFORCEMENT; HINGE
EXC. COUNTRY ALGERIA<D2G> 		8-97585-240-3 01 1 1205-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1110-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1110-1204
15 PANEL; CANT RAIL SIDE
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97585-292-2 01 1 1205-
15 PANEL; CANT RAIL SIDE
EXC. COUNTRY ALGERIA<D2G> 		8-97585-292-2 01 1 1205-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1110-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1110-
100 PANEL ASM; BODY SIDE
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98214-442-0 01 1 1205-
100 PANEL ASM; BODY SIDE 8-97586-074-6 01 1 1110-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1110-1204
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. COUNTRY ALGERIA<D2G> 		8-98059-479-7 01 1 1205-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1110-1204
100 PANEL ASM; BODY SIDE
EXC. COUNTRY ALGERIA<D2G>,MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1205-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1110-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1110-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1110-1204
246 PANEL; RR PILLAR,INNER
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-156-5 01 1 1205-
246 PANEL; RR PILLAR,INNER
EXC. COUNTRY ALGERIA<D2G> 		8-97586-156-5 01 1 1205-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1110-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1110-1204
401 PATCH; CLOSING,FRT PILLAR
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-160-2 01 1 1205-
401 PATCH; CLOSING,FRT PILLAR
EXC. COUNTRY ALGERIA<D2G> 		8-97586-160-2 01 1 1205-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1110-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1110-1204
408 GUSSET; PILLAR
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-193-3 01 1 1205-
408 GUSSET; PILLAR
EXC. COUNTRY ALGERIA<D2G> 		8-97586-193-3 01 1 1205-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1110-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1110-1204
428 REINFORCEMENT; DOOR STRIKER
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97585-260-4 01 1 1205-
428 REINFORCEMENT; DOOR STRIKER
EXC. COUNTRY ALGERIA<D2G> 		8-97585-260-4 01 1 1205-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1110-1204
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205-
433 NUT; HEADER SHELF
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> M6 		9-09114-086-0 02 1 1205-
433 NUT; HEADER SHELF
EXC. COUNTRY ALGERIA<D2G> M6 		9-09114-086-0 02 1 1205-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1110-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1110-1204
434 PATCH; ASSIST GRIP
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98039-019-0 01 1 1205-
434 PATCH; ASSIST GRIP
EXC. COUNTRY ALGERIA<D2G> 		8-98039-019-0 01 1 1205-
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1110-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 1110-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 1110-
482 PANEL; SIDE RR PILLAR
COUNTRY ALGERIA<D2G> 		8-98092-923-0 01 1 1205-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1110-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1110-1204
482 PANEL; SIDE RR PILLAR
EXC. COUNTRY ALGERIA<D2G> 		8-98055-468-0 01 1 1205-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1110-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1110-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1110-
662 BRACKET; DUCT 8-97584-611-1 01 1 1110-1204
662 BRACKET; DUCT
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97584-611-1 01 1 1205-
662 BRACKET; DUCT
EXC. COUNTRY ALGERIA<D2G> 		8-97584-611-1 01 1 1205-
663 BRACKET; AIR 8-97585-208-2 01 1 1110-
663 BRACKET; AIR 8-97585-207-2 01 1 1110-1204
663 BRACKET; AIR
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97585-207-2 01 1 1205-
663 BRACKET; AIR
EXC. COUNTRY ALGERIA<D2G> 		8-97585-207-2 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1110-1204
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> (A) 		8-97585-314-0 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
EXC. COUNTRY ALGERIA<D2G> (A) 		8-97585-314-0 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1110-1204
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> (B) 		8-98012-287-1 01 1 1205-
665 REINFORCEMENT; GRIP,ASSIST
EXC. COUNTRY ALGERIA<D2G> (B) 		8-98012-287-1 01 1 1205-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1110-1204
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. COUNTRY ALGERIA<D2G> 		8-98109-948-0 01 1 1205-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1110-1204
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1205-
670 STIFFENER; PANEL,SIDE
COUNTRY ALGERIA<D2G> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98015-044-1 01 1 1205-
670 STIFFENER; PANEL,SIDE
EXC. COUNTRY ALGERIA<D2G> 		8-98015-044-1 01 1 1205-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
