◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#6133) — 309 parça

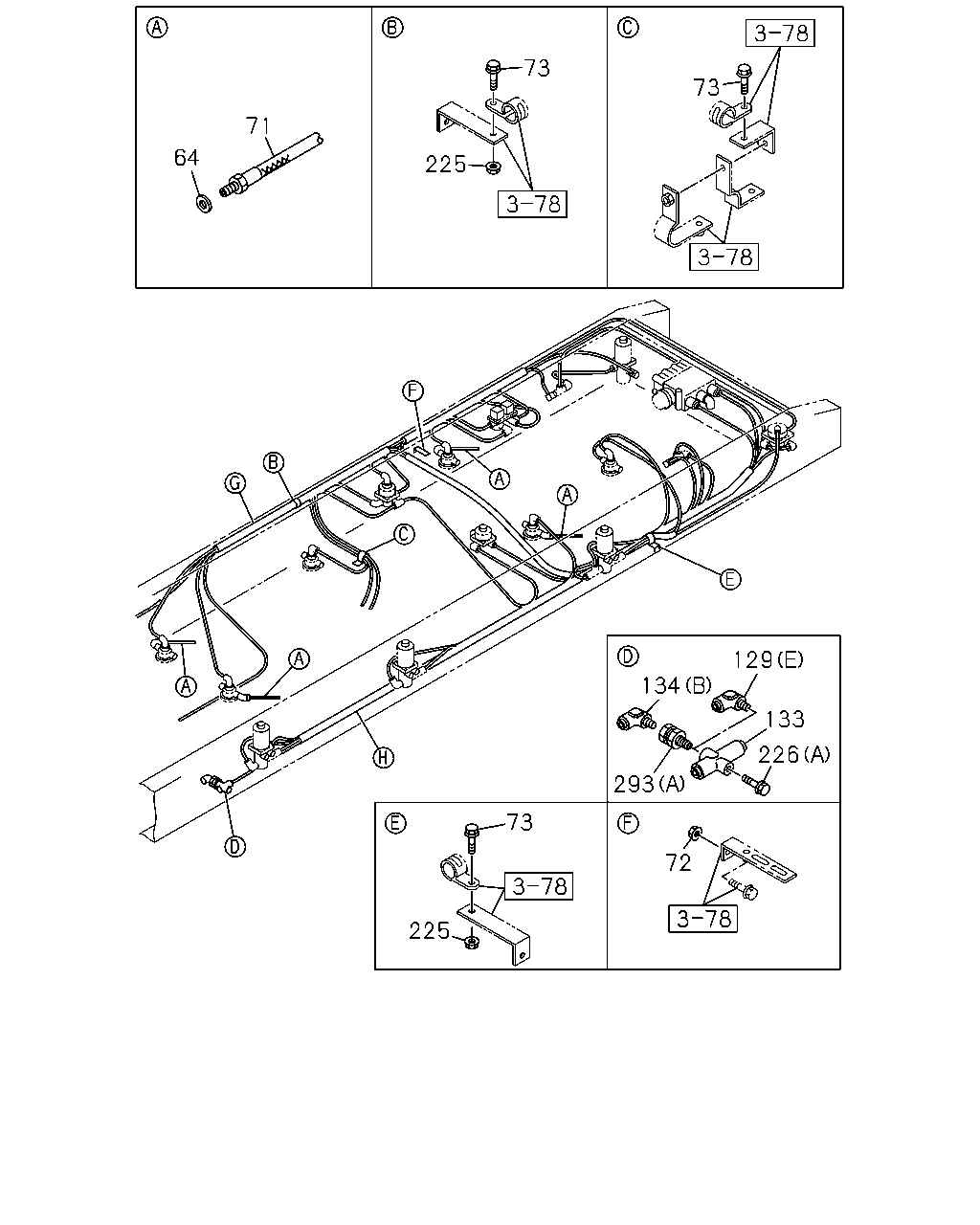

çizim 38224
73 73 71 64 225 129 134 133 226 293 73 72 225
BalonParca AdiParca NoAdetTipApplied Date
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 9905-
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=550 		0-07909-550-0 02 1 0603-0607
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=550 		0-57909-550-0 02 1 0608-
71 HOSE; FLEX,RWD RR
L=630 		0-07909-630-0 02 1 9905-0104
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 9905-0104
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 04 1 0105-0111
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 0112-0602
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=580 		0-07909-580-0 02 1 0112-0602
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 0603-0607
71 HOSE; FLEX,RWD RR
L=580 		0-57909-580-0 02 1 0608-
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT40-145P<BFM> L=630 		0-07909-630-0 02 1 0112-0607
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT40-145P<BFM> L=630 		0-57909-630-0 02 1 0608-
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0202-0602
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 06 1 9905-9905
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9906-0104
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512
73 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9905-0007
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 08 1 0008-0009
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0010-0111
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0302-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 04 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0302-0309
129 CONNECTOR; NYLON TUBE
(D) 		1-09661-083-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) 		1-09661-083-0 01 1 0107-0301
133 UNION; NIPPLE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 9905-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0310-0602
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0603-
134 CONNECTOR
(A) 		1-09660-741-0 04 1 9905-0004
134 CONNECTOR
(A) 		1-09660-741-0 01 1 0005-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905-0004
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0005-0104
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0309
134 CONNECTOR
(C) PT3/8 		1-09664-210-0 04 1 9905-0004
134 CONNECTOR
(C) NPTF3/8 & RC3/8 		1-09660-548-0 07 1 0005-
134 CONNECTOR
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 02 1 9905-0602
134 CONNECTOR
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0603-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0105-0602
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0603-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905-9905
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9906-0602
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-0512
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0301
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-0904
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
293 VALVE; CHECK
(A) 		1-48320-013-2 01 1 0310-
293 VALVE; CHECK
(A) 		1-48320-013-1 01 1 9905-0309
293 VALVE; CHECK
(B) 		1-48410-479-1 01 1 0302-

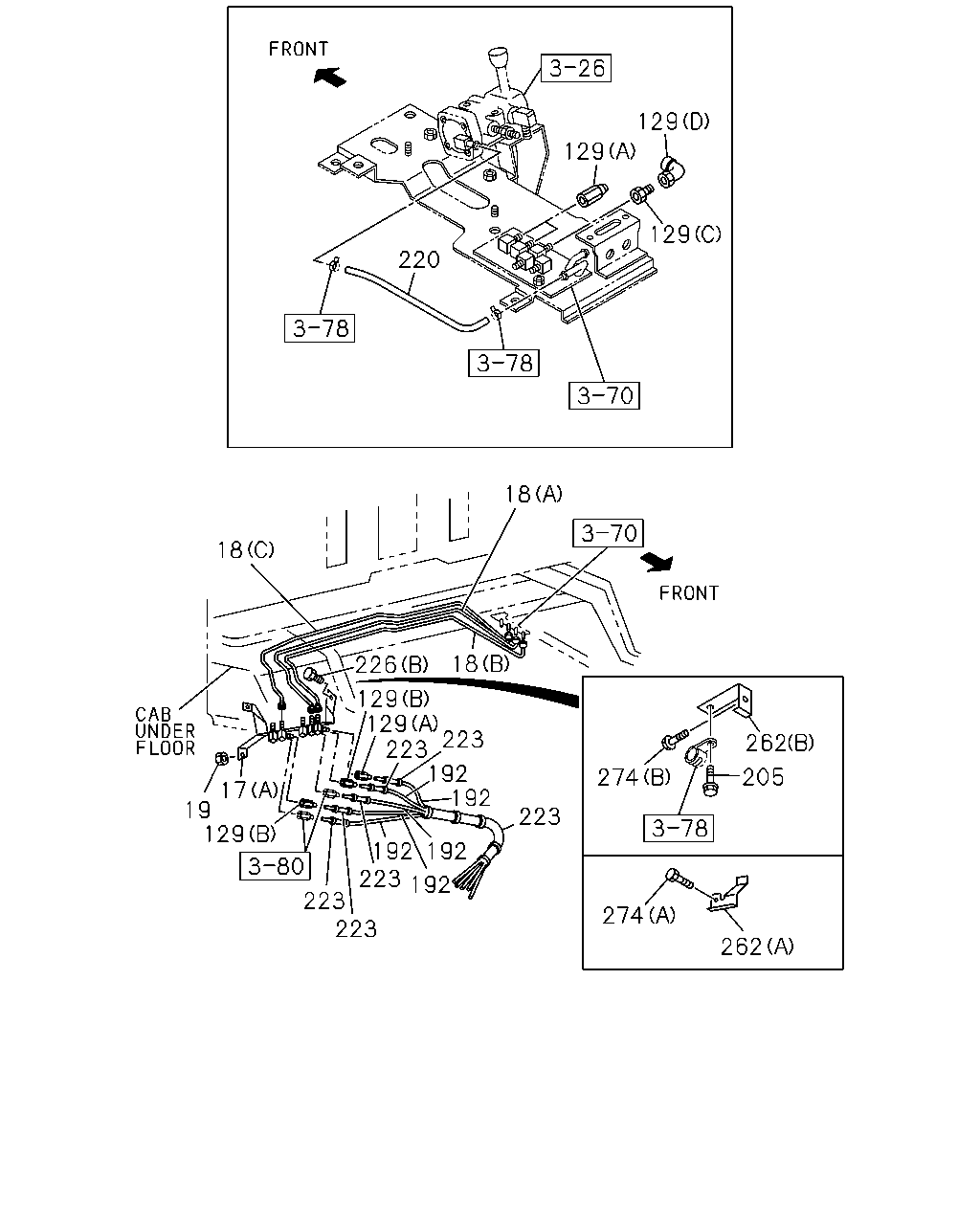

çizim 38252
129 129 129 220 18 18 226 18 129 129 223 223 192 192 262 205 274 17 19 129 223 192 223 192 192 223 223 274 262
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-47470-453-2 01 1 9905-0111
17 UNION; AIR PIPE
(A) 		1-47470-668-0 01 1 0112-0301
17 UNION; AIR PIPE
(E) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0302-
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0302-1008
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1009-
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0302-1008
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1009-
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0302-
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 9905-0301
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1937 		1-49122-060-1 01 1 0302-
18 PIPE; AIR,UNION TO UNION
(B) L=1854 		1-49121-053-0 01 1 9905-0111
18 PIPE; AIR,UNION TO UNION
(C) L=1982 		1-49121-055-1 01 1 9905-0301
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1845 		1-49122-059-1 01 1 0302-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 9905-0512
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9905-0007
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 08 1 0008-0009
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0010-0111
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0302-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 04 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0302-0309
129 CONNECTOR; NYLON TUBE
(D) 		1-09661-083-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) 		1-09661-083-0 01 1 0107-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9905-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9905-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-0301
220 HOSE; VINYL,EXH,PARKING BRK VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-0301
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0302-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9905-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603-
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-0512
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0301
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-0904
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
262 BRACKET
(B) 		1-79996-143-0 01 1 9905-
262 BRACKET
(A) 		1-79996-144-0 01 1 9905-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0512
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9905-0102
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0103-

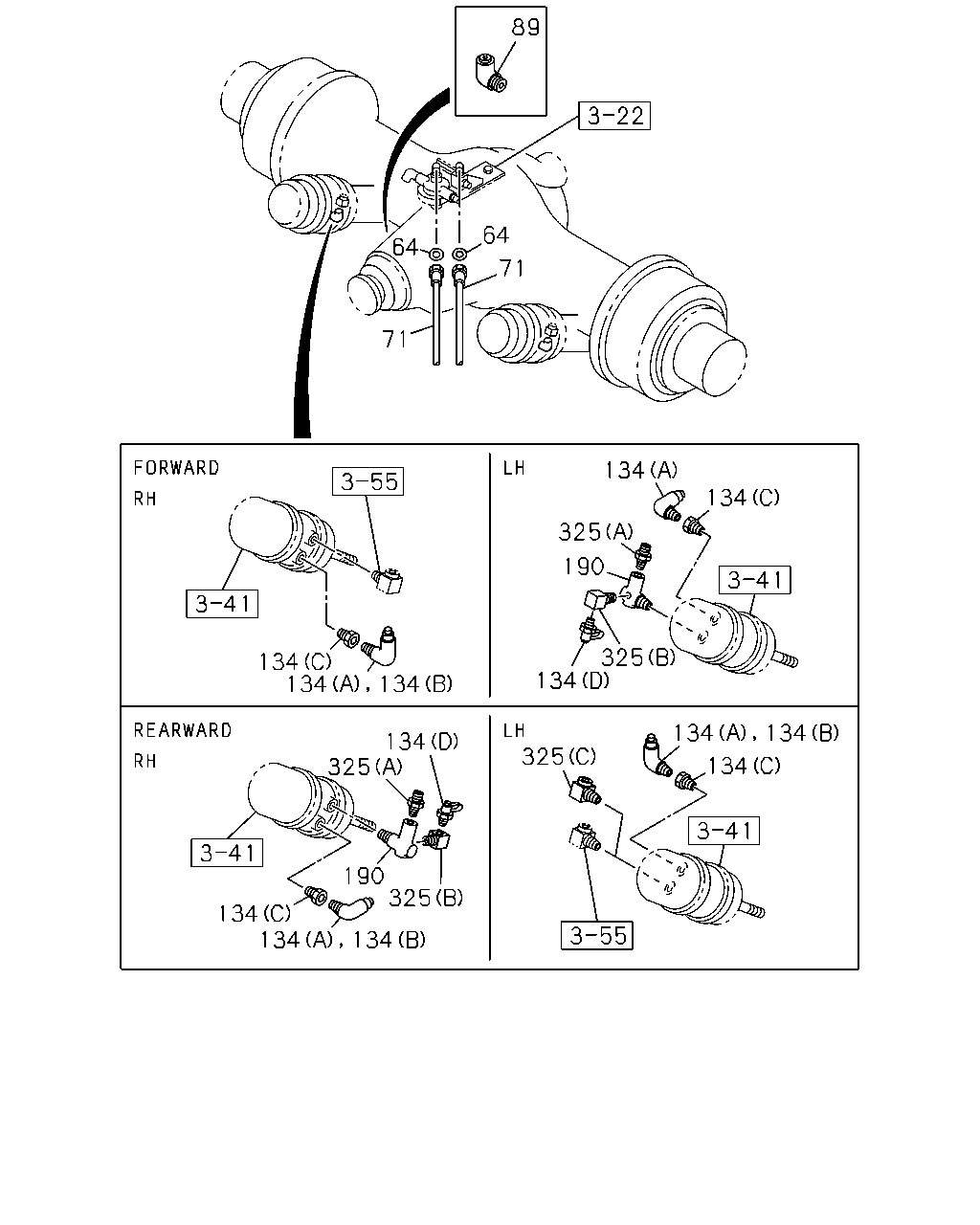

çizim 38637
89 64 64 71 71 134 134 325 190 325 134 134 134 134 325 134 134 134 325 134 190 325 134 134 134
BalonParca AdiParca NoAdetTipApplied Date
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 9905-
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=550 		0-07909-550-0 02 1 0603-0607
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=550 		0-57909-550-0 02 1 0608-
71 HOSE; FLEX,RWD RR
L=630 		0-07909-630-0 02 1 9905-0104
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 9905-0104
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 04 1 0105-0111
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 0112-0602
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT46-160P<BGY> L=580 		0-07909-580-0 02 1 0112-0602
71 HOSE; FLEX,RWD RR
L=580 		0-07909-580-0 02 1 0603-0607
71 HOSE; FLEX,RWD RR
L=580 		0-57909-580-0 02 1 0608-
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT40-145P<BFM> L=630 		0-07909-630-0 02 1 0112-0607
71 HOSE; FLEX,RWD RR
REAR AXLE MERITOR RT40-145P<BFM> L=630 		0-57909-630-0 02 1 0608-
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 03 1 0002-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0310-0602
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0603-
134 CONNECTOR
(A) 		1-09660-741-0 04 1 9905-0004
134 CONNECTOR
(A) 		1-09660-741-0 01 1 0005-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905-0004
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0005-0104
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-0309
134 CONNECTOR
(C) PT3/8 		1-09664-210-0 04 1 9905-0004
134 CONNECTOR
(C) NPTF3/8 & RC3/8 		1-09660-548-0 07 1 0005-
134 CONNECTOR
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 02 1 9905-0602
134 CONNECTOR
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0603-
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0105-0602
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0603-
190 UNION; 3 WAY 1-09660-697-1 02 1 9905-0301
190 UNION; 3 WAY 1-09660-697-1 01 1 0302-0602
190 UNION; 3 WAY 1-09660-697-1 01 1 0603-
325 UNION; 2WAY
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 9905-0301
325 UNION; 2WAY
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0302-0602
325 UNION; 2WAY
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0603-
325 UNION; 2WAY
(B) 		1-09660-547-0 02 1 9905-0001
325 UNION; 2WAY
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0002-0301
325 UNION; 2WAY
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0302-0602
325 UNION; 2WAY
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0603-
325 UNION; 2WAY
(C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0603-

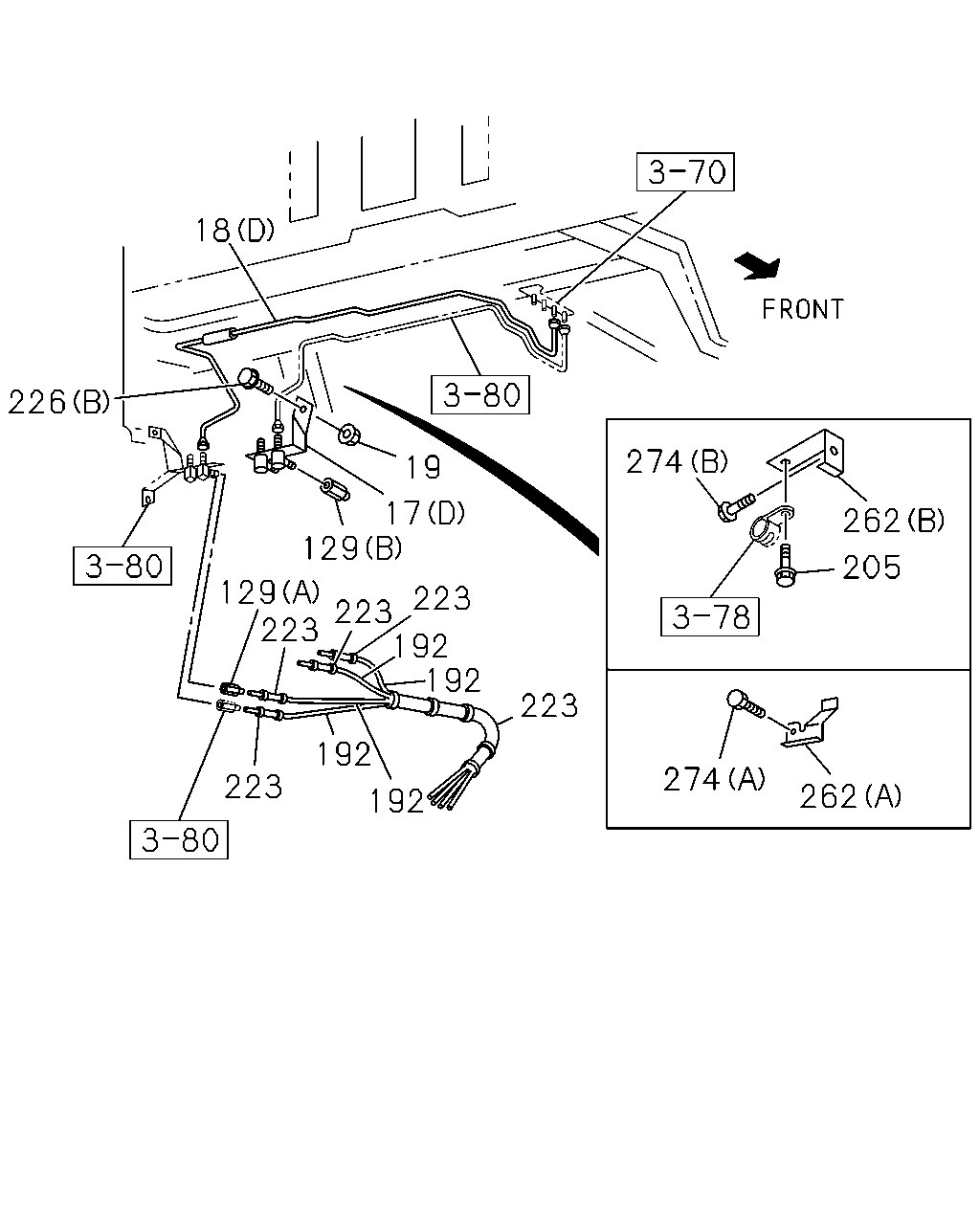

çizim 38659
18 226 274 19 17 129 262 205 129 223 223 192 192 223 223 192 274 223 262 192
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-47470-453-2 01 1 9905-0111
17 UNION; AIR PIPE
(A) 		1-47470-668-0 01 1 0112-0301
17 UNION; AIR PIPE
(E) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0302-
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0302-1008
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1009-
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0302-1008
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1009-
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0302-
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 9905-0301
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1937 		1-49122-060-1 01 1 0302-
18 PIPE; AIR,UNION TO UNION
(B) L=1854 		1-49121-053-0 01 1 9905-0111
18 PIPE; AIR,UNION TO UNION
(C) L=1982 		1-49121-055-1 01 1 9905-0301
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1845 		1-49122-059-1 01 1 0302-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 9905-0512
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9905-0007
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 08 1 0008-0009
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0010-0111
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0302-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 04 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0302-0309
129 CONNECTOR; NYLON TUBE
(D) 		1-09661-083-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) 		1-09661-083-0 01 1 0107-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9905-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9905-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603-
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-0512
226 BOLT; UNION
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0301
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-0904
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
262 BRACKET
(B) 		1-79996-143-0 01 1 9905-
262 BRACKET
(A) 		1-79996-144-0 01 1 9905-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0512
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9905-0102
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0103-

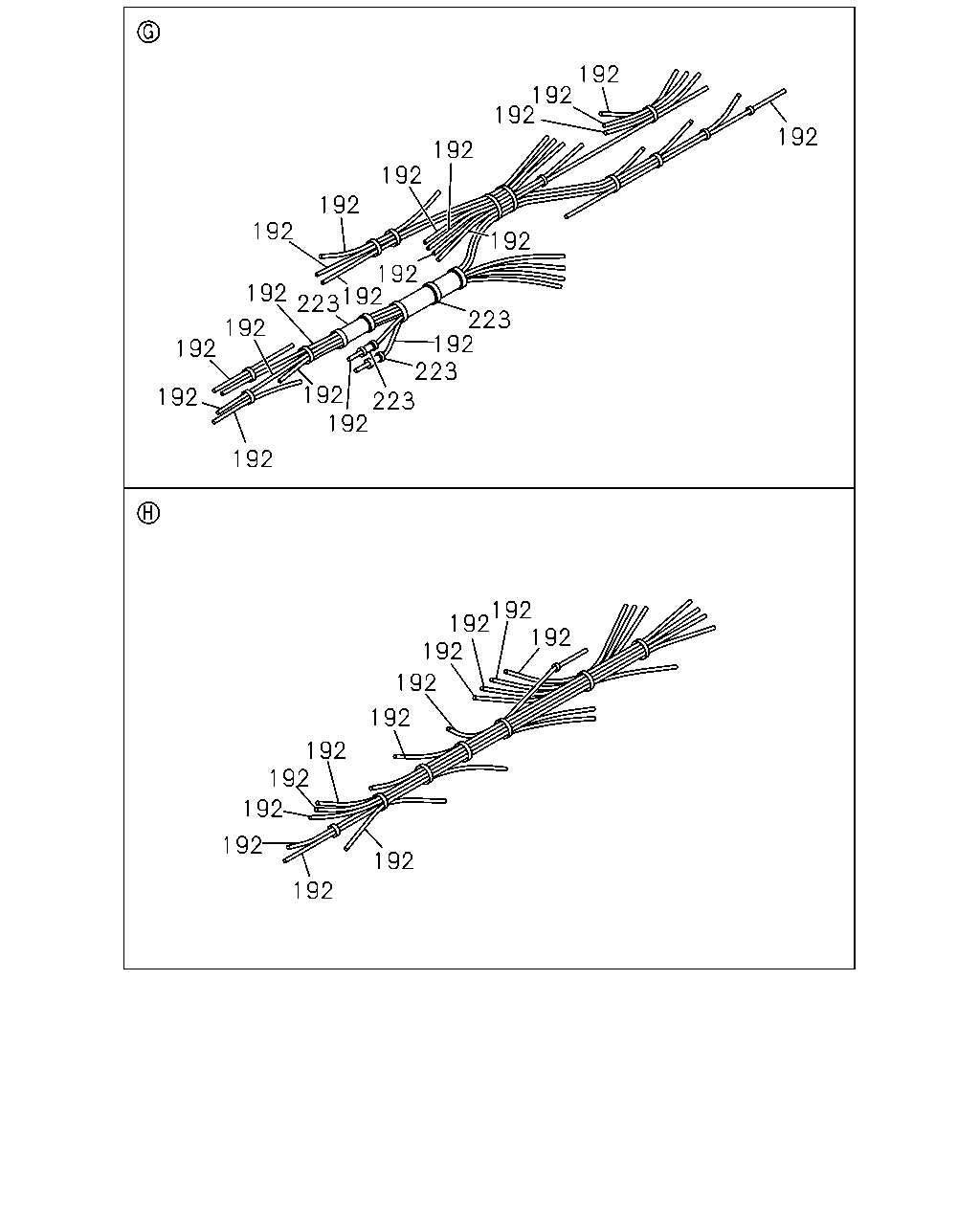

çizim 99778
192 192 192 192 192 192 192 192 192 192 192 192 223 223 192 223 192 192 192 223 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9905-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9905-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603-

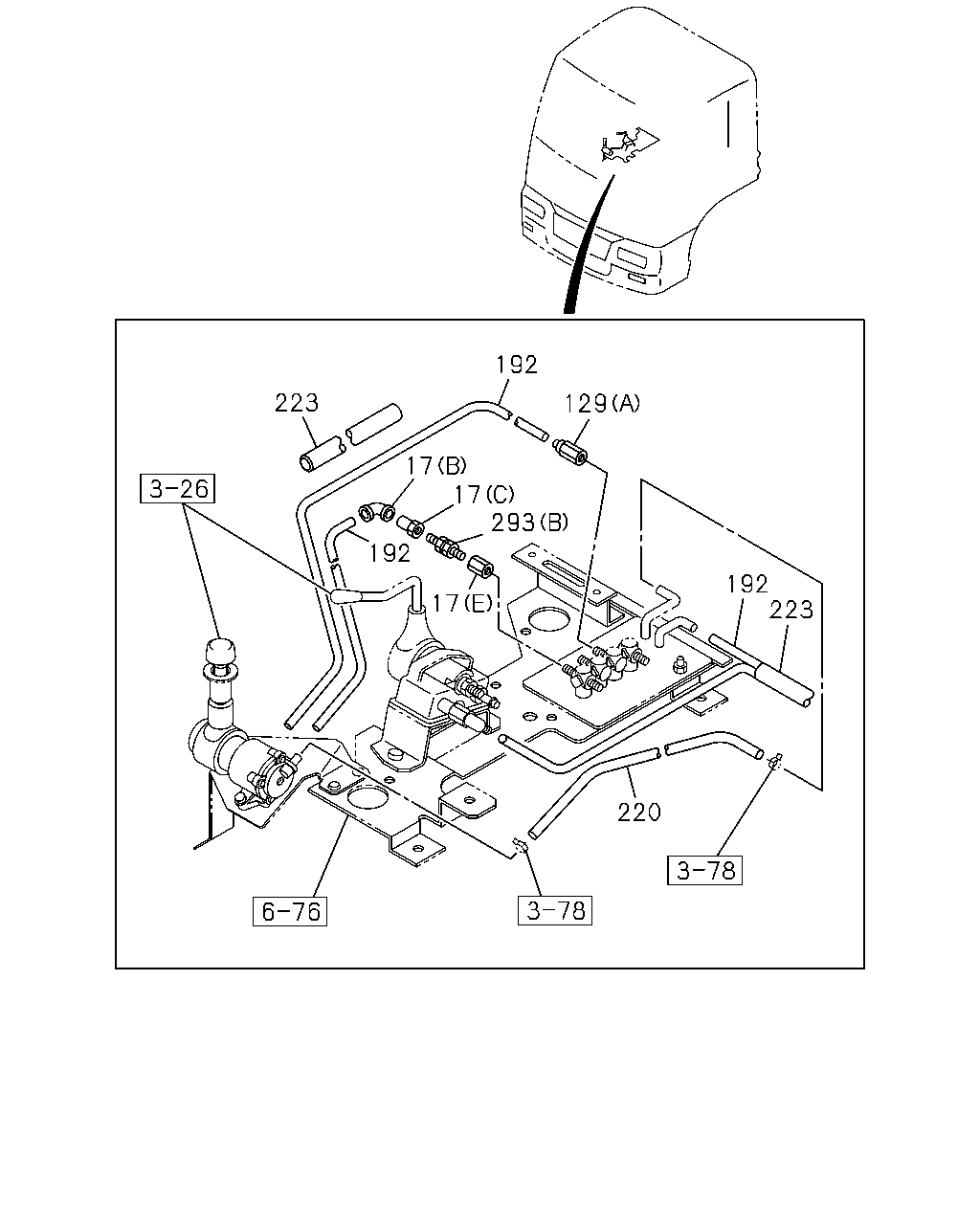

çizim 99782
192 223 129 17 17 293 192 192 223 17 220
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-47470-453-2 01 1 9905-0111
17 UNION; AIR PIPE
(A) 		1-47470-668-0 01 1 0112-0301
17 UNION; AIR PIPE
(E) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0302-
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0302-1008
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1009-
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0302-1008
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1009-
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0302-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 9905-0007
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 08 1 0008-0009
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0010-0111
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9905-9911
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0009
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0010-0104
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0302-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 04 1 9912-0007
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007
129 CONNECTOR; NYLON TUBE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-0301
129 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0302-0309
129 CONNECTOR; NYLON TUBE
(D) 		1-09661-083-0 01 1 0105-0106
129 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) 		1-09661-083-0 01 1 0107-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9905-0302
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9905-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0303-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 9905-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-0301
220 HOSE; VINYL,EXH,PARKING BRK VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-0301
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0302-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9905-0302
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9905-0602
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9905-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0303-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0603-
293 VALVE; CHECK
(A) 		1-48320-013-2 01 1 0310-
293 VALVE; CHECK
(A) 		1-48320-013-1 01 1 9905-0309
293 VALVE; CHECK
(B) 		1-48410-479-1 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
