◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11398 - FSR(LHD)EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#61320) — 23 parça

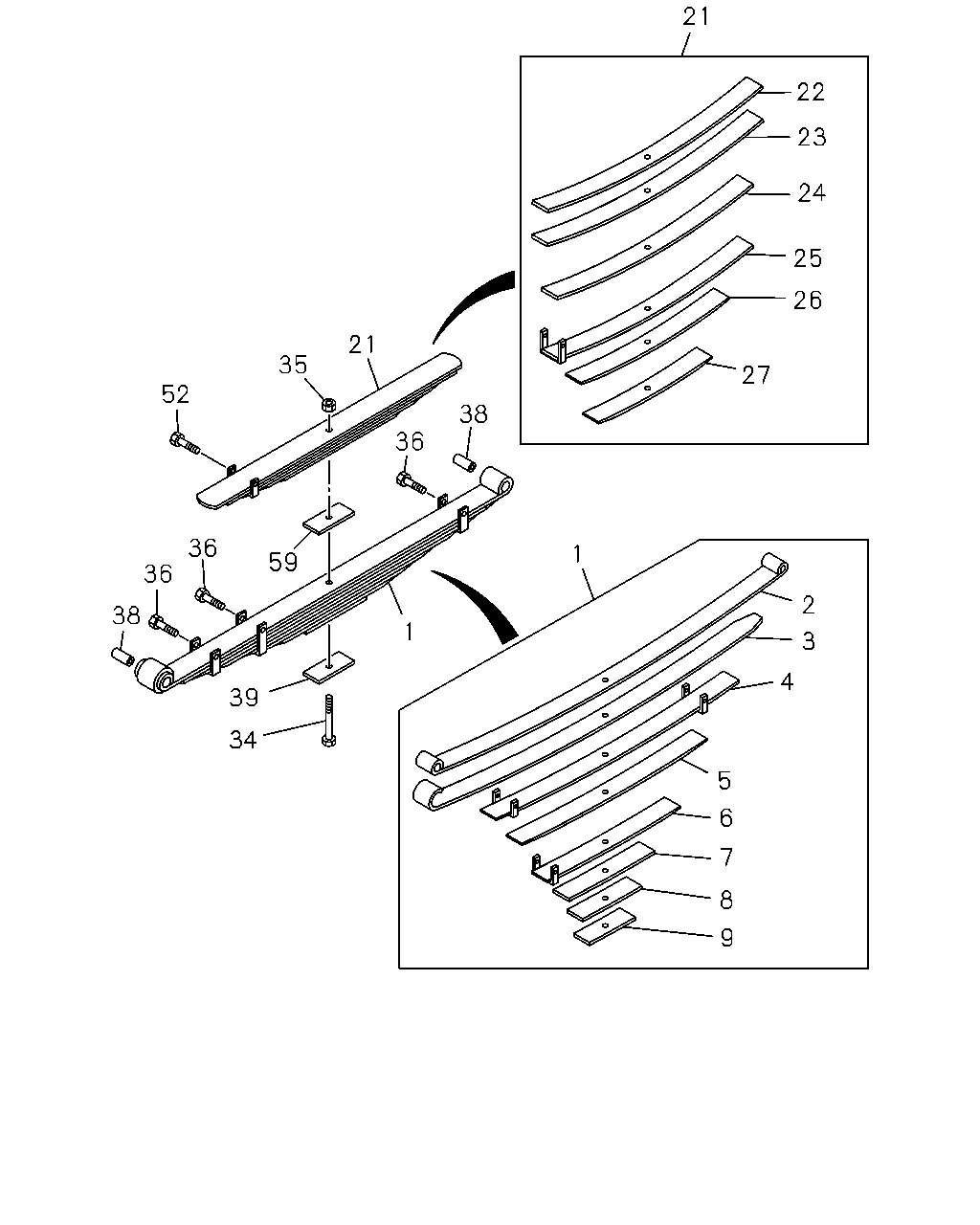

çizim 150242
21 22 23 24 25 26 21 35 27 52 38 36 36 1 59 36 2 38 1 3 4 39 34 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98110-698-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-307-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-308-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98110-697-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-310-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-311-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-312-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-313-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98017-563-1 		8-98031-314-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-315-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-316-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-317-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-318-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-319-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-320-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98017-563-1 		8-98031-321-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: A = 8-98017-563-1 		1-51356-346-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98017-563-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: A = 8-98017-563-1 		1-09000-335-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 8-98017-563-1 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=6 ASM PART: A = 8-98017-563-1 		8-94367-965-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: A = 8-98017-563-1 		1-09000-335-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 8-98017-563-1 		8-94367-965-0 01 1 -
