4-50 — FRONT SUSPENSION (#61317) — 29 parça

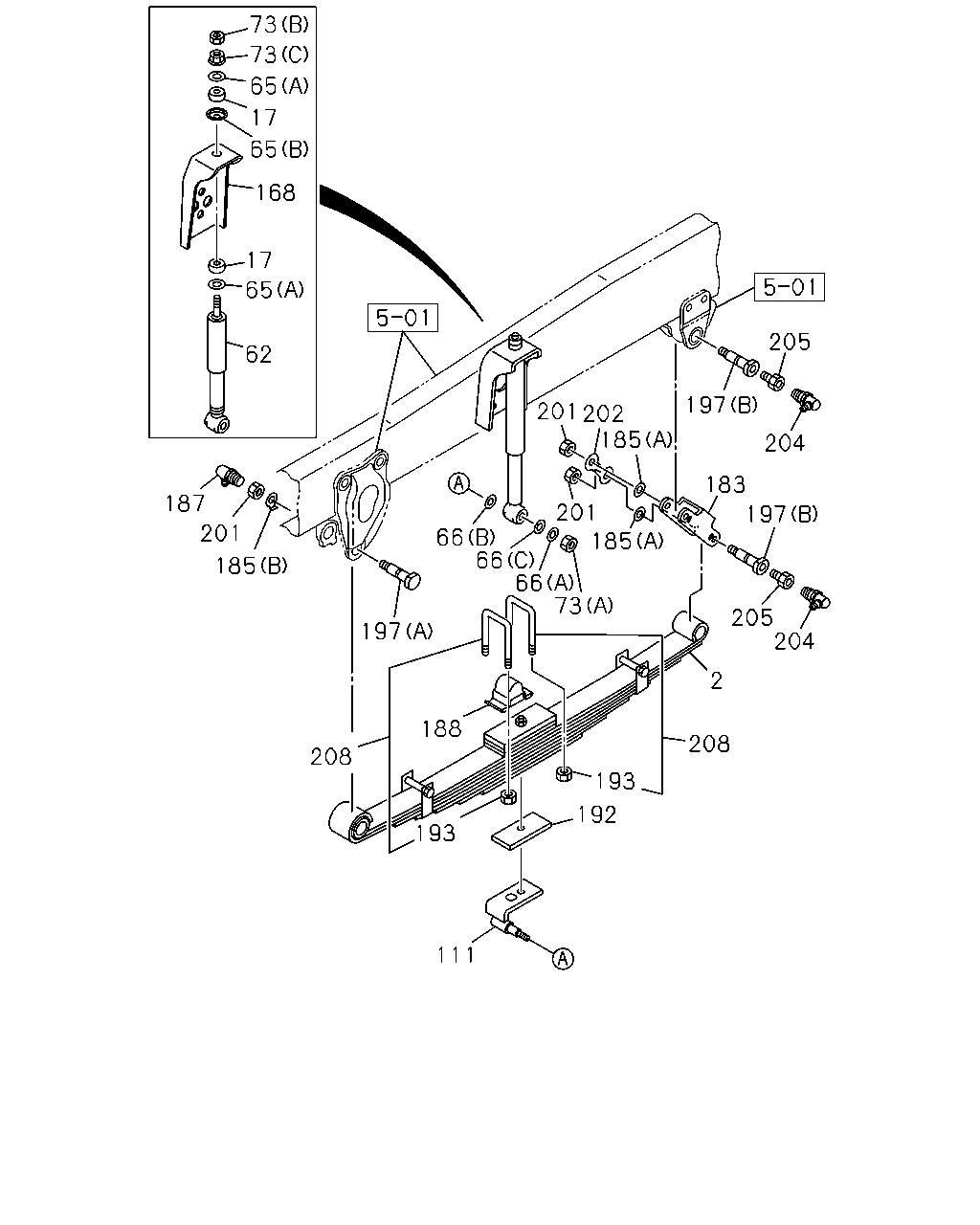

çizim 150229
73 73 17 65 168 17 65 205 62 197 201 202 185 204 183 187 201 197 201 66 66 66 73 185 185 205 204 197 2 188 208 208 193 192 193 111 65
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-559-0 01 1 1110-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-558-0 01 1 1110-
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1110-
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1110-
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1110-
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1110-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1110-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1110-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1110-
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1110-
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1110-
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1110-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 1110-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 1110-
168 BRACKET; S/ABS,FRT SUSP 1-51681-494-0 02 1 1110-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1110-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1110-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1110-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1110-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1110-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1110-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1110-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1110-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1110-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1110-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1110-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 04 1 1110-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1110-
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 1110-
