Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-35 - POWER STEERING CONTROL; CHASSIS SIDE
▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#61313) — 38 parça
◀

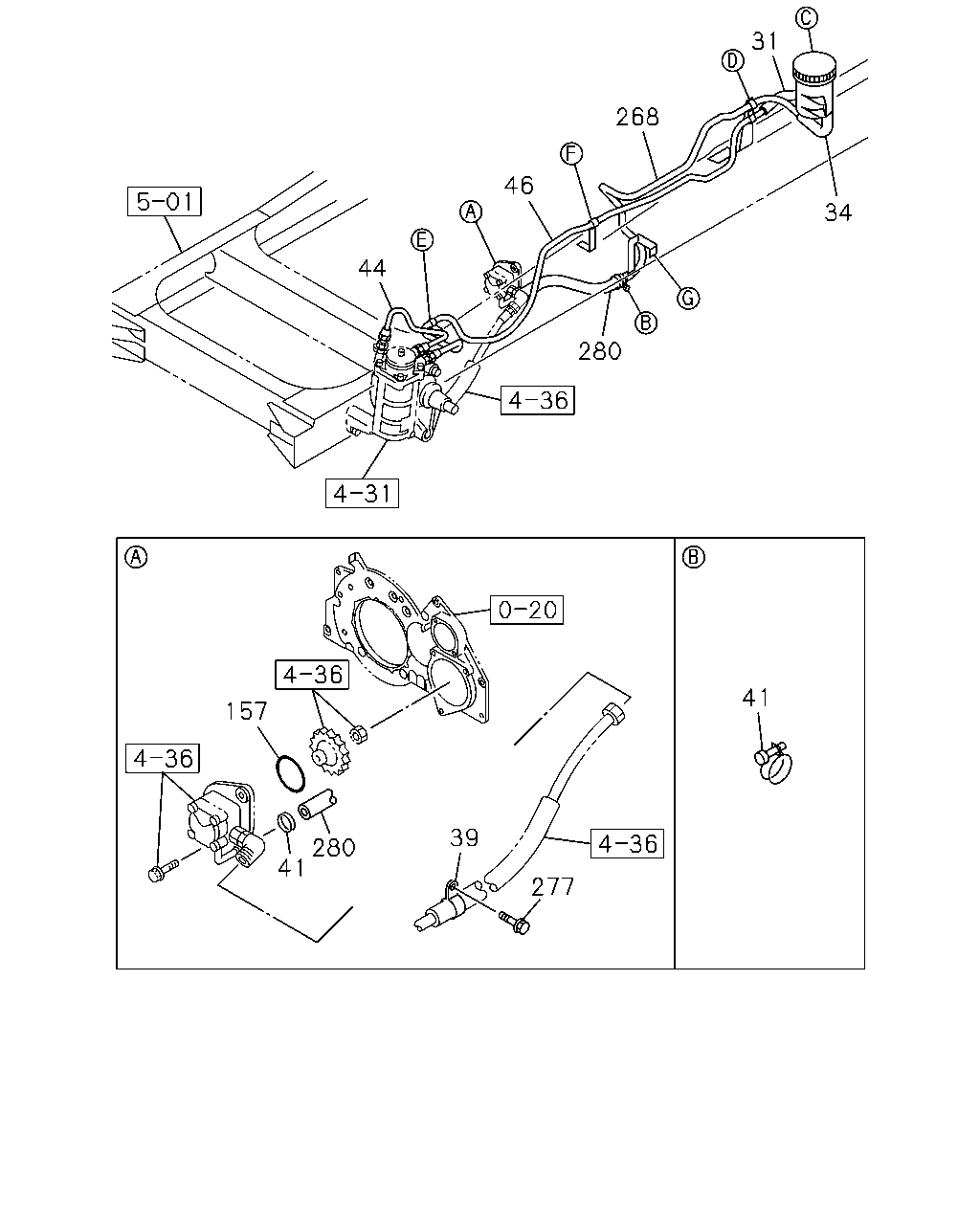

[435A] NO.2 (28 parça)

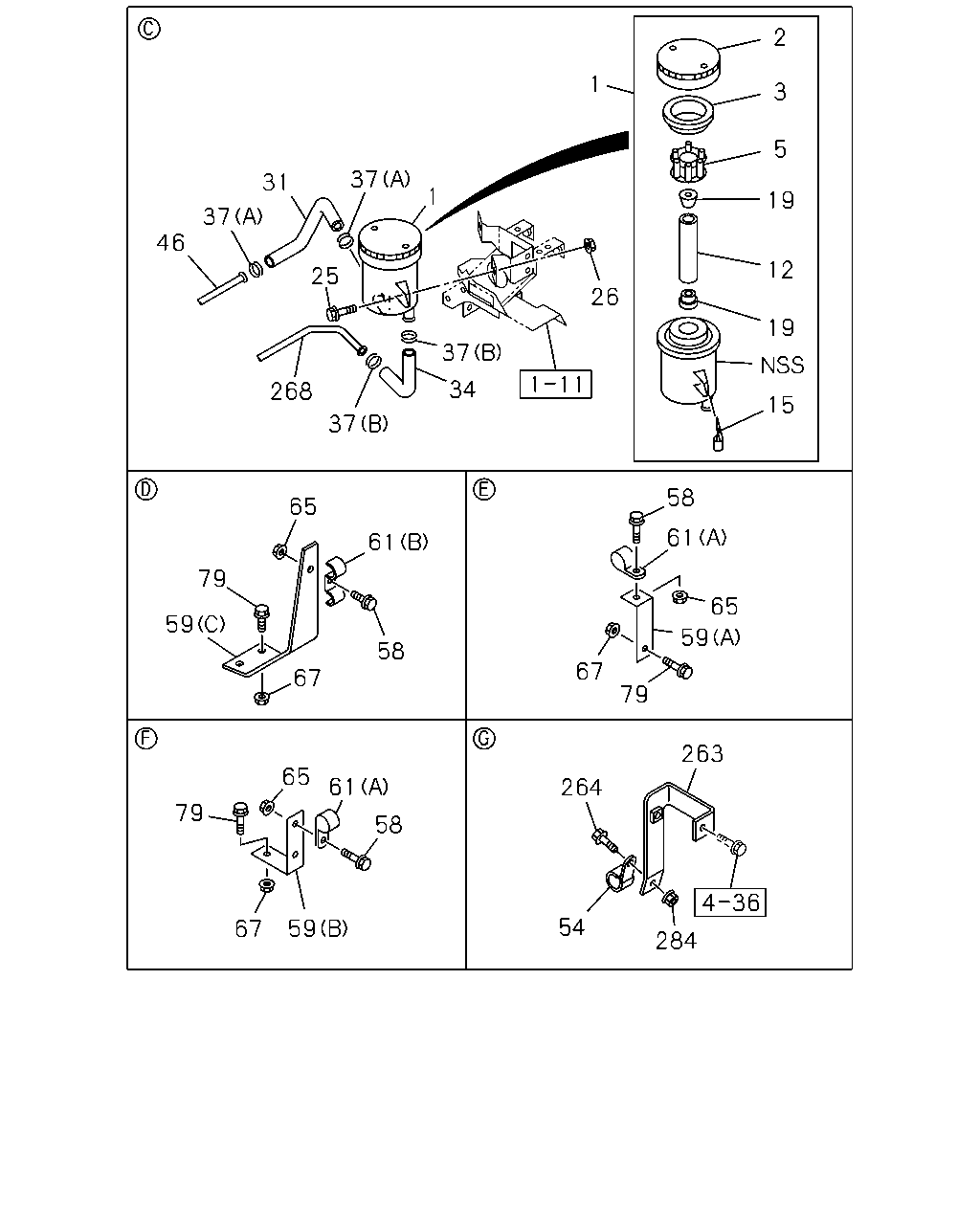

[435A] NO.1 (10 parça)
▶
2
1
3
5
37
31
1
19
37
46
12
25
26
19
37
34
268
15
37
58
65
61
61
79
65
59
59
58
67
67
79
263
65
61
264
79
58
54
59
67
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
8-98166-928-0
01
1
1110-
2
CAP; OIL TANK,P/S
8-98166-876-0
01
1
1110-
3
GASKET; OIL TANK,P/S
1-21249-003-1
01
1
1110-
5
STRAINER; OIL TANK,P/S
1-21235-007-1
01
1
1110-
12
FILTER; MICROBON,OIL TANK,P/S
1-21235-011-0
01
1
1110-
15
PLATE; FILTER,OIL TANK
1-21249-016-0
02
1
1110-
19
SEAT; OIL TANK
1-21249-004-0
02
1
1110-
25
BOLT; OIL TANK BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1110-
26
NUT; OIL TANK TO BRKT
M8 FLANGE
0-91180-108-0
02
1
1110-
31
HOSE; P/S OIL TANK,INL
8-98093-500-0
01
1
1110-
34
HOSE; P/S OIL TANK,OUTLET
8-98021-827-0
01
1
1110-
37
CLIP; HOSE,P/S
(A) ID=26
1-09704-082-0
02
1
1110-
37
CLIP; HOSE,P/S
(B) ID=32
1-09704-085-0
02
1
1110-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=1806
8-98178-348-0
01
1
1110-
54
CLIP; OIL PIPE
ID=19 L=20
0-95235-836-0
01
1
1110-
58
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1110-
59
BRACKET; CLIP,OIL PIPE
(B)
1-21464-481-0
01
1
1110-
59
BRACKET; CLIP,OIL PIPE
(C)
8-98144-992-1
01
1
1110-
59
BRACKET; CLIP,OIL PIPE
(A)
8-98189-356-0
01
1
1110-
61
CLIP; OIL PIPE
(A) ID=16 L=20
0-95235-536-0
02
1
1110-
61
CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20
1-09700-806-1
01
1
1110-
65
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1110-
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1110-
79
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1110-
263
BRACKET; P/S PIPE
8-98079-444-0
01
1
1110-
264
BOLT; PIPE BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1110-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98199-731-0
01
1
1110-
284
NUT; PIPE
M8 FLANGE
0-91180-108-0
01
1
1110-
31
268
46
34
44
280
41
157
39
280
41
277
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
HOSE; P/S OIL TANK,INL
8-98093-500-0
01
1
1110-
34
HOSE; P/S OIL TANK,OUTLET
8-98021-827-0
01
1
1110-
39
CLIP; FLEX HOSE
ID=40
8-94226-553-0
01
1
1110-
41
CLIP; HOSE,P/S
ID=32
1-09704-085-0
02
1
1110-
44
PIPE; OIL,P/S UNIT TO NIPPLE
8-98112-952-0
01
1
1110-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=1806
8-98178-348-0
01
1
1110-
157
GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4
1-09623-467-0
01
1
1110-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98199-731-0
01
1
1110-
277
BOLT; HOSE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1110-
280
HOSE; P/S OIL PUMP,INL
8-98094-167-0
01
1
1110-
