◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#6131) — 419 parça

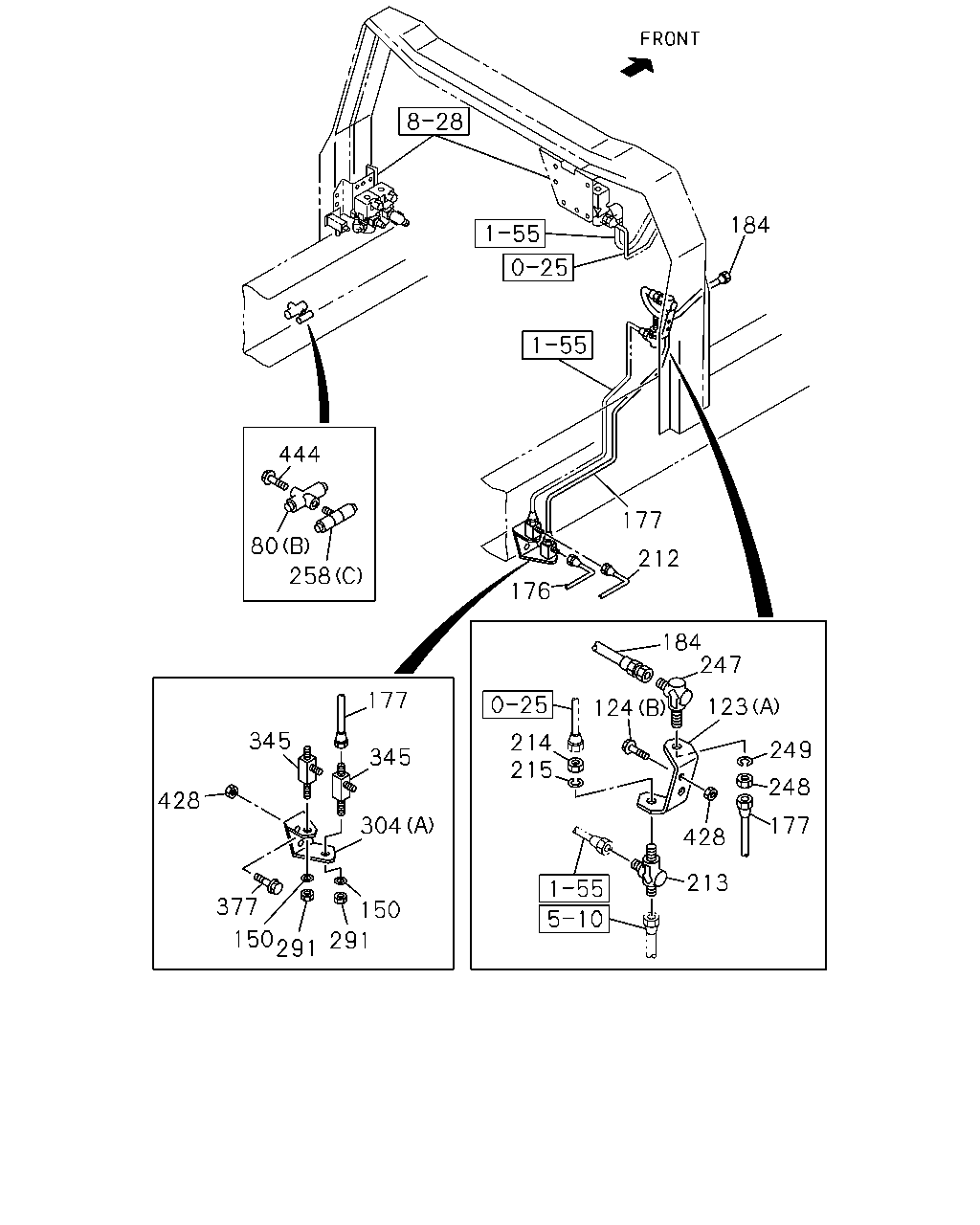

çizim 37527
184 444 177 80 212 258 176 184 247 177 123 124 345 214 215 249 345 248 428 304 177 428 213 377 150 150 291 291
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9905-
80 UNION; 3 WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 02 1 9905-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
123 BRACKET; UNION
(B) 		1-47477-536-0 01 1 9905-0104
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (C) 		1-53458-741-2 01 1 9905-
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0104
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0301
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-833-0 01 1 9905-0103
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-068-0 01 1 0104-
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 9905-0004
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 0005-0103
177 PIPE; AIR,UNION TO UNION 1-49123-070-0 01 1 0104-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0302-
212 PIPE; AIR,UNION TO UNION
L=1552 SERVICED BY L=1620 		1-47428-820-0 01 1 9905-0103
212 PIPE; AIR,UNION TO UNION
L=1544 SERVICED BY L=1620 		1-47428-820-0 01 1 0104-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 9905-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 9905-0607
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9905-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9905-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 9905-0301
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0302-0607
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9905-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9905-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 9905-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 02 1 9905-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
291 NUT; UNION
M12 		9-09840-280-0 02 1 9905-0206
291 NUT; UNION
M12 		9-99111-412-0 02 1 0207-0512
291 NUT; UNION
M12 		0-91111-512-0 02 1 0601-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
304 BRACKET; UNION
(B) 		1-47477-405-0 01 1 9905-0104
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 9905-
345 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 02 1 9905-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 9905-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-

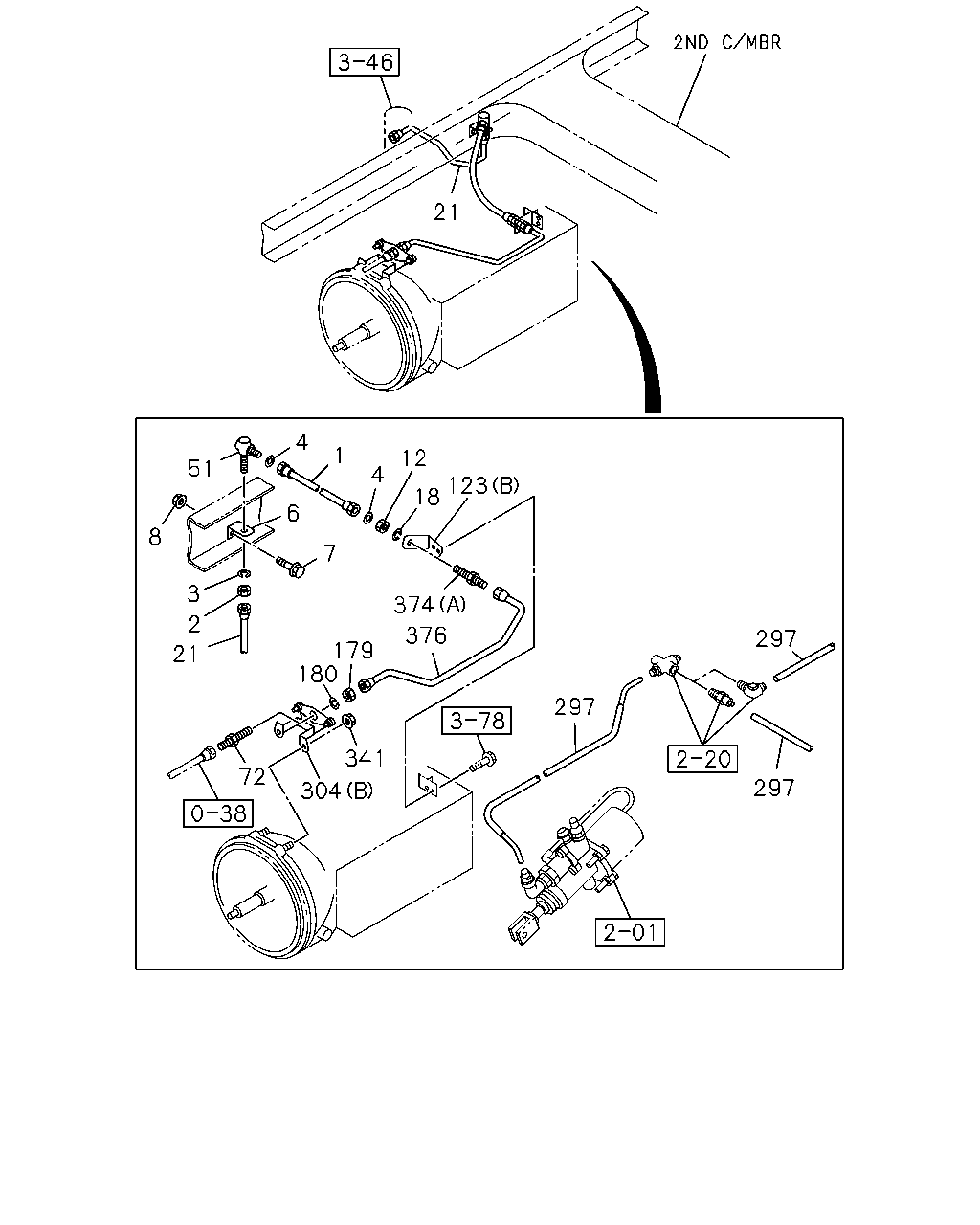

çizim 37547
21 4 1 12 51 4 123 18 6 8 7 3 374 2 376 297 179 180 21 297 341 72 297 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 0-07846-330-1 01 1 9905-0104
1 HOSE; FLEX,AIR TANK
L=1050 		1-09363-789-0 01 1 0105-0110
1 HOSE; FLEX,AIR TANK 1-09363-810-0 01 1 0111-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9905-0104
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9905-0104
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9905-0104
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-075-0 01 1 9905-9907
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-674-0 01 1 9908-0104
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9905-0104
12 NUT; UNION
M20 		9-99111-420-0 01 1 9905-0104
18 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 9905-0104
21 PIPE; AIR,UNION TO AIR DRYER 1-49121-338-0 01 1 9905-0104
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-346-0 01 1 0111-0111
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-346-0 01 1 0112-0301
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0302-0602
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0603-
51 UNION
AIR DRYER<PS7> 		1-48320-028-1 01 1 9905-0104
51 UNION
EXC. AIR DRYER<PS7> 		1-09654-202-1 01 1 9905-0104
72 UNION; AIR PIPE
M22 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 9905-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
123 BRACKET; UNION
(B) 		1-47477-536-0 01 1 9905-0104
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (C) 		1-53458-741-2 01 1 9905-
179 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
179 NUT; UNION
M22 		9-09111-422-0 01 1 9905-0512
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0603-0603
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0604-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9905-0602
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
304 BRACKET; UNION
(B) 		1-47477-405-0 01 1 9905-0104
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 9905-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0104
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0005
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0310
374 CONNECTOR
(A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9905-9905
374 CONNECTOR
(A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9906-0104
376 PIPE; AIR,FLEX HOSE 1-49117-491-0 01 1 9905-0104

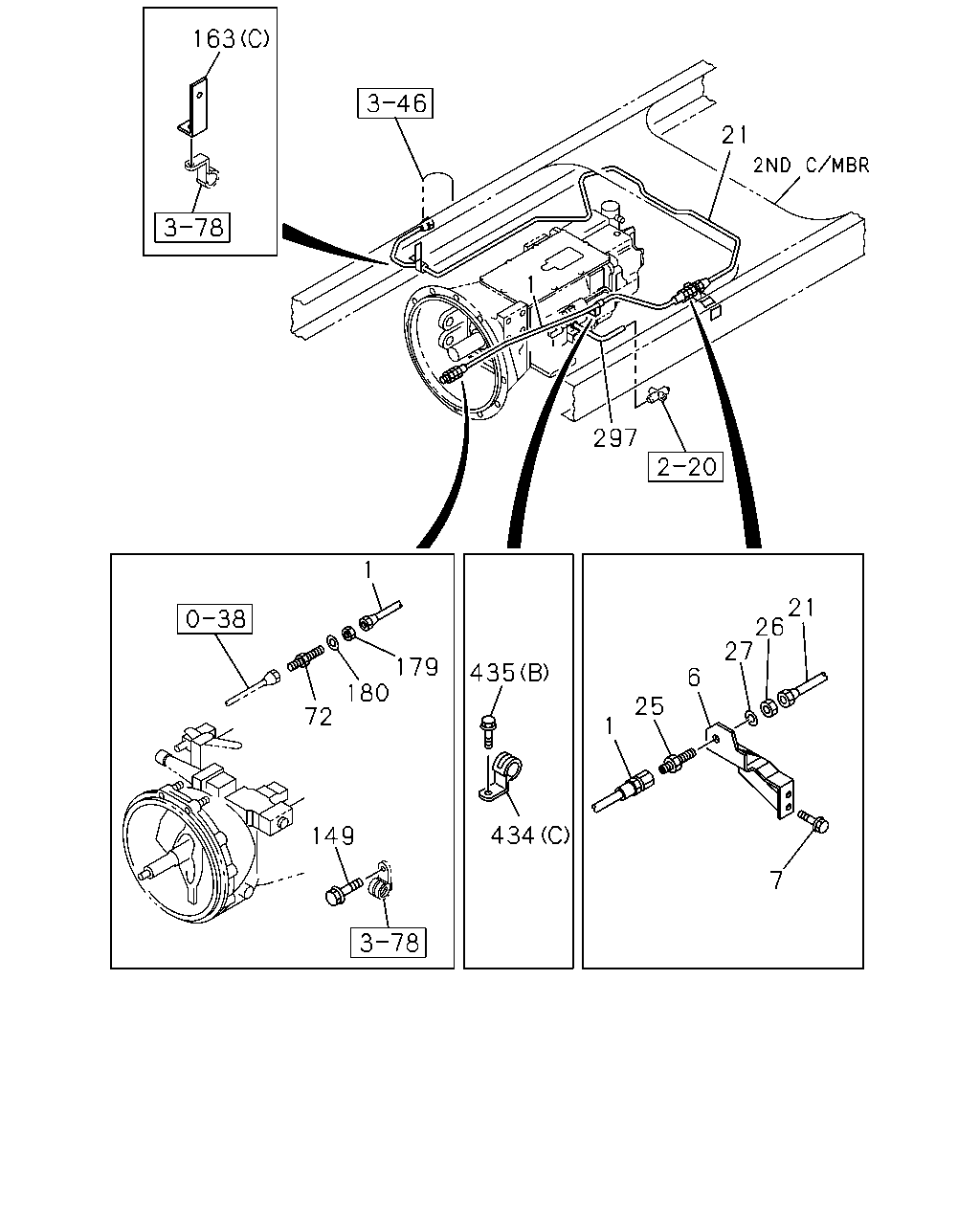

çizim 37593
163 21 1 297 1 21 26 27 179 180 435 6 25 72 1 434 149 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 0-07846-330-1 01 1 9905-0104
1 HOSE; FLEX,AIR TANK
L=1050 		1-09363-789-0 01 1 0105-0110
1 HOSE; FLEX,AIR TANK 1-09363-810-0 01 1 0111-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-075-0 01 1 9905-9907
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-674-0 01 1 9908-0104
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER 1-49121-338-0 01 1 9905-0104
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-346-0 01 1 0111-0111
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-346-0 01 1 0112-0301
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0302-0602
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0603-
25 VALVE; CHECK
AIR DRYER<PS7> 		1-48320-042-0 01 1 0105-0112
25 VALVE; CHECK 1-48320-042-1 01 1 0201-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0105-0112
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 0201-0512
26 NUT; CHECK VLV
M20 		0-91111-520-0 01 1 0601-
27 WASHER; LK,CHECK VLV
AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0105-0112
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 0201-0603
27 WASHER; LK,CHECK VLV
ID=20.2 		0-91510-520-0 01 1 0604-
72 UNION; AIR PIPE
M22 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 9905-
149 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0204-0512
149 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 9905-0104
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-34656-009-0 01 1 0105-0110
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) 		1-21119-091-0 01 1 0111-0301
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 0302-0602
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 0603-
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 9905-0104
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (B) L=50 		1-47475-299-2 01 1 0111-0301
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 0302-
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 0302-
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-47479-290-0 01 1 0111-0301
163 BRACKET; AIR PIPE
(C) 		1-47479-290-0 01 1 0302-0602
163 BRACKET; AIR PIPE
(C) 		1-47479-290-0 01 1 0603-
179 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
179 NUT; UNION
M22 		9-09111-422-0 01 1 9905-0512
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0603-0603
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0604-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9905-0602
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 9905-
434 CLIP
(B) L=250 		1-09707-126-0 02 1 0003-0204
434 CLIP
(B) L=250 		1-09707-126-0 04 1 0205-0304
434 CLIP
(B) L=350 		1-09707-183-0 04 1 0305-
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0602
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0302-0602
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0603-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0904
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-

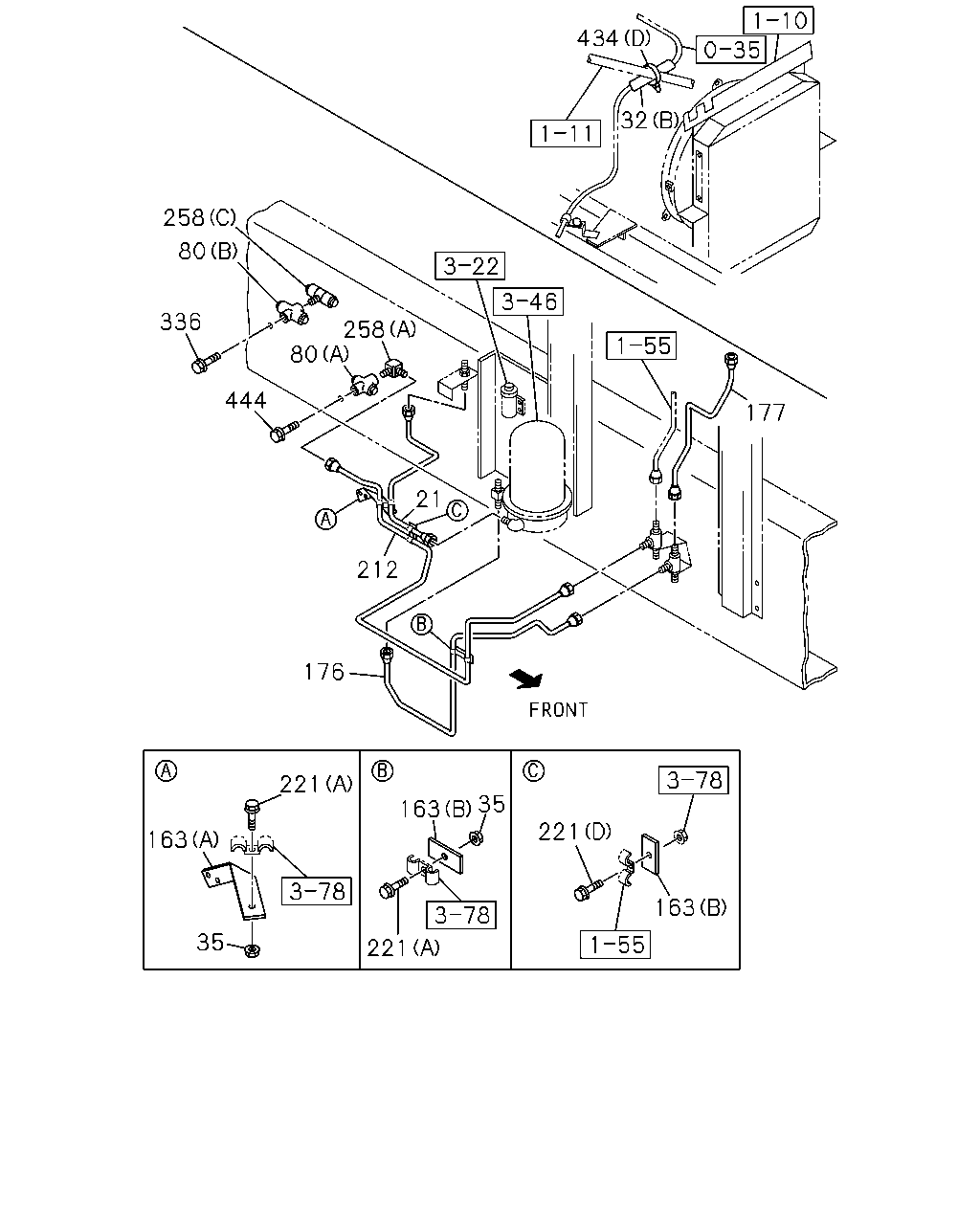

çizim 38226
434 32 258 80 258 336 80 444 177 21 212 176 221 35 163 221 163 163 35 221
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER 1-49121-338-0 01 1 9905-0104
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-346-0 01 1 0111-0111
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-346-0 01 1 0112-0301
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0302-0602
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0603-
32 SLEEVE; RUBBER,AIR PIPE
(A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 9905-0104
32 SLEEVE; RUBBER,AIR PIPE
(A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
32 SLEEVE; RUBBER,AIR PIPE
(B) ID=6 L=30 		5-09360-352-0 01 1 0302-0602
32 SLEEVE; RUBBER,AIR PIPE
(B) ID=6 L=30 		5-09360-352-0 01 1 0603-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0104
35 NUT; BRKT
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-0110
35 NUT; BRKT
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 03 1 0111-0301
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0302-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
80 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9905-
80 UNION; 3 WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 02 1 9905-
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 9905-0104
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-34656-009-0 01 1 0105-0110
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) 		1-21119-091-0 01 1 0111-0301
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 0302-0602
163 BRACKET; AIR PIPE
(A) 		1-21119-091-0 01 1 0603-
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 9905-0104
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (B) L=50 		1-47475-299-2 01 1 0111-0301
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 0302-
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 0302-
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (C) 		1-47479-290-0 01 1 0111-0301
163 BRACKET; AIR PIPE
(C) 		1-47479-290-0 01 1 0302-0602
163 BRACKET; AIR PIPE
(C) 		1-47479-290-0 01 1 0603-
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-833-0 01 1 9905-0103
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-068-0 01 1 0104-
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 9905-0004
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 0005-0103
177 PIPE; AIR,UNION TO UNION 1-49123-070-0 01 1 0104-
212 PIPE; AIR,UNION TO UNION
L=1552 SERVICED BY L=1620 		1-47428-820-0 01 1 9905-0103
212 PIPE; AIR,UNION TO UNION
L=1544 SERVICED BY L=1620 		1-47428-820-0 01 1 0104-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905-0104
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0110
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 03 1 0111-0301
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 03 1 0302-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 9905-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
258 CONNECTOR; NYLON TUBE
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 9905-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 02 1 9905-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9905-0512
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 9905-
434 CLIP
(B) L=250 		1-09707-126-0 02 1 0003-0204
434 CLIP
(B) L=250 		1-09707-126-0 04 1 0205-0304
434 CLIP
(B) L=350 		1-09707-183-0 04 1 0305-
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0602
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0302-0602
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0603-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-

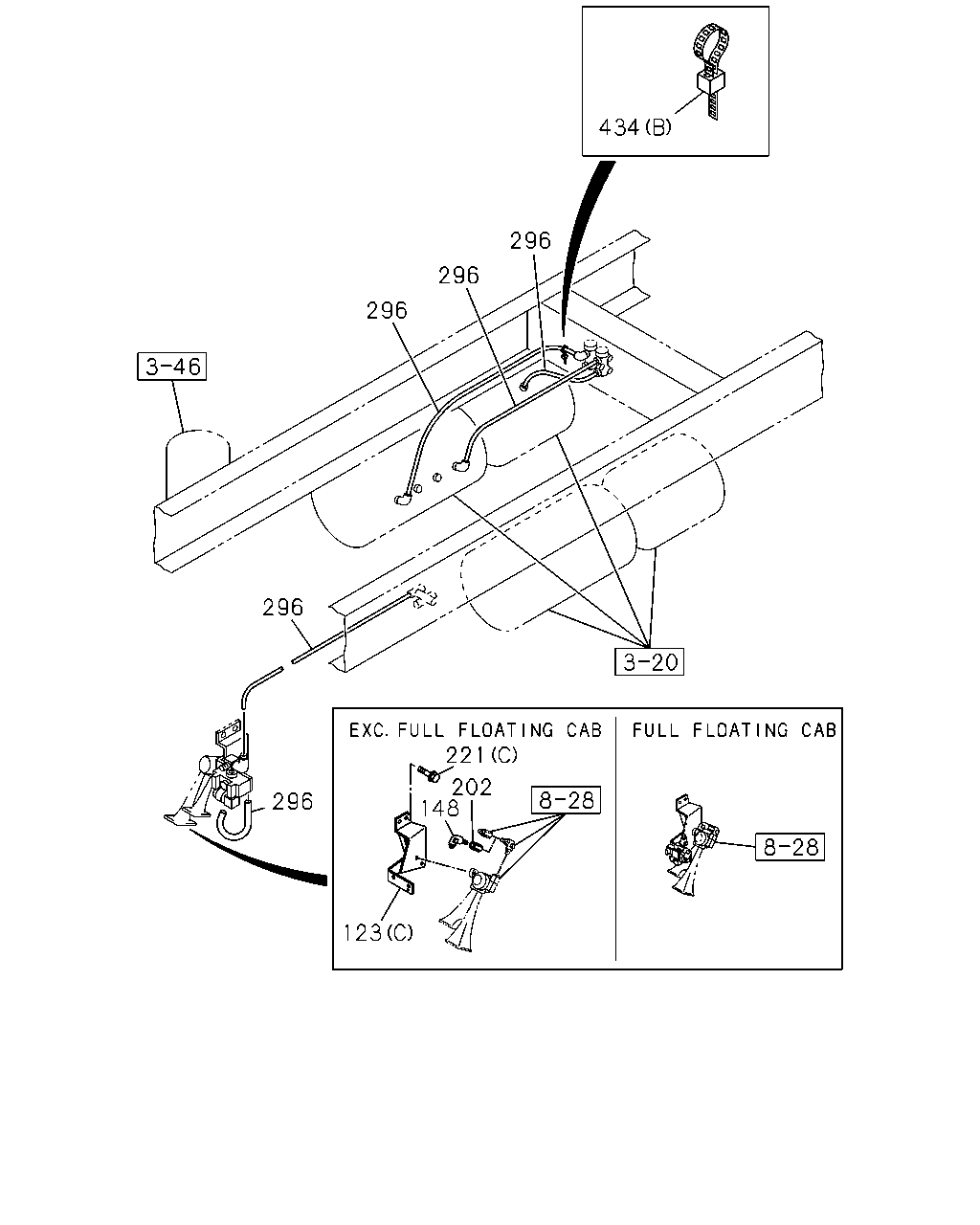

çizim 38268
434 296 296 296 296 221 202 148 296 123
BalonParca AdiParca NoAdetTipApplied Date
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
123 BRACKET; UNION
(B) 		1-47477-536-0 01 1 9905-0104
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (C) 		1-53458-741-2 01 1 9905-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0302-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0302-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905-0104
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0110
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 03 1 0111-0301
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 03 1 0302-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 9905-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0603-
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9905-0001
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 9905-
434 CLIP
(B) L=250 		1-09707-126-0 02 1 0003-0204
434 CLIP
(B) L=250 		1-09707-126-0 04 1 0205-0304
434 CLIP
(B) L=350 		1-09707-183-0 04 1 0305-
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0602
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0302-0602
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0603-

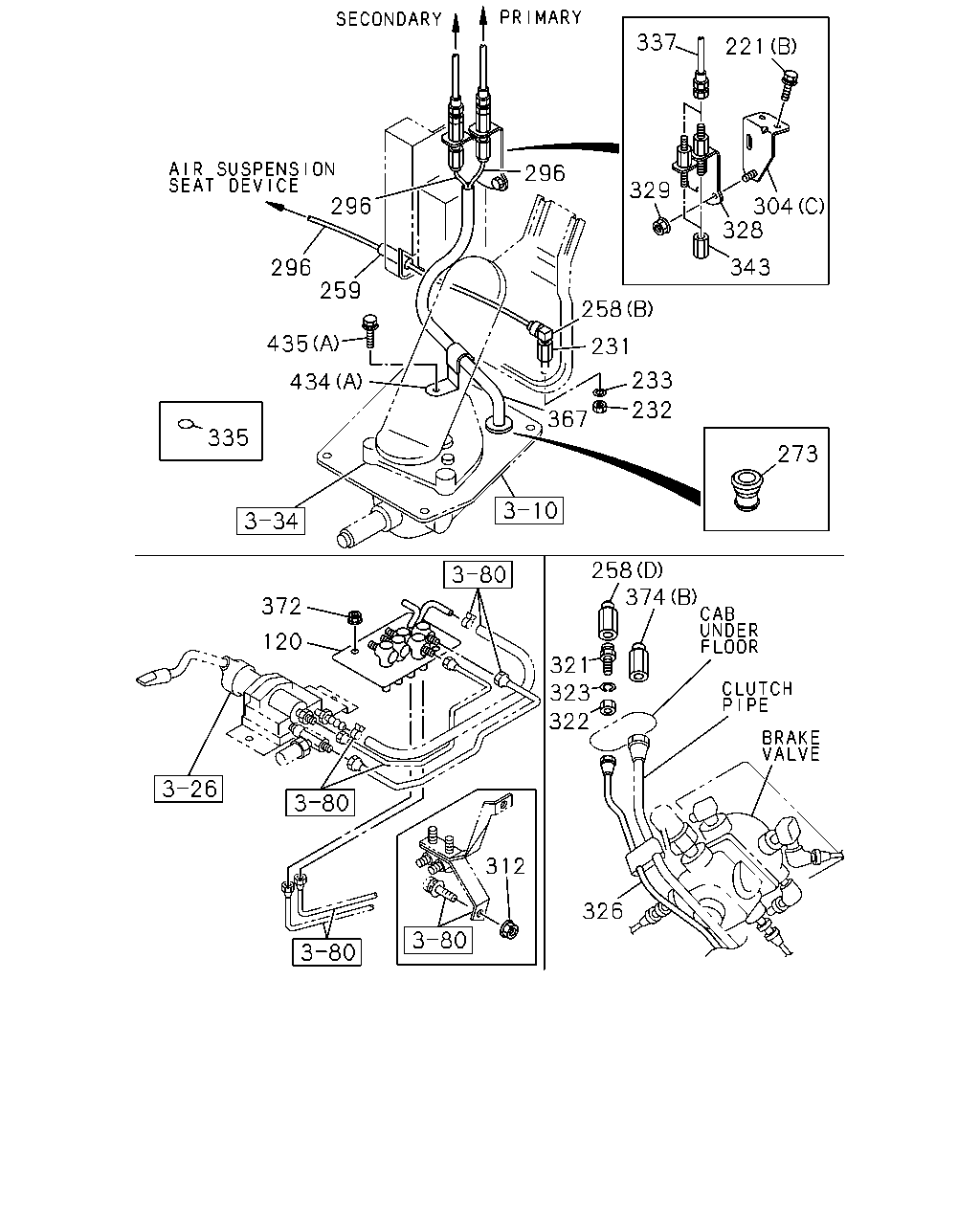

çizim 38643
337 221 296 329 296 304 328 343 296 259 258 435 231 233 434 232 367 335 273 258 374 372 120 321 323 322 312 326
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-402-3 01 1 9905-0111
120 CONNECTOR; AIR PIPE 1-47470-667-0 01 1 0112-0301
120 CONNECTOR; AIR PIPE 1-47470-677-0 01 1 0302-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905-0104
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0110
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 03 1 0111-0301
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 03 1 0302-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
221 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 9905-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
231 UNION; AIR PIPE 1-09656-713-2 01 1 9905-0104
231 UNION; AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0105-0301
231 UNION; AIR PIPE 1-09656-713-2 01 1 0302-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 9905-0104
232 NUT; UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0105-0301
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0302-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 9905-0104
233 WASHER; LK,UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0301
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0302-0603
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 9905-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 02 1 9905-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
259 SLEEVE; RUBBER,NYLON TUBE
OD=16.8 L=50 		1-09369-010-0 02 1 9905-0104
273 GROMMET 1-09332-135-0 01 1 9905-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0603-
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9905-0001
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9905-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
304 BRACKET; UNION
(B) 		1-47477-405-0 01 1 9905-0104
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 9905-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0302-0512
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601-
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 9905-0104
321 JOINT; FLEX HOSE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-738-0 01 1 0105-0301
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9905-0104
322 NUT; JOINT,FLEX HOSE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0105-0301
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0302-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9905-0104
323 WASHER; LK,JOINT
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0301
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0302-0603
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-
326 PIPE; AIR,FLEX HOSE
L=529 		1-47494-216-3 01 1 9905-0104
326 PIPE; AIR,FLEX HOSE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529 		1-47494-216-3 01 1 0105-0301
326 PIPE; AIR,FLEX HOSE
L=529 		1-47494-216-3 01 1 0302-
328 UNION; AIR PIPE 1-47470-442-0 01 1 9905-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 9905-0602
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
335 SEAL; UNION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-0301
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 9905-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 9905-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9905-0202
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0301
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0302-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0005
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0310
374 CONNECTOR
(A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9905-9905
374 CONNECTOR
(A) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9906-0104
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 9905-
434 CLIP
(B) L=250 		1-09707-126-0 02 1 0003-0204
434 CLIP
(B) L=250 		1-09707-126-0 04 1 0205-0304
434 CLIP
(B) L=350 		1-09707-183-0 04 1 0305-
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-0602
434 CLIP
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0302-0602
434 CLIP
(D) L=140 		5-09707-031-1 01 1 0603-
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0904
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-

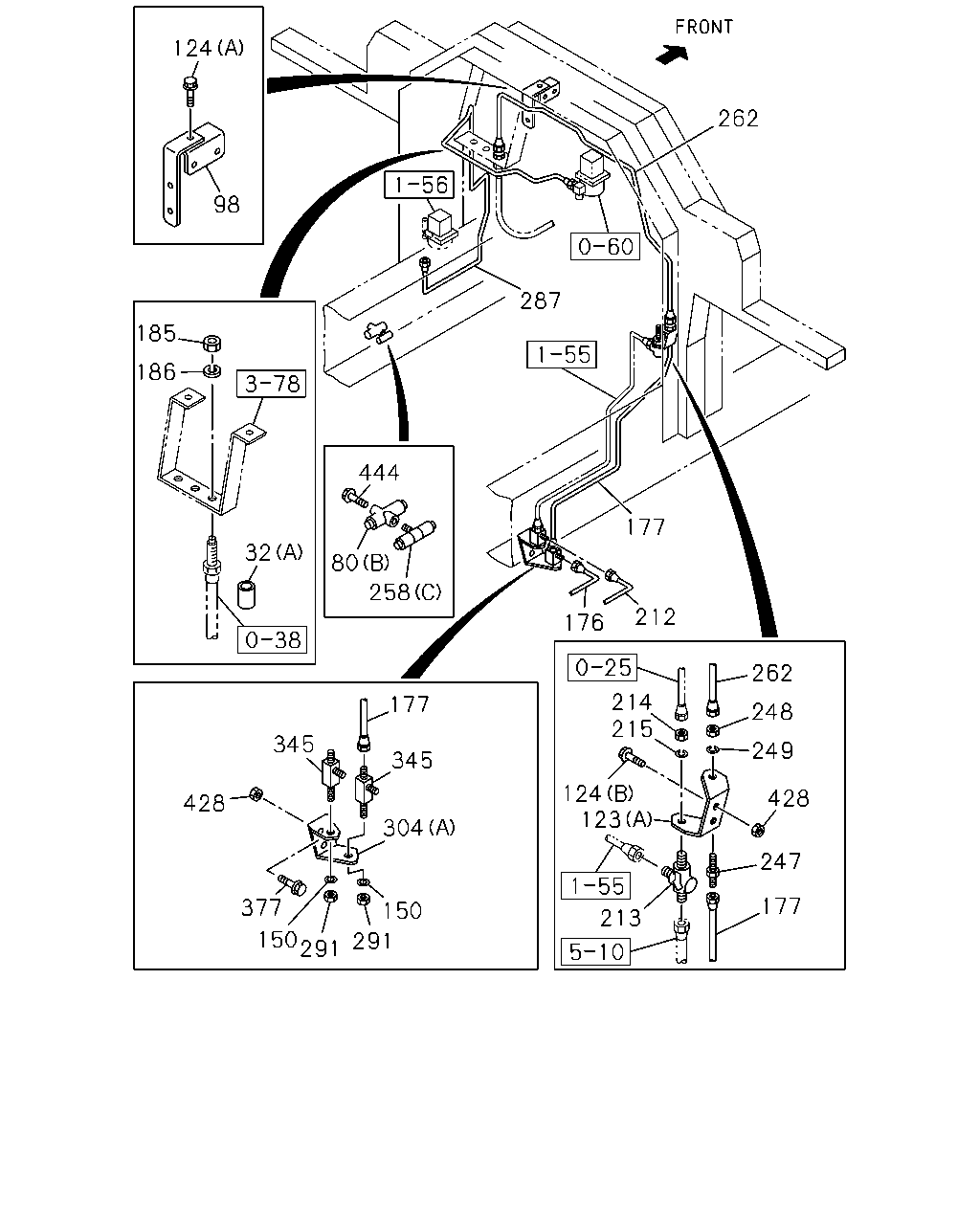

çizim 99777
124 262 98 287 185 186 444 177 32 80 258 212 176 262 214 21 177 248 345 249 345 124 123 428 428 304 247 177 377 150 213 150 291 291
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER 1-49121-338-0 01 1 9905-0104
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-346-0 01 1 0111-0111
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-346-0 01 1 0112-0301
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0302-0602
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-346-0 01 1 0603-
32 SLEEVE; RUBBER,AIR PIPE
(A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 9905-0104
32 SLEEVE; RUBBER,AIR PIPE
(A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
32 SLEEVE; RUBBER,AIR PIPE
(B) ID=6 L=30 		5-09360-352-0 01 1 0302-0602
32 SLEEVE; RUBBER,AIR PIPE
(B) ID=6 L=30 		5-09360-352-0 01 1 0603-
80 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9905-
80 UNION; 3 WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 02 1 9905-
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 9905-0301
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
123 BRACKET; UNION
(B) 		1-47477-536-0 01 1 9905-0104
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (C) 		1-53458-741-2 01 1 9905-
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0104
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0301
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-833-0 01 1 9905-0103
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-068-0 01 1 0104-
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 9905-0004
177 PIPE; AIR,UNION TO UNION
L=570 SERVICED BY L=600 		1-47428-809-0 01 1 0005-0103
177 PIPE; AIR,UNION TO UNION 1-49123-070-0 01 1 0104-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9905-0301
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9905-0301
212 PIPE; AIR,UNION TO UNION
L=1552 SERVICED BY L=1620 		1-47428-820-0 01 1 9905-0103
212 PIPE; AIR,UNION TO UNION
L=1544 SERVICED BY L=1620 		1-47428-820-0 01 1 0104-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 9905-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 9905-0607
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9905-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 9905-0301
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0302-0607
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9905-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9905-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 9905-
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0302-0302
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 02 1 9905-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0104
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
262 PIPE; AIR,UNION TO FLEX 1-49121-783-0 01 1 9905-0301
287 PIPE; AIR,MAG VLV 1-49121-786-0 01 1 9905-9910
287 PIPE; AIR,MAG VLV 1-49122-365-0 01 1 9911-0202
287 PIPE; AIR,MAG VLV
L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-0301
291 NUT; UNION
M12 		9-09840-280-0 02 1 9905-0206
291 NUT; UNION
M12 		9-99111-412-0 02 1 0207-0512
291 NUT; UNION
M12 		0-91111-512-0 02 1 0601-
304 BRACKET; UNION
(A) 		1-47477-045-0 01 1 9905-
304 BRACKET; UNION
(B) 		1-47477-405-0 01 1 9905-0104
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 9905-
345 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 02 1 9905-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 9905-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9905-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
