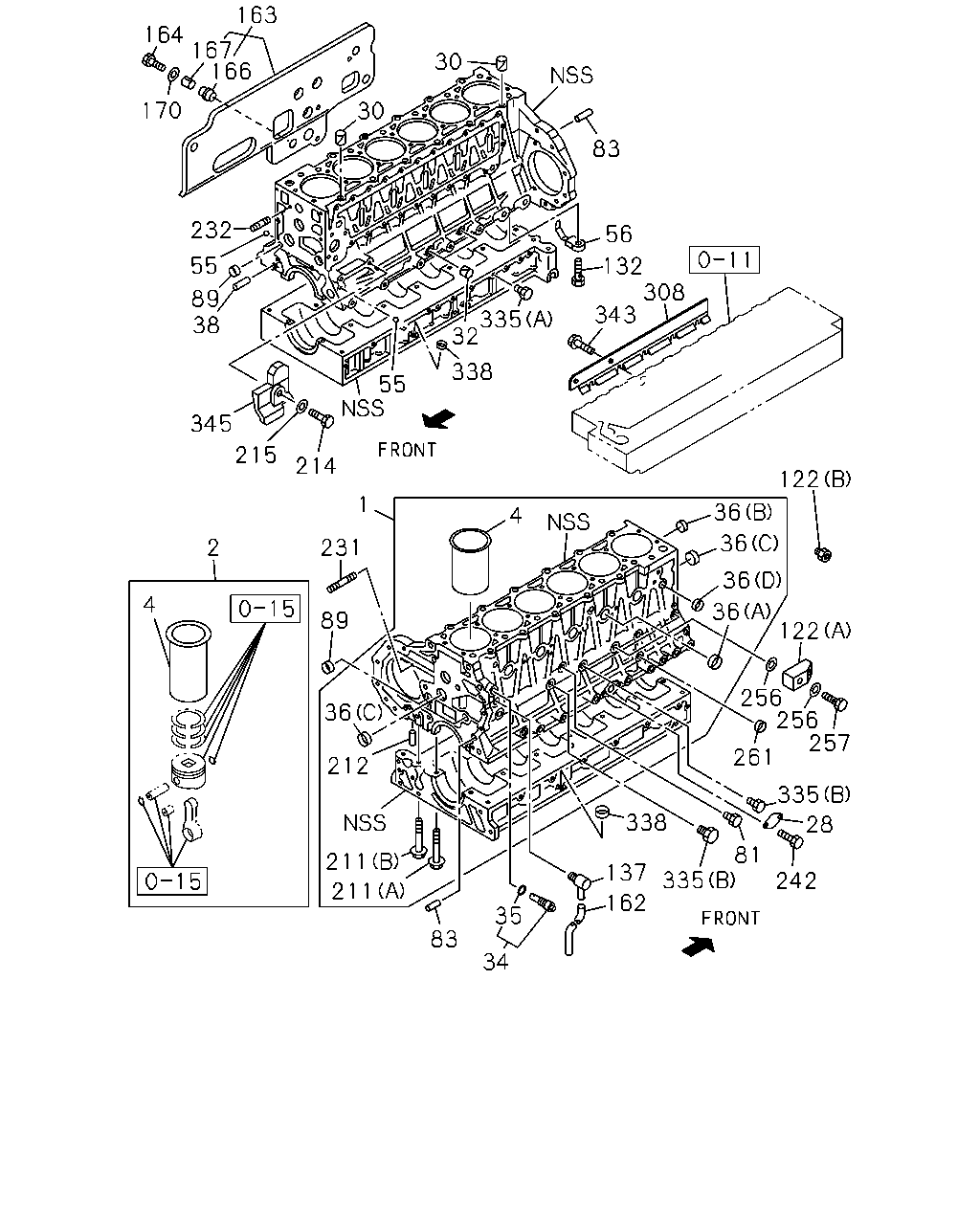

0-12 — CYLINDER BLOCK (#613) — 50 parça

163 164 167 166 30 30 170 83 232 56 55 132 308 343 335 32 89 38 338 55 345 215 214 122 1 36 4 36 231 2 36 4 36 36 89 122 256 256 257 261 212 335 338 28 81 335 211 137 242 211 162 35 83 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-94393-958-6	01	1	9202-	●	●
2	LINER SET; ENG CYL NON GRADE	1-87810-853-1	06	1	9202-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94396-332-0	06	1	9202-9505	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94394-563-1	06	1	9506-	●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9202-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9202-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9202-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9202-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9202-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9202-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9202-	●	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9202-	●	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9202-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9202-	●	●
122	ADAPTER; OIL PRESSURE SWITCH (A)	8-94396-390-0	01	1	9202-9403	●	●
122	ADAPTER; OIL PRESSURE SWITCH (B)	8-94399-858-1	01	1	9404-	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9202-	●	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9202-	●	●
162	HOSE; WATER DRAIN,C/BL L=330 SERVICED BY L=3000	0-03259-300-0	01	1	9202-9308	●	●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9309-	●	●
163	COVER ASM; C/BL SKIRT AUSTRALIA EQUIPMENT(RR3)	8-94397-262-4	01	1	9202-9504	●
163	COVER ASM; C/BL SKIRT AUSTRALIA EQUIPMENT(RR3)	8-94395-894-0	01	1	9505-	●
164	BOLT; COVER BLOCK SKIRT AUSTRALIA EQUIPMENT(RR3) M8X20	0-20800-820-0	04	1	9202-	●
166	MOUNT; COVER BLOCK SKIRT AUSTRALIA EQUIPMENT(RR3) OD=22	8-94140-428-1	04	1	9202-	●
167	TUBE; DIST,SIDE COVER AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	04	1	9202-	●
170	WASHER; COVER AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9202-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9202-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9202-	●	●
214	BOLT; NOISE COVER AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	01	1	9202-	●
215	WASHER; PL,NOISE COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9202-	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9202-	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9202-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9202-9403	●	●
257	BOLT; EYE,ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	9202-9403	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9202-	●	●
308	PROTECTOR; HEAT,HD COVER	8-94393-265-0	01	1	9202-9405	●	●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9406-	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9202-	●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9202-	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	9202-9408	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9409-	●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9202-	●	●
345	COVER; NOISE,C/BL AUSTRALIA EQUIPMENT(RR3)	8-94396-651-0	01	1	9202-	●
