3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#61292) — 32 parça
◀
[311A] NO.2 (18 parça)

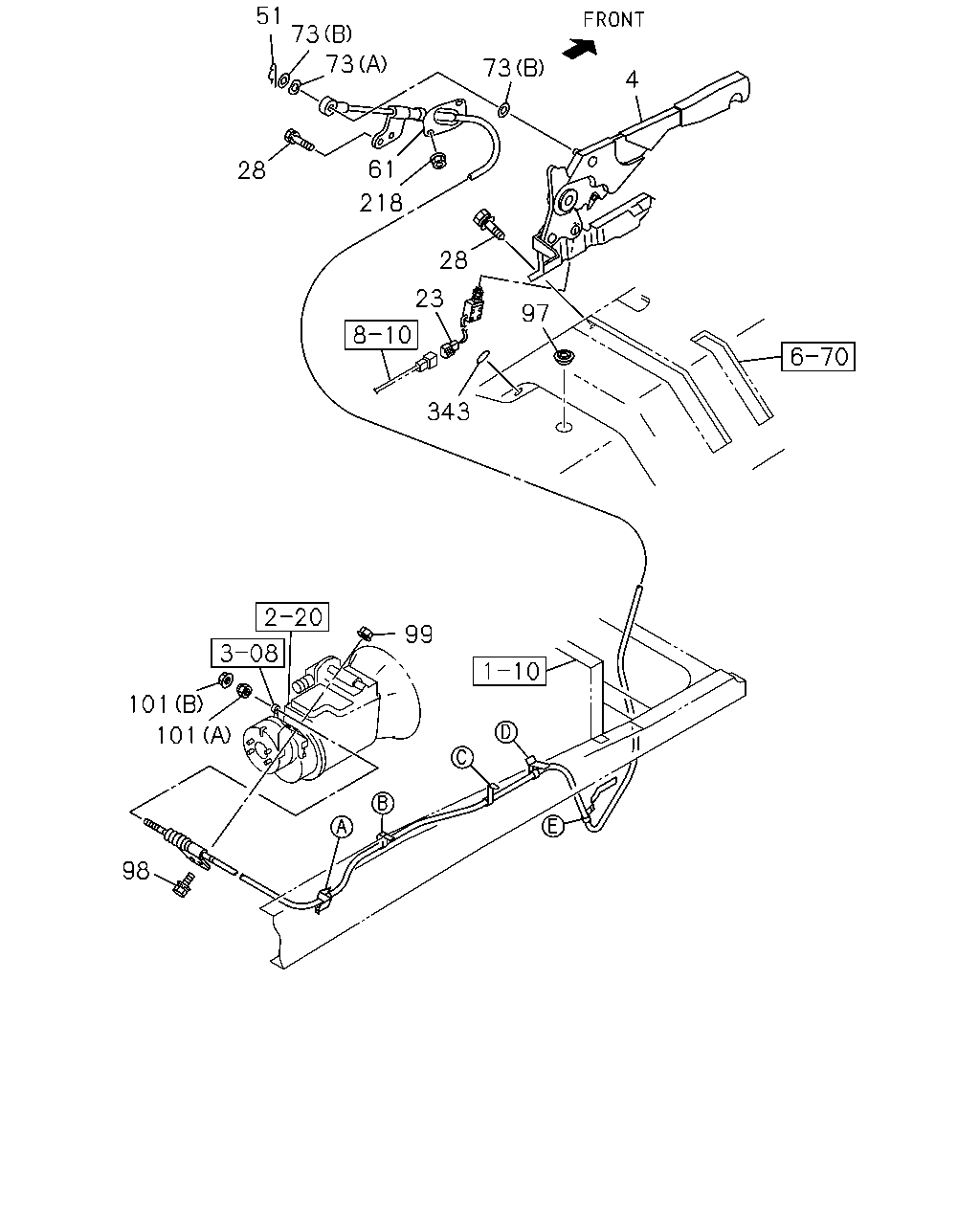

[311A] NO.1 (14 parça)
▶
87
227
236
227
228
236
227
235
235
237
228
236
228
336
235
351
46
227
227
228
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1110-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1110-
227
CLIP; RAD
(B) ID=13 L=20
0-95235-235-0
02
1
1110-
227
CLIP; RAD
(A) ID=13 L=32
0-95235-265-0
01
1
1110-
227
CLIP; RAD
(C) ID=16 H=30 L=30
1-09701-080-0
01
1
1110-
227
CLIP; RAD
(D) ID=9.5
5-09709-020-0
01
1
1110-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28050-816-0
01
1
1110-
228
BOLT; CLIP RAD MTG
M8X25 FLANGE
0-28650-825-0
02
1
1110-
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(C)
1-82699-199-0
01
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98077-903-2
01
1
1110-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98100-151-0
01
1
1110-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28650-825-0
01
1
1110-
236
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
02
1
1110-1504
236
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28051-030-0
02
1
1505-
237
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
01
1
1110-
336
BRACKET; RADIATOR
8-98044-680-0
01
1
1110-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1110-
51
73
73
73
4
61
28
218
28
23
97
343
99
101
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-565-0
01
1
1110-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1110-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1110-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1110-
61
CABLE; PARKING BRK
L=4623
8-98130-854-0
01
1
1110-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1110-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1110-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1110-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1110-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1110-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1110-
101
NUT; CABLE TO LEVER
(A) M8
1-46259-007-0
01
1
1110-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1110-
343
SEAL
OD=25 BLACK
1-76798-019-0
08
1
1110-
