Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#61283) — 27 parça
◀
[236A] BRACKET AND CLIP (20 parça)
[236A] CABLE;TRANS CONT (7 parça)
▶
487
474
6
474
3
221
225
199
1
293
291
201
282
282
293
201
291
291
297
201
282
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3435
8-98134-677-1
01
1
1110-
1
CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3460
8-98124-498-3
01
1
1110-
3
CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3615
8-98134-680-0
01
1
1110-
3
CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3610
8-98124-499-2
01
1
1110-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1110-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1110-
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1110-
201
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
1110-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1110-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1110-
282
BRACKET; TRANS SIDE
(B)
1-82699-199-0
01
1
1110-
282
BRACKET; TRANS SIDE
(C)
8-98144-739-1
01
1
1110-
282
BRACKET; TRANS SIDE
(A)
8-98174-922-0
01
1
1110-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
02
1
1110-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1110-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1110-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28650-820-0
02
1
1110-
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1110-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
03
1
1110-
487
BRACKET; CONT CABLE
8-98137-772-0
01
1
1110-

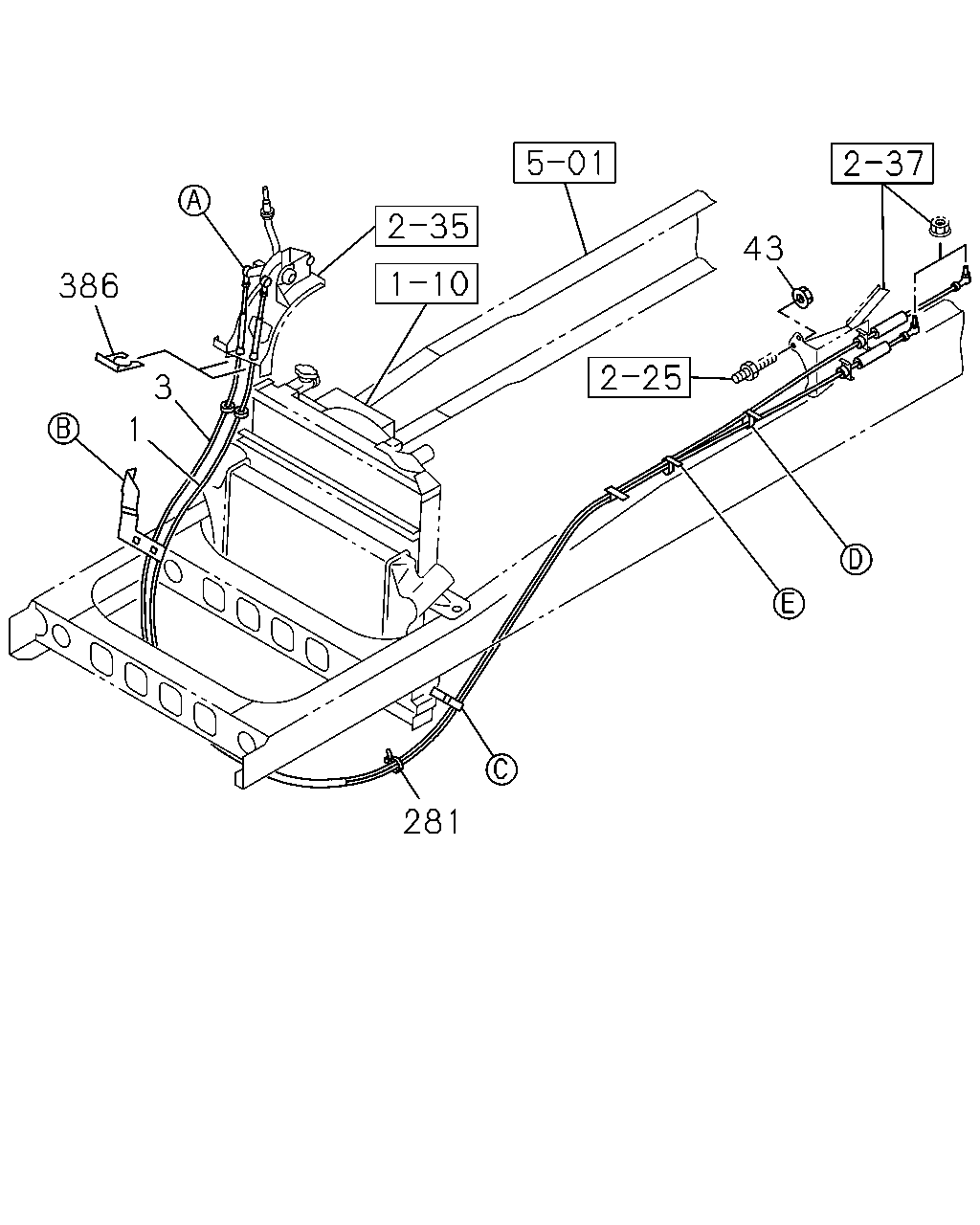

43
386
3
1
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3435
8-98134-677-1
01
1
1110-
1
CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3460
8-98124-498-3
01
1
1110-
3
CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3615
8-98134-680-0
01
1
1110-
3
CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3610
8-98124-499-2
01
1
1110-
43
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1110-
281
CLIP; BAND
L=300
1-09707-001-1
01
1
1110-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1110-
