Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#6128) — 51 parça
◀
[346A] REPAIR KIT AND PISTON KIT (12 parça)

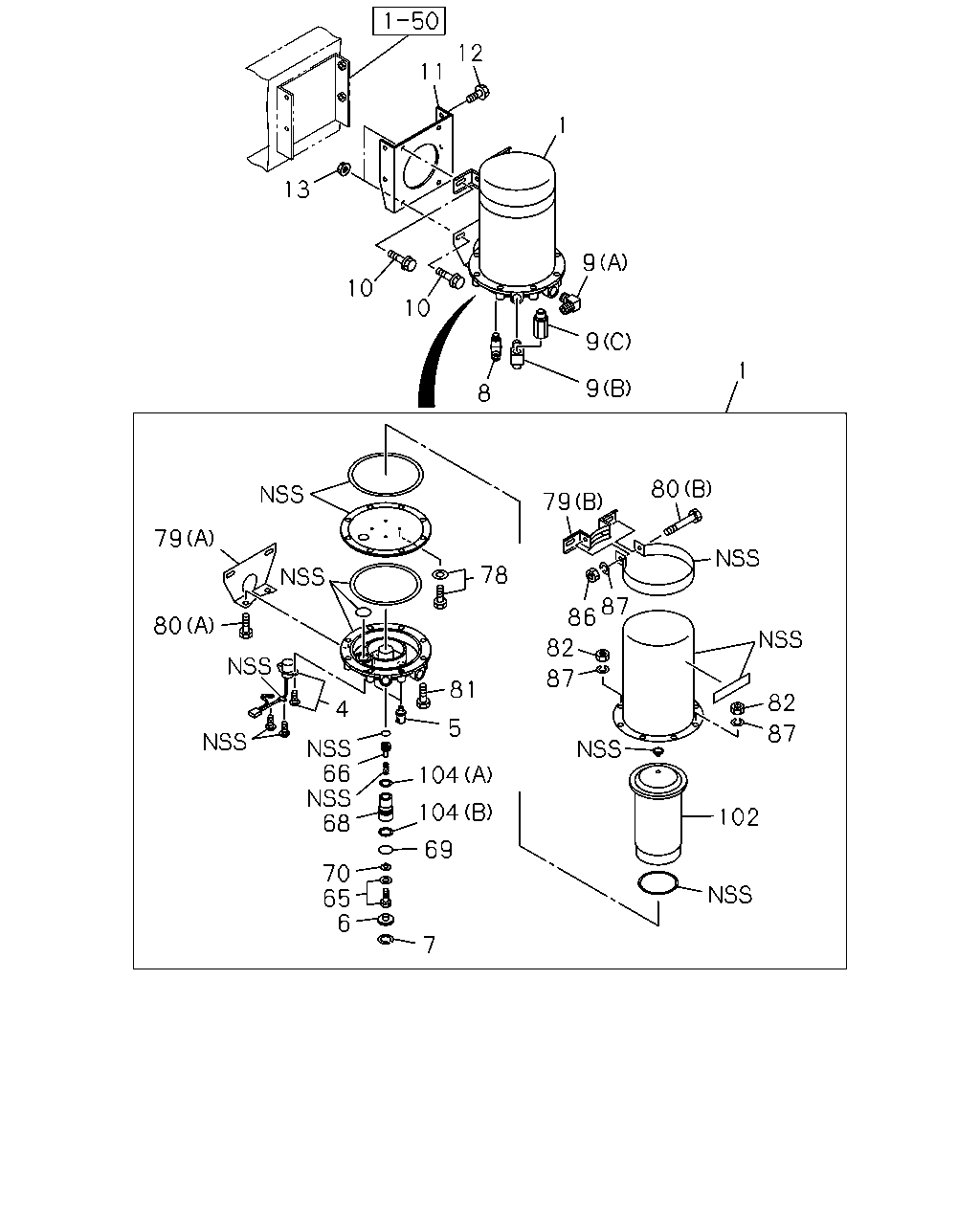

[346A] COMPONENT AND THERMOSTAT KIT (39 parça)
▶
2
104
104
69
70
66
68
70
65
6
3
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-140-0
01
1
9905-0305
2
REPAIR KIT; AIR DRYER
1-85576-379-0
01
1
0306-
3
PISTON KIT; AIR DRYER
1-85576-139-0
01
1
9905-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
9905-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
9905-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
9905-
68
BODY; VALVE
1-48199-439-0
01
1
9905-0305
68
BODY; VALVE
1-48199-352-0
01
1
0306-
69
GASKET; EXH COVER
1-48199-153-0
01
1
0306-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
9905-
104
GASKET
(A)
1-48199-108-0
01
1
0306-
104
GASKET
(B)
1-48199-109-0
01
1
0306-
12
11
1
13
9
10
10
9
1
9
8
80
79
79
78
87
86
80
82
87
81
82
4
5
87
66
68
104
104
102
69
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-216-0
01
1
9905-0305
1
DRYER; AIR
1-48190-324-1
01
1
0306-
4
THERMOSTAT KIT; AIR DRYER
1-85576-216-0
01
1
9905-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
9905-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
9905-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
9905-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
9905-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9905-0607
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
9905-
9
CONNECTOR; PIPE,AIR DRYER
(C) DIN8 & M12 STRAIGHT
1-09661-093-0
01
1
9905-0005
9
CONNECTOR; PIPE,AIR DRYER
(C) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0006-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28681-030-0
04
1
9905-0301
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28681-030-0
04
1
0302-0512
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28651-030-0
04
1
0601-
11
BRACKET; AIR DRYER
1-53497-624-0
01
1
9905-
12
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
04
1
9905-0512
12
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
0601-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
9905-0602
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
9905-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
9905-
68
BODY; VALVE
1-48199-439-0
01
1
9905-0305
68
BODY; VALVE
1-48199-352-0
01
1
0306-
69
GASKET; EXH COVER
1-48199-153-0
01
1
0306-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
9905-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-494-0
04
1
0603-
79
BRACKET; AIR DRYER
(B)
1-48199-336-0
01
1
9905-
79
BRACKET; AIR DRYER
(A)
1-48199-354-0
01
1
9905-
80
BOLT; BRKT
(B)
1-48199-335-0
01
1
9905-
80
BOLT; BRKT
(A)
1-48199-338-0
02
1
9905-
81
BOLT; CASE,AIR DRYER
1-48199-341-0
06
1
9905-
82
NUT; CASE,AIR DRYER
1-48199-421-0
08
1
9905-
86
NUT; BRKT
1-48199-333-0
01
1
9905-
87
WASHER; LK,BRKT
1-48199-334-0
09
1
9905-
102
CARTRIDGE; AIR DRYER
1-48199-347-0
01
1
9905-0305
102
CARTRIDGE; AIR DRYER
1-48199-493-0
01
1
0306-
104
GASKET
(A)
1-48199-108-0
01
1
0306-
104
GASKET
(B)
1-48199-109-0
01
1
0306-
