◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#6127) — 26 parça

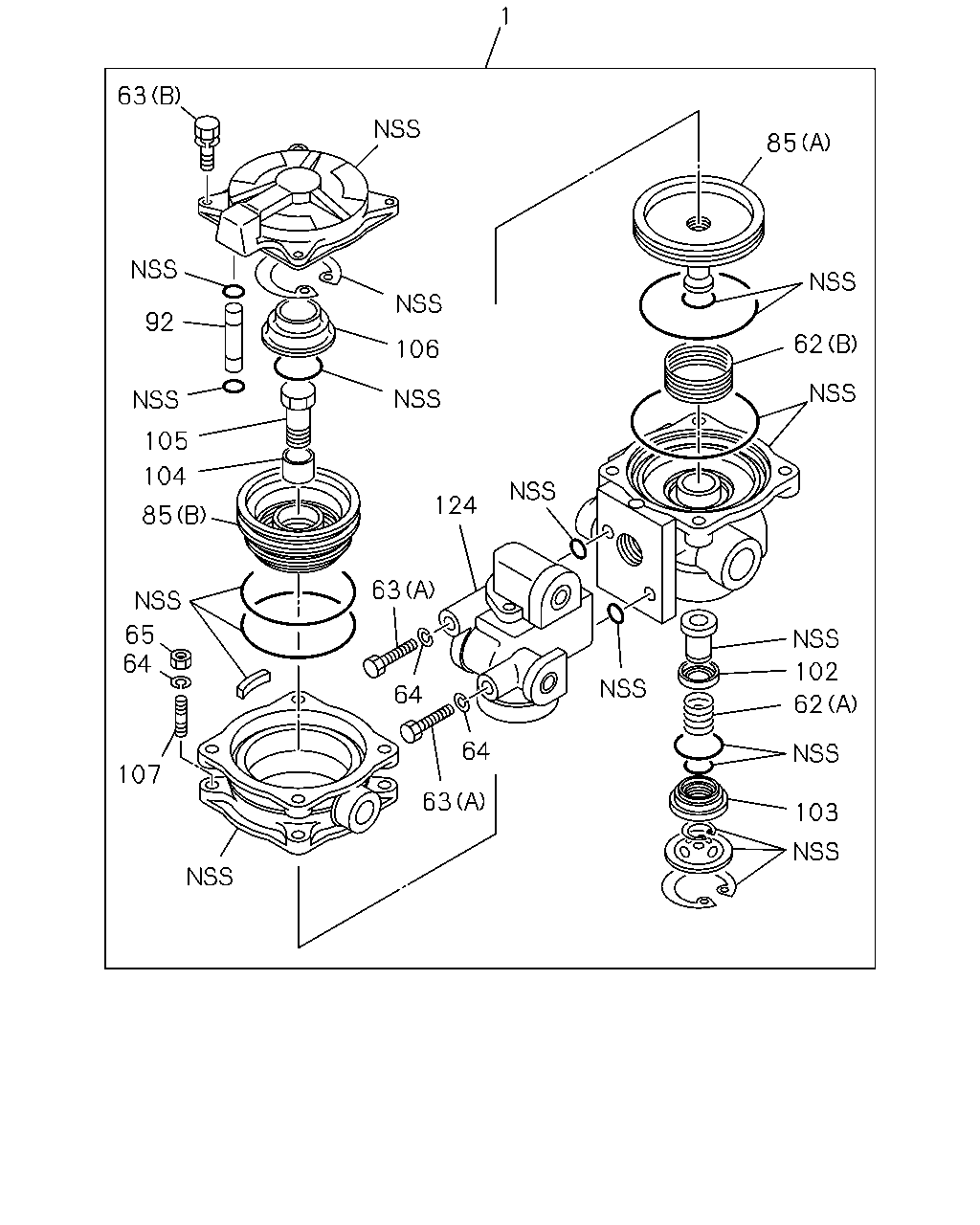

çizim 38250
1 63 85 92 62 106 105 104 124 85 63 65 64 102 64 62 64 107 63 103
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-090-0 01 1 9905-
62 SPRING; LSPV
(A) 		1-47819-089-0 01 1 9905-
62 SPRING; LSPV
(B) 		1-47819-090-0 01 1 9905-
63 BOLT; LSPV
(A) 		1-47769-160-0 02 1 9905-
63 BOLT; LSPV
(B) 		1-48219-039-0 04 1 9905-
64 WASHER; LSPV
ID=8.2 		9-09150-508-0 06 1 9905-
65 NUT; LSPV 9-83315-085-0 04 1 9905-
85 PISTON; LSPV
(A) 		1-47769-058-0 01 1 9905-
85 PISTON; LSPV
(B) 		1-47769-059-0 01 1 9905-
92 PIPE; LSPV 1-47769-159-0 01 1 9905-
102 RETAINER; VALVE 1-48213-002-0 01 1 9905-
103 GUIDE; VALVE 1-48129-014-0 01 1 9905-
104 COLLAR; LSPV 1-47769-061-0 01 1 9905-
105 BOLT; PISTON 1-47769-062-0 01 1 9905-
106 COVER; PISTON 1-47769-063-0 01 1 9905-
107 STUD; LSPV 1-47769-064-0 04 1 9905-
124 VALVE; EMERGENCY 1-47769-161-0 01 1 9905-

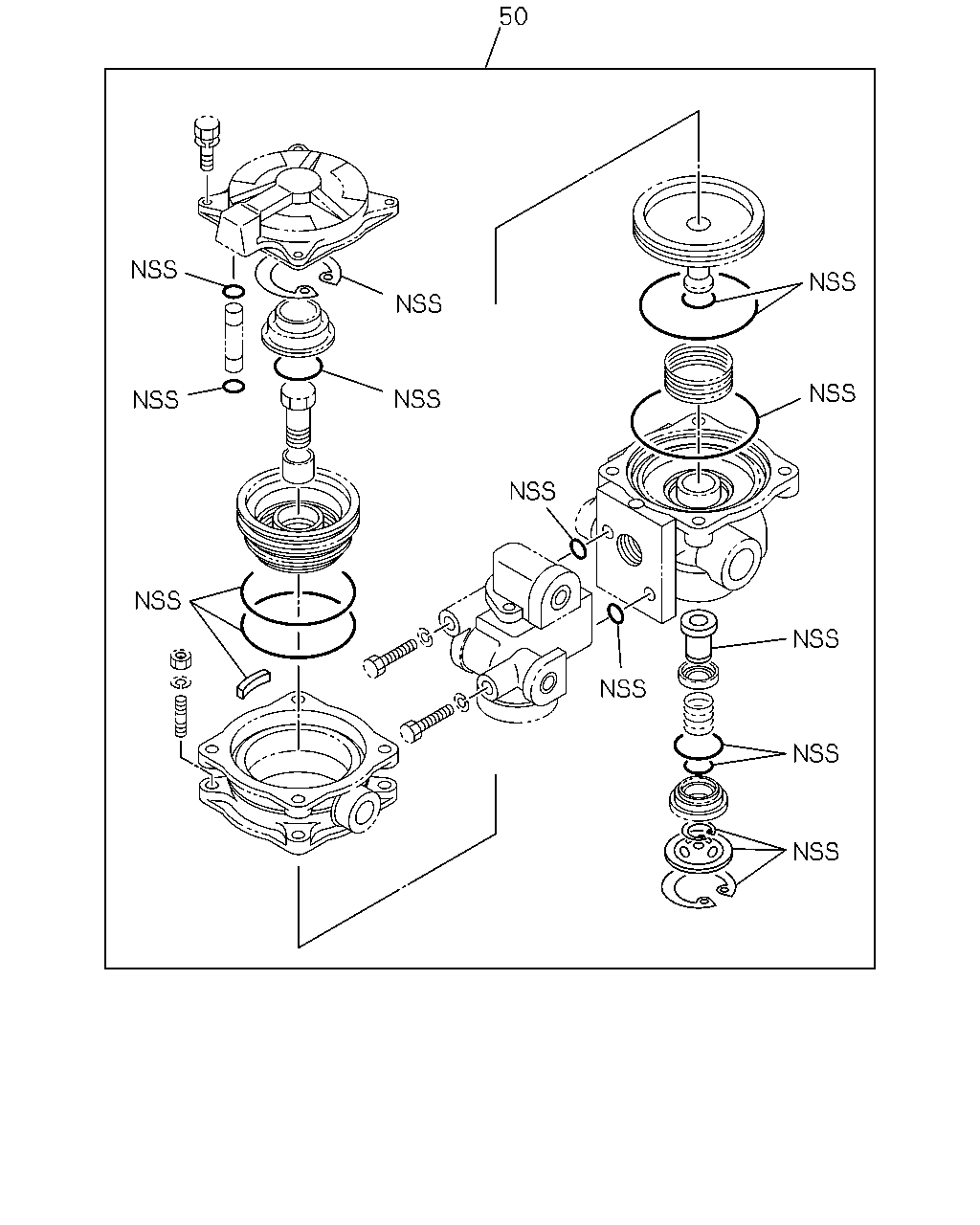

çizim 99724
50
BalonParca AdiParca NoAdetTipApplied Date
50 REPAIR KIT; LSPV 1-85576-206-0 01 1 9905-

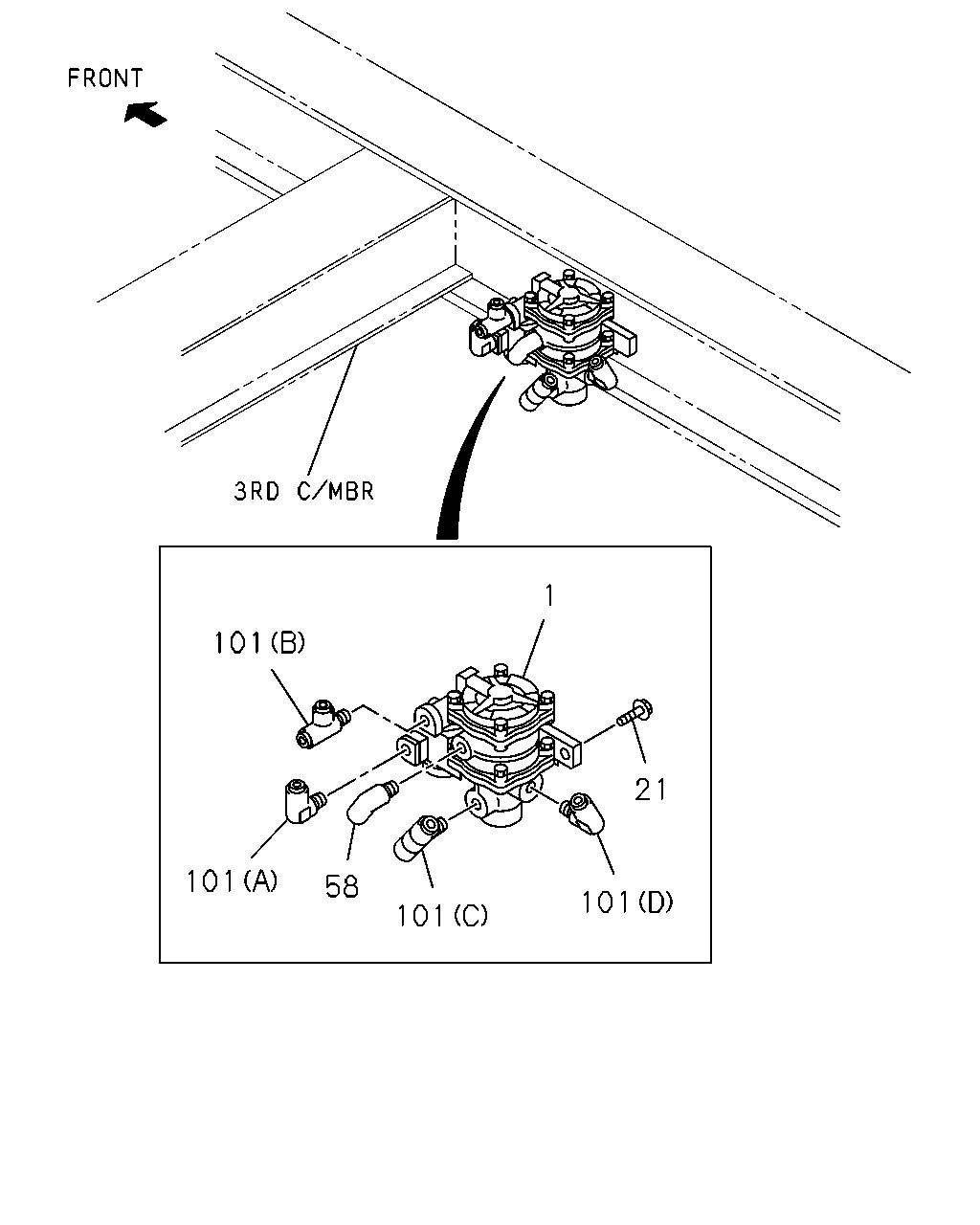

çizim 99726
1 101 21 101 58 101 101
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-090-0 01 1 9905-
21 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 03 1 9905-0512
21 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 03 1 0601-
58 CONNECTOR; LSPV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
101 CONNECTOR; LSPV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9905-
101 CONNECTOR; LSPV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 9905-
101 CONNECTOR; LSPV
(C) DIN12X2 & R1/2 3WAY 		1-09661-020-0 01 1 9905-
101 CONNECTOR; LSPV
(D) 		1-09661-125-0 01 1 9905-
