◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#6126) — 17 parça

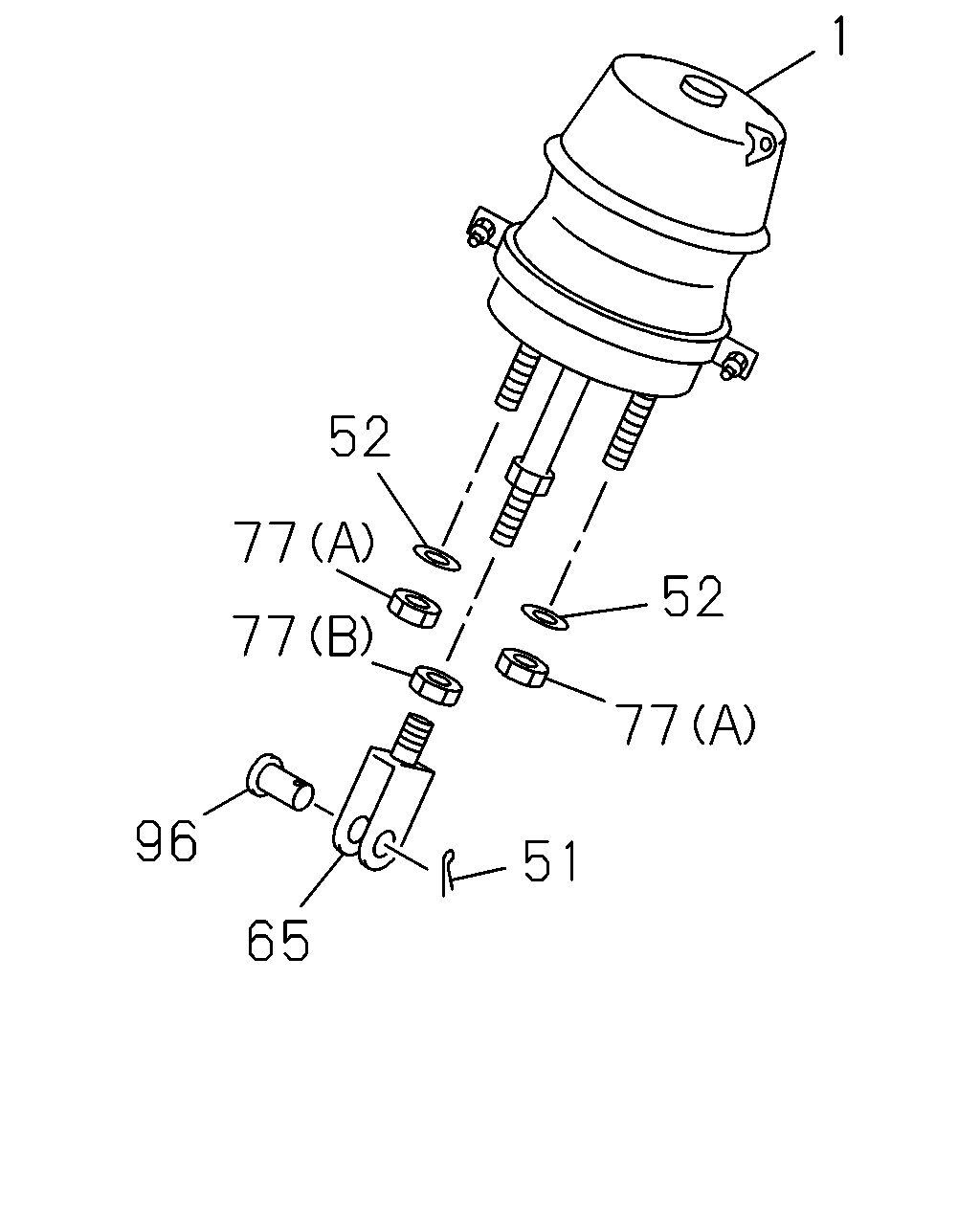

çizim 38206
1 52 77 52 77 77 96 51 65
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 9905-0104
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 9905-0104
1 CHAMBER ASM; SPRING 1-48250-638-0 04 1 0105-
51 PIN; SPLIT
FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/1018" ROCKWELL(W8B),FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-48259-275-0 04 1 0302-
52 WASHER; PL 1-41519-038-0 04 1 9905-0104
52 WASHER; PL 1-41519-038-0 04 1 9905-0104
52 WASHER; PL
FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/8 15" ROCKWELL(W7F) 		1-41519-038-0 08 1 0105-0301
52 WASHER; PL
FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/8 15" ROCKWELL(W7F),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41519-038-0 08 1 0302-0411
52 WASHER; PL 1-41519-038-0 08 1 0412-
52 WASHER; PL
FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/1018" ROCKWELL(W8B),FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-41519-035-0 08 1 0105-0411
65 JOINT; JAW
FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/1018" ROCKWELL(W8B),FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-48259-308-0 04 1 0302-
77 NUT; SPR CHAMBER BRK
(A) 		1-87050-052-0 04 1 9905-0104
77 NUT; SPR CHAMBER BRK
(A) 		1-87050-052-0 04 1 9905-0104
77 NUT; SPR CHAMBER BRK
(A) 		1-87050-052-0 08 1 0105-
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/1018" ROCKWELL(W8B),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B) 		1-41229-143-0 04 1 0603-
77 NUT; SPR CHAMBER BRK
(B) 		1-41229-143-0 04 1 9905-0602
96 PIN; JAW JOINT
FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/1018" ROCKWELL(W8B),FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-48259-273-0 04 1 0302-
