4-10 — FRONT AXLE (#61256) — 45 parça

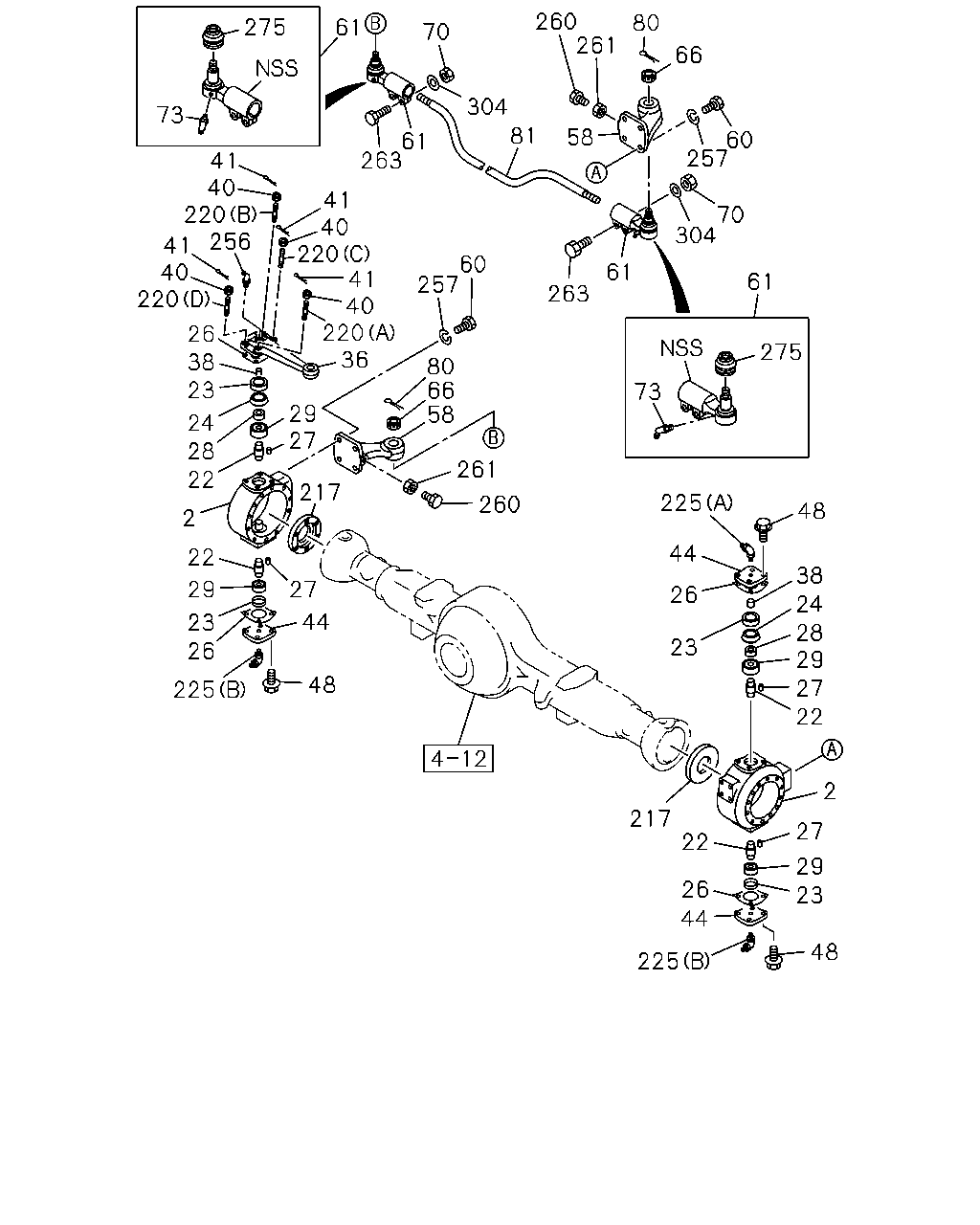

çizim 150823
260 261 80 275 61 70 66 304 73 81 58 60 257 61 263 41 40 220 256 41 40 220 41 40 220 36 70 304 41 40 220 60 257 61 61 263 26 38 23 275 80 66 58 73 29 27 24 28 22 261 217 225 260 48 2 44 22 38 29 27 26 24 44 23 28 29 23 26 48 27 225 22 2 217 27 22 29 26 23 44 48 225
BalonParca AdiParca NoAdetTipApplied Date
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1112-
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1112-
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 1112-
23 COLLAR; DIST BRG 9-43267-004-0 04 1 1112-
24 RECEIVER; KING PIN 9-43269-008-0 02 1 1112-
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 1112-
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 1112-
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 1112-
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 1112-
28 WASHER; KING PIN 9-43269-007-0 02 1 1112-
29 BEARING; KING PIN 9-00093-181-0 04 1 1112-
36 ARM; KNUCKLE 1-43261-035-0 01 1 1112-
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 1112-
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 1112-
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 1112-
44 COVER; KING PIN 9-43265-007-1 03 1 1112-
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 1112-
58 ARM; TIE ROD 8-98138-221-0 01 1 1112-
58 ARM; TIE ROD 8-98138-222-0 01 1 1112-
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 1112-
61 ROD END; TIE ROD 8-98138-799-0 01 1 1112-1306
61 ROD END; TIE ROD 8-98236-792-1 01 1 1307-
61 ROD END; TIE ROD 8-98138-800-0 01 1 1112-1306
61 ROD END; TIE ROD 8-98236-793-1 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1112-
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1112-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1112-1404
73 NIPPLE; GREASE,TIE ROD END 1-43159-132-0 02 1 1405-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1112-
81 ROD; TIE 8-98147-602-0 01 1 1112-
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 1112-
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 1112-
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 1112-
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 1112-
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 1112-
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 1112-
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 1112-
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 1112-
263 BOLT; ROD END
M12X65 		8-98053-922-0 04 1 1112-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1112-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1112-
