4-01 — PROPELLER SHAFT (#61255) — 153 parça

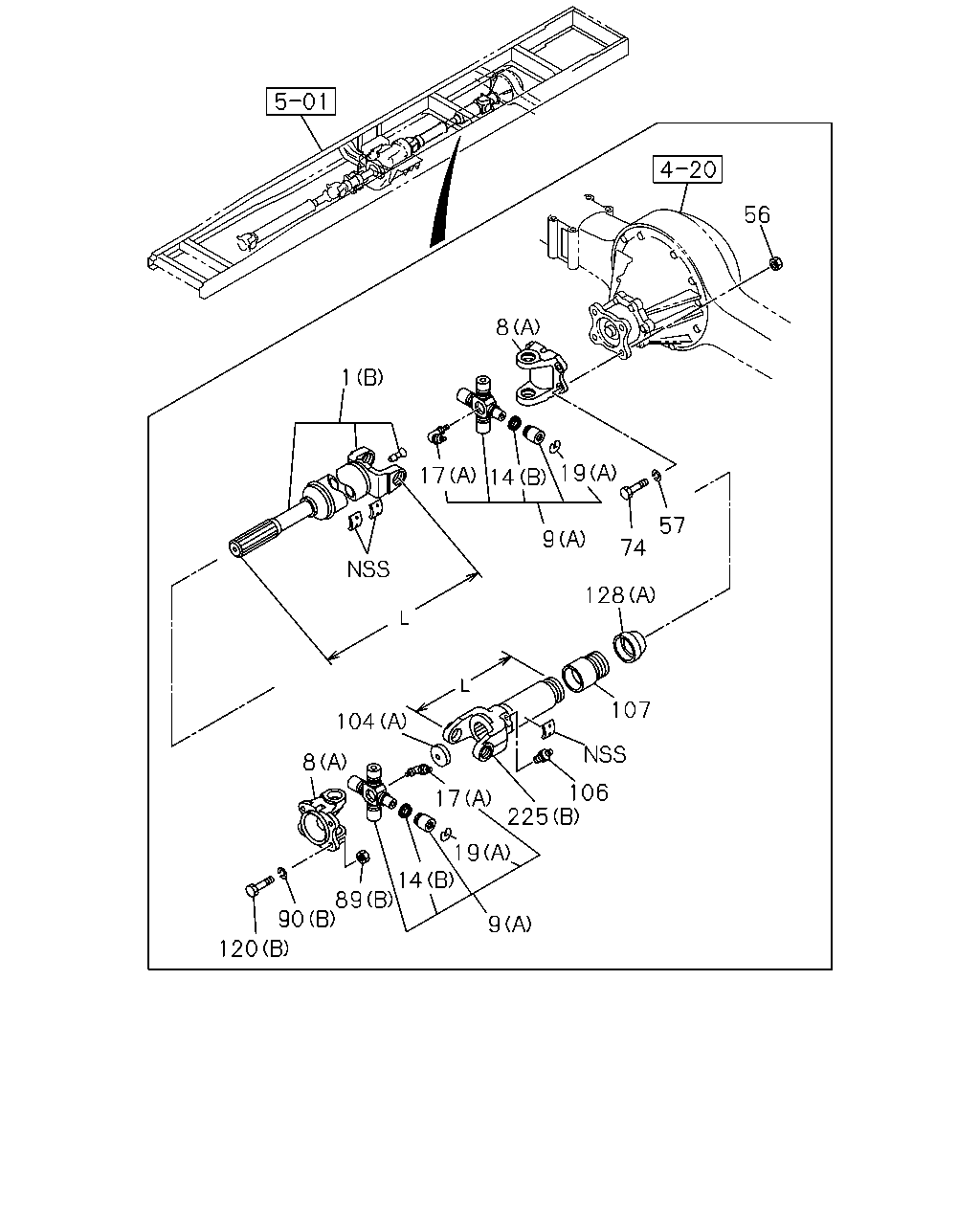

56 8 1 19 17 14 57 9 74 128 107 104 8 106 225 17 19 14 89 90 9 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (B) L=1136	1-37123-631-1	01	1	1112-
1	SHAFT; PROP (A) L=1557	1-37124-228-1	01	1	1112-
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	01	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	1112-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-106-1	01	1	1112-
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1112-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	04	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	08	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	08	1	1506-
14	COVER; DUST,SPIDER (A)	8-98020-791-0	08	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (B)	9-09928-049-0	01	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1112-
56	NUT; YOKE M14	0-91110-514-0	04	1	1112-
57	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	1112-1202
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1203-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1112-
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	1112-
89	NUT; YOKE TO RR AXLE (B) M14	0-91110-514-0	04	1	1112-
90	WASHER; LK,YOKE TO RR AXLE (A) ID=12.2	0-91510-612-0	04	1	1112-
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-814-0	04	1	1112-1202
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-614-0	04	1	1203-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1112-
104	PLUG; SLEEVE YOKE (C)	1-09600-033-0	01	1	1112-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	1112-
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	1112-
120	BOLT; YOKE TO RR AXLE (A) M12X32	1-09000-076-1	04	1	1112-
120	BOLT; YOKE TO RR AXLE (B) M14X37	1-09000-121-0	04	1	1112-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1112-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1112-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (A) L=228	1-37241-098-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (B) L=271	1-37241-099-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (C) L=174	1-37241-115-1	01	1	1112-

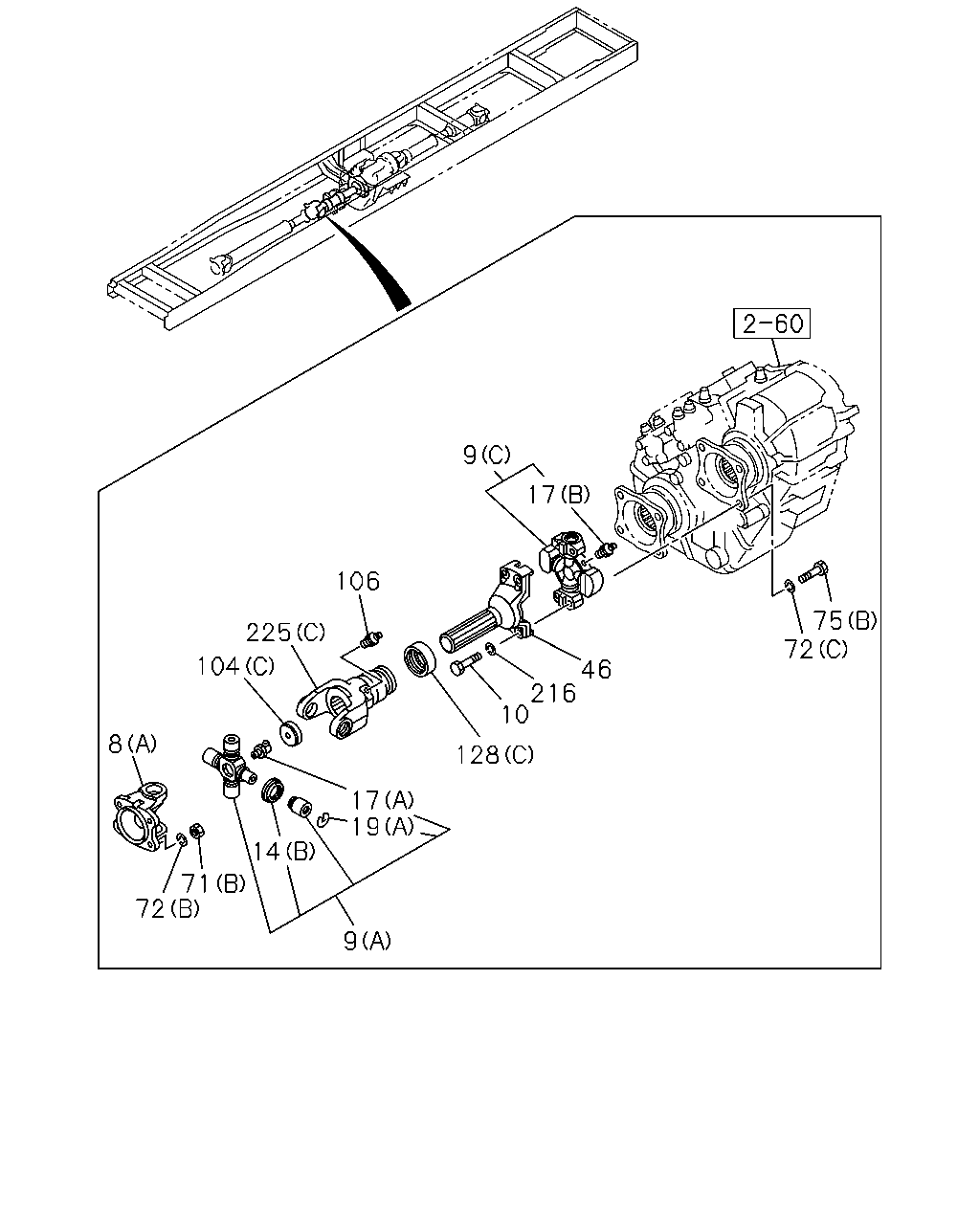

9 17 106 75 72 225 104 46 216 10 8 128 17 19 14 71 72 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	01	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	1112-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-106-1	01	1	1112-
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1112-
10	BOLT; UJT UNF7/16X27	9-09820-144-0	04	1	1112-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	04	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	08	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	08	1	1506-
14	COVER; DUST,SPIDER (A)	8-98020-791-0	08	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (B)	9-09928-049-0	01	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1112-
46	FLANGE; SPLINED,PROP SHAFT,1ST L=195	1-37243-200-0	01	1	1112-
71	NUT; YOKE (A) M12	0-91110-512-0	04	1	1112-
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	1112-
72	WASHER; LK,YOKE (A) ID=12.2	0-91510-612-0	04	1	1112-
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-814-0	04	1	1112-1202
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	1203-
72	WASHER; LK,YOKE (C) ID=11.4	9-09850-072-0	04	1	1112-
75	BOLT; PROP SHAFT TO TRANS (A) M12X32	1-09000-076-1	04	1	1112-
75	BOLT; PROP SHAFT TO TRANS (B) UNF7/16X27	9-09820-144-0	04	1	1112-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1112-
104	PLUG; SLEEVE YOKE (C)	1-09600-033-0	01	1	1112-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	1112-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1112-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1112-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1112-
216	WASHER; LK,UJT ID=11.4	9-09850-072-0	04	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (A) L=228	1-37241-098-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (B) L=271	1-37241-099-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (C) L=174	1-37241-115-1	01	1	1112-

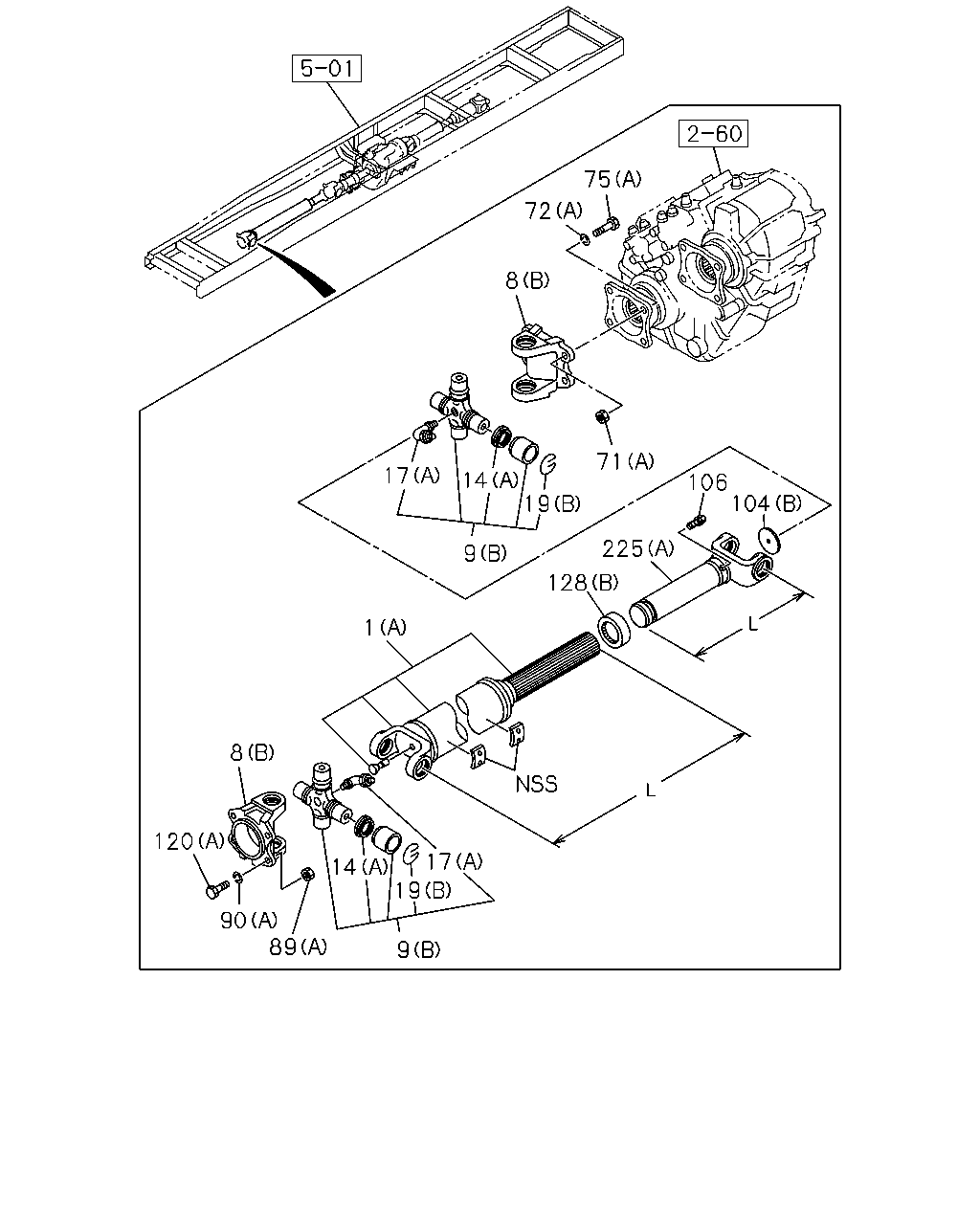

75 72 8 71 17 14 19 106 104 225 9 128 1 8 120 17 14 19 90 89 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (B) L=1136	1-37123-631-1	01	1	1112-
1	SHAFT; PROP (A) L=1557	1-37124-228-1	01	1	1112-
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	01	1	1112-
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	1112-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	1112-1505
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (A)	8-98048-925-1	AR	1	1506-
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-106-1	01	1	1112-
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1112-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	04	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER (B)	1-37319-012-0	08	1	1112-1505
14	COVER; DUST,SPIDER (B)	8-98020-800-0	08	1	1506-
14	COVER; DUST,SPIDER (A)	8-98020-791-0	08	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	1112-
17	NIPPLE; GREASE,PROP SHAFT (B)	9-09928-049-0	01	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1112-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1112-
71	NUT; YOKE (A) M12	0-91110-512-0	04	1	1112-
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	1112-
72	WASHER; LK,YOKE (A) ID=12.2	0-91510-612-0	04	1	1112-
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-814-0	04	1	1112-1202
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	1203-
72	WASHER; LK,YOKE (C) ID=11.4	9-09850-072-0	04	1	1112-
75	BOLT; PROP SHAFT TO TRANS (A) M12X32	1-09000-076-1	04	1	1112-
75	BOLT; PROP SHAFT TO TRANS (B) UNF7/16X27	9-09820-144-0	04	1	1112-
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	1112-
89	NUT; YOKE TO RR AXLE (B) M14	0-91110-514-0	04	1	1112-
90	WASHER; LK,YOKE TO RR AXLE (A) ID=12.2	0-91510-612-0	04	1	1112-
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-814-0	04	1	1112-1202
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-614-0	04	1	1203-
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	1112-
104	PLUG; SLEEVE YOKE (C)	1-09600-033-0	01	1	1112-
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1112-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	1112-
120	BOLT; YOKE TO RR AXLE (A) M12X32	1-09000-076-1	04	1	1112-
120	BOLT; YOKE TO RR AXLE (B) M14X37	1-09000-121-0	04	1	1112-
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	1112-
128	SEAL; SLEEVE (C)	1-37247-002-1	01	1	1112-
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (A) L=228	1-37241-098-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (B) L=271	1-37241-099-2	01	1	1112-
225	YOKE; SLEEVE,PROP SHAFT (C) L=174	1-37241-115-1	01	1	1112-
