Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶

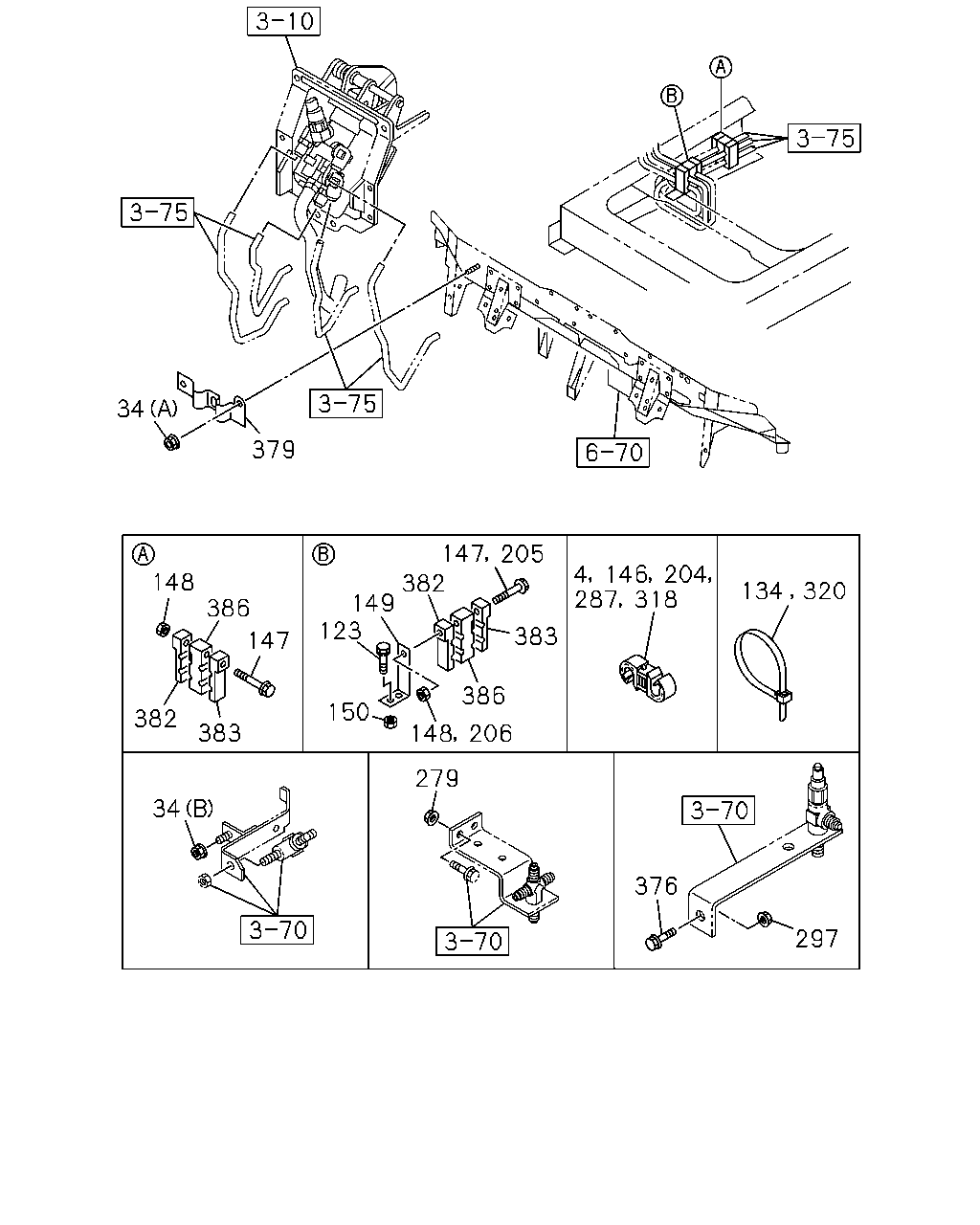

3-78 — FIXING PARTS; AIR PIPING
(#61254) — 27 parça
34
379
147
382
149
123
205
148
386
383
147
386
150
382
383
148
206
279
34
376
297
4
146
204
134
320
287
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1112-
4
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1112-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1112-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
02
1
1112-
34
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1112-
34
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
01
1
1112-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1112-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1112-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1112-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1112-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1112-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1112-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1112-
204
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1112-
205
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
01
1
1112-
206
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1112-
279
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1112-
287
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1112-
297
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1112-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
02
1
1112-
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
1112-
376
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1112-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1112-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1112-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
1112-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1112-
