3-75 — BRAKE PIPING; AIR,FRONT (#61252) — 26 parça

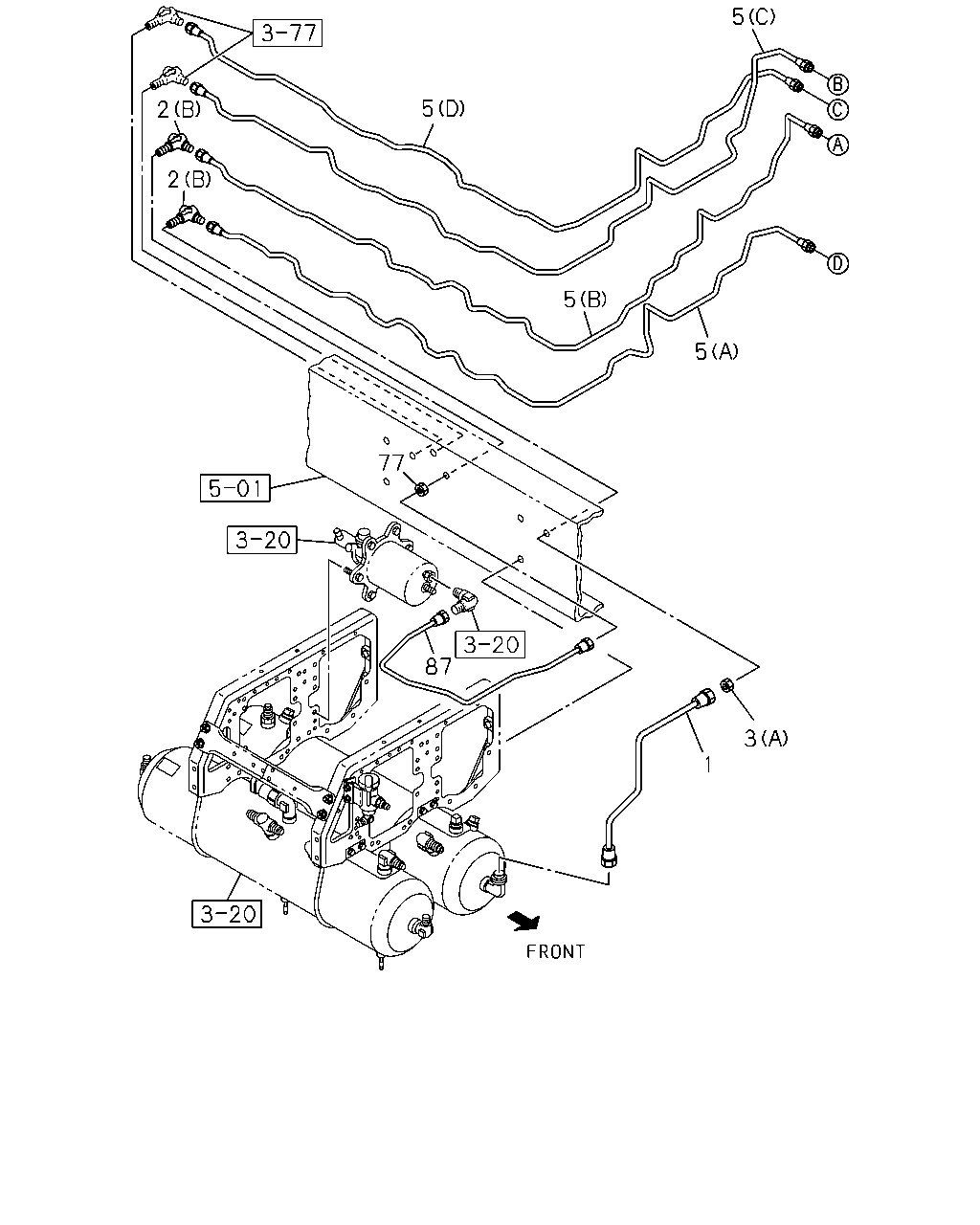

çizim 150825
5 5 2 2 5 5 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=440 		8-98169-003-0 01 1 1112-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1112-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1112-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1112-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1112-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1112-
5 PIPE; AIR,UNION TO UNION
(D) L=3115 SERVICED BY L=3300 		1-47428-886-0 01 1 1112-
5 PIPE; AIR,UNION TO UNION
(B) L=2969 SERVICED BY L=3300 		1-47428-886-0 01 1 1112-
5 PIPE; AIR,UNION TO UNION
(A) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1112-
5 PIPE; AIR,UNION TO UNION
(C) L=3169 SERVICED BY L=3300 		1-47428-886-0 01 1 1112-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1112-
87 PIPE; AIR,UNION TO AIR MASTER
L=703 SERVICED BY L=730 		1-47428-871-0 01 1 1112-

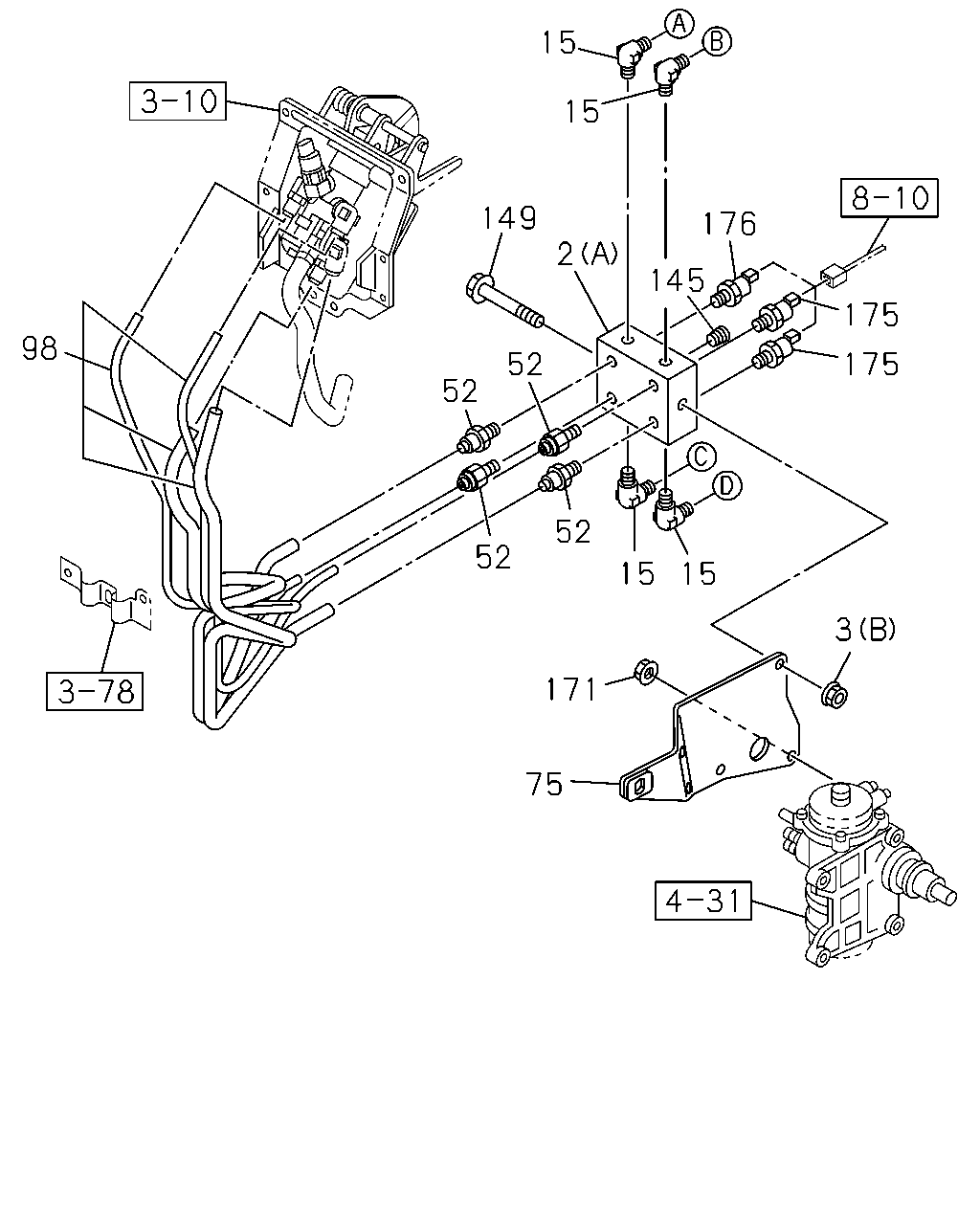

çizim 150832
15 15 149 176 2 145 175 98 52 175 52 52 52 15 15 3 171 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1112-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1112-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1112-
3 NUT; PIPE UNION
(A) M16 		0-91111-516-0 01 1 1112-
3 NUT; PIPE UNION
(B) M8 FLANGE 		0-91180-108-0 01 1 1112-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1112-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1112-
75 BRACKET; UNION 8-98187-097-0 01 1 1112-
98 TUBE; NYLON 8-97625-675-0 01 1 1112-
145 PLUG
PT1/4 		9-99204-513-0 01 1 1112-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1112-
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1112-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1112-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1112-
