3-55 — BRAKE PIPING; OIL,REAR (#61249) — 14 parça

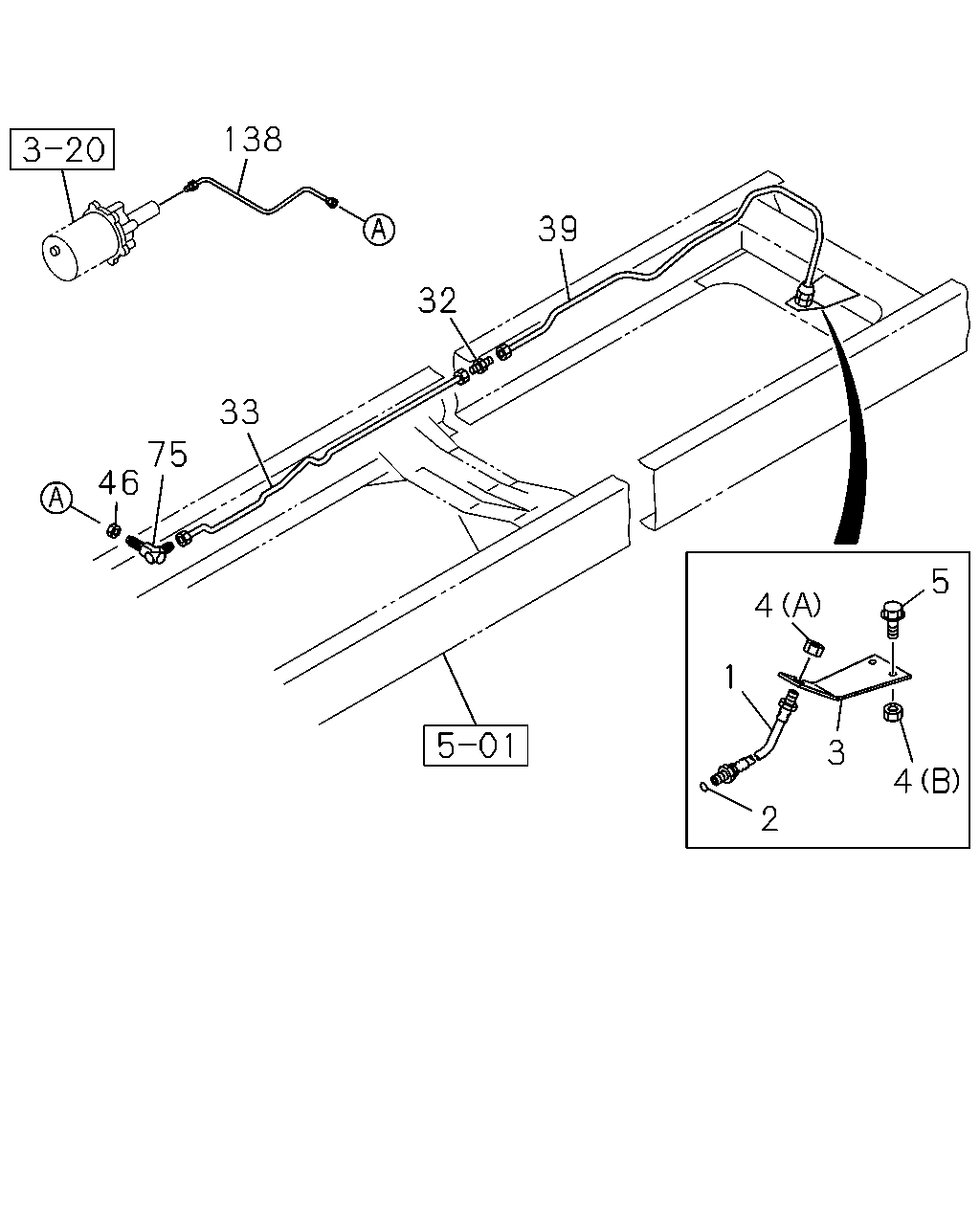

çizim 150810
138 39 32 33 75 46 5 4 1 3 4 2
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 1112-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 1112-
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 1112-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE 		0-91180-108-0 02 1 1112-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M12 		9-09840-280-0 01 1 1112-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1112-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 1112-
33 PIPE; OIL,UNION TO UNION
L=2102 SERVICED BY L=2200 		1-47428-740-0 01 1 1112-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1416 SERVICED BY L=1500 		1-47428-735-0 01 1 1112-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1112-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1112-
138 PIPE; HYDRAULIC UNIT
L=428 		8-98146-399-0 01 1 1112-

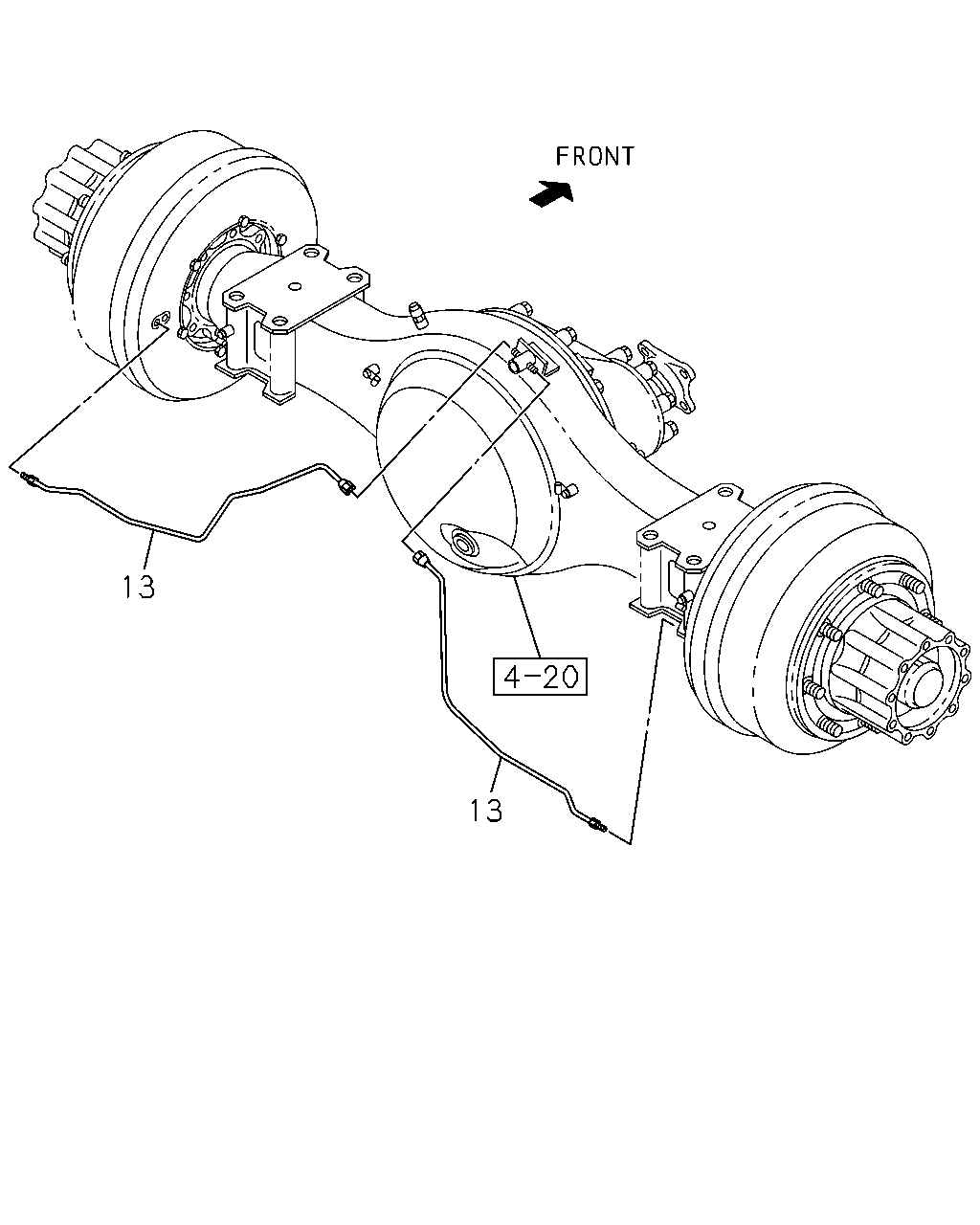

çizim 150813
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE 1-47428-643-0 01 1 1112-
13 PIPE; BRK,RR AXLE 1-47428-644-0 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
