3-52 — BRAKE PIPING; OIL,FRONT (#61248) — 22 parça

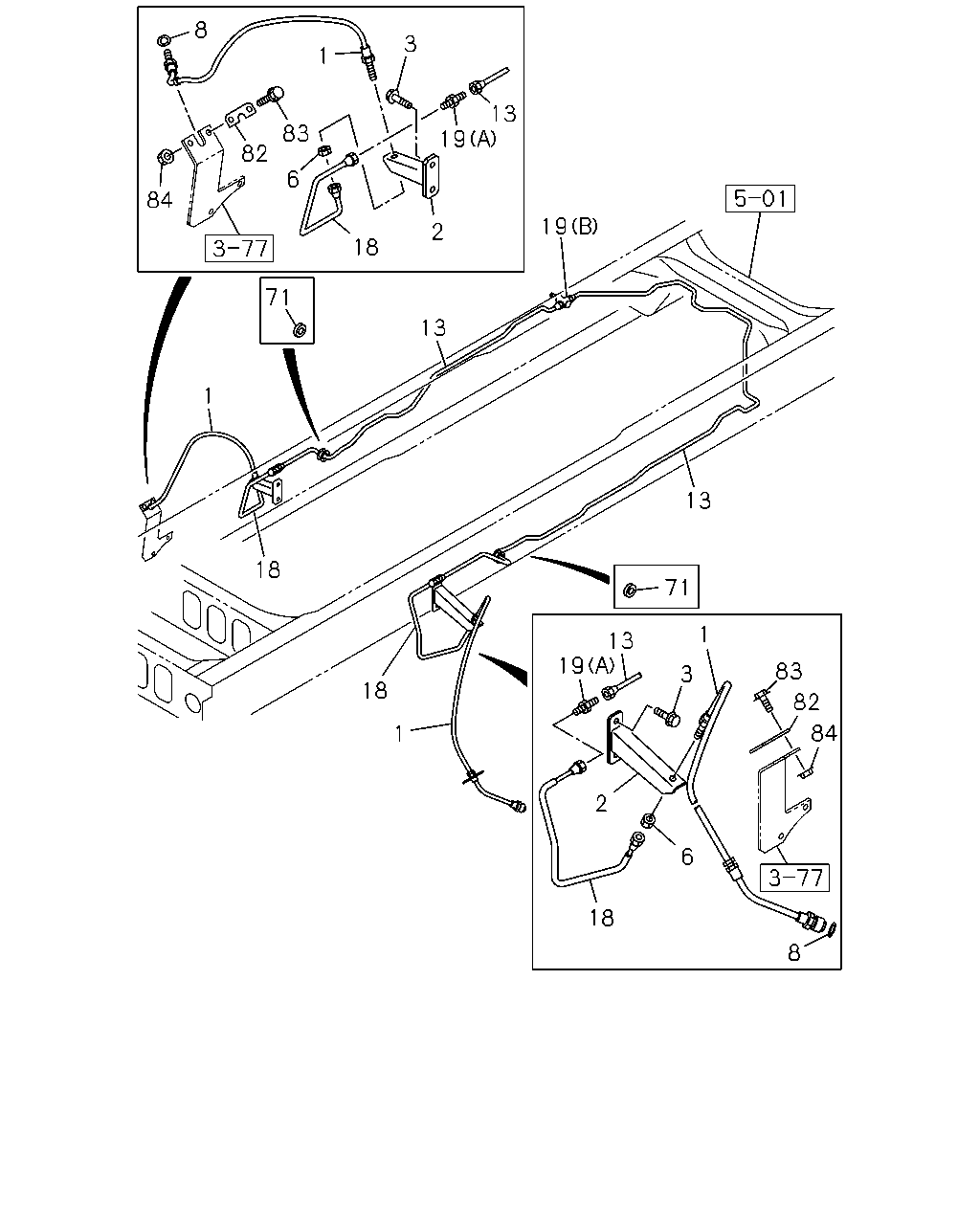

çizim 150807
8 3 1 13 83 19 82 6 84 19 2 18 71 13 1 13 18 71 1 13 19 83 3 18 82 84 1 2 6 18 8
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 8-98178-191-0 02 1 1112-
2 BRACKET; FLEX HOSE,FRT BRK 8-98130-817-0 01 1 1112-
2 BRACKET; FLEX HOSE,FRT BRK 8-97623-926-1 01 1 1112-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1112-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1112-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1112-
13 PIPE; OIL,UNION TO UNION
L=2756 SERVICED BY L=2900 		1-47428-744-0 01 1 1112-
13 PIPE; OIL,UNION TO UNION
L=1454 SERVICED BY L=1500 		1-47428-735-0 01 1 1112-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=389 		8-98130-856-0 01 1 1112-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=417 		8-98111-592-1 01 1 1112-
19 UNION; OIL PIPE
(A) M12 L=40 		0-92113-006-0 02 1 1112-
19 UNION; OIL PIPE
(B) M12 3WAY 		0-92138-606-0 01 1 1112-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1112-
82 PLATE; FLEX HOSE 1-47476-241-1 02 1 1112-
83 BOLT; PLATE
M8X20 FLANGE 		0-28650-820-0 04 1 1112-
84 NUT; PLATE
M8 FLANGE 		0-91180-108-0 04 1 1112-

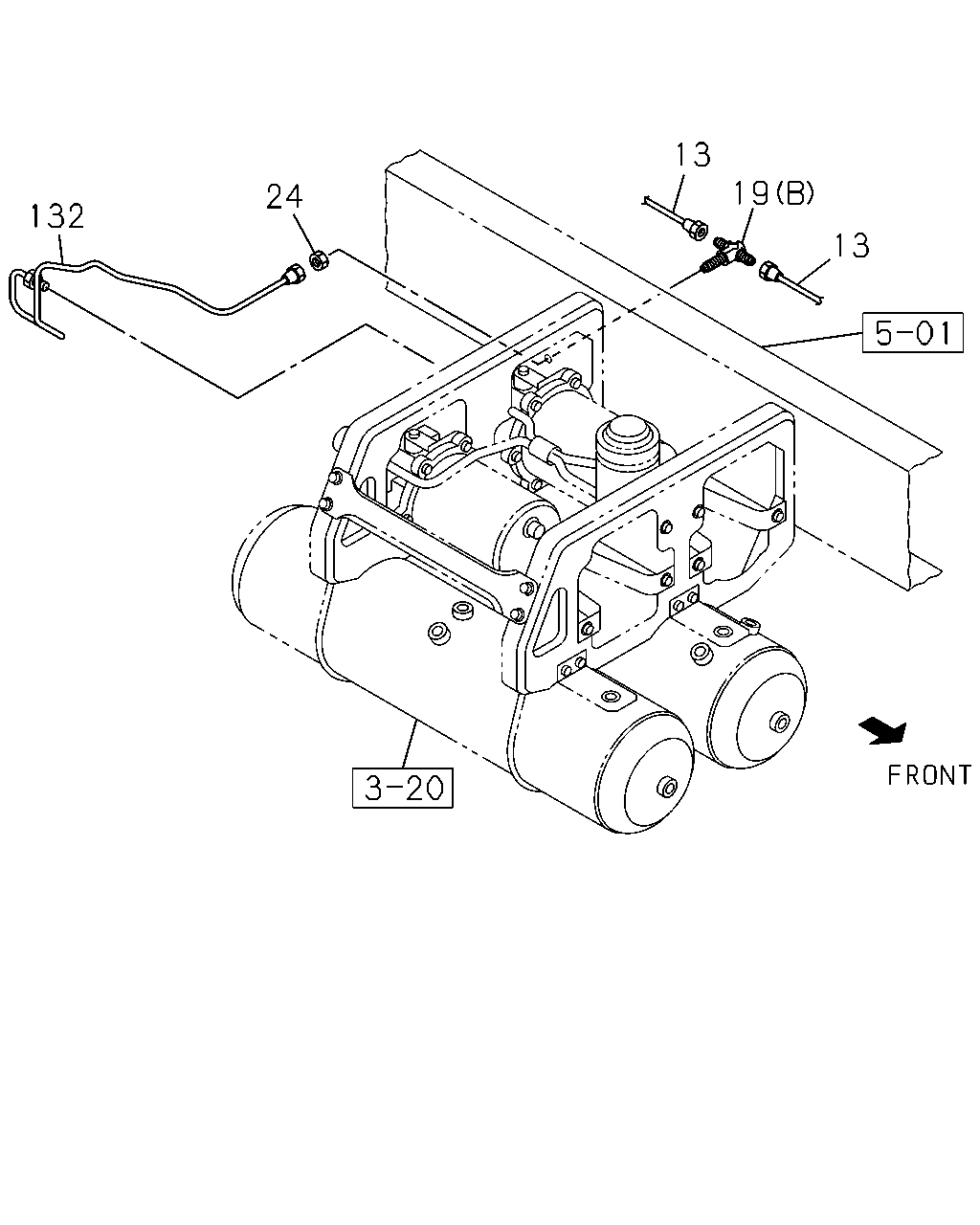

çizim 150812
13 19 24 132 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
L=2756 SERVICED BY L=2900 		1-47428-744-0 01 1 1112-
13 PIPE; OIL,UNION TO UNION
L=1454 SERVICED BY L=1500 		1-47428-735-0 01 1 1112-
19 UNION; OIL PIPE
(A) M12 L=40 		0-92113-006-0 02 1 1112-
19 UNION; OIL PIPE
(B) M12 3WAY 		0-92138-606-0 01 1 1112-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1112-
132 PIPE; OIL,BRK,HYD UNIT
L=769 SERVICED BY L=800 		1-47428-728-0 01 1 1112-
