Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

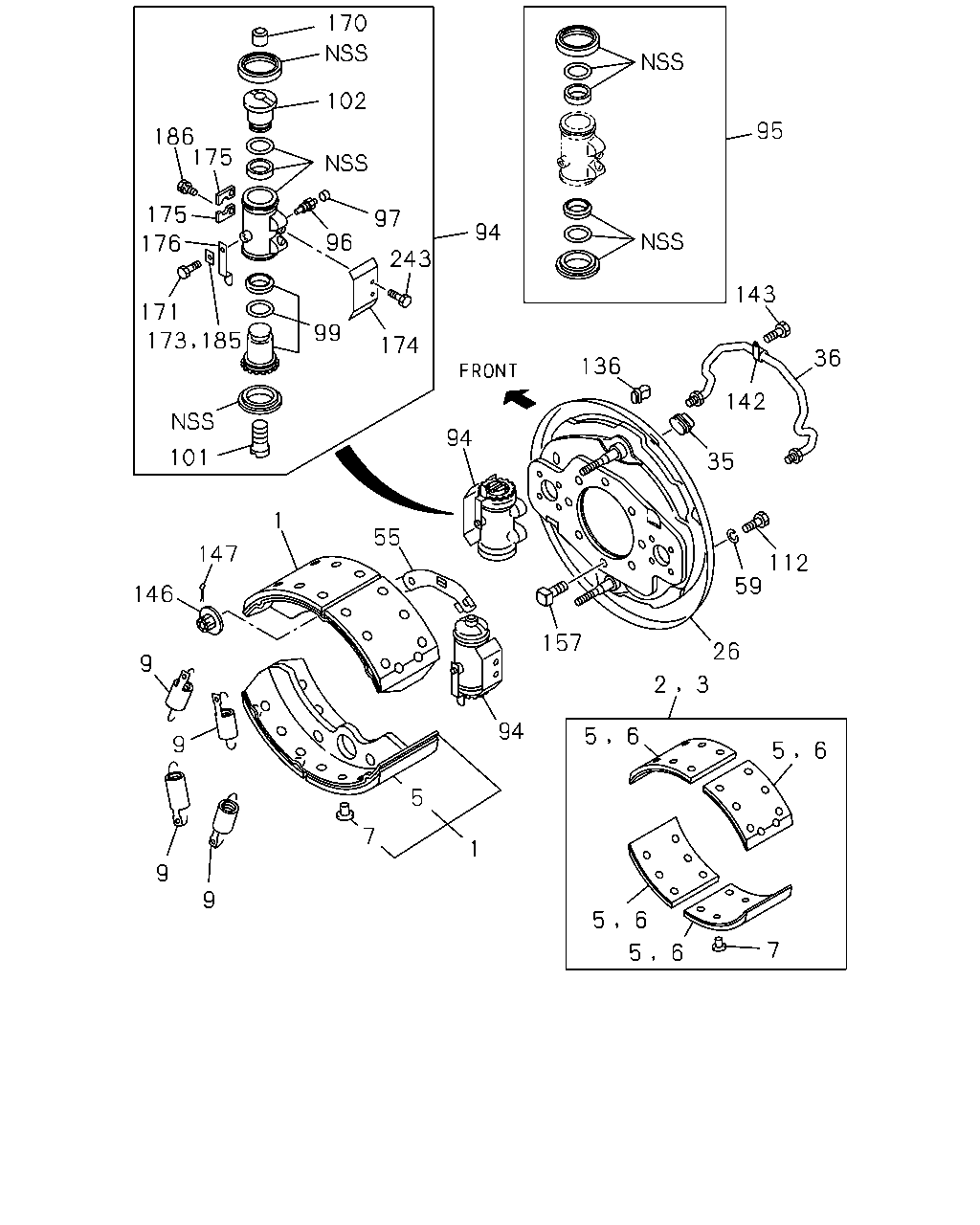

3-05 — REAR WHEEL BRAKE
(#61239) — 41 parça
170
102
95
186
175
175
97
94
96
176
243
143
171
99
174
36
136
142
94
101
35
1
55
147
112
59
146
157
26
9
2
3
94
5
6
9
5
6
5
7
1
9
9
5
6
7
5
6
173
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47120-632-0
04
1
1112-
2
LINING SET; RR BRK,STANDARD
1-88310-527-0
02
1
1112-
3
LINING SET; RR BRK,OVER SIZE
1-88310-528-0
02
1
1112-
5
LINING; RR BRK SHOE,STANDARD
1-47125-809-0
08
1
1112-
6
LINING; RR BRK SHOE,OVER SIZE
1-47125-810-0
08
1
1112-
7
RIVET; LINING,RR BRK
D6X11.5
1-09732-019-0
96
1
1112-
9
SPRING; RETURN,BRK SHOE
1-09583-167-0
08
1
1112-
26
PLATE; BACK,RR BRK
1-47150-456-0
01
1
1112-
26
PLATE; BACK,RR BRK
1-47150-457-0
01
1
1112-
35
GROMMET; CHECK HOLE
1-09333-066-1
04
1
1112-
36
PIPE; OIL,RR BRK
1-47416-356-0
02
1
1112-
55
PLATE; LK,RR WHEEL CYL
1-47139-068-0
04
1
1112-
59
WASHER; LK,RR WHEEL CYL
8-98188-786-0
16
1
1112-
94
CYLINDER; WHEEL,RR BRK
FORWARD
8-98188-494-0
01
1
1112-
94
CYLINDER; WHEEL,RR BRK
FORWARD
8-98188-495-0
01
1
1112-
94
CYLINDER; WHEEL,RR BRK
BACKWARD
8-98188-496-0
01
1
1112-
94
CYLINDER; WHEEL,RR BRK
BACKWARD
8-98188-497-0
01
1
1112-
95
CUP SET; RR WHEEL CYL
1-87831-413-0
04
1
1112-
96
SCREW; BLEEDER,RR BRK
L=44
1-47615-007-0
02
1
1112-
97
CAP; BLEEDER,RR WHEEL CYL
OD=9.5
9-47619-005-0
02
1
1112-
99
PISTON; RR WHEEL CYL
8-98188-753-0
02
1
1112-
99
PISTON; RR WHEEL CYL
8-98188-754-0
02
1
1112-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-022-0
02
1
1112-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-023-0
02
1
1112-
102
PISTON; REAR WHEEL CYL
8-98188-766-0
04
1
1112-
112
BOLT; WHEEL CYL SETTING
0-23951-435-0
16
1
1112-
136
GROMMET
1-09333-065-2
04
1
1112-
142
CLAMP; OIL PIPE
1-09700-454-0
02
1
1112-
143
BOLT; CLAMP,OIL PIPE
8-98188-788-0
02
1
1112-
146
NUT; HOLDER
1-09440-009-0
04
1
1112-
147
PIN; HOLDER
OD=1.8 L=20
0-81122-020-0
04
1
1112-
157
BOLT; RR BRK SET
M14X56
1-09060-004-0
12
1
1112-
170
PIECE; ANCHOR,RR WHEEL CYL
1-47619-019-0
04
1
1112-
171
BOLT; RR WHEEL CYL
M6X10
8-98030-649-0
04
1
1112-
173
PLATE; LK,RR WHEEL CYL
1-47169-009-0
02
1
1112-
174
COVER; CYL,RR WHEEL CYL
1-47619-016-0
04
1
1112-
175
HANGER; RR WHEEL BRK
1-47118-084-0
08
1
1112-
176
STOPPER; RR WHEEL CYL
1-47169-008-0
04
1
1112-
185
PLATE; LK,RR WHEEL CYL
1-47169-009-0
02
1
1112-
186
BOLT; HANGER
8-98188-787-0
08
1
1112-
243
BOLT; WHEEL CYL COVER SETTING
8-98188-788-0
08
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
