Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#6123) — 371 parça

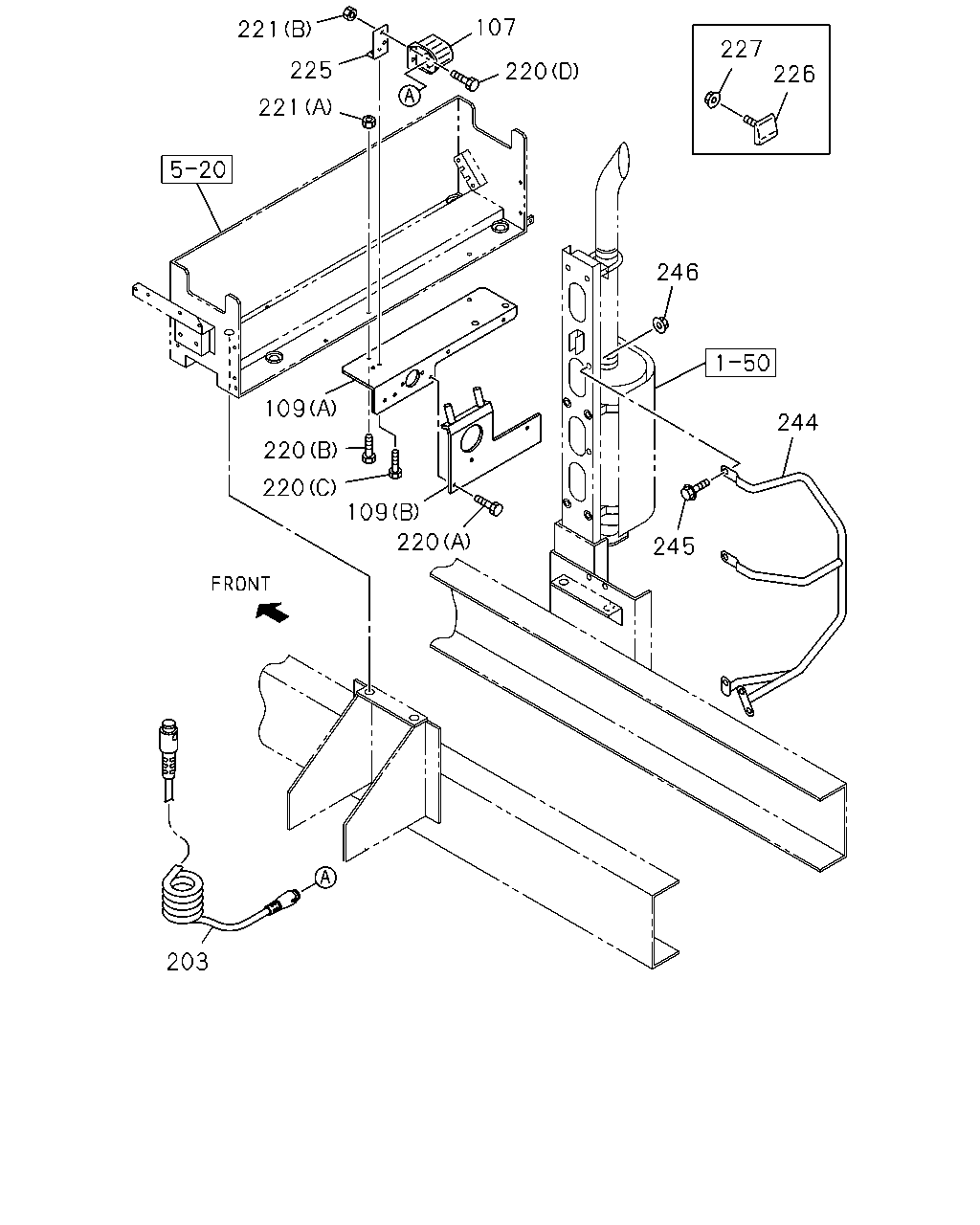

107 221 227 225 220 226 221 246 109 244 220 220 109 220 245 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	HANGER; JUMPER HOSE	1-57550-022-2	01	1	9905-
109	BRACKET; HOSE HANGER (A)	1-53497-643-0	01	1	9905-0011
109	BRACKET; HOSE HANGER (A)	1-53497-670-0	01	1	0012-
109	BRACKET; HOSE HANGER (B)	1-53497-644-0	01	1	9905-0002
109	BRACKET; HOSE HANGER (B)	1-53497-658-0	01	1	0003-
203	CABLE; JUMPER EXC. AUSTRALIA EQUIPMENT(RR3) L=4000	1-82659-186-0	01	1	0005-0104
203	CABLE; JUMPER EXC. AUSTRALIA EQUIPMENT(RR3) L=5500	1-82659-201-1	01	1	0105-0301
220	BOLT; HANGER (D) M6X16 FLANGE	0-28680-616-0	02	1	9905-0512
220	BOLT; HANGER (D) M6X16 FLANGE	0-28650-616-0	02	1	0601-
220	BOLT; HANGER (C) M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
220	BOLT; HANGER (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
220	BOLT; HANGER (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-0512
220	BOLT; HANGER (A) M8X30 FLANGE	0-28650-830-0	03	1	0601-
220	BOLT; HANGER (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-0512
220	BOLT; HANGER (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
221	NUT; HANGER (B) M6 FLANGE	0-91150-106-0	02	1	9905-0602
221	NUT; HANGER (B) M6 FLANGE	0-91180-106-0	02	1	0603-
221	NUT; HANGER (A) M10 FLANGE	0-91150-210-0	02	1	9905-0602
221	NUT; HANGER (A) M10 FLANGE	0-91180-210-0	02	1	0603-
225	BRACKET; HANGER	1-82698-002-0	01	1	9905-
226	RUBBER	1-53366-155-0	01	1	9905-0103
227	NUT; RUBBER M8 FLANGE	0-91150-108-0	01	1	9905-0103
244	GRIP	1-71907-606-1	01	1	0002-0104
244	GRIP	1-71907-606-1	01	1	0105-0301
244	GRIP	1-71907-606-1	01	1	0302-
245	BOLT; GRIP M12X40 FLANGE	0-28681-240-0	05	1	0002-0512
245	BOLT; GRIP M12X40 FLANGE	0-28651-240-0	05	1	0601-
246	NUT; GRIP M12 FLANGE	0-91150-212-0	05	1	0002-0602
246	NUT; GRIP M12 FLANGE	0-91180-212-0	05	1	0603-

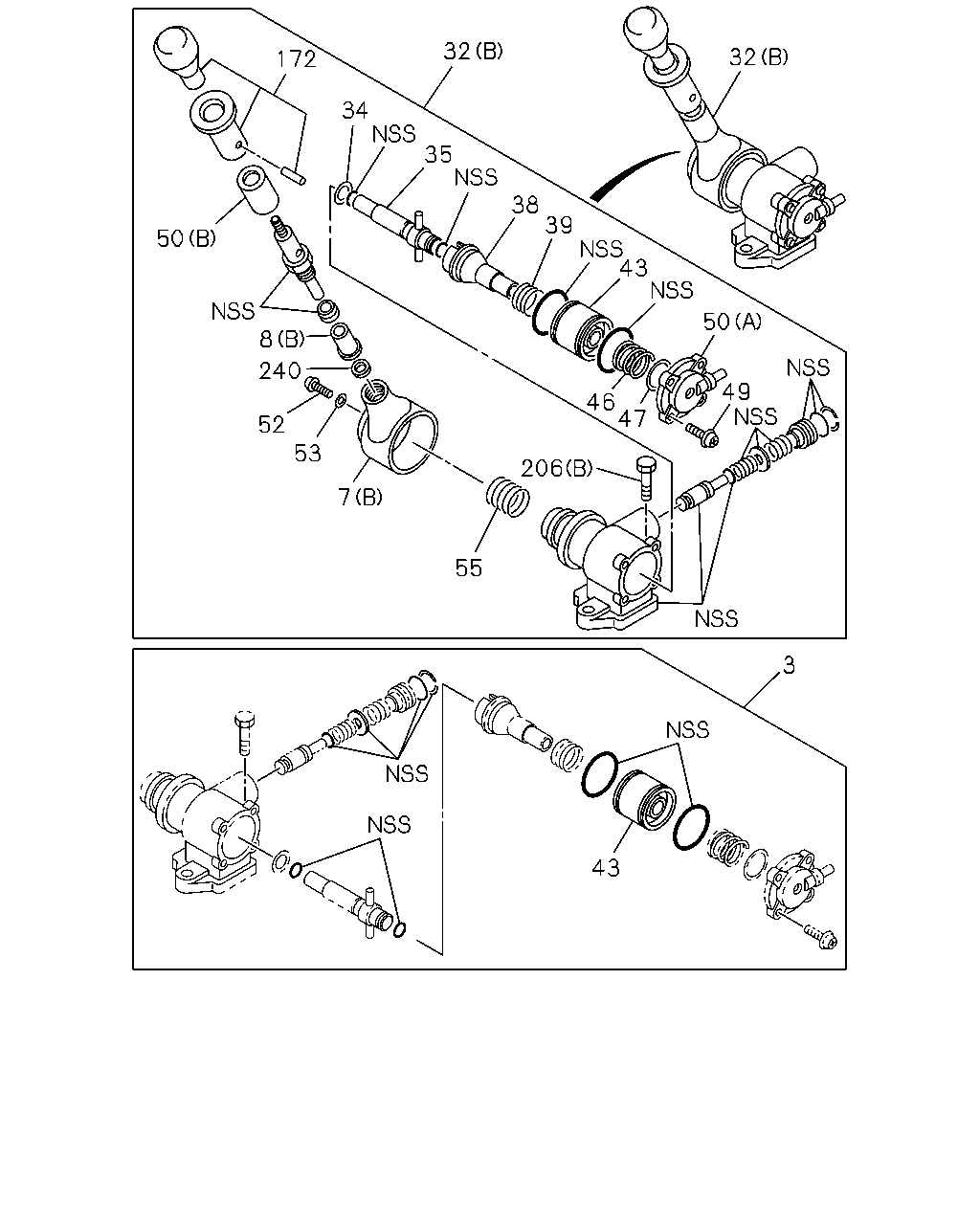

32 32 172 34 35 38 39 43 50 8 50 240 49 46 47 52 53 7 55 3 43 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

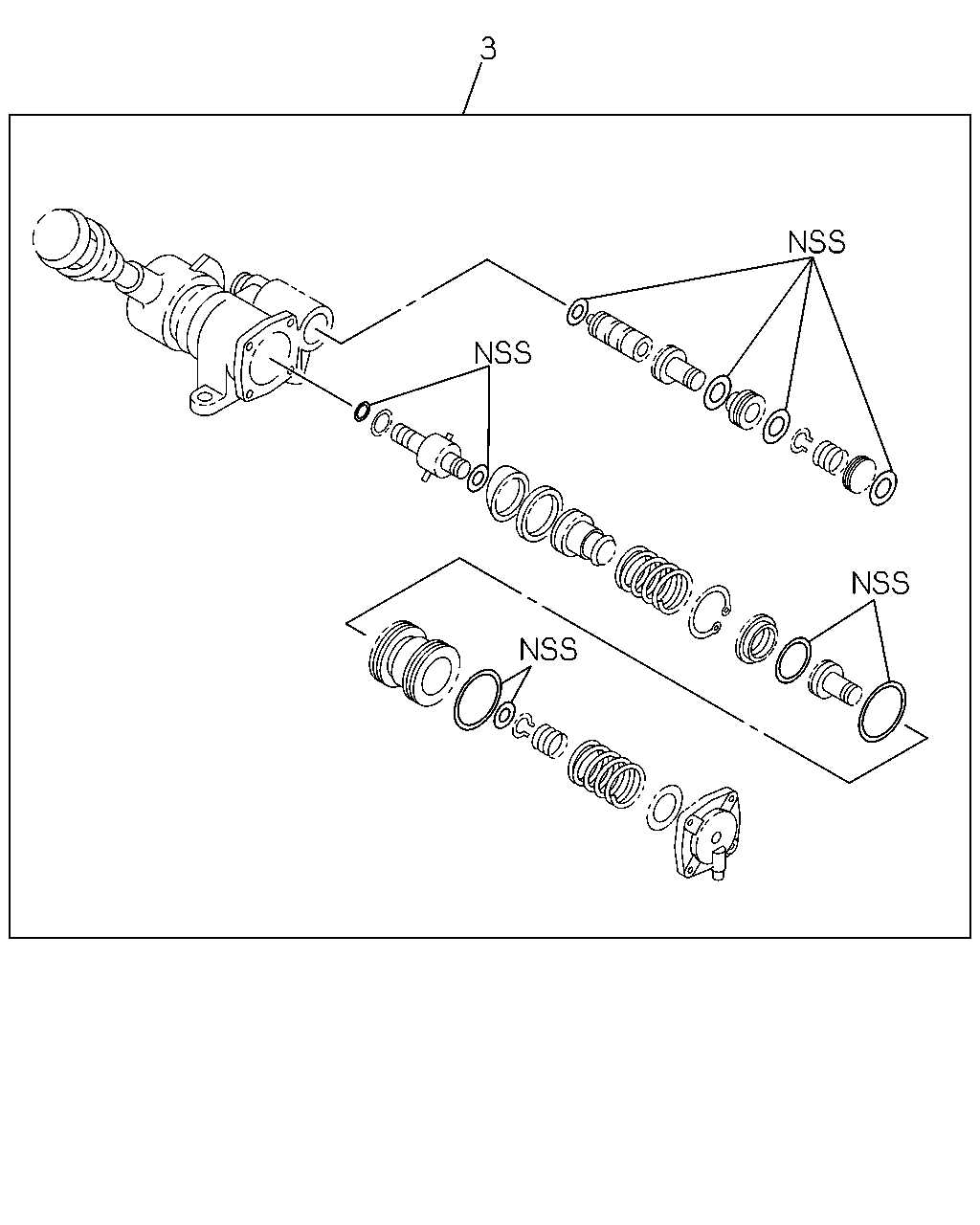

3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	9905-0104
3	REPAIR KIT; HAND BRK VLV	1-85576-243-0	01	1	0105-0302
3	REPAIR KIT; HAND BRK VLV	1-85576-375-0	01	1	0303-
7	HEAD; BRK VLV (A)	1-48119-131-0	01	1	9905-0104
7	HEAD; BRK VLV (B)	1-48469-195-0	01	1	0105-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0105-0201
7	HEAD; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-131-0	01	1	0202-0301
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0302-
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-577-0	01	1	0202-0301
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	9905-0104
8	STOPPER; BRK VLV (B)	1-48469-194-0	01	1	0105-
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-327-0	01	1	0105-0301
8	STOPPER; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-239-0	01	1	0105-0301
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0302-
32	VALVE; BRK,HAND CONT (A)	1-48460-316-0	01	1	9905-0104
32	VALVE; BRK,HAND CONT (B)	1-48460-340-1	01	1	0105-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9905-
35	HOLDER; CAM	1-48469-054-0	01	1	9905-0104
35	HOLDER; CAM	1-48469-148-0	01	1	0105-
38	SEAT; EXH VLV	1-48469-057-0	01	1	9905-0104
38	SEAT; EXH VLV	1-48469-149-0	01	1	0105-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9905-0104
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9905-0104
43	PISTON; HAND BRK VLV	1-48469-151-0	01	1	0105-0302
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	9905-0104
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0105-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9905-
49	SCREW; COVER	1-48469-120-0	04	1	9905-0104
49	SCREW; COVER	1-48469-169-0	04	1	0105-
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	9905-0104
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-
52	SCREW; HANDLE	1-48469-062-0	01	1	9905-
53	WASHER; HANDLE	1-48469-061-0	01	1	9905-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9905-0104
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-
172	KNOB; VALVE	1-48469-204-0	01	1	0105-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-0512
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-
240	RING; STOPPER	1-48469-193-0	01	1	0105-

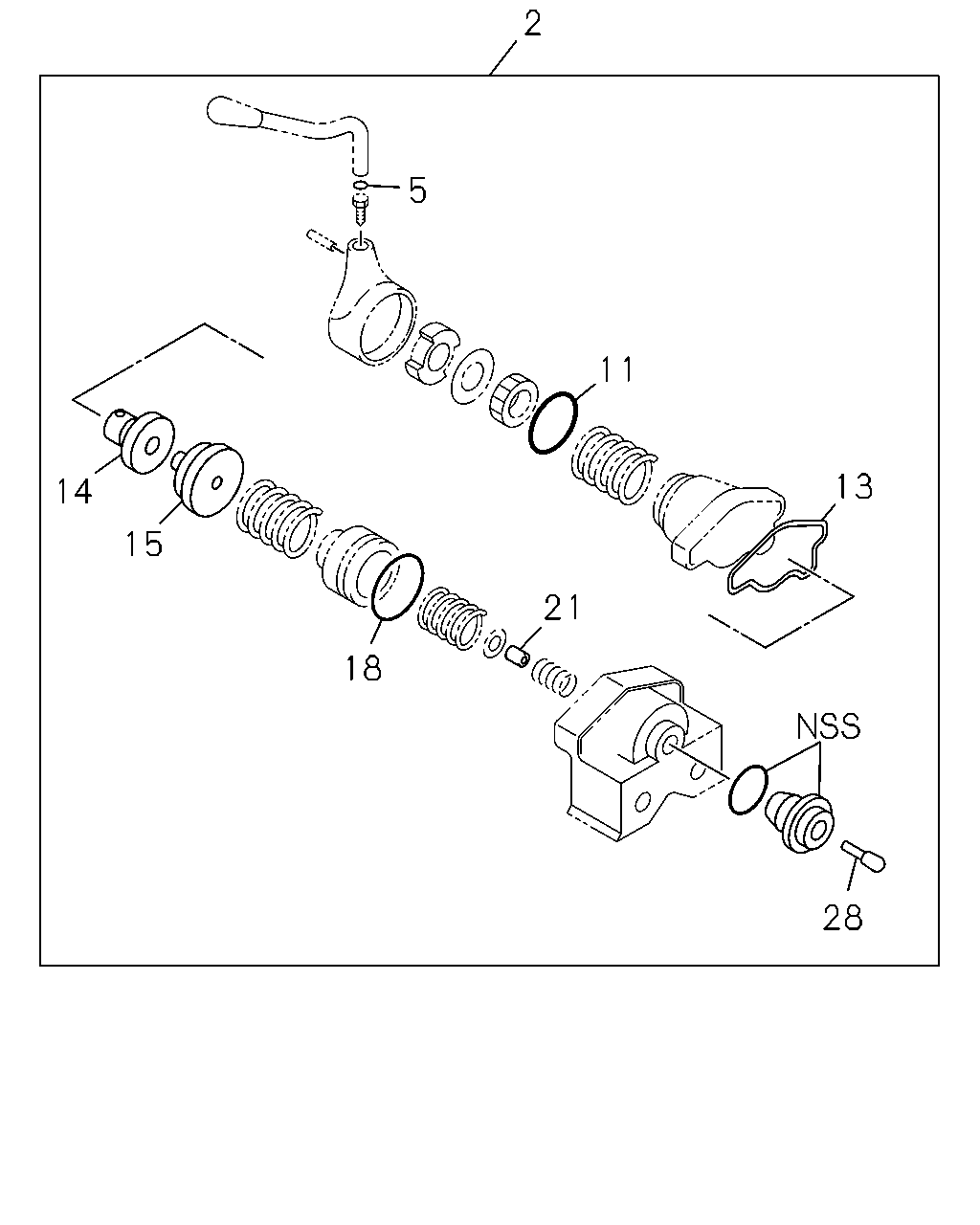

2 5 11 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	9905-0104
2	REPAIR KIT; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-85576-181-0	01	1	0105-0301
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	0302-
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-202-0	01	1	0105-0201
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-305-0	01	1	0202-0301
5	GASKET; HANDLE	1-48119-128-0	01	1	9905-0104
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	0105-0301
5	GASKET; HANDLE	1-48119-128-0	01	1	0302-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9905-0104
11	GASKET; HD TO COVER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-130-0	01	1	0105-0301
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0302-
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	0105-0201
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9905-0104
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	0105-0301
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0302-
14	FOLLOWER; CAM	1-48129-135-0	01	1	9905-0104
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL<NLG>	1-48129-135-0	01	1	0105-0301
14	FOLLOWER; CAM	1-48129-135-0	01	1	0302-
15	CAM; FOLLOWER	1-48129-134-0	01	1	9905-0104
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL<NLG>	1-48129-134-0	01	1	0105-0301
15	CAM; FOLLOWER	1-48129-134-0	01	1	0302-
18	GASKET; BODY	1-48129-096-0	01	1	9905-0104
18	GASKET; BODY TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	0105-0301
18	GASKET; BODY	1-48129-096-0	01	1	0302-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9905-0104
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	0105-0301
21	VALVE; IN & EXH	1-48121-017-0	01	1	0302-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9905-0104
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	0105-0301
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0302-

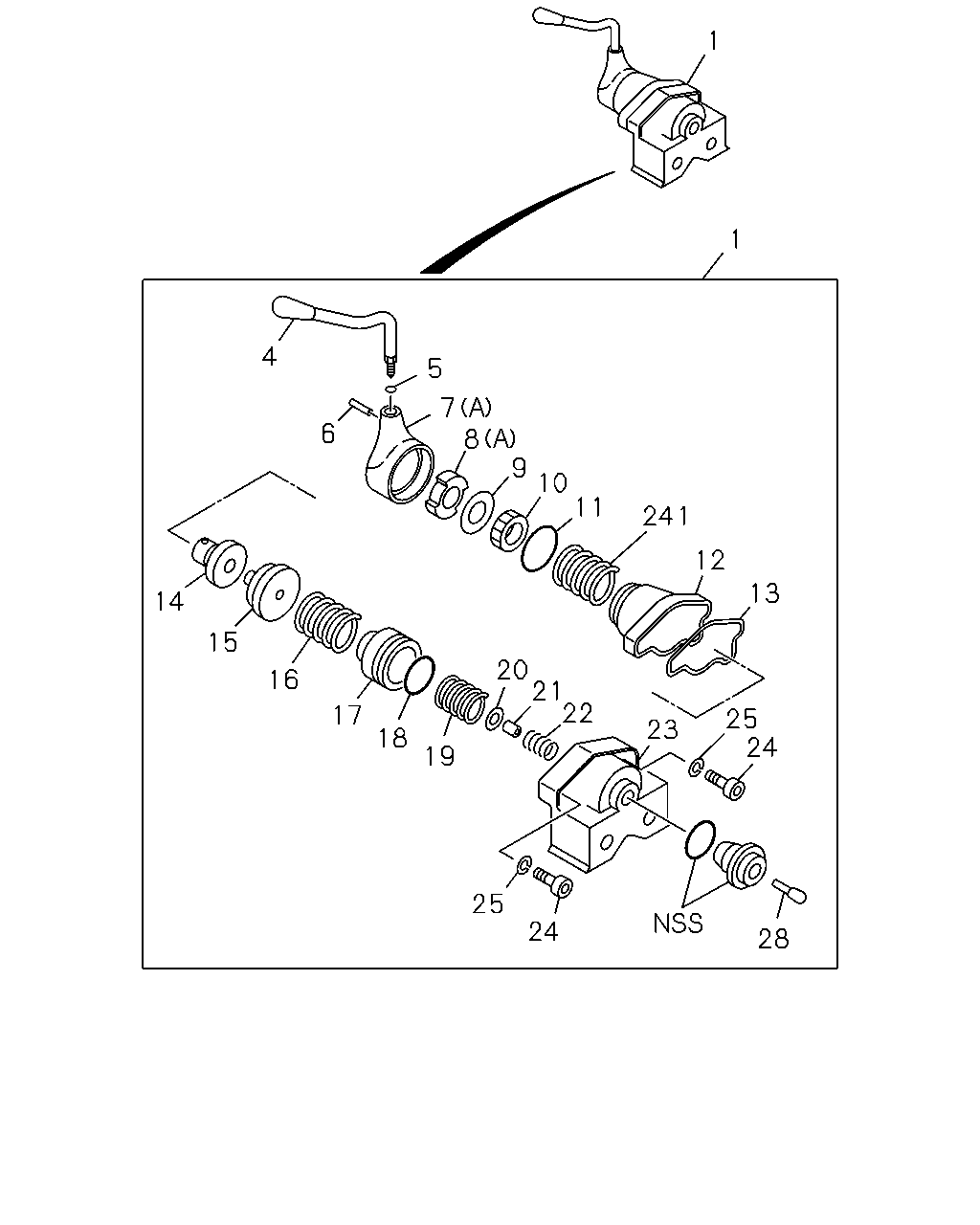

1 1 4 5 7 8 6 9 10 11 241 12 13 14 15 20 21 22 16 25 24 23 17 18 19 25 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-747-1	01	1	9905-0104
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-806-1	01	1	0105-0201
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-859-0	01	1	0202-0301
1	VALVE ASM; HAND BRK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48100-848-0	01	1	0105-0301
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0302-
4	HANDLE ASM; BRK VLV	1-48119-360-0	01	1	9905-0104
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-516-0	01	1	0105-0201
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-580-0	01	1	0202-0301
4	HANDLE ASM; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-517-0	01	1	0105-0301
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0302-
5	GASKET; HANDLE	1-48119-128-0	01	1	9905-0104
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	0105-0301
5	GASKET; HANDLE	1-48119-128-0	01	1	0302-
6	PIN; SPR	1-48119-143-0	01	1	9905-0104
6	PIN; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48119-143-0	01	1	0105-0301
6	PIN; SPR	1-48119-143-0	01	1	0302-
7	HEAD; BRK VLV (A)	1-48119-131-0	01	1	9905-0104
7	HEAD; BRK VLV (B)	1-48469-195-0	01	1	0105-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0105-0201
7	HEAD; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-131-0	01	1	0202-0301
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0302-
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-577-0	01	1	0202-0301
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	9905-0104
8	STOPPER; BRK VLV (B)	1-48469-194-0	01	1	0105-
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-327-0	01	1	0105-0301
8	STOPPER; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-239-0	01	1	0105-0301
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0302-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9905-0104
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-123-0	01	1	0105-0301
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0302-
10	RING; ADJ	1-48119-122-0	01	1	9905-0104
10	RING; ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-122-0	01	1	0105-0301
10	RING; ADJ	1-48119-122-0	01	1	0302-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9905-0104
11	GASKET; HD TO COVER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-130-0	01	1	0105-0301
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0302-
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	0105-0201
12	COVER; BRK VLV	1-48129-097-0	01	1	9905-0104
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-097-0	01	1	0105-0201
12	COVER; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48129-097-0	01	1	0202-0301
12	COVER; BRK VLV	1-48129-097-1	01	1	0302-
12	COVER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-319-0	01	1	0202-0301
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9905-0104
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	0105-0301
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0302-
14	FOLLOWER; CAM	1-48129-135-0	01	1	9905-0104
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL<NLG>	1-48129-135-0	01	1	0105-0301
14	FOLLOWER; CAM	1-48129-135-0	01	1	0302-
15	CAM; FOLLOWER	1-48129-134-0	01	1	9905-0104
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL<NLG>	1-48129-134-0	01	1	0105-0301
15	CAM; FOLLOWER	1-48129-134-0	01	1	0302-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9905-0104
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL<NLG>	1-48129-101-0	01	1	0105-0301
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0302-
17	PISTON; SPR	1-48129-095-0	01	1	9905-0104
17	PISTON; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48129-095-0	01	1	0105-0301
17	PISTON; SPR	1-48129-095-0	01	1	0302-
18	GASKET; BODY	1-48129-096-0	01	1	9905-0104
18	GASKET; BODY TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	0105-0301
18	GASKET; BODY	1-48129-096-0	01	1	0302-
19	SPRING; PISTON	1-48129-094-0	01	1	9905-0104
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL<NLG>	1-48129-094-0	01	1	0105-0301
19	SPRING; PISTON	1-48129-094-0	01	1	0302-
20	GUIDE; VLV	1-48129-090-0	01	1	9905-0104
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-090-0	01	1	0105-0301
20	GUIDE; VLV	1-48129-090-0	01	1	0302-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9905-0104
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	0105-0301
21	VALVE; IN & EXH	1-48121-017-0	01	1	0302-
22	SPRING; VLV	1-48123-024-0	01	1	9905-0104
22	SPRING; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48123-024-0	01	1	0105-0301
22	SPRING; VLV	1-48123-024-0	01	1	0302-
23	BODY; BRK VLV	1-48111-060-0	01	1	9905-0104
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48111-060-0	01	1	0105-0301
23	BODY; BRK VLV	1-48111-060-1	01	1	0302-
24	BOLT; EXH VLV	1-48129-092-0	02	1	9905-0104
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-092-0	02	1	0105-0301
24	BOLT; EXH VLV	1-48129-092-0	02	1	0302-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	9905-0104
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-093-0	02	1	0105-0301
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0302-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9905-0104
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	0105-0301
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0302-
241	SPRING; RETURN NEW ZEALAND EQUIPMENT(PK5)	1-48119-576-0	01	1	0202-0301

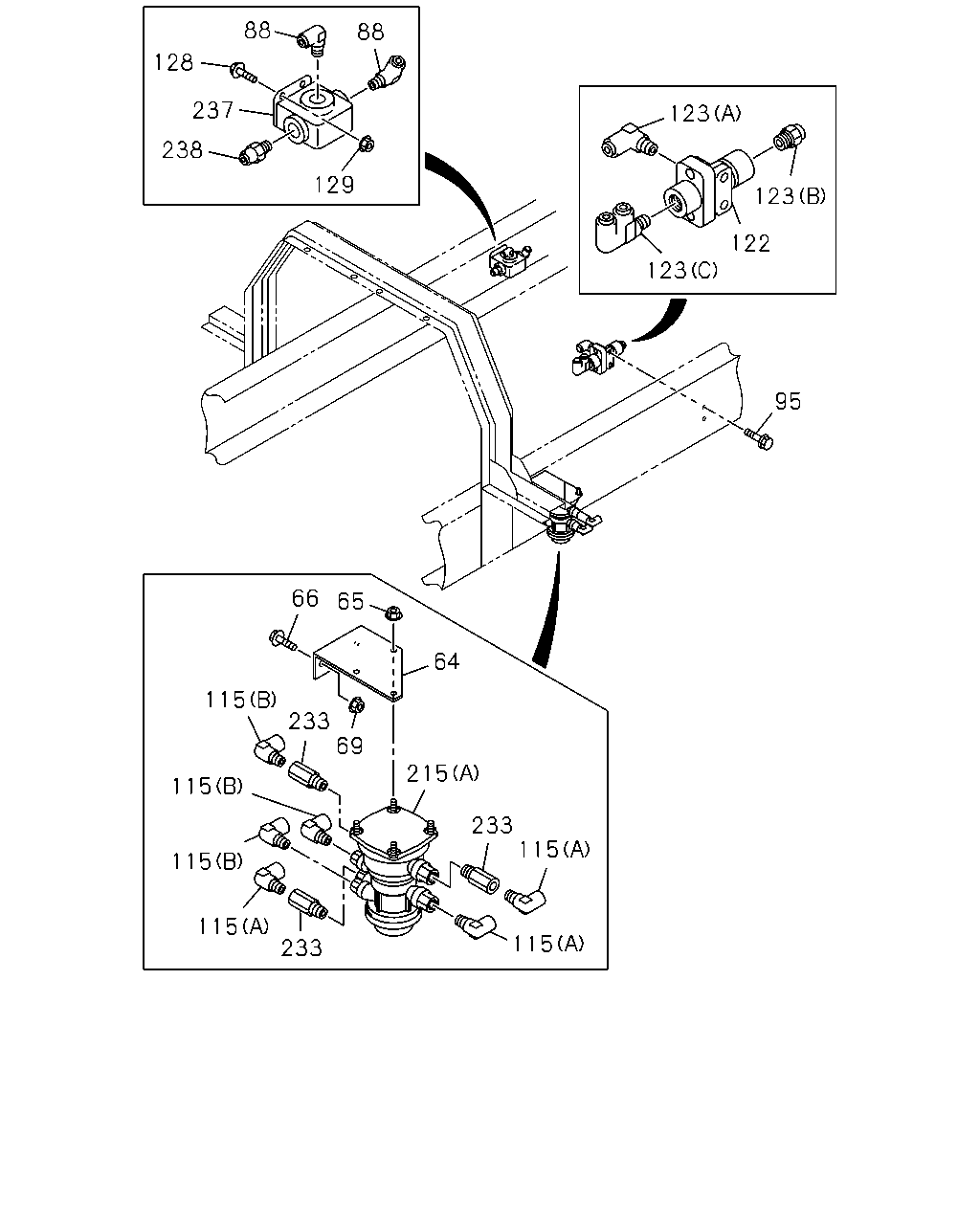

88 88 128 237 123 238 129 123 122 123 95 66 65 64 115 233 69 215 115 233 115 115 115 115 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-193-0	01	1	9905-0007
64	BRACKET; RELAY VLV	1-48495-226-0	01	1	0008-0104
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	06	1	9905-0104
65	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
66	BOLT; VLV BRKT M10X40 FLANGE	0-28681-040-0	02	1	9905-0104
69	NUT; VLV BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0104
88	CONNECTOR; ELBOW	1-09660-961-0	02	1	9905-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9905-0512
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28050-816-0	02	1	0601-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9905-0104
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	9905-0104
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
115	CONNECTOR; DUAL RELAY VLV (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
115	CONNECTOR; DUAL RELAY VLV (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	9905-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
123	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-
123	CONNECTOR; DBL CHECK VLV (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9905-
128	BOLT; VLV M8X30 FLANGE	0-28680-830-0	02	1	9905-0512
128	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0601-
128	BOLT; VLV M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
128	BOLT; VLV M6X50 FLANGE	0-28050-650-0	02	1	0601-
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
128	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9905-0301
129	NUT; VLV M8 FLANGE	0-91150-108-0	05	1	0302-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	05	1	0603-
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	9905-0104
129	NUT; VLV M8 FLANGE	0-91150-108-0	04	1	0105-0301
129	NUT; VLV M6 FLANGE	0-91150-106-0	02	1	0105-0602
129	NUT; VLV M6 FLANGE	0-91180-106-0	02	1	0603-
215	VALVE; TRAILER CONT (A)	1-48210-684-0	01	1	9905-0104
215	VALVE; TRAILER CONT (B)	1-48210-157-1	01	1	0105-
233	ADAPTER; VLV PT3/8	1-48319-058-0	02	1	9905-0002
233	ADAPTER; VLV PT3/8	1-48319-058-0	03	1	0003-0104
237	VALVE; QUICK RELEASE	1-48410-234-0	01	1	9905-0701
237	VALVE; QUICK RELEASE	1-48410-782-0	01	1	0702-
238	CONNECTOR	1-09660-991-0	01	1	9905-

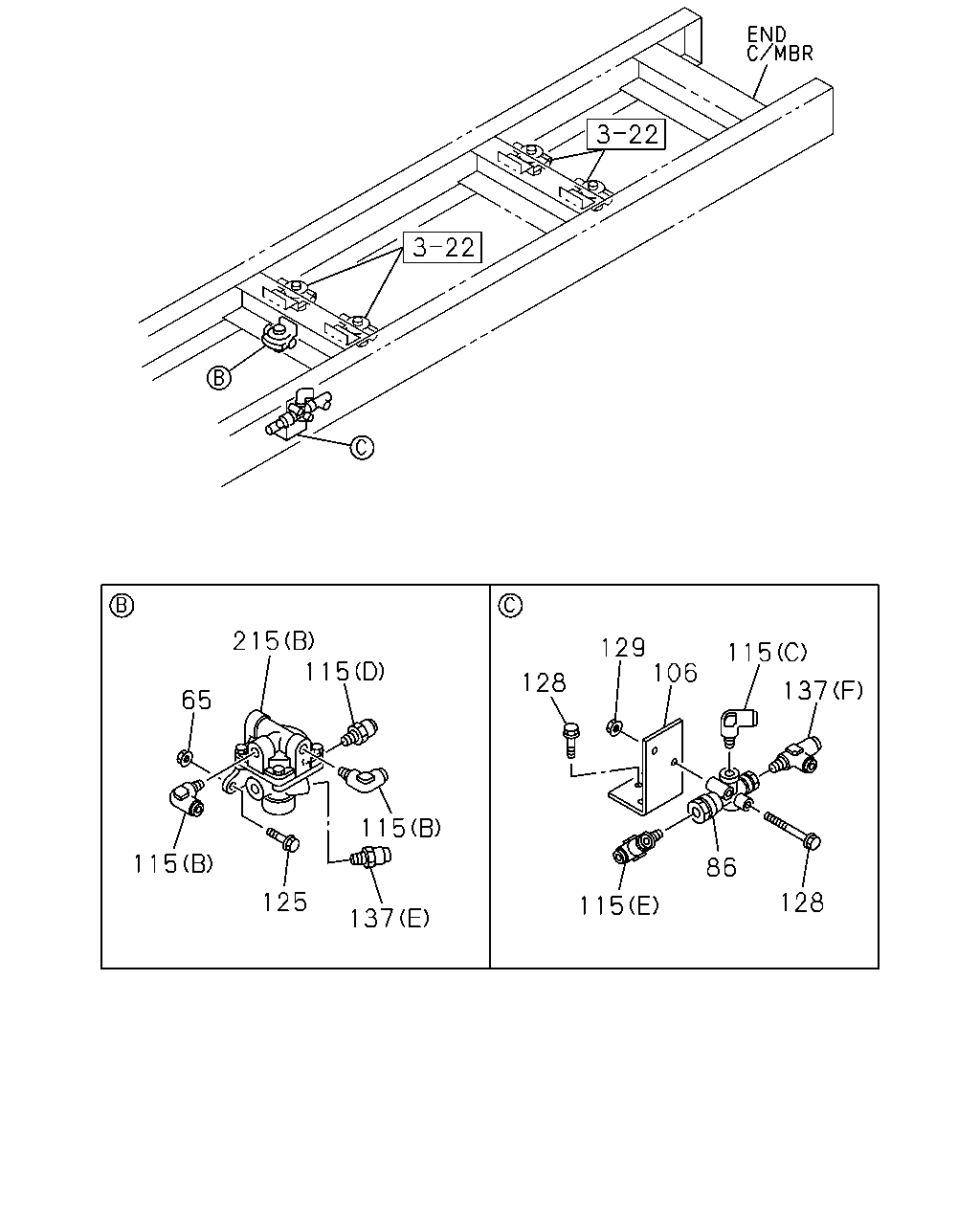

215 115 129 106 115 128 137 65 115 115 86 125 128 115 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	06	1	9905-0104
65	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
86	VALVE; SYN	1-48460-173-0	01	1	0105-
106	BRACKET; VLV	1-47479-253-0	01	1	0105-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9905-0104
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	9905-0104
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
115	CONNECTOR; DUAL RELAY VLV (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
115	CONNECTOR; DUAL RELAY VLV (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-
125	BOLT; RELAY VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
125	BOLT; RELAY VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
128	BOLT; VLV M8X30 FLANGE	0-28680-830-0	02	1	9905-0512
128	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0601-
128	BOLT; VLV M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
128	BOLT; VLV M6X50 FLANGE	0-28050-650-0	02	1	0601-
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
128	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9905-0301
129	NUT; VLV M8 FLANGE	0-91150-108-0	05	1	0302-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	05	1	0603-
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	9905-0104
129	NUT; VLV M8 FLANGE	0-91150-108-0	04	1	0105-0301
129	NUT; VLV M6 FLANGE	0-91150-106-0	02	1	0105-0602
129	NUT; VLV M6 FLANGE	0-91180-106-0	02	1	0603-
137	CONNECTOR; SUPPLY (A) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9905-9911
137	CONNECTOR; SUPPLY (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-0104
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-
137	CONNECTOR; SUPPLY (D)	1-09650-352-1	01	1	0105-0106
137	CONNECTOR; SUPPLY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D)	1-09650-352-1	01	1	0107-0301
137	CONNECTOR; SUPPLY (D)	1-09650-352-1	01	1	0302-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0106
137	CONNECTOR; SUPPLY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0301
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0302-
137	CONNECTOR; SUPPLY (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
137	CONNECTOR; SUPPLY (F) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0105-
137	CONNECTOR; SUPPLY COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0301
215	VALVE; TRAILER CONT (A)	1-48210-684-0	01	1	9905-0104
215	VALVE; TRAILER CONT (B)	1-48210-157-1	01	1	0105-

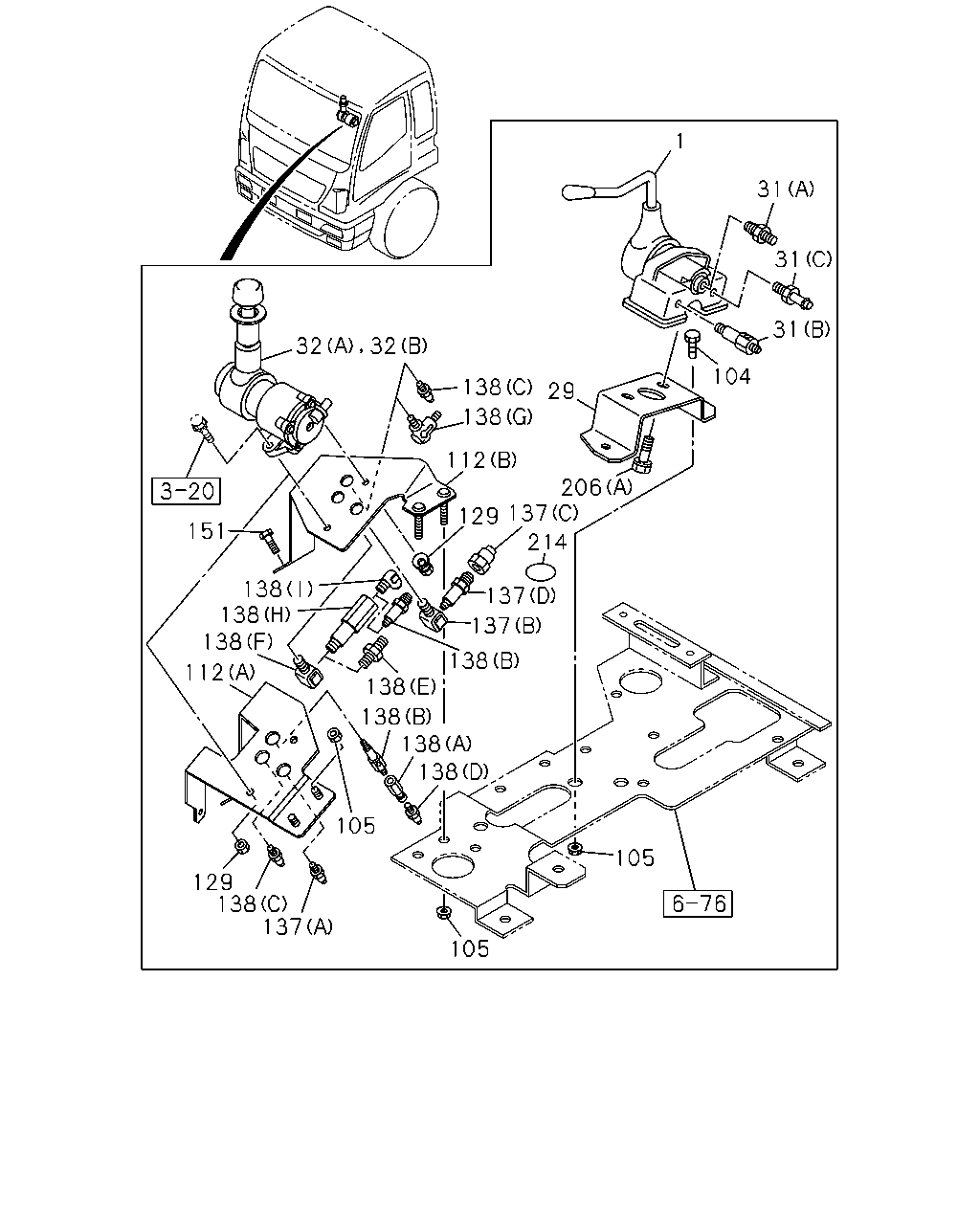

1 31 31 31 32 32 104 138 29 138 112 206 137 129 151 214 138 138 138 137 137 138 112 138 138 138 138 105 105 129 138 137 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-747-1	01	1	9905-0104
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-806-1	01	1	0105-0201
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-859-0	01	1	0202-0301
1	VALVE ASM; HAND BRK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48100-848-0	01	1	0105-0301
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0302-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	9905-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9905-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9905-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9905-0607
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-
32	VALVE; BRK,HAND CONT (A)	1-48460-316-0	01	1	9905-0104
32	VALVE; BRK,HAND CONT (B)	1-48460-340-1	01	1	0105-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9905-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-0602
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
112	BRACKET; CONT VLV (A)	1-79996-336-1	01	1	9905-0104
112	BRACKET; CONT VLV (B)	1-79996-387-0	01	1	0105-0106
112	BRACKET; CONT VLV EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-79996-387-0	01	1	0107-0301
112	BRACKET; CONT VLV (B)	1-79996-387-0	01	1	0302-
112	BRACKET; CONT VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-79996-336-1	01	1	0107-0301
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	9905-0301
129	NUT; VLV M8 FLANGE	0-91150-108-0	05	1	0302-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	05	1	0603-
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	9905-0104
129	NUT; VLV M8 FLANGE	0-91150-108-0	04	1	0105-0301
129	NUT; VLV M6 FLANGE	0-91150-106-0	02	1	0105-0602
129	NUT; VLV M6 FLANGE	0-91180-106-0	02	1	0603-
137	CONNECTOR; SUPPLY (A) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9905-9911
137	CONNECTOR; SUPPLY (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-0104
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-
137	CONNECTOR; SUPPLY (D)	1-09650-352-1	01	1	0105-0106
137	CONNECTOR; SUPPLY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (D)	1-09650-352-1	01	1	0107-0301
137	CONNECTOR; SUPPLY (D)	1-09650-352-1	01	1	0302-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0106
137	CONNECTOR; SUPPLY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0301
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0302-
137	CONNECTOR; SUPPLY (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
137	CONNECTOR; SUPPLY (F) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0105-
137	CONNECTOR; SUPPLY COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0301
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9905-0104
138	CONNECTOR; DELIVERY (F) PT1/4 2WAY	1-09660-693-0	01	1	0105-0111
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9905-9911
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9912-0104
138	CONNECTOR; DELIVERY (G)	1-09650-263-2	01	1	0105-0105
138	CONNECTOR; DELIVERY (H)	1-09660-335-1	01	1	0106-0106
138	CONNECTOR; DELIVERY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (H)	1-09660-335-1	01	1	0107-0111
138	CONNECTOR; DELIVERY (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9905-0104
138	CONNECTOR; DELIVERY (D) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY (E) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0105-0105
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
138	CONNECTOR; DELIVERY (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0106
138	CONNECTOR; DELIVERY EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0111
138	CONNECTOR; DELIVERY COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) M14	1-09656-391-2	01	1	0107-0111
138	CONNECTOR; DELIVERY COUNTER SHAFT BRAKE MULTI DISC<BCP> (H) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-0111
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9905-0409
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-0512
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	9905-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	9905-0104
3	REPAIR KIT; HAND BRK VLV	1-85576-243-0	01	1	0105-0302
3	REPAIR KIT; HAND BRK VLV	1-85576-375-0	01	1	0303-

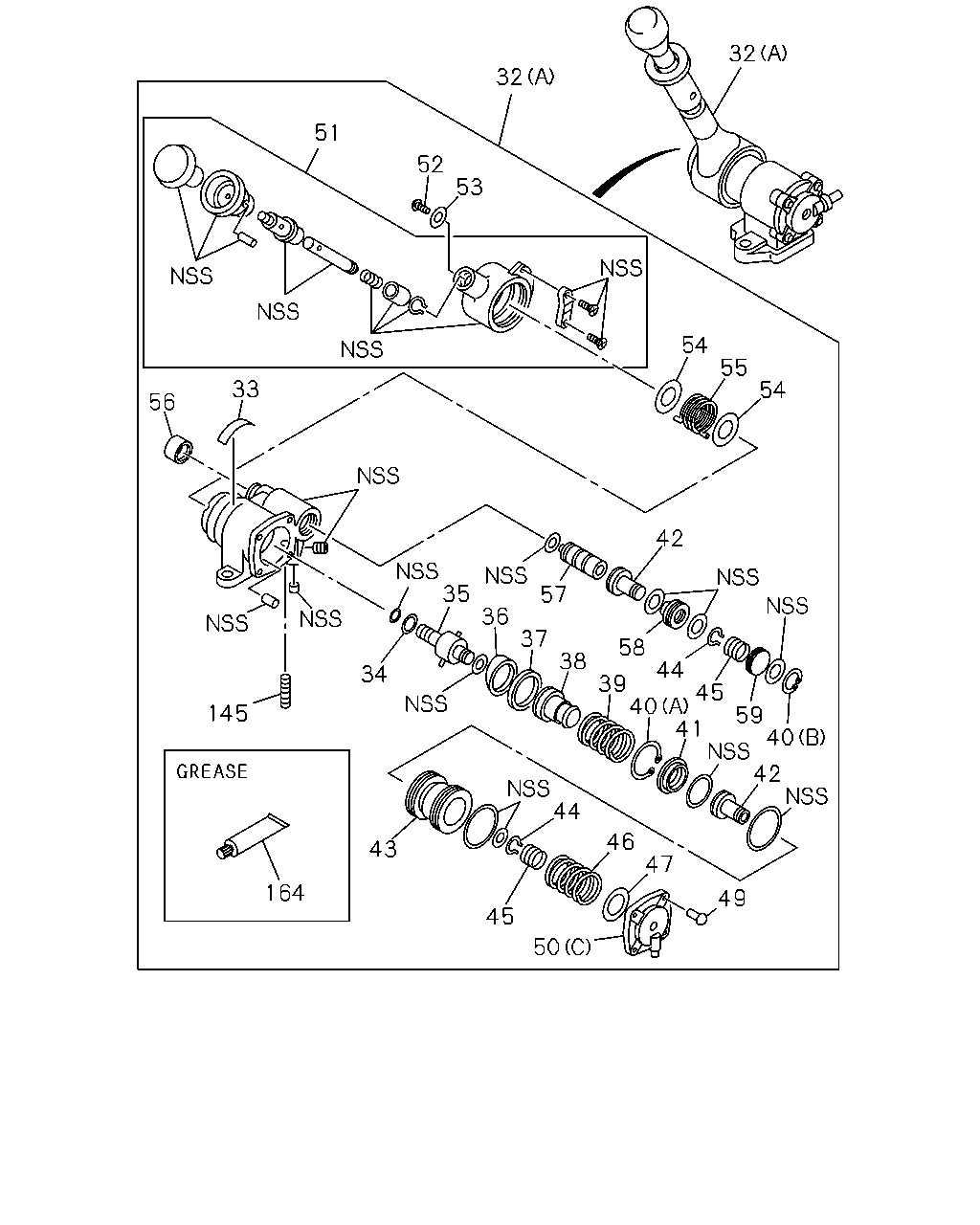

32 32 51 52 53 54 55 33 54 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT (A)	1-48460-316-0	01	1	9905-0104
32	VALVE; BRK,HAND CONT (B)	1-48460-340-1	01	1	0105-
33	PLATE; CAUTION	1-48469-121-0	01	1	9905-0104
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9905-
35	HOLDER; CAM	1-48469-054-0	01	1	9905-0104
35	HOLDER; CAM	1-48469-148-0	01	1	0105-
36	RING; CAM	1-48469-056-0	01	1	9905-0104
37	GUIDE; CAM RING	1-48469-058-0	01	1	9905-0104
38	SEAT; EXH VLV	1-48469-057-0	01	1	9905-0104
38	SEAT; EXH VLV	1-48469-149-0	01	1	0105-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9905-0104
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-
40	RING; SNAP (A)	1-48469-067-0	01	1	9905-0104
40	RING; SNAP (B)	1-48469-079-0	01	1	9905-0104
41	SEAT; FEED VLV	1-48469-066-0	01	1	9905-0104
42	VALVE; FEED	1-48469-065-0	02	1	9905-0104
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9905-0104
43	PISTON; HAND BRK VLV	1-48469-151-0	01	1	0105-0302
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	9905-0104
45	SPRING; FEED VLV	1-48469-070-0	02	1	9905-0104
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	9905-0104
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0105-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9905-
49	SCREW; COVER	1-48469-120-0	04	1	9905-0104
49	SCREW; COVER	1-48469-169-0	04	1	0105-
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	9905-0104
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	9905-0104
52	SCREW; HANDLE	1-48469-062-0	01	1	9905-
53	WASHER; HANDLE	1-48469-061-0	01	1	9905-
54	SEAT; SPRING	1-48469-082-0	02	1	9905-0104
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9905-0104
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-
56	BOOT; PLUNGER	1-48469-080-0	01	1	9905-0104
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	9905-0104
58	HOLDER; FEED VLV	1-48469-077-0	01	1	9905-0104
59	HOLDER; SPRING	1-48469-078-0	01	1	9905-0104
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	9905-0104
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	9905-0104

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
