Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

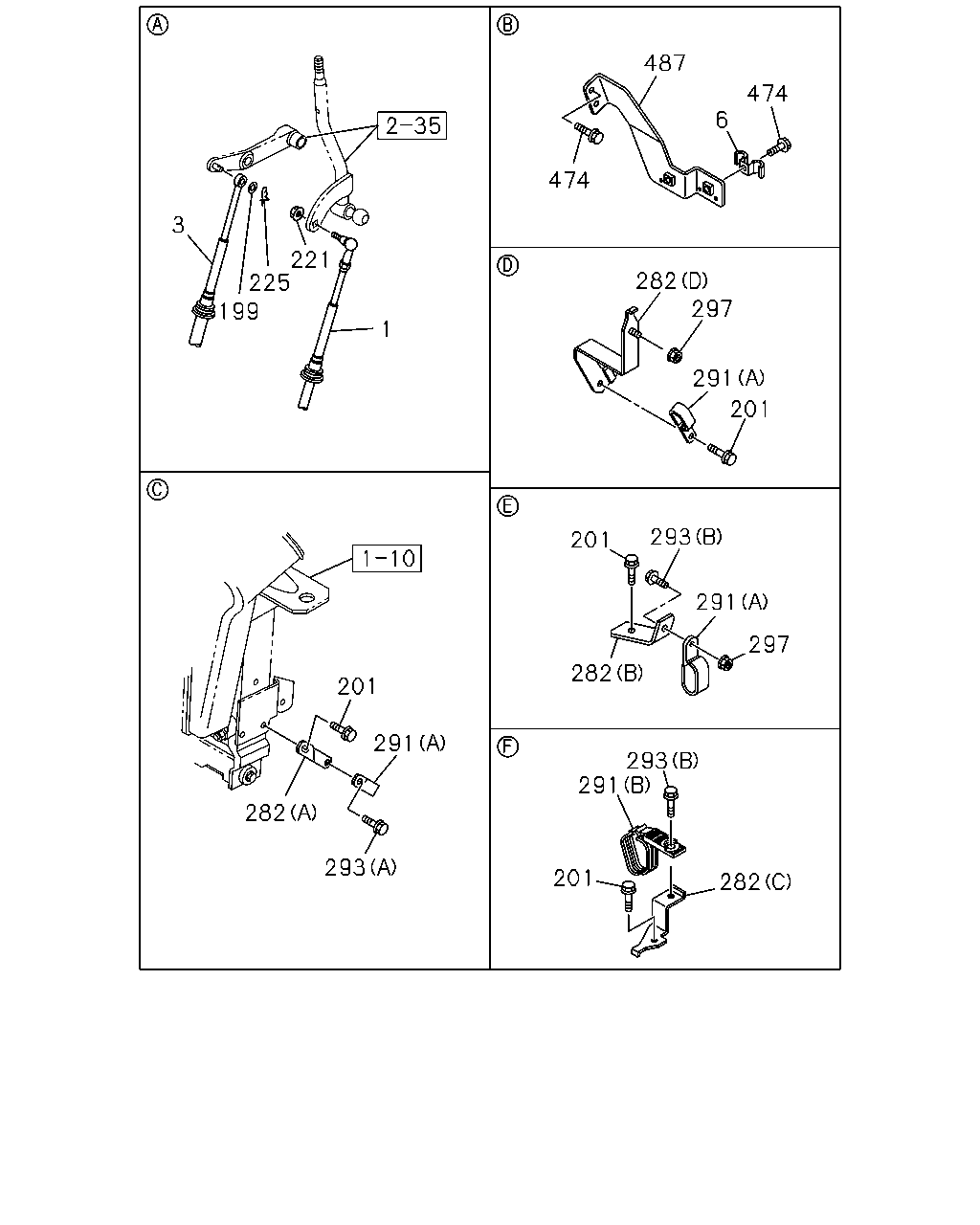

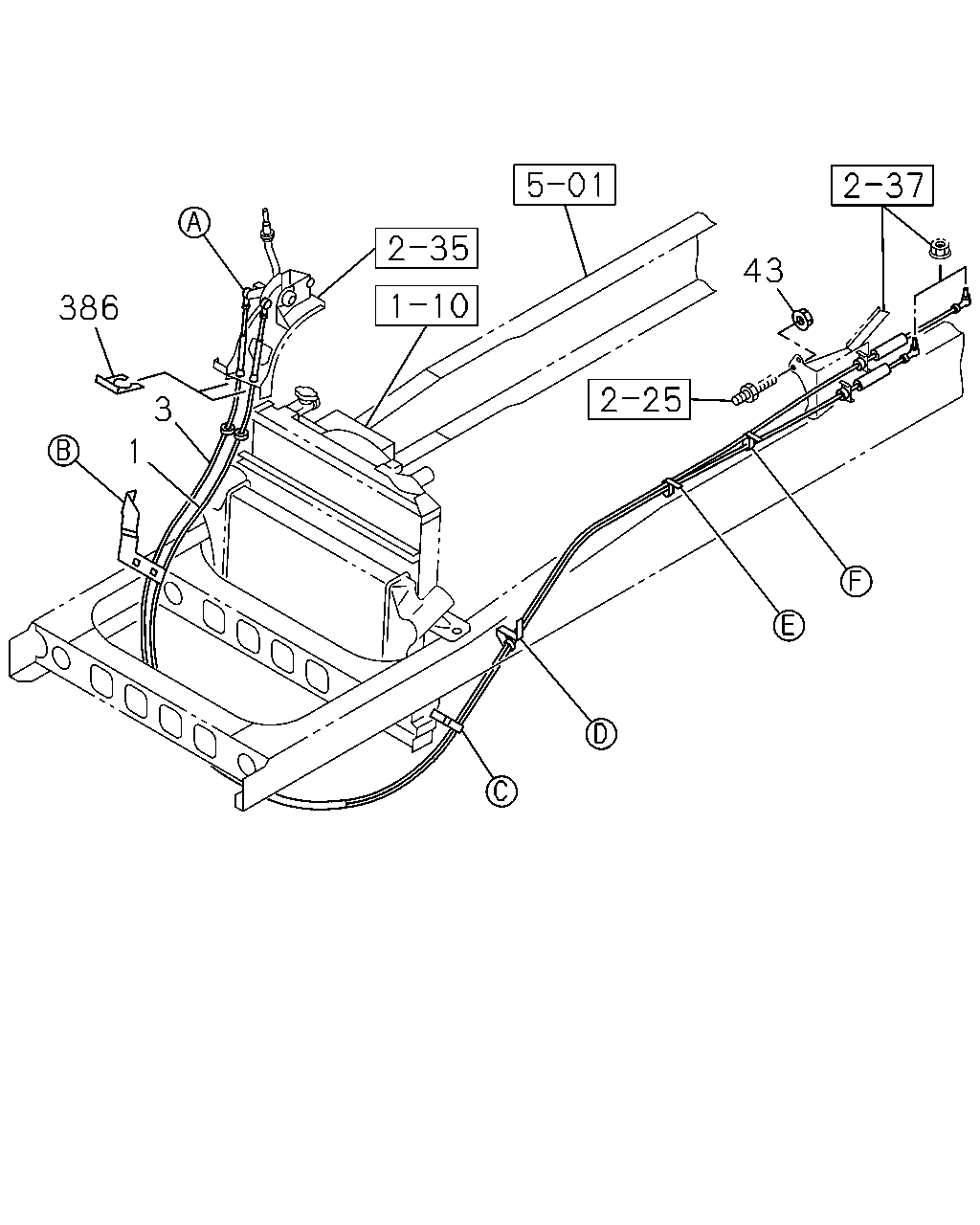

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#61227) — 32 parça
◀
[236A] BRACKET AND CLIP (25 parça)
[236A] CABLE;TRANS CONT (7 parça)
▶
487
474
6
474
3
221
225
282
297
199
1
291
201
293
201
291
297
282
201
291
293
291
282
293
201
282
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3445
8-98134-676-4
01
1
1112-
1
CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415
8-98133-465-5
01
1
1112-
3
CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3655
8-98134-679-2
01
1
1112-
3
CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3660
8-98133-466-4
01
1
1112-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1112-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1112-
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1112-
201
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
1112-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1112-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1112-
282
BRACKET; TRANS SIDE
(D)
1-82699-199-0
01
1
1112-
282
BRACKET; TRANS SIDE
(B)
8-98144-738-0
01
1
1112-
282
BRACKET; TRANS SIDE
(A)
8-98144-739-1
01
1
1112-
282
BRACKET; TRANS SIDE
(C)
8-98187-388-1
01
1
1112-1411
282
BRACKET; TRANS SIDE
(C)
8-98299-377-0
01
1
1412-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
1112-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
02
1
1112-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1112-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1112-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1112-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28650-820-0
02
1
1112-
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1112-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
01
1
1112-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
02
1
1112-
487
BRACKET; CONT CABLE
8-98183-009-0
01
1
1112-
43
386
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3445
8-98134-676-4
01
1
1112-
1
CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3415
8-98133-465-5
01
1
1112-
3
CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3655
8-98134-679-2
01
1
1112-
3
CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3660
8-98133-466-4
01
1
1112-
43
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1112-
43
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1112-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1112-
