Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#6122) — 249 parça

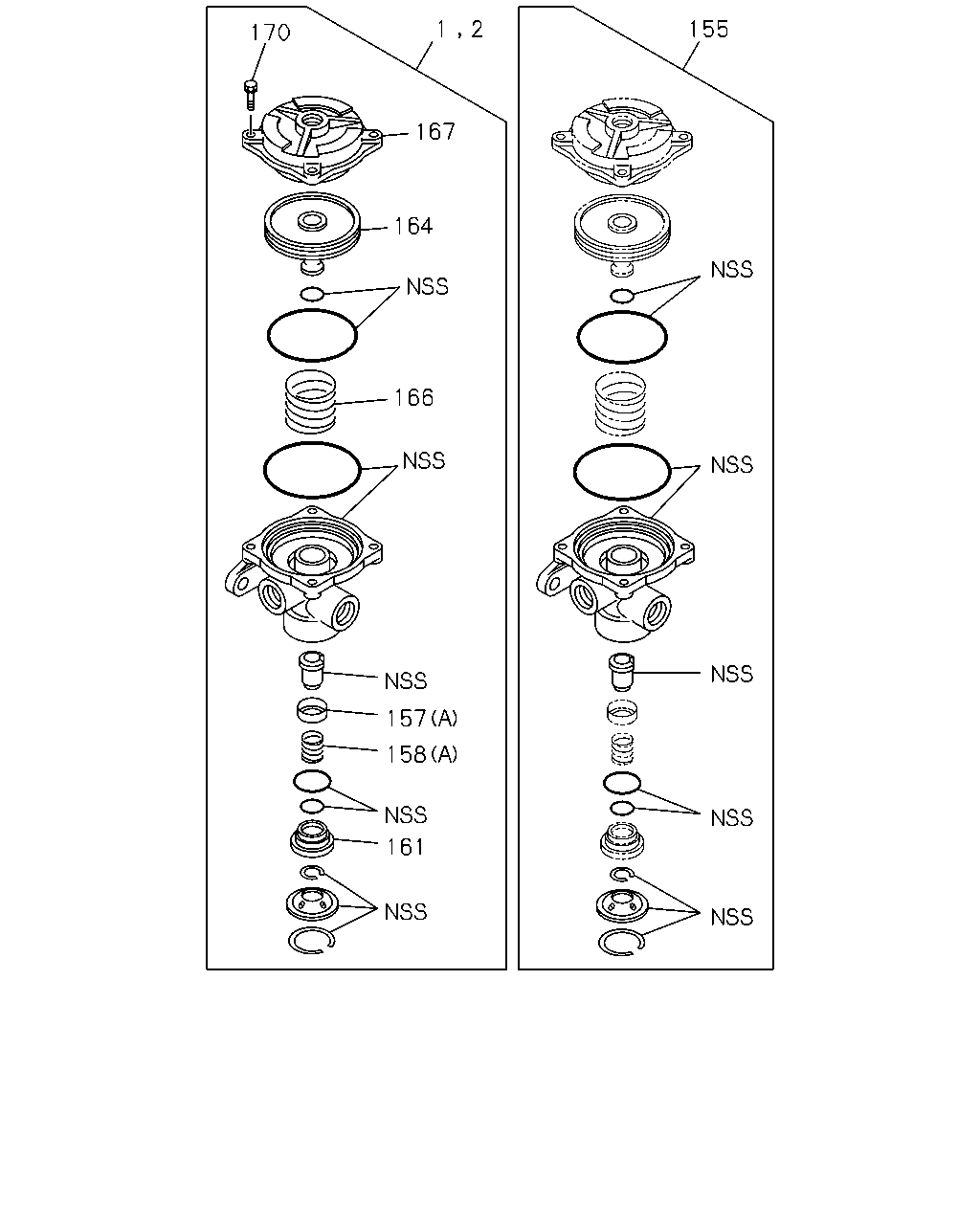

2 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48210-500-0	01	1	9905-
2	VALVE; RELAY	1-48210-500-0	03	1	9905-0104
2	VALVE; RELAY	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	02	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	04	1	9905-0104
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0105-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0105-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0602-
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	9905-0104
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0602-
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9905-0104
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
161	GUIDE; VALVE	1-48129-014-0	04	1	9905-0104
161	GUIDE; VALVE	1-48129-014-0	02	1	0105-
161	GUIDE; VALVE	1-48129-014-0	02	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	04	1	9905-0104
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0105-
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0105-
166	SPRING; PISTON	1-47819-165-0	04	1	9905-0104
166	SPRING; PISTON	1-47819-165-0	02	1	0105-
166	SPRING; PISTON	1-47819-165-0	02	1	0105-
167	COVER; VALVE	1-48219-070-0	04	1	9905-0104
167	COVER; VALVE	1-48219-070-0	02	1	0105-
167	COVER; VALVE	1-48219-070-0	02	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	16	1	9905-0104
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0105-
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0105-

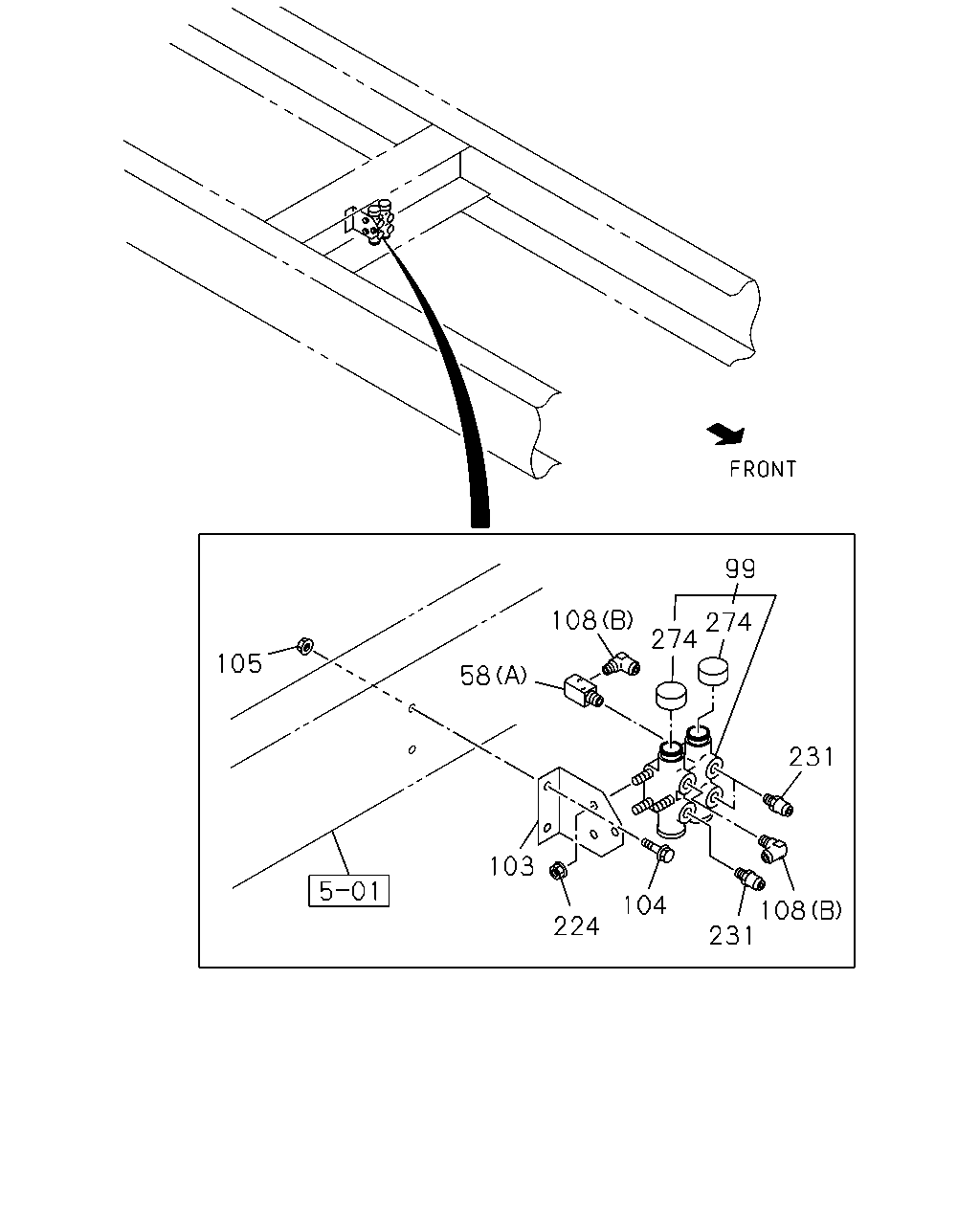

99 108 274 274 105 58 231 103 108 231 104 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	ADAPTER (A)	1-09660-778-1	01	1	9905-
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
99	VALVE; PROTECTION	1-48110-114-5	01	1	9905-
103	BRACKET; PROTECTION VALVE	1-47478-441-0	01	1	9905-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	9905-0512
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28650-830-0	02	1	0601-
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	9905-0602
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9905-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-
108	CONNECTOR; ELBOW (D) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9905-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	9905-0602
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9905-
274	COVER; DUST	1-48119-450-0	02	1	9905-

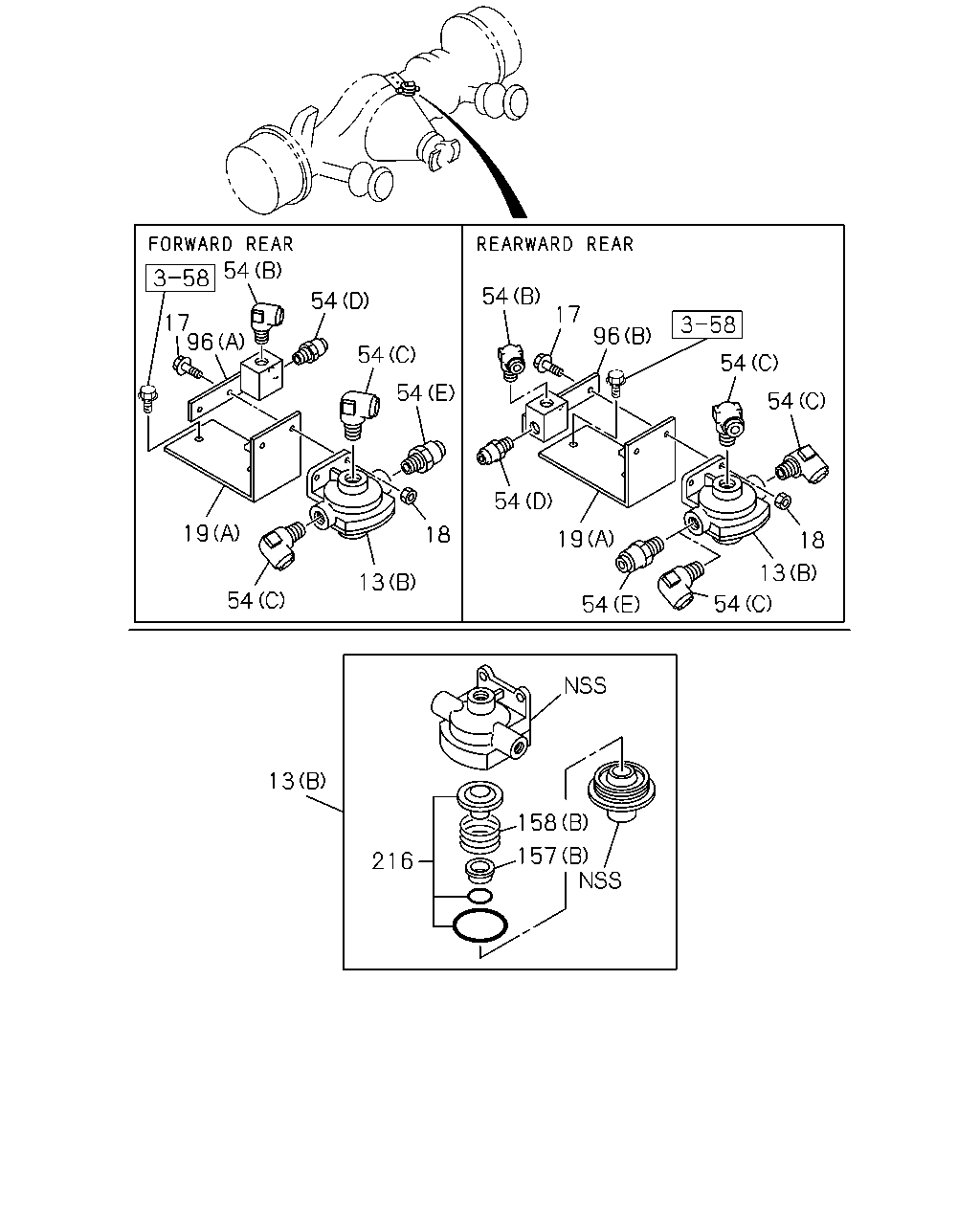

54 54 54 17 17 96 96 54 54 54 54 54 19 18 19 18 13 13 54 54 54 13 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	9905-0703
13	VALVE ASM; QUICK RELEASE (A)	1-48410-782-0	01	1	0704-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	06	1	9905-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0110-0111
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	05	1	0112-0601
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0602-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	01	1	0112-0601
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9905-0004
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0005-0111
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0112-0512
17	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0112-0512
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-0601
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-0601
17	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0602-
18	NUT; BRKT M8	9-09110-408-0	04	1	9905-0109
18	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0110-0111
18	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0601
18	NUT; BRKT REAR AXLE MERITOR RT46-160P<BGY> M8 FLANGE	0-91150-108-0	02	1	0112-0601
18	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8	9-09110-408-0	02	1	0112-0512
18	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8	0-91110-508-0	02	1	0601-0601
18	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0602-0602
18	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	9905-0111
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0602-
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	04	1	9905-0104
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0105-
19	BRACKET; QUICK RELEASE VLV (C)	1-47479-005-0	01	1	0105-
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	9905-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-0111
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	9905-0104
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9905-0111
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9905-0104
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT40-145P<BFM> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0602-
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT40-145P<BFM> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT46-160P<BGY> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0112-0601
96	BRACKET (A)	1-47470-597-0	01	1	9905-
96	BRACKET (B)	1-47470-598-0	01	1	9905-0111
96	BRACKET (B)	1-47470-598-0	01	1	0112-0601
96	BRACKET (B)	1-47470-598-0	01	1	0602-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0302-0601
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0602-
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	9905-0104
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0105-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0302-0601
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0602-
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9905-0104
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0105-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0302-0601
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	05	1	0302-0601
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	06	1	0602-

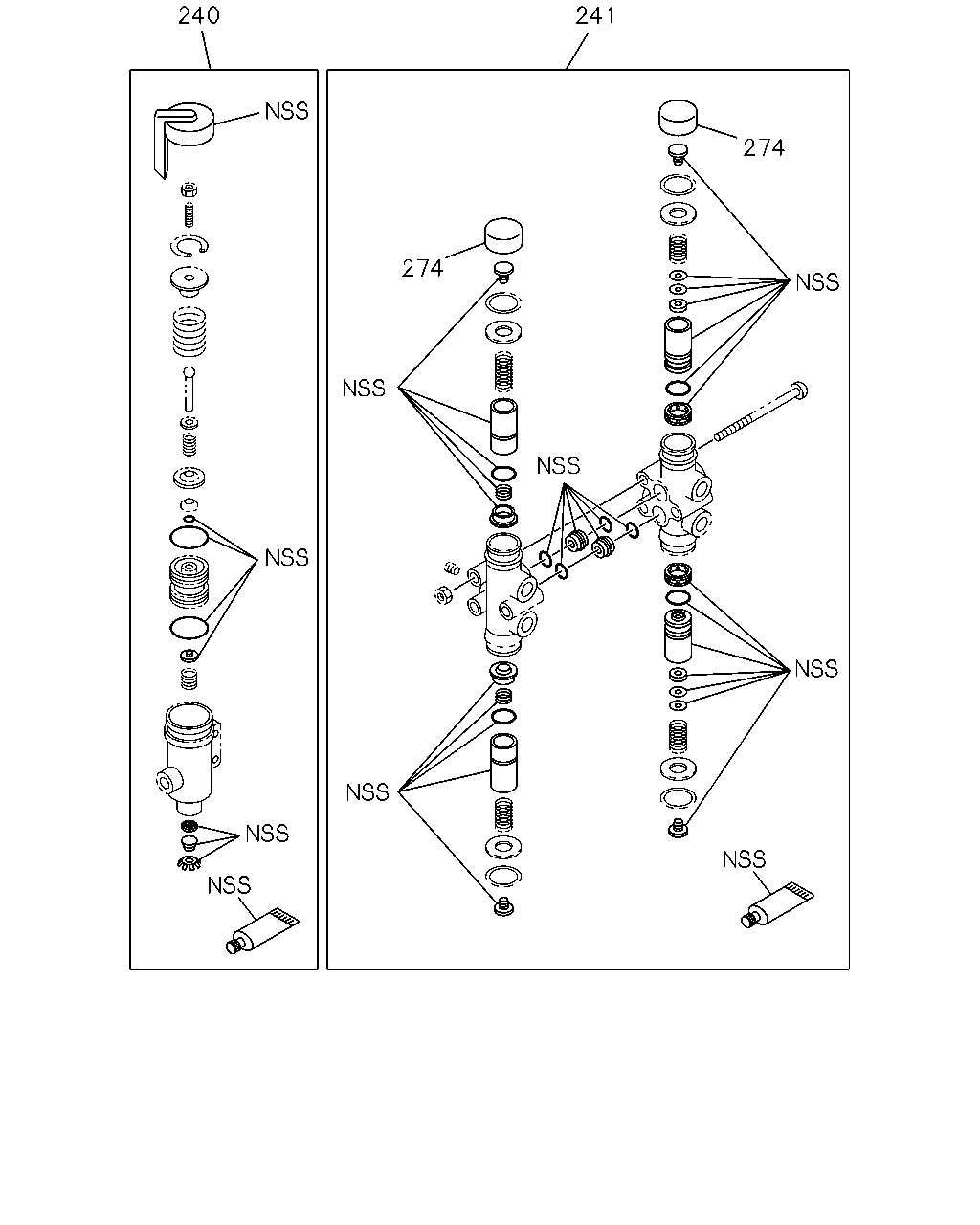

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0603-
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	9905-0602
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	9905-
274	COVER; DUST	1-48119-450-0	02	1	9905-

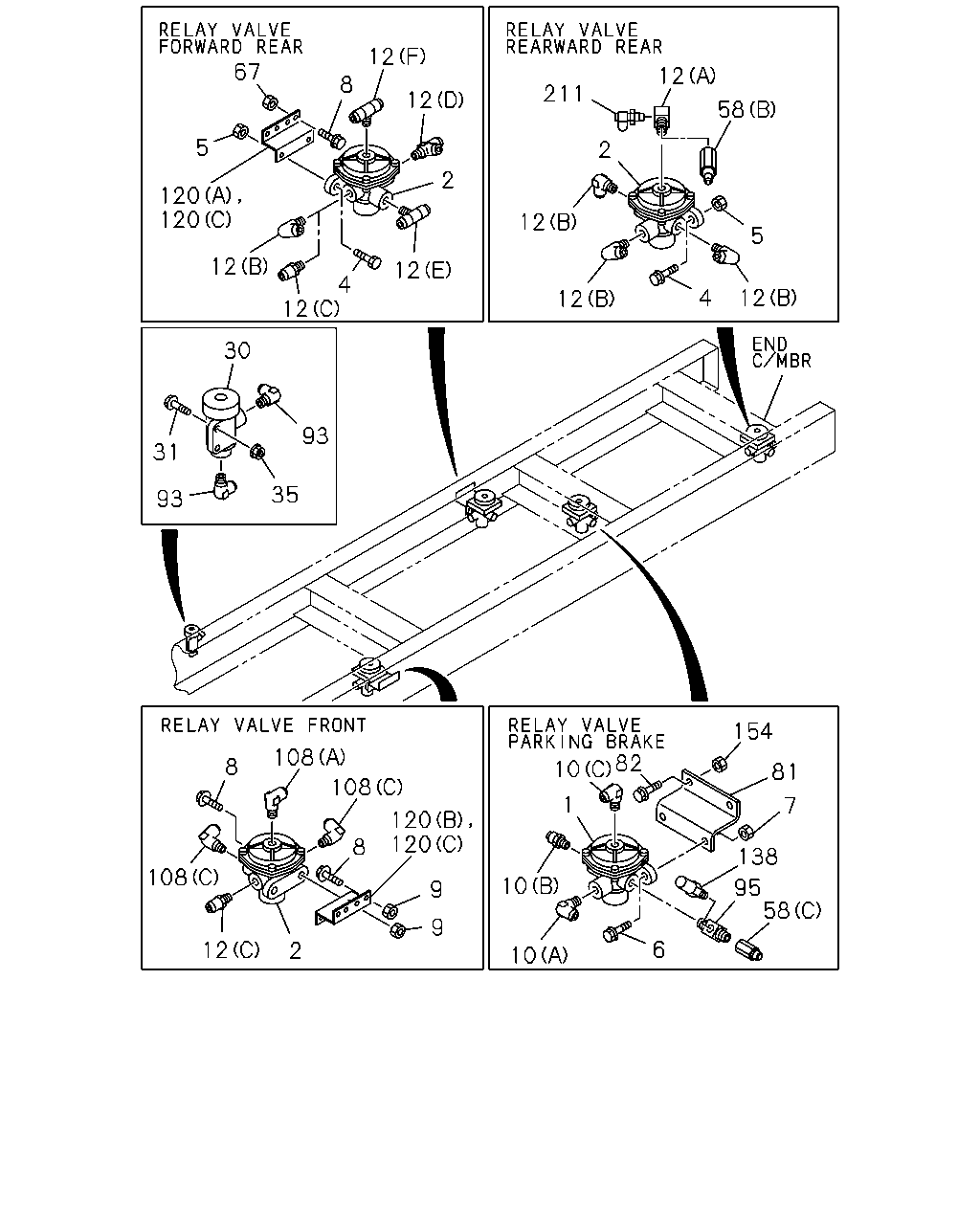

67 12 12 8 211 12 58 5 2 2 120 120 12 5 12 12 4 12 12 4 12 30 93 31 35 93 82 10 154 108 8 81 108 1 7 120 120 138 8 108 10 95 58 9 9 6 12 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48210-500-0	01	1	9905-
2	VALVE; RELAY	1-48210-500-0	03	1	9905-0104
2	VALVE; RELAY	1-48210-500-0	01	1	0105-
2	VALVE; RELAY	1-48210-500-0	02	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	9905-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT M10 FLANGE	0-91150-210-0	04	1	9905-0602
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9905-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
6	BOLT; VLV M8X25 FLANGE	0-28680-825-0	08	1	0112-0512
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	08	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9905-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	06	1	9905-0104
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	04	1	9905-0104
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
10	CONNECTOR (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-
12	CONNECTOR; RELAY VLV (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9905-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9905-0002
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0003-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-0002
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0003-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0003-
12	CONNECTOR; RELAY VLV (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9905-
12	CONNECTOR; RELAY VLV (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9905-
12	CONNECTOR; RELAY VLV (E) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9905-
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	9905-
31	BOLT; GOV TO FRAME M8X40 FLANGE	0-28680-840-0	02	1	9905-0512
31	BOLT; GOV TO FRAME M8X40 FLANGE	0-28650-840-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9905-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
58	ADAPTER (A)	1-09660-778-1	01	1	9905-
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007
58	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
58	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9905-0602
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0104-
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0104-0512
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-
93	CONNECTOR; GOV DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9905-
95	UNION; AIR VLV	1-09656-446-0	01	1	9905-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9905-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-
108	CONNECTOR; ELBOW (D) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9905-
120	BRACKET; VLV (A)	1-47477-964-0	01	1	9905-0002
120	BRACKET; VLV (C)	1-47477-964-0	02	1	0003-0104
120	BRACKET; VLV (C)	1-47477-964-0	01	1	0105-
120	BRACKET; VLV (C)	1-47477-964-0	01	1	0105-
120	BRACKET; VLV (B)	1-47478-233-0	01	1	9905-0002
138	SWITCH; RELAY VALVE	1-48340-057-1	01	1	9905-0312
138	SWITCH; RELAY VALVE	1-48340-068-0	01	1	0401-
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0104-0602
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
211	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9905-

54 49 114 49 114 54 54 54 19 19 6 48 6 48 15 15 13 13 48 108 121 15 49 13 49 114 54 49 114 54 15 19 19 49 114 19 48 54 15 6 48 54 13 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9905-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
6	BOLT; VLV M8X25 FLANGE	0-28680-825-0	08	1	0112-0512
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	08	1	0601-
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	9905-0703
13	VALVE ASM; QUICK RELEASE (A)	1-48410-782-0	01	1	0704-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	06	1	9905-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0110-0111
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	05	1	0112-0601
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	06	1	0602-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	01	1	0112-0601
15	PLUG; VALVE (A) NPTF3/8-18	8-94231-272-1	01	1	9905-0805
15	PLUG; VALVE (A) NPTF3/8-18	8-97329-623-0	01	1	0806-
15	PLUG; VALVE (B) PT3/8	9-09204-517-0	04	1	9905-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	9905-0111
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0112-0601
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0602-
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	04	1	9905-0104
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0105-
19	BRACKET; QUICK RELEASE VLV (C)	1-47479-005-0	01	1	0105-
48	BOLT; QUICK RELEASE VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0512
48	BOLT; QUICK RELEASE VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
48	BOLT; QUICK RELEASE VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	9905-0111
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	10	1	9905-0104
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	02	1	0105-0602
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91180-108-0	02	1	0603-
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	08	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	9905-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-0111
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	9905-0104
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9905-0111
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0602-
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9905-0104
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0111
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT40-145P<BFM> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0602-
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT40-145P<BFM> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0112-0601
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE MERITOR RT46-160P<BGY> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0112-0601
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9905-
108	CONNECTOR; ELBOW (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-
108	CONNECTOR; ELBOW (D) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9905-
114	NUT; VLV M8 FLANGE	0-91150-108-0	08	1	0112-0602
114	NUT; VLV M8 FLANGE	0-91180-108-0	08	1	0603-
121	CONNECTOR; RELAY VLV	1-09660-968-0	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
