◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11405 - FTS(RHD)EURO1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#61218) — 30 parça
çizim 150765
48 101 50 239 184 104 104 23 50
BalonParca AdiParca NoAdetTipApplied Date
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1112-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1112-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1112-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1112-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1112-
50 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1112-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1112-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 1112-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2618 SERVICED BY L=2650 		1-47428-743-0 01 1 1112-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1112-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1112-

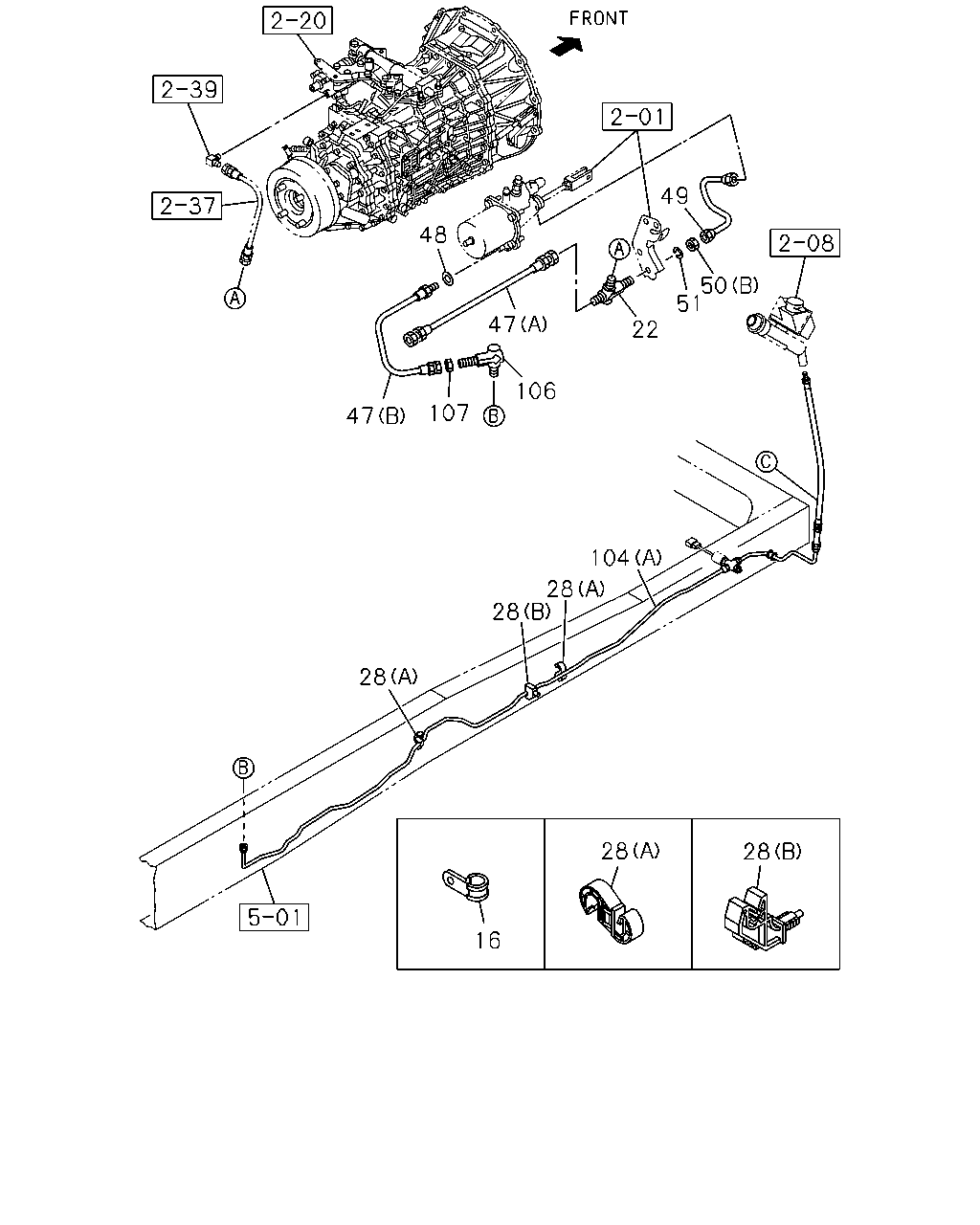

çizim 150771
49 48 50 51 47 22 106 107 47 104 28 28 28 28 28 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1112-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1112-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 04 1 1112-
28 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1112-
47 HOSE; FLEX,CLU CONT
(B) L=430 		8-98072-351-0 01 1 1112-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=330 		1-09363-636-0 01 1 1112-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=420 		1-09363-633-0 01 1 1112-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1112-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1112-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1112-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1112-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1112-
50 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1112-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1112-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1112-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 1112-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2618 SERVICED BY L=2650 		1-47428-743-0 01 1 1112-
106 UNION; OIL PIPE
M12 2WAY 		1-09654-059-2 01 1 1112-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1112-
