Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

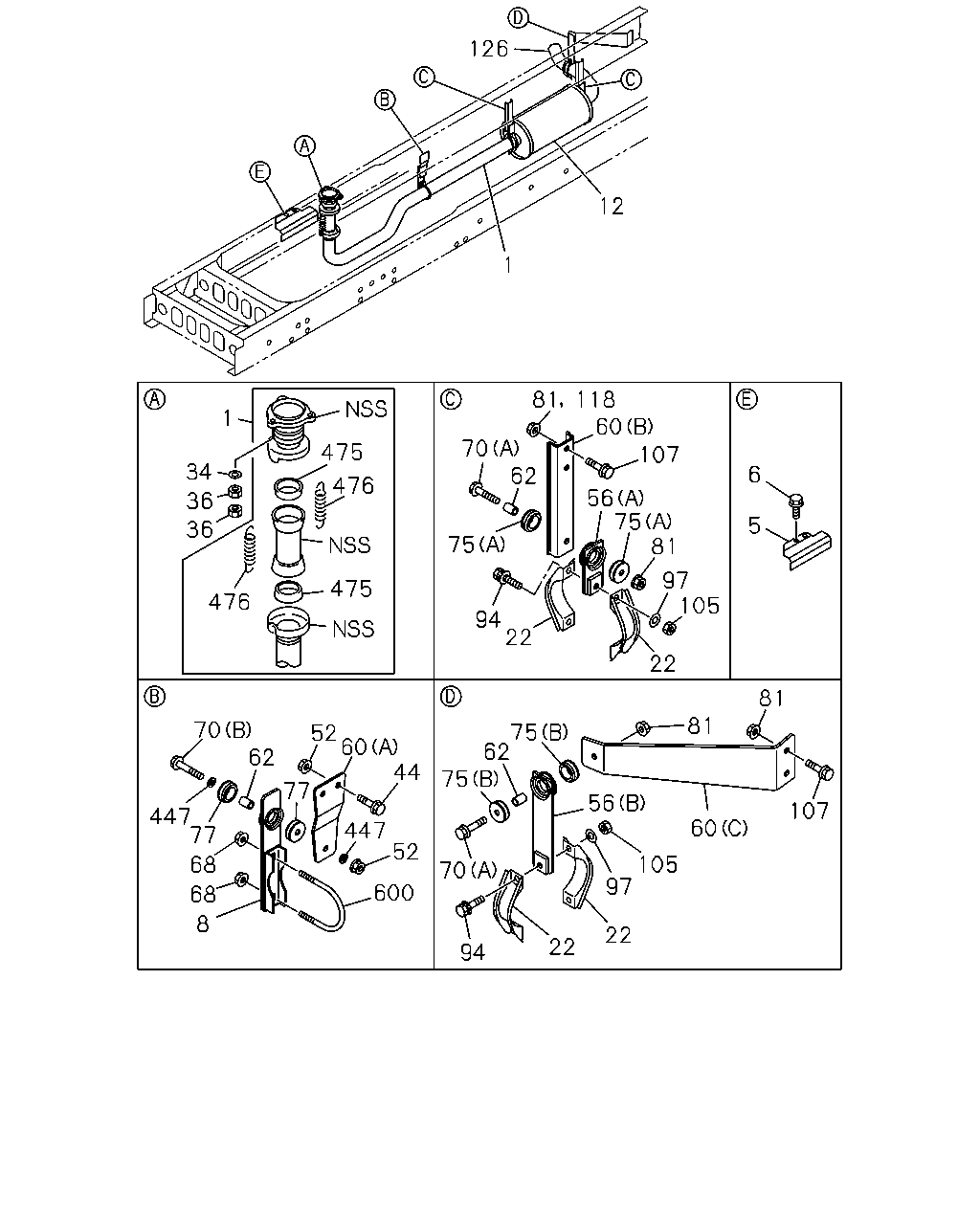

1-50 — EXHAUST PIPE AND SILENCER
(#61214) — 35 parça
126
12
1
81
118
60
107
1
70
62
475
34
6
476
56
75
81
36
5
36
75
97
105
475
476
94
22
22
81
81
70
62
75
62
75
52
60
44
77
56
107
447
77
60
447
52
105
97
68
70
600
68
8
22
22
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
1-22123-358-2
01
1
1112-
5
PROTECTOR; HEAT
8-98044-124-0
01
1
1112-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE
0-28650-825-0
02
1
1112-
8
BRACKET; EXH PIPE
1-22131-750-0
01
1
1112-
12
SILENCER ASM; EXH
1-22140-880-0
01
1
1112-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
06
1
1112-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1112-
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
1112-
44
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1112-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1112-
56
BRACKET; CLAMP,EXH PIPE
(B) L=204
1-22131-520-1
01
1
1112-
56
BRACKET; CLAMP,EXH PIPE
(A) L=94
1-22131-575-0
02
1
1112-
60
BRACKET; FRAME TO BRKT
(A)
1-22131-837-0
01
1
1112-
60
BRACKET; FRAME TO BRKT
(C)
1-22131-741-0
01
1
1112-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-689-0
02
1
1112-
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
04
1
1112-
68
NUT; U BOLT
M8 FLANGE
0-91180-208-0
02
1
1112-
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
03
1
1112-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
1112-
75
RUBBER; SUPPORT,BRKT
(B) OD=40
1-22159-094-0
02
1
1112-
75
RUBBER; SUPPORT,BRKT
(A) OD=40
1-22159-193-0
04
1
1112-
77
RUBBER; CUSHION,BRKT
OD=40
1-22159-094-0
02
1
1112-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1112-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
1112-
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
06
1
1112-
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
06
1
1112-
105
NUT; CLAMP
M10
0-91110-510-0
06
1
1112-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1112-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1112-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1112-
126
PIPE; EXH,RR
1-22126-175-0
01
1
1112-
447
WASHER; LK,BRKT
ID=10.2
0-91510-510-0
02
1
1112-
475
BEARING; SEAL,VIBNON,EXH PIPE
1-22119-277-1
02
1
1112-
476
SPRING; VIBNON,EXH PIPE
1-09583-298-0
02
1
1112-
600
U-BOLT
1-22113-101-0
01
1
1112-
