Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

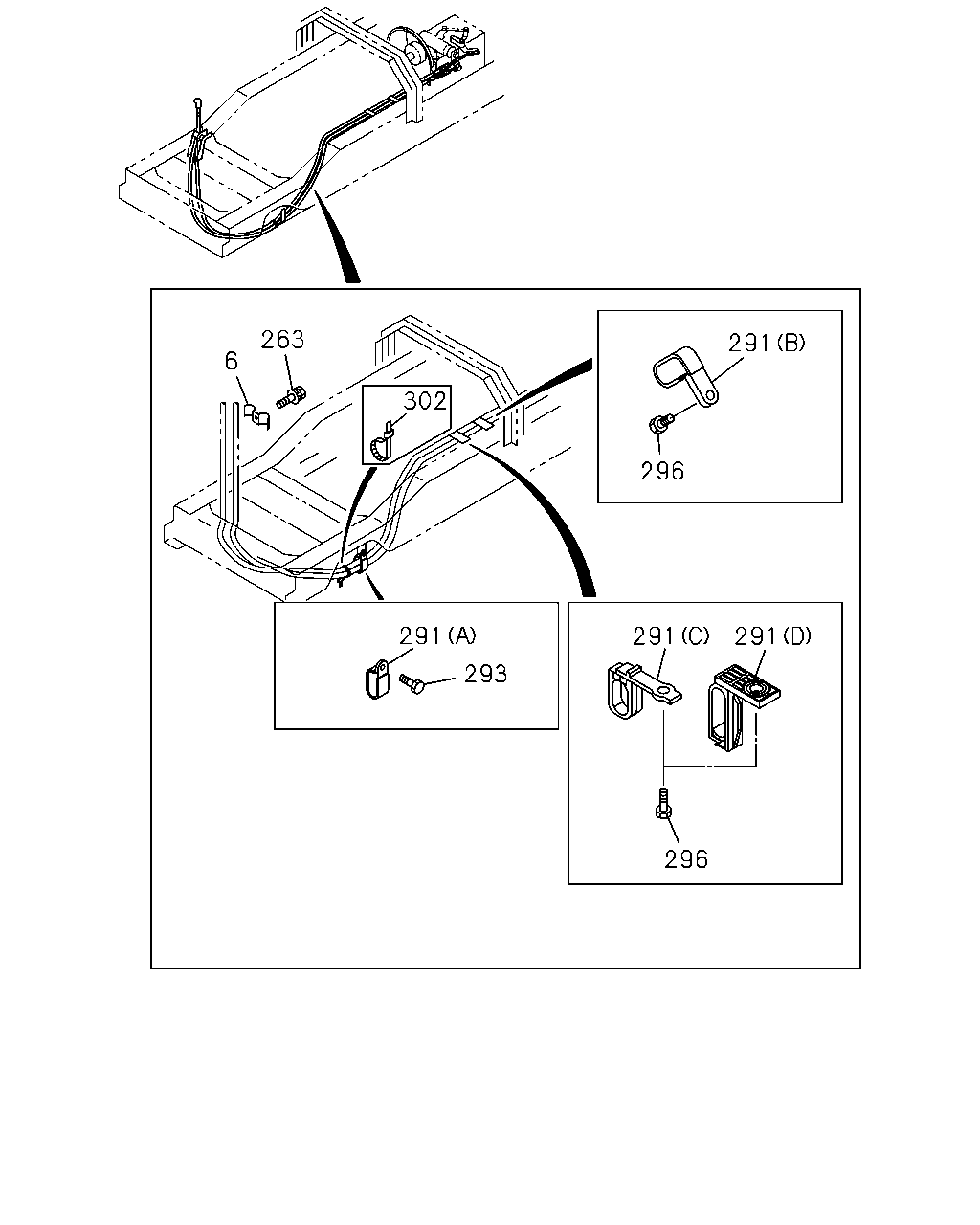

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#61207) — 24 parça
◀
[236A] NO.2 (13 parça)
[236A] NO.1 (11 parça)
▶
263
291
6
302
296
291
291
291
293
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0310-
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER MAL
8-94279-207-0
01
1
0310-
291
CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8
1-09701-220-0
01
1
0310-0406
291
CLIP; SHIFT TO SELECT,FRAME
(D)
1-09701-307-2
01
1
0407-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-245-0
01
1
0310-0506
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-312-0
01
1
0507-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
0310-0606
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0607-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
0310-0512
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE MAL
0-28050-816-0
01
1
0601-
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE MAL
0-28080-820-0
02
1
0310-0512
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE MAL
0-28050-820-0
02
1
0601-
302
CLIP; BAND
L=300
1-09707-001-1
01
1
0310-
221
393
3
386
1
386
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3377
1-33670-791-0
01
1
0310-
1
CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3504
1-33670-789-0
01
1
0310-
3
CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3619
1-33670-402-4
01
1
0310-
3
CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3601
1-33670-796-1
01
1
0310-
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0310-0602
52
NUT; BRKT
M10 FLANGE MAL
0-91180-210-0
02
1
0603-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0310-1011
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0310-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
0310-1011
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-062-1
01
1
1012-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
