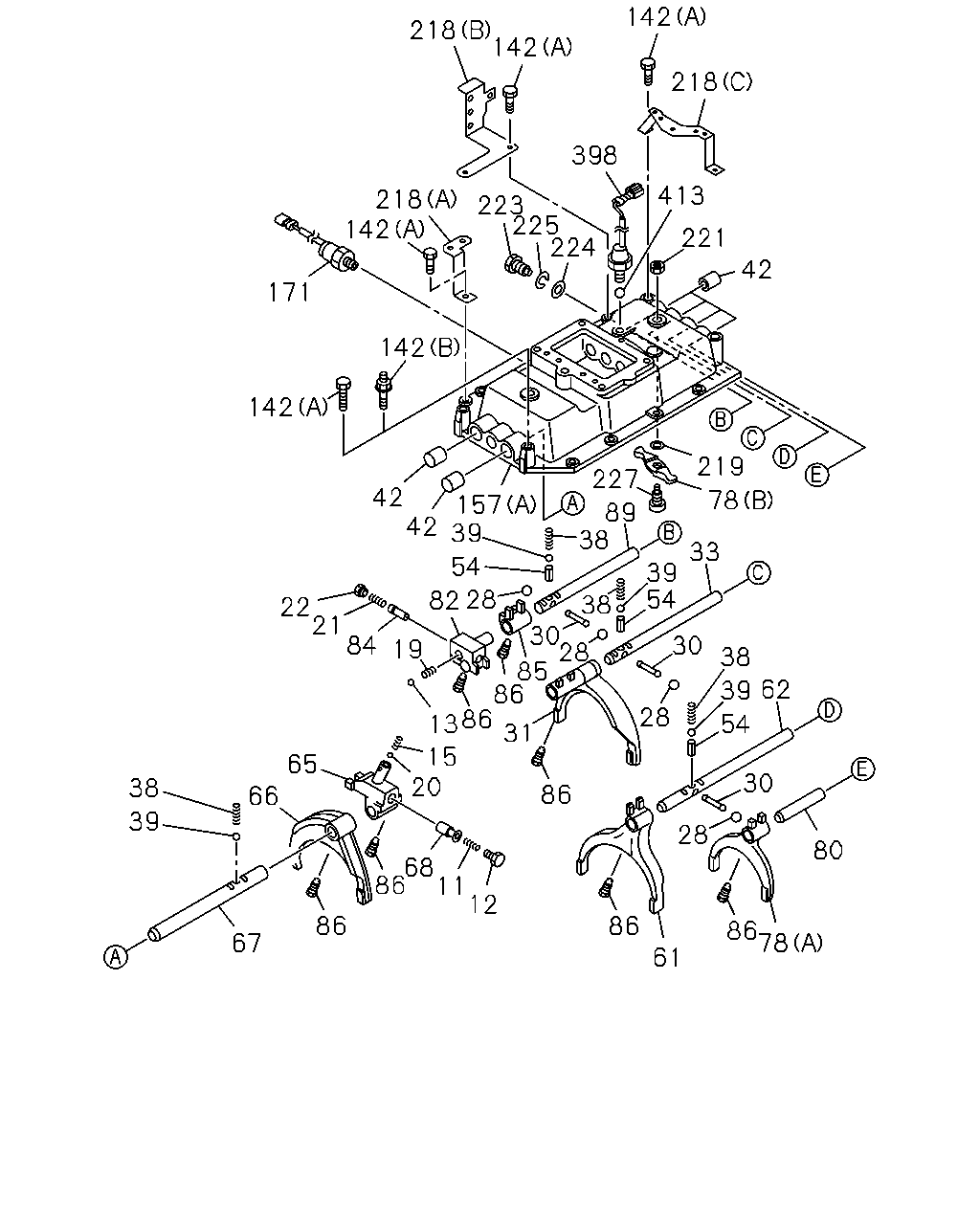

2-30 — GEAR SHIFTER AND QUADRANT BOX (#61205) — 167 parça

142 218 142 218 398 413 218 142 223 225 224 221 42 171 142 142 219 227 42 42 78 157 39 89 38 33 54 39 54 38 22 21 84 30 28 30 19 38 85 86 13 86 28 54 31 15 20 65 30 38 86 66 39 28 80 68 86 11 12 86 86 86 78 67 61 82 28 39 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0310-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0310-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0310-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0310-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0310-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0310-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0310-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0310-
28	BALL; INTER LK	9-00097-501-0	04	1	0310-
30	PIN; INTER LK	9-33534-003-0	03	1	0310-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0310-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0310-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0310-
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0310-
39	BALL; DETENT	1-09843-012-0	04	1	0310-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0310-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0310-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0310-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0310-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	0310-
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0310-
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	0310-1202
67	ROD; SHIFT,5TH & 6TH L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0310-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0310-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0310-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0310-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0310-
84	SLEEVE; REV	1-33516-025-0	01	1	0310-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0310-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0310-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0310-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	0310-0512
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0310-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0310-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	0310-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0310-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0310-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0310-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0310-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0310-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0310-
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0310-0602
221	NUT; SPINDLE M12 FLANGE MAL	0-91180-212-0	01	1	0603-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0310-
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0310-0605
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0310-0603
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0310-
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0310-0602
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0310-

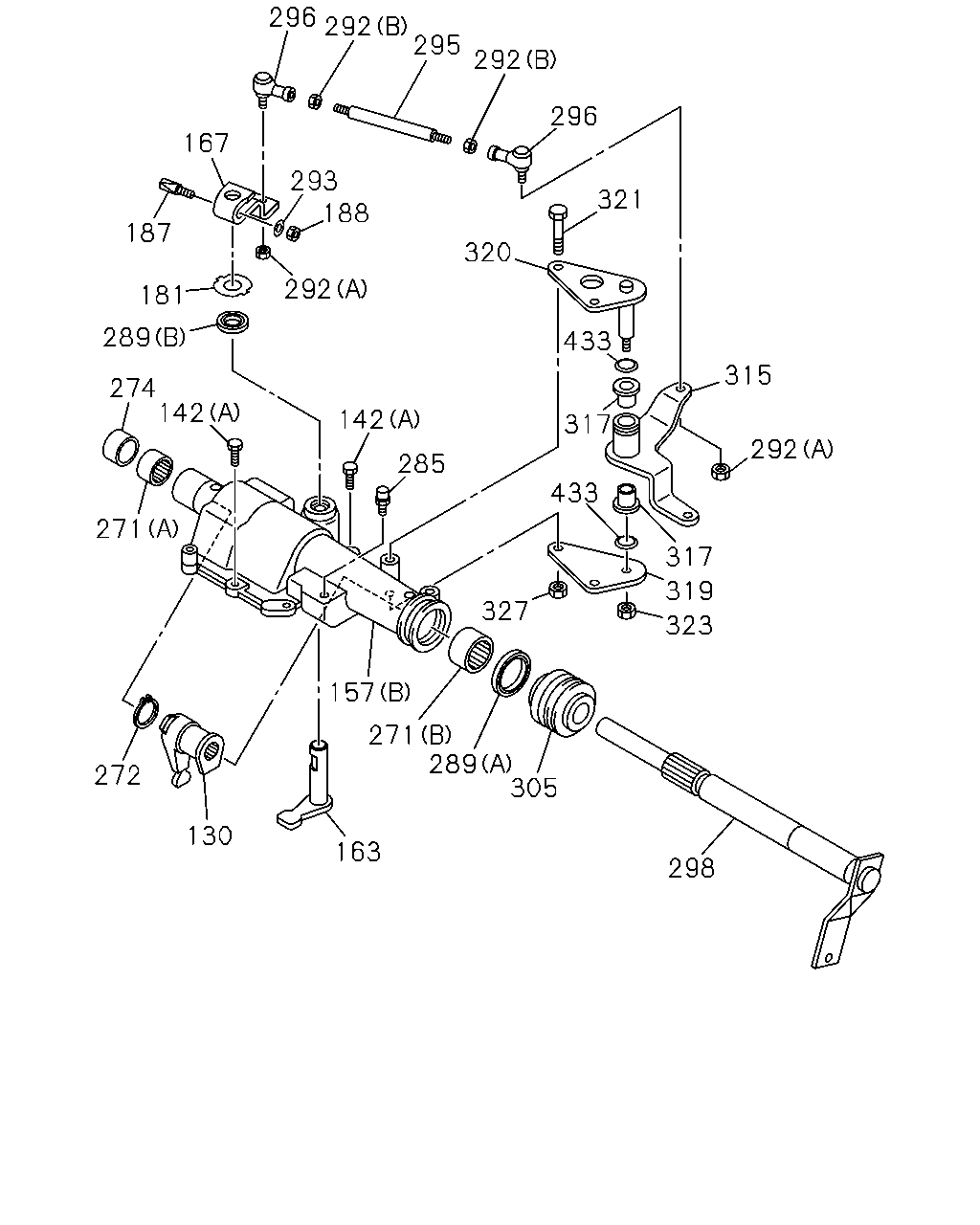

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0310-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	0310-0512
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0310-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0310-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	0310-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0310-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	0310-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0310-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	0310-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0310-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0310-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0310-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0310-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0310-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0310-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0310-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0310-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0310-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0310-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0310-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0310-
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0310-0512
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0310-0605
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0310-
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-183-0	01	1	0310-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-185-0	01	1	0310-
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0310-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	0310-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	0310-
317	BUSHING; LEVER	1-09330-119-0	02	1	0310-
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	0310-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0310-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0310-
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0310-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0310-0512
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-
323	NUT; LK,SELECT LEVER M10 FLANGE MAL	0-91150-110-0	01	1	0310-
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0310-0602
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91180-210-0	02	1	0603-
433	GASKET; BUSHING	1-09623-594-0	02	1	0310-

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0310-
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0310-

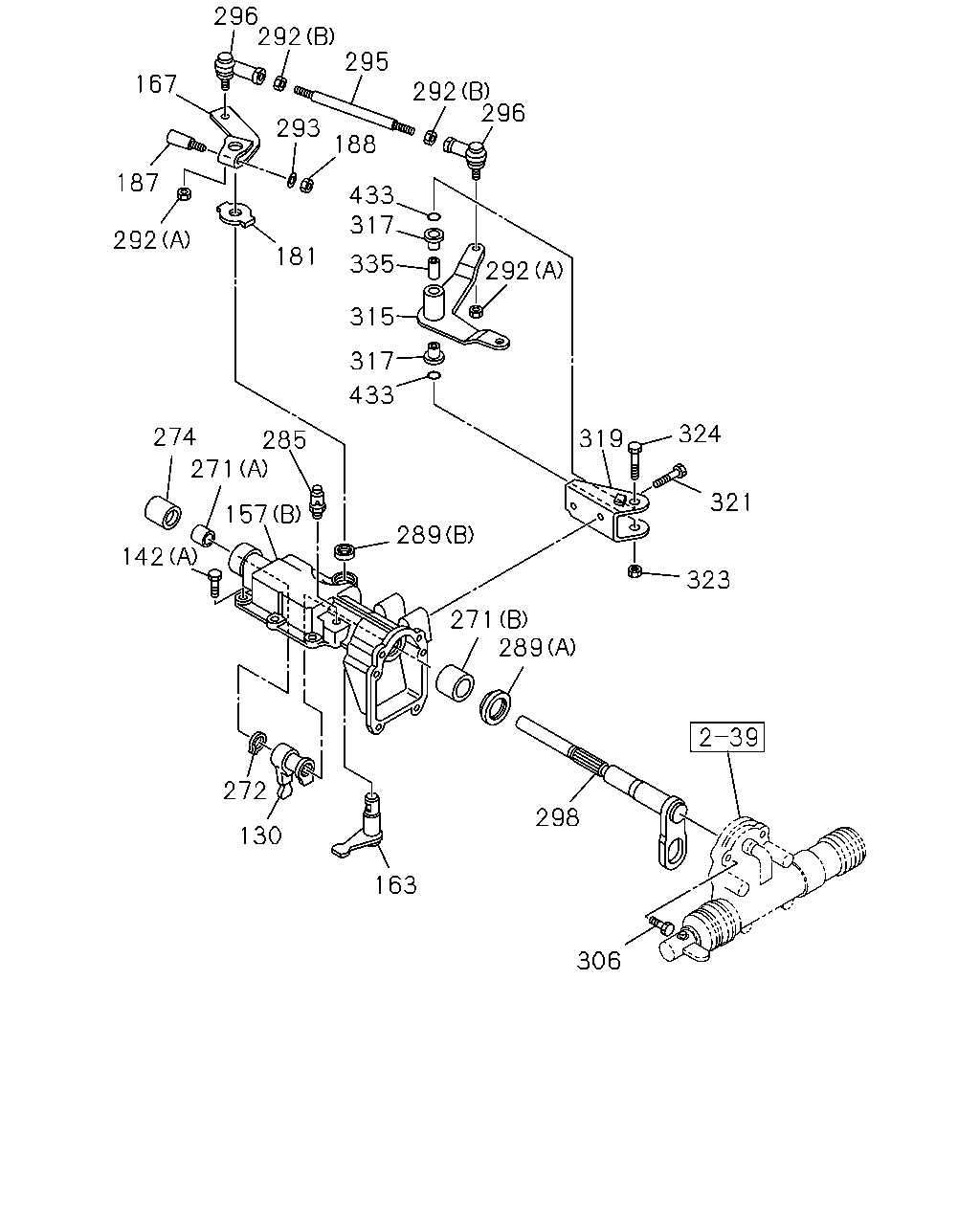

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 315 317 433 324 274 319 285 271 321 157 289 142 323 271 289 272 298 130 163 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0310-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28181-060-0	03	1	0310-0512
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0310-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0310-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0310-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-444-0	01	1	0310-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0310-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-133-0	01	1	0310-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0310-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-145-0	01	1	0310-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0310-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0310-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0310-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0310-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0310-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0310-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0310-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0310-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0310-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0310-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0310-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0310-
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0310-0512
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0310-0605
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0310-
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-183-0	01	1	0310-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-185-0	01	1	0310-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	0310-0512
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28151-045-0	02	1	0601-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	0310-0512
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28151-070-0	04	1	0601-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-650-0	01	1	0310-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-648-1	01	1	0310-
317	BUSHING; LEVER	1-09330-119-0	02	1	0310-
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	0310-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0310-
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0310-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0310-0512
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-
323	NUT; LK,SELECT LEVER M10 FLANGE MAL	0-91150-110-0	01	1	0310-
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	0310-
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0310-
433	GASKET; BUSHING	1-09623-594-0	02	1	0310-
