Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

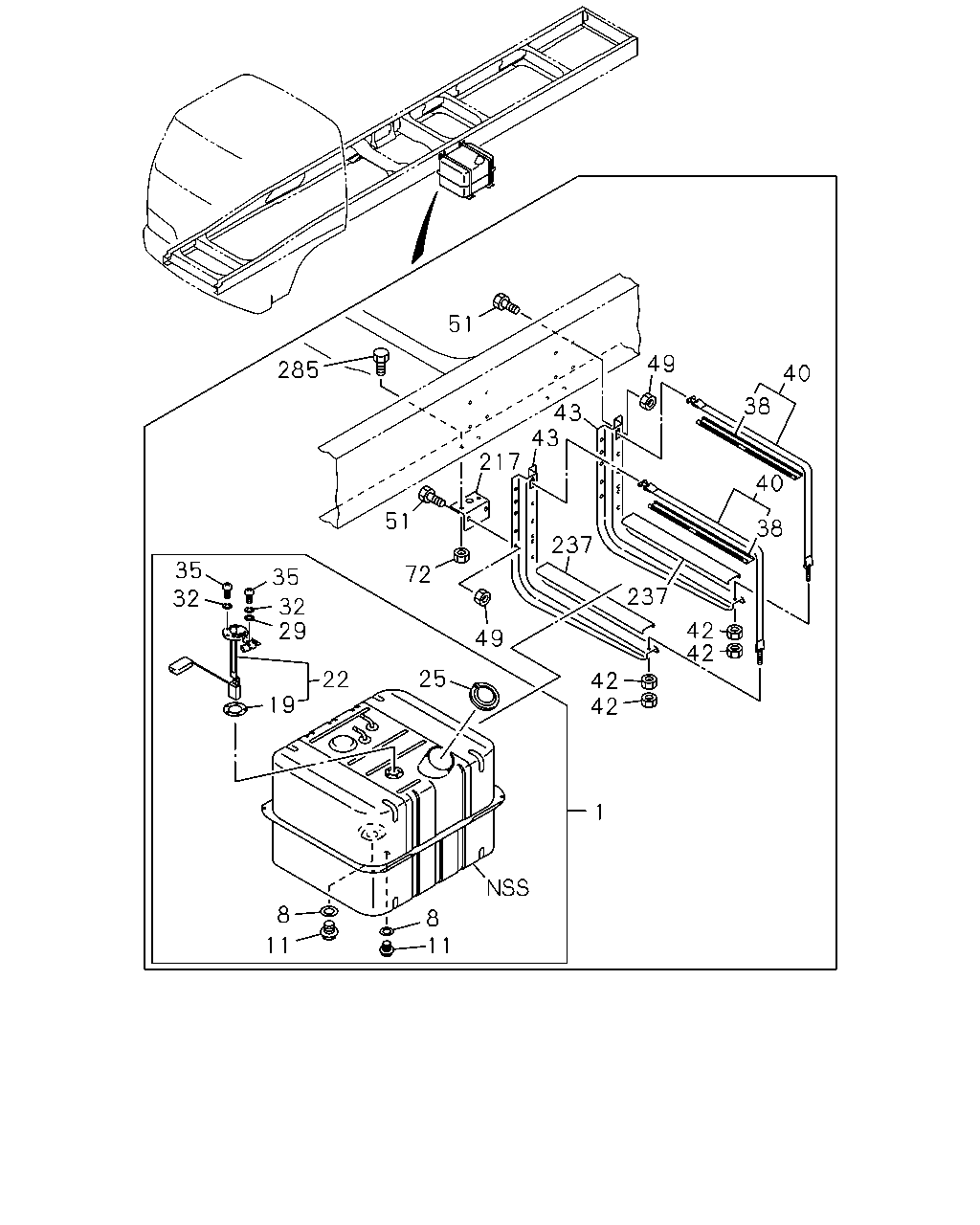

1-40 — FUEL TANK
(#61190) — 30 parça
51
43
43
49
285
40
38
217
40
51
38
237
35
32
72
35
237
32
29
42
42
49
25
22
42
42
19
1
8
8
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
720X610X496 200L
1-22401-192-2
01
1
0310-1505
1
TANK; FUEL
720X610X496 200L
8-98299-274-0
01
1
1506-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
02
1
0310-
11
PLUG; DRAIN,FUEL TANK
M14X14 MAL
9-09862-156-0
02
1
0310-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71 MAL
5-83148-001-0
01
1
0310-
22
UNIT; FUEL TANK
1-83141-124-0
01
1
0310-1505
22
UNIT; FUEL TANK
8-98296-671-0
01
1
1506-
25
CAP; FILLER,FUEL TANK
1-22440-070-0
01
1
0310-0404
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0405-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
0310-0605
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0606-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
05
1
0310-0603
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
0-91510-505-0
05
1
0604-
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
0310-0604
35
SCREW; FUEL TANK UNIT
M5X10
0-34218-510-0
05
1
0605-
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
0310-
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-2
02
1
0310-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0310-0512
42
NUT; SUPPORT BELT
M10 MAL
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-279-4
02
1
0310-
49
NUT; BRKT
M12 FLANGE
0-91150-212-0
12
1
0310-0602
49
NUT; BRKT
M12 FLANGE MAL
0-91180-212-0
12
1
0603-
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28681-235-0
12
1
0310-0512
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
12
1
0601-
72
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0310-0602
72
NUT; BRKT
M12 FLANGE MAL
0-91180-212-0
04
1
0603-
217
BRACKET; FUEL TANK,LOW
1-53461-283-2
02
1
0310-
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0310-
285
BOLT; BRKT
M12X40 FLANGE MAL
0-28681-240-0
04
1
0310-0512
285
BOLT; BRKT
M12X40 FLANGE MAL
0-28651-240-0
04
1
0601-
