3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

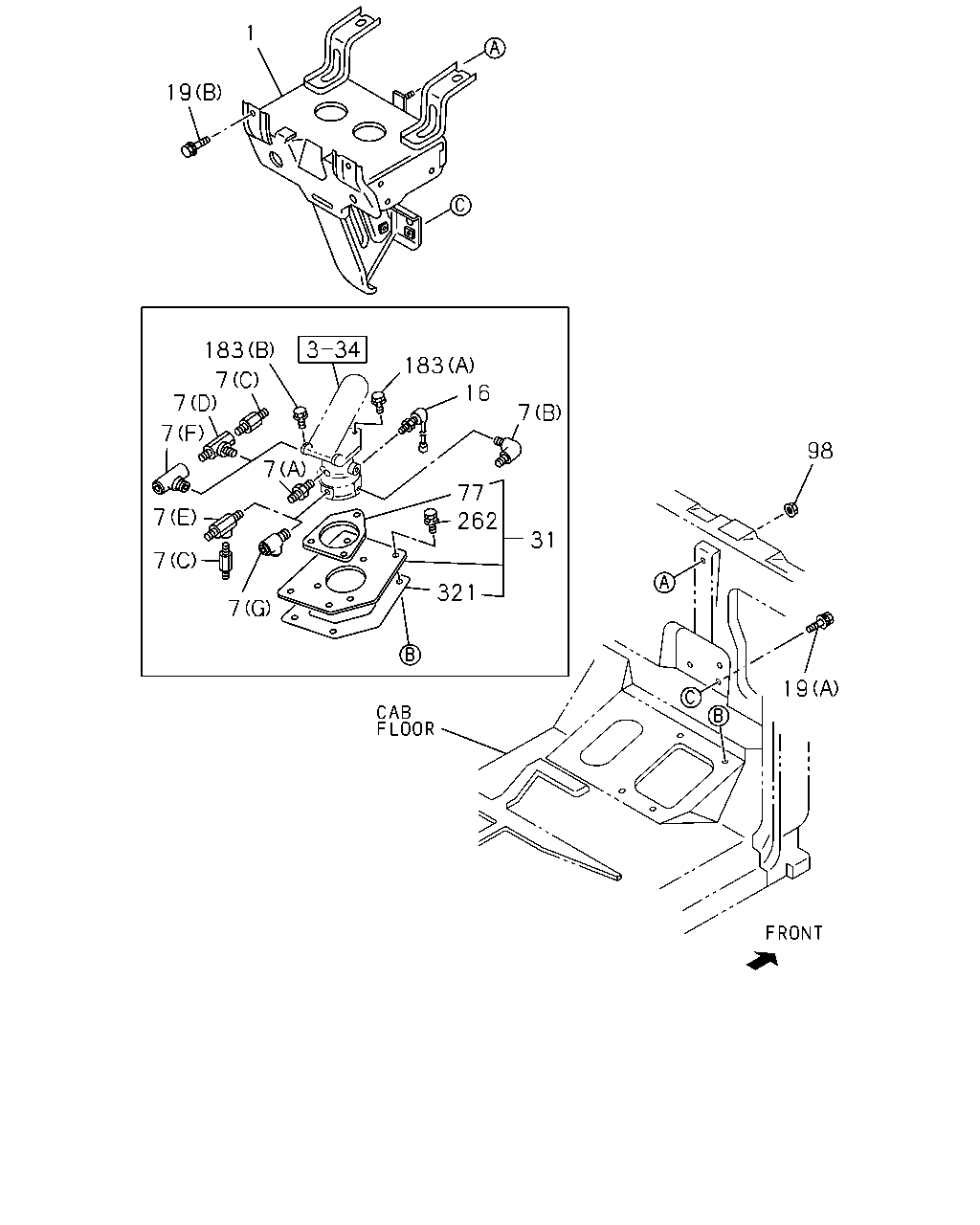

3-10 — BRAKE PEDAL AND CONTROL
(#6119) — 22 parça
1
19
183
183
16
7
7
7
7
98
7
77
7
262
31
7
321
7
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-280-1
01
1
9905-
7
CONNECTOR; BRK VALVE
(A) DIN8,R3/8 STRAIGHT
1-09660-651-1
01
1
9905-9911
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
9912-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-652-1
01
1
9905-9911
7
CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
9912-
7
CONNECTOR; BRK VALVE
(C) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9905-9911
7
CONNECTOR; BRK VALVE
(F)
1-09661-284-0
01
1
9912-
7
CONNECTOR; BRK VALVE
(D)
1-09660-802-0
01
1
9905-9911
7
CONNECTOR; BRK VALVE
(E)
1-09660-803-0
01
1
9905-9911
7
CONNECTOR; BRK VALVE
(G)
1-09661-285-0
01
1
9912-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
9905-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9905-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-0904
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
31
PLATE; MTG,BRKT VLV
1-73996-271-3
01
1
9905-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
9905-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9905-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
9905-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
9905-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9905-0904
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
321
SEAL; VALVE
1-73996-143-0
01
1
9905-
