1-10 — RADIATOR
(#61186) — 50 parça
◀

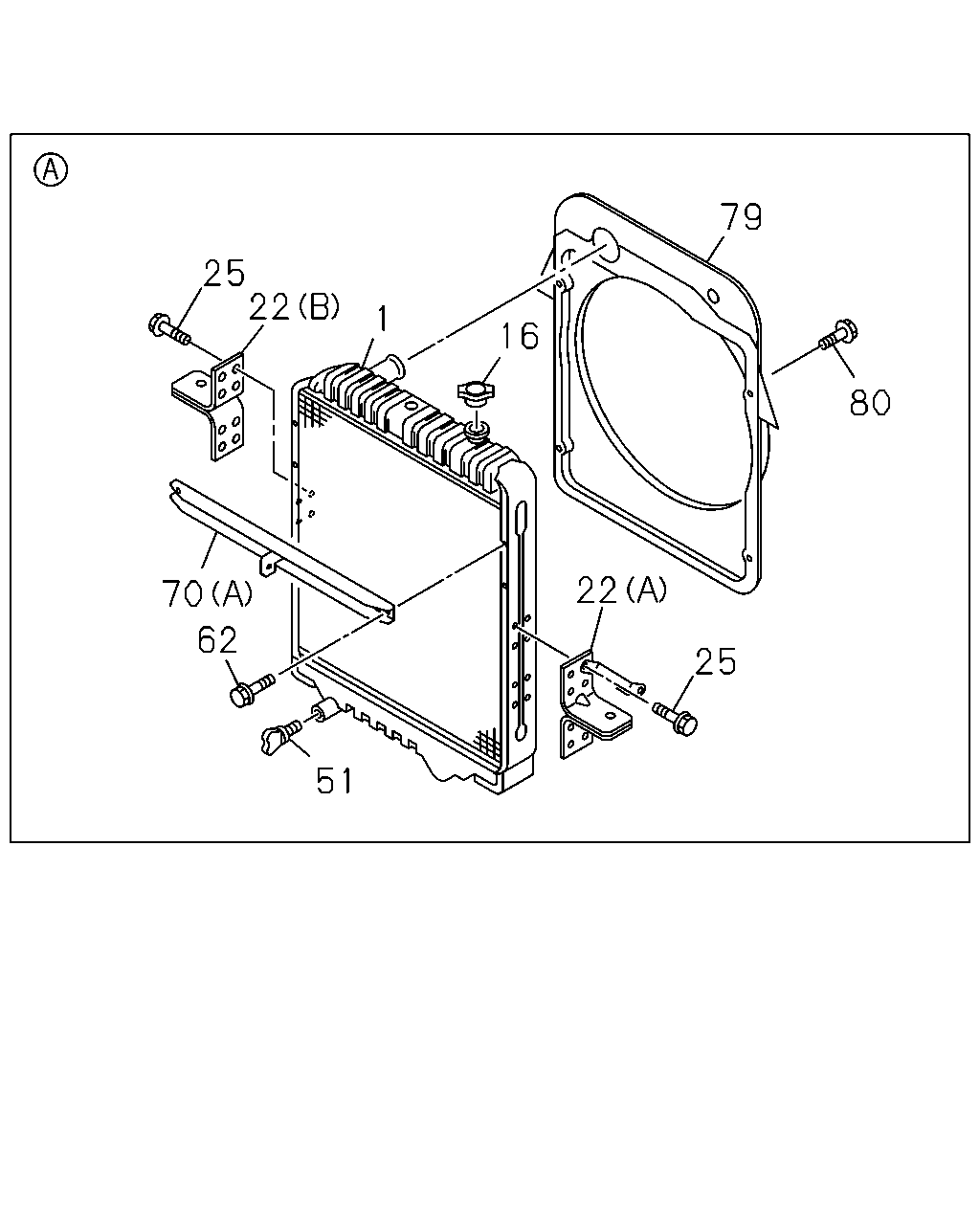

[110A] RADIATOR ASM (13 parça)

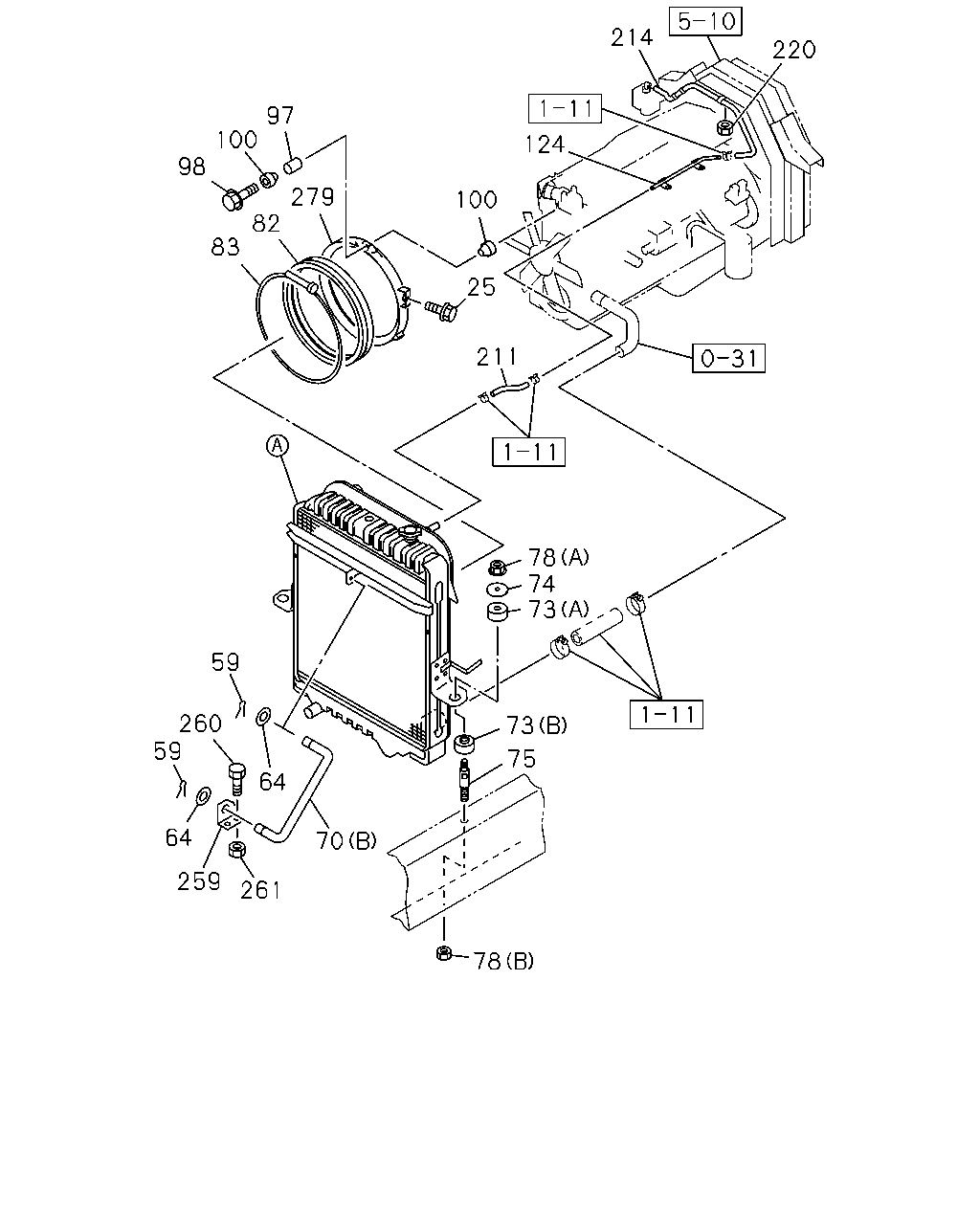

[110A] FIXING;ASM,HOSE AND OTHER PARTS (32 parça)

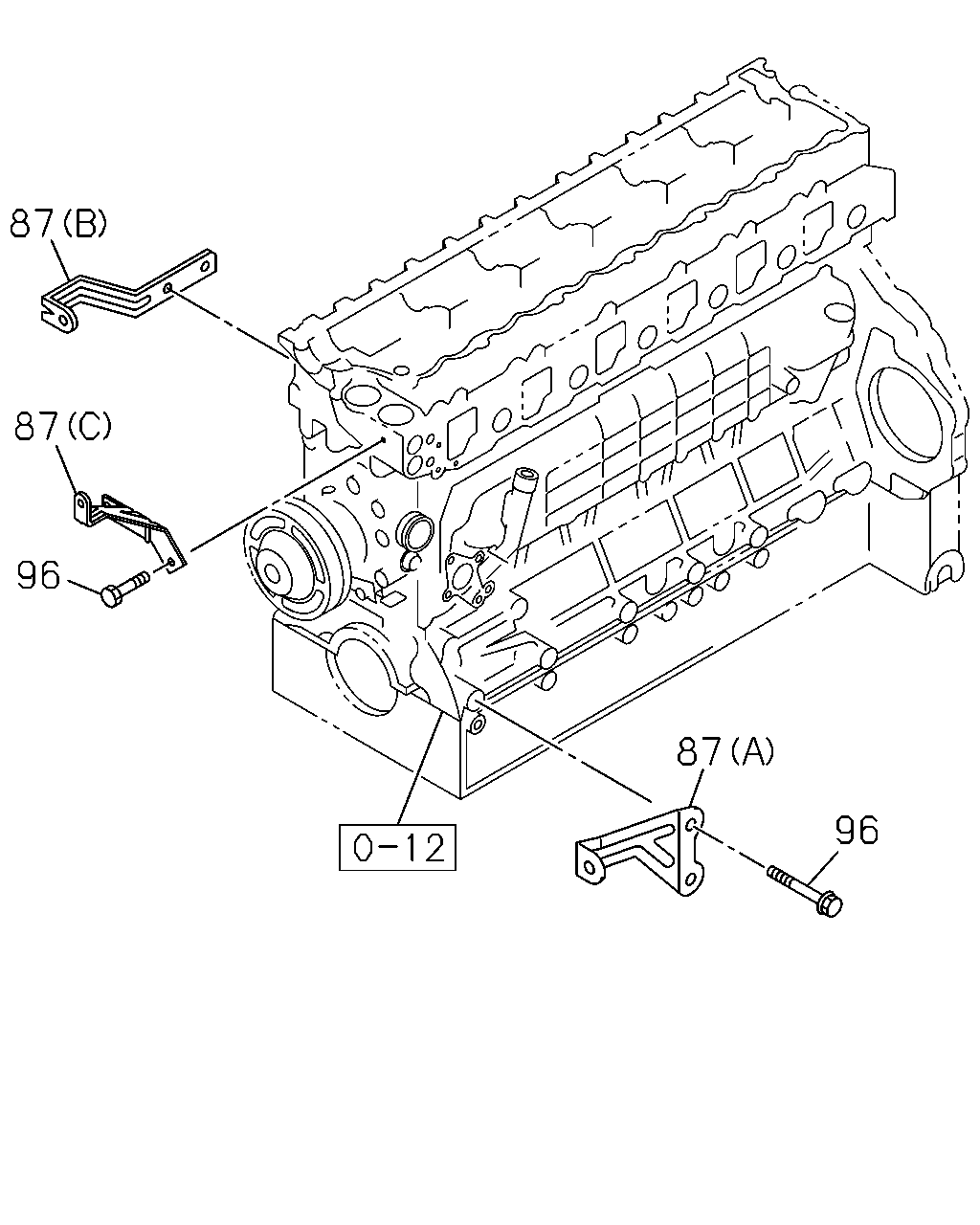

[110A] FAN GUIDE STAY (5 parça)
▶
79
25
22
1
16
80
22
70
62
25
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
MAL
1-21410-674-1
01
1
0310-
16
CAP; RAD
MAL
1-21450-053-2
01
1
0310-0311
16
CAP; RAD
MAL
1-21450-142-0
01
1
0312-
22
BRACKET; RAD MTG
(B) MAL
1-21464-673-0
01
1
0310-
22
BRACKET; RAD MTG
(A) MAL
1-21464-674-0
01
1
0310-
25
BOLT; BRKT
M8X12 FLANGE
0-28080-812-0
15
1
0310-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
01
1
0310-
51
PLUG; DRAIN
W/GASKET MAL
1-09609-009-0
01
1
0310-
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
02
1
0310-
70
STAY; RAD
(A) MAL
1-21522-064-0
01
1
0310-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0310-
79
GUIDE; FAN,RAD
MAL
1-21551-374-4
01
1
0310-
80
BOLT; FAN GUIDE
M6X10 FLANGE
0-28080-610-0
04
1
0310-
214
220
97
100
124
98
279
100
82
83
25
211
78
74
73
59
260
59
73
75
64
64
70
259
261
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; BRKT
M8X12 FLANGE
0-28080-812-0
15
1
0310-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
01
1
0310-
59
PIN; SNAP,STAY
MAL
1-09987-158-1
02
1
0310-
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
0310-0605
64
WASHER; STAY TO RAD
ID=12.5 OD=22 MAL
0-91610-512-0
02
1
0606-
70
STAY; RAD
(A) MAL
1-21522-064-0
01
1
0310-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0310-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0310-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0310-
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
0310-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0310-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91150-212-0
02
1
0310-0602
78
NUT; CUSHION RUBBER
(B) M12 FLANGE MAL
0-91180-212-0
02
1
0603-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
5-09440-006-0
02
1
0310-
82
COVER; FAN,RAD
1-21559-340-0
01
1
0310-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0310-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0310-
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28680-830-0
03
1
0310-0512
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28650-830-0
03
1
0601-
100
RUBBER; MTG
OD=32
8-94395-766-0
06
1
0310-
100
RUBBER; MTG
OD=32
8-94395-766-0
06
1
0310-
124
PIPE; WATER,TANK TO RAD
8-94394-461-4
01
1
0310-
211
HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000
0-03557-300-0
01
1
0310-
214
HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000
0-03557-300-0
01
1
0310-
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0310-0602
220
NUT; CLIP
M8 FLANGE MAL
0-91180-108-0
03
1
0603-
259
BRACKET; RAD STAY
1-21523-028-0
01
1
0310-
260
BOLT; BRKT
M8X20 FLANGE MAL
0-28680-820-0
02
1
0310-0512
260
BOLT; BRKT
M8X20 FLANGE MAL
0-28650-820-0
02
1
0601-
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0310-0602
261
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
279
BELL MOUTH
8-94394-808-2
01
1
0310-
87
87
96
87
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94394-775-0
01
1
0310-
87
STAY; FAN GUIDE
(C)
8-94396-496-1
01
1
0310-
87
STAY; FAN GUIDE
(A)
8-94397-395-1
01
1
0310-
96
BOLT; STAY FIX
M10X16 FLANGE
0-28181-016-0
02
1
0310-0512
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0601-
