◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#61142) — 156 parça

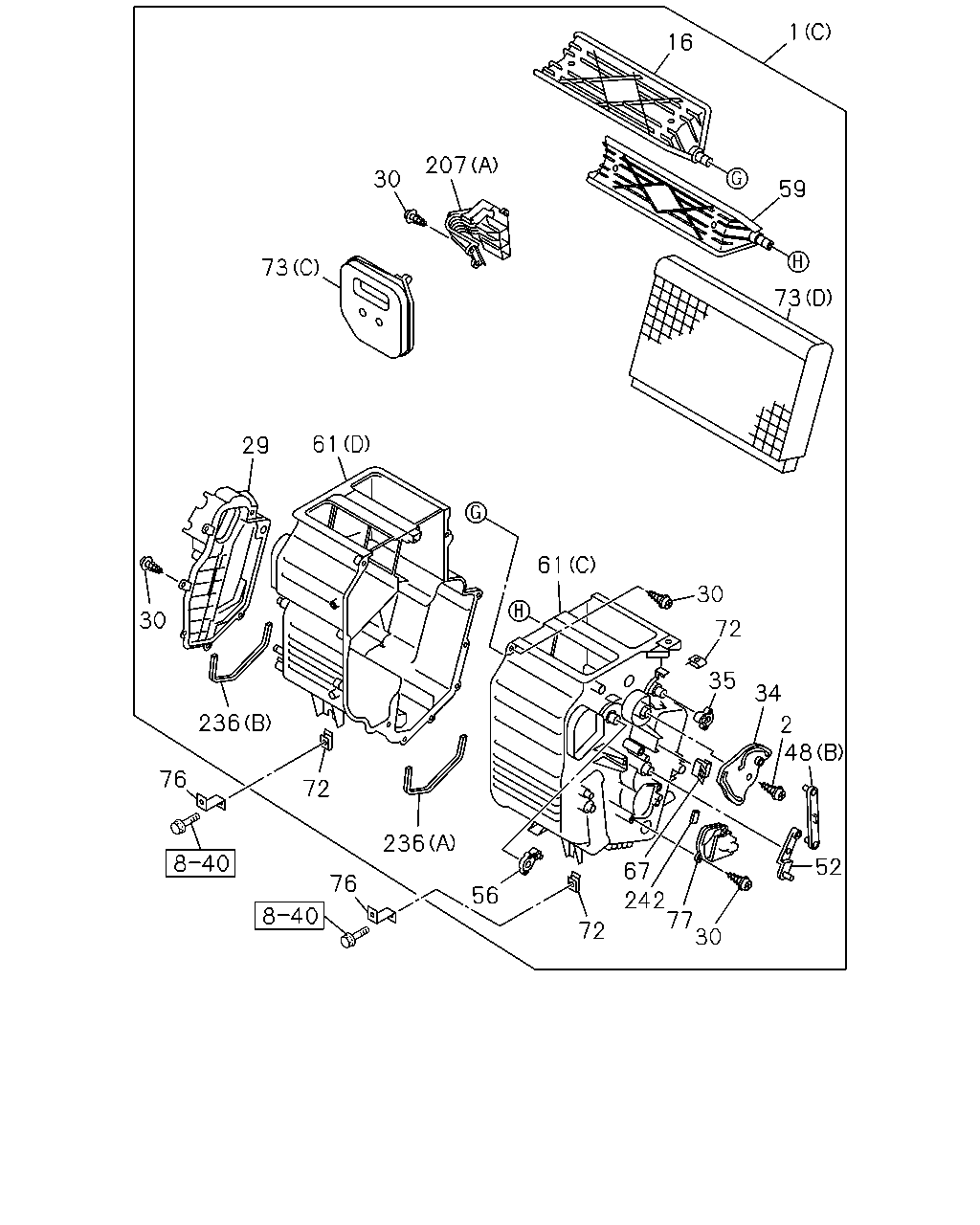

çizim 174234
30 77 242 72 52 48 2 34 35 72 30 61 67 56 236 76 72 76 236 30 29 61 73 59 16 1 207 30 73
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1102-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1102-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 1102-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302-
2 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1102-1310
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1102-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 1102-1301
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1102-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1102-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 1102-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1102-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1102-
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1102-
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 1102-
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1102-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1102-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1102-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1102-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1102-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1102-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1102-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1102-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 1102-1301
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 1102-1301
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1102-
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1102-
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1102-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 1102-1301
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1102-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1102-
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1102-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412-

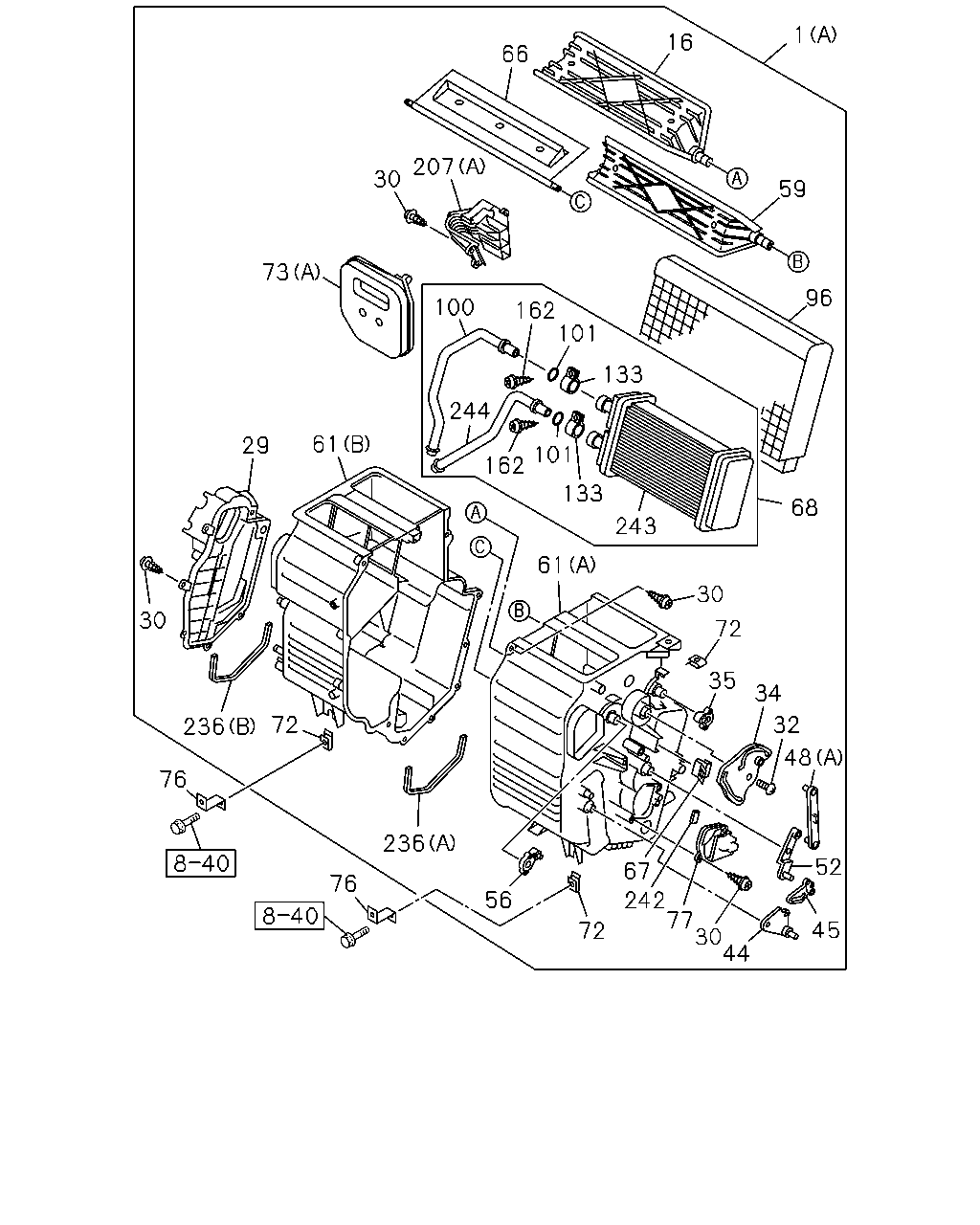

çizim 174242
1 16 66 30 207 59 96 68 243 133 101 133 101 162 100 244 162 73 61 29 30 236 76 72 76 236 56 72 61 30 72 35 34 32 48 52 45 44 30 77 242 67
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1102-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1102-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 1102-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1102-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 1102-1301
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1102-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1102-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 1102-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1311-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1102-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1102-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1102-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 1102-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 1102-
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1102-
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 1102-
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1102-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1102-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1102-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1102-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1102-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1102-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 1311-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-494-0 01 1 1102-1310
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1102-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1102-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1102-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 1102-1301
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 1102-1301
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1102-
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1102-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1102-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 1102-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1102-
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1102-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1102-
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1102-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 1102-1301
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1102-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1102-
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1102-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412-
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1102-
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 1102-

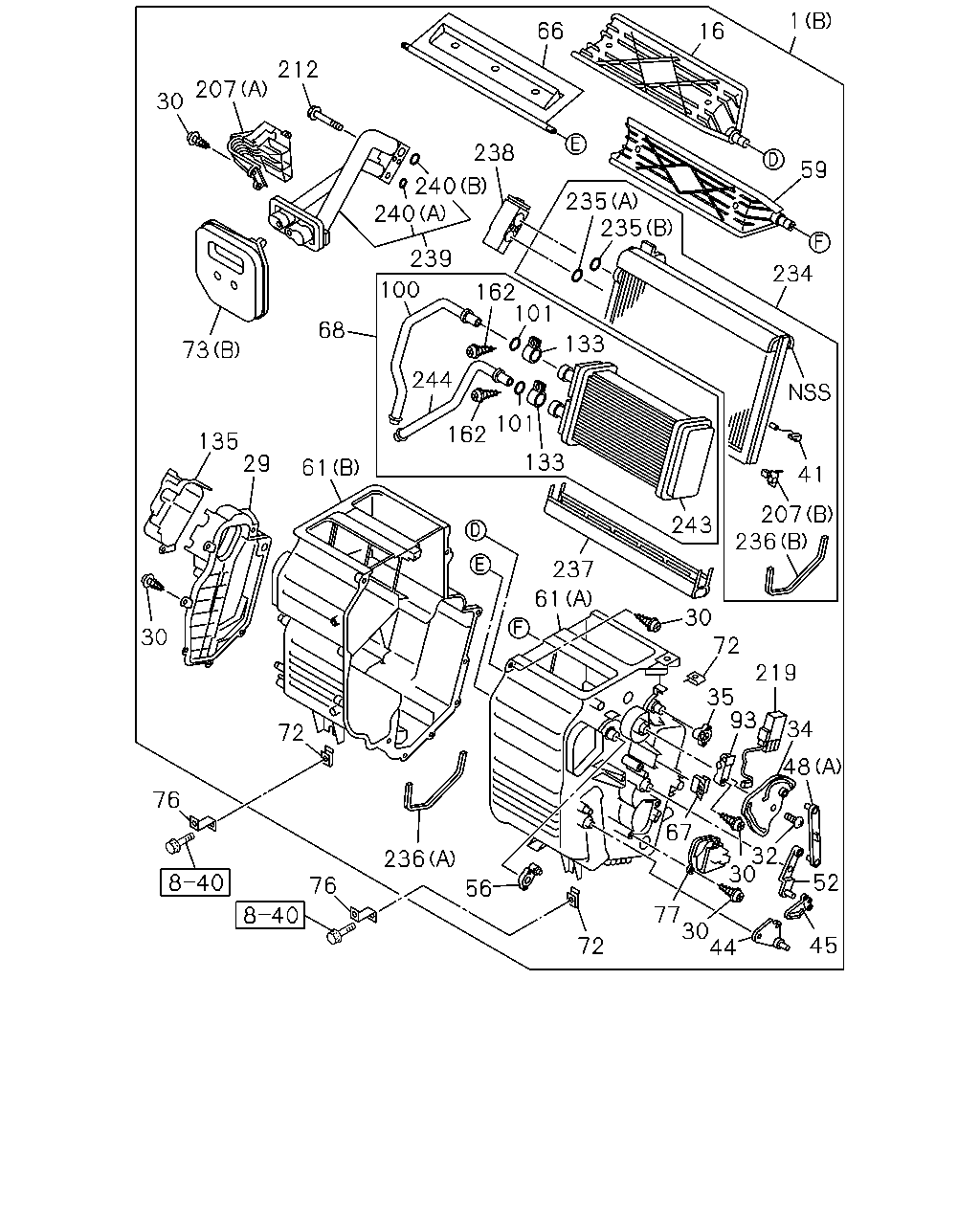

çizim 174244
1 16 66 212 207 30 73 68 240 240 238 235 235 59 234 41 207 236 243 133 101 162 239 100 244 162 101 133 237 61 30 72 219 34 48 52 45 44 30 32 93 35 67 30 77 72 56 236 76 76 72 30 135 29 61
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1102-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1102-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 1102-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1102-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 1102-1301
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1102-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1102-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 1102-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1311-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1102-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 1102-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 1102-
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 1102-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 1102-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 1102-
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1102-
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 1102-
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 1102-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 1102-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 1102-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 1102-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 1102-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 1102-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1102-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1102-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 1311-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-494-0 01 1 1102-1310
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1102-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1102-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1102-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 1102-1301
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 1102-1301
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1102-
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 1102-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1102-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 1102-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 1102-
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 1102-
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 1102-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 1102-
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1102-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 1102-1301
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 1102-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1102-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 1102-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 1102-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1102-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1102-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1102-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 1102-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 1102-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 1102-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 1102-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1102-
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 1102-
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 1102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
