◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#6114) — 94 parça

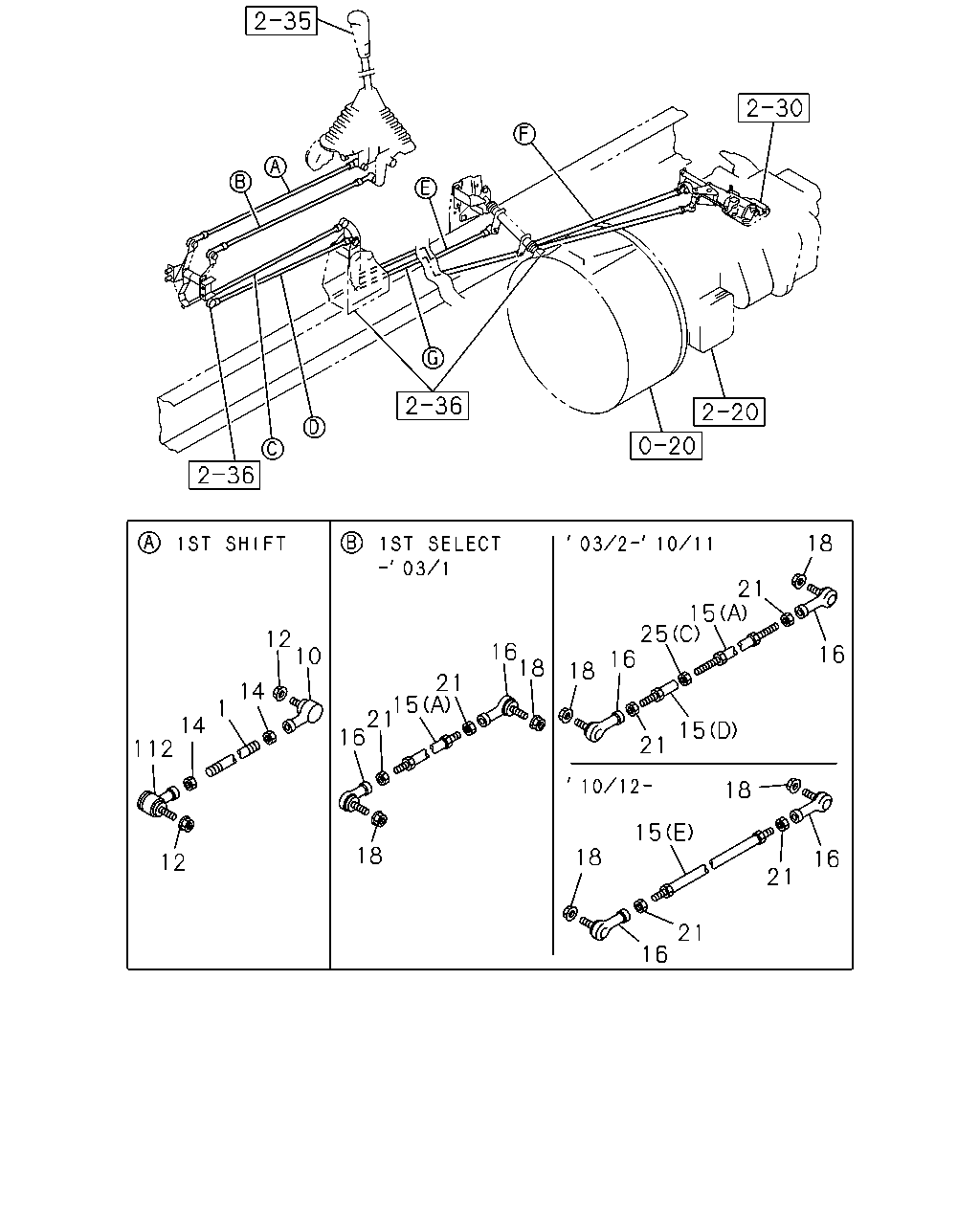

çizim 38201
18 21 15 25 16 12 10 16 18 16 18 21 15 21 16 14 1 14 112 15 21 18 15 18 18 16 12 21 21 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905-0301 ● ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0302- ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905-0301 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0302- ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905-0301 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0302- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-0301 ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0302-0512 ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601- ● ● ●
15 ROD; LINK 1ST SHIFT
(A) L=435 		1-33652-696-0 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=88 		1-33652-740-0 01 1 0302-1011 ● ● ●
15 ROD; LINK 1ST SHIFT
(E) L=447 		8-98178-126-0 01 1 1012- ● ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-0 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0302- ● ● ●
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-1 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0302- ● ● ●
15 ROD; LINK 1ST SHIFT
(A) L=355 		1-33652-999-0 01 1 0302-1011 ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9905-0301 ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-109-0 02 1 0302-1011 ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 1012- ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-0301 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0302- ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9905-0301 ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0302-0512 ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-1011 ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 1012- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 9905-0301 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0302-0512 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9905-0301 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0302-0512 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0302-1011 ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905-0301 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905-0301 ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 0302- ● ● ●
çizim 99656
24 28 15 25 15 112 25 22 25 22 25 22 24 28 30 35 32 5 35 32 30 45 49 8 47 47 36 44 49 45 6 38 38 36 44
BalonParca AdiParca NoAdetTipApplied Date A B C
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 9905-0301 ● ●
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0302- ● ● ●
6 ROD; LINK,3RD SELECT
L=1623 		1-33652-808-0 01 1 9905-0104 ● ●
6 ROD; LINK,3RD SELECT
L=1637 		1-33652-980-0 01 1 0105-0301 ● ●
6 ROD; LINK,3RD SELECT
L=1637 		1-33652-980-1 01 1 0302- ● ● ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 9905-0301 ● ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 0302- ● ● ●
15 ROD; LINK 1ST SHIFT
(A) L=435 		1-33652-696-0 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(D) L=88 		1-33652-740-0 01 1 0302-1011 ● ● ●
15 ROD; LINK 1ST SHIFT
(E) L=447 		8-98178-126-0 01 1 1012- ● ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-0 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0302- ● ● ●
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-1 01 1 9905-0301 ● ●
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0302- ● ● ●
15 ROD; LINK 1ST SHIFT
(A) L=355 		1-33652-999-0 01 1 0302-1011 ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 9905-0301 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0302- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 9905-0301 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0302- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905-0301 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0302- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0302- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 9905-0301 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0302-0512 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9905-0301 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0302-0512 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0302-1011 ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-0301 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0302- ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0302- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9905-0301 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0302- ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9905-0301 ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0302- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905-0301 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0302-0512 ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9905-0104 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0105-0301 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0302- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-0104 ● ●
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0105-0301 ● ●
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0302- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905-0301 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0302-0512 ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905-0301 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0302- ● ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9905-0301 ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0302- ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-0301 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0302-0512 ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905-0301 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905-0301 ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 0302- ● ● ●
