Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#61136) — 41 parça
◀

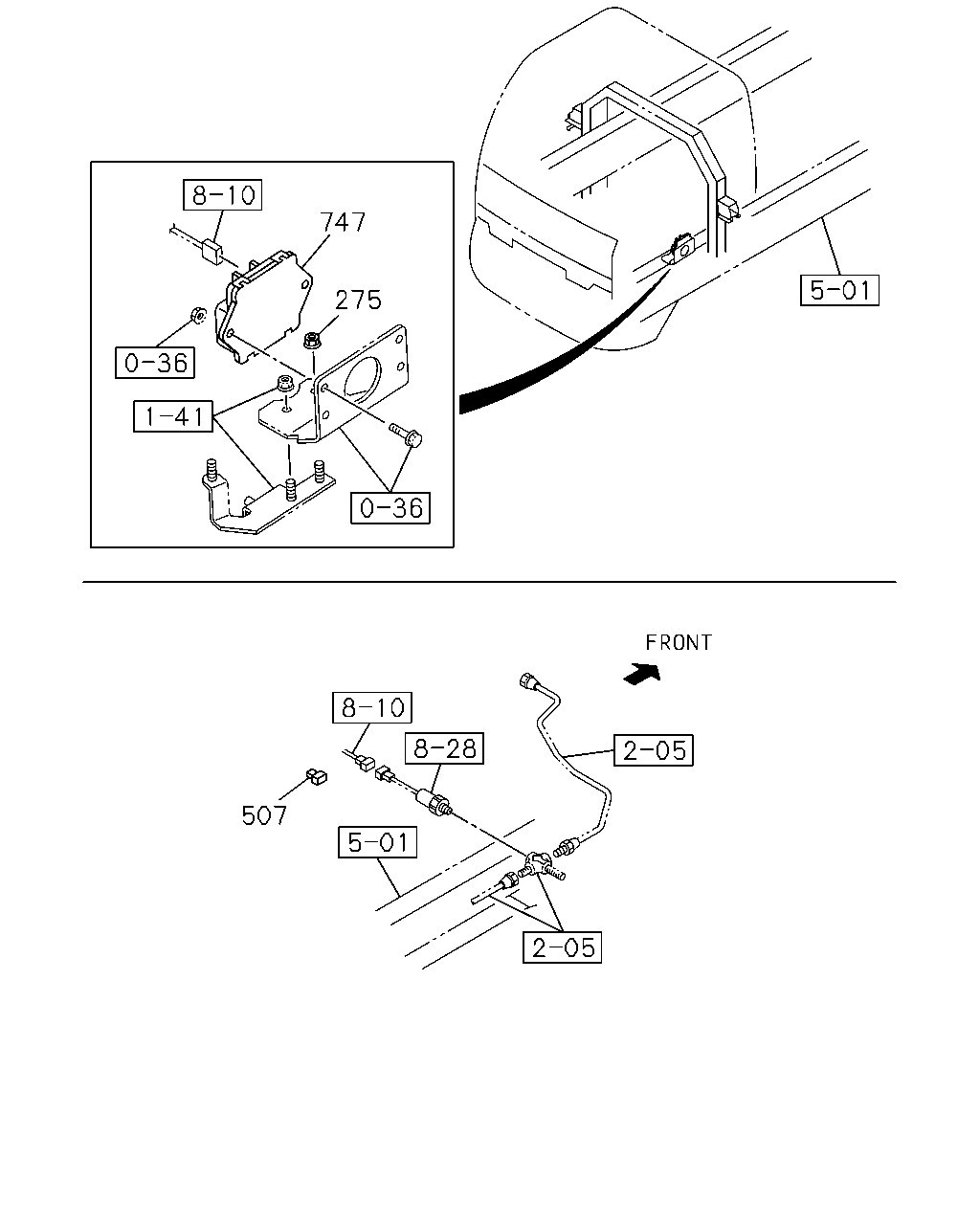

[826A] UNIT;TURBOCHARGER AND CONNECTOR (4 parça)
[826A] AIR TANK SIDE (7 parça)
[826A] FRONT SIDE NO.2 (8 parça)

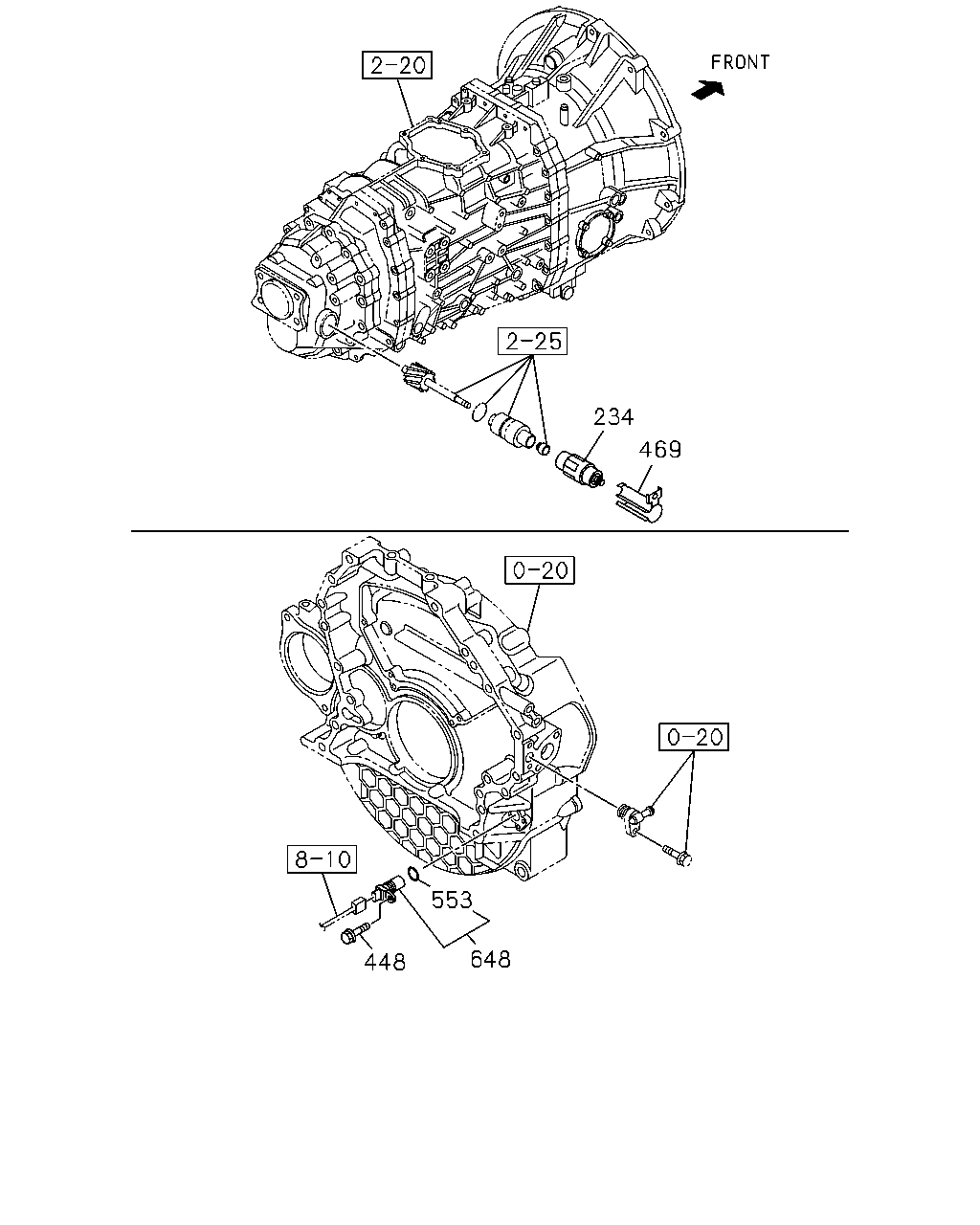

[826A] SENSOR;VEHICLE SPEED,CRANK ANGLE (5 parça)
[826A] FRONT SIDE NO.1 (13 parça)
[826A] FRONT SIDE NO.3 (4 parça)
▶
747
275
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1102-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1102-
747
CONTROL UNIT; TURBOCHARGER
8-98077-118-2
01
1
1102-1103
747
CONTROL UNIT; TURBOCHARGER
8-98162-807-0
01
1
1104-
68
64
68
62
158
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1102-
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
1102-
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
1102-
68
BOLT; BRKT
(B) M6X16 FLANGE
0-28650-616-0
01
1
1102-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1102-
158
CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH)
8-98157-998-1
01
1
1102-
158
CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98157-992-1
01
1
1102-
68
608
69
264
608
609
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(B) M6X16 FLANGE
0-28650-616-0
01
1
1102-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1102-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1102-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1102-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1102-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1102-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98095-336-0
01
1
1102-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1309-
234
553
448
648
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1102-
448
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
1102-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1102-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1102-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1102-
21
221
1
452
437
657
446
264
631
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1102-1310
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1311-
21
COVER; HOLE
8-98025-954-1
01
1
1102-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1102-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1102-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1102-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1102-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1102-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
1-80111-116-2
01
1
1102-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1102-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1102-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1102-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
380
373
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP>
8-98110-719-0
01
1
1102-
373
HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP>
8-98110-720-0
01
1
1102-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1102-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1102-
