Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#61132) — 315 parça

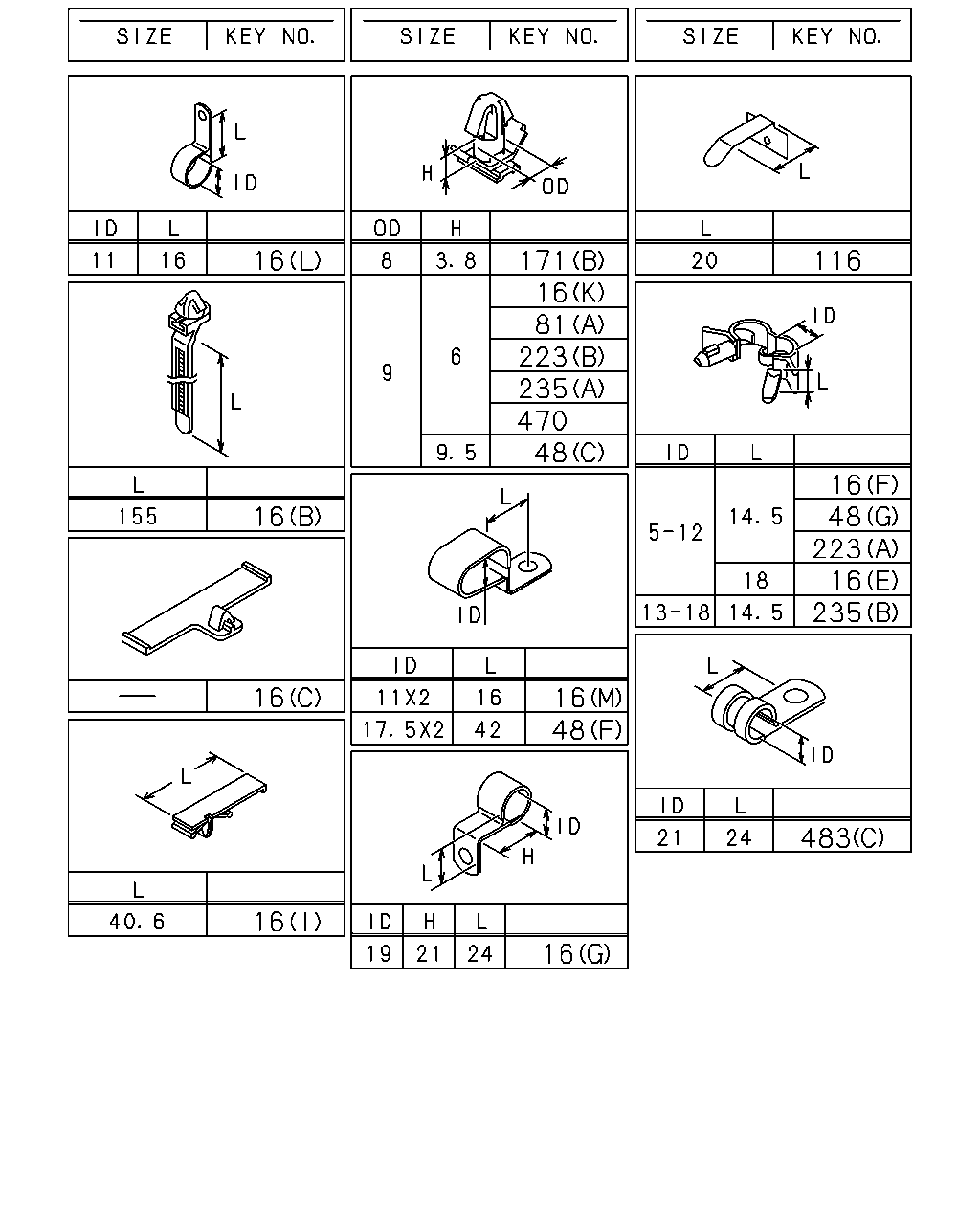

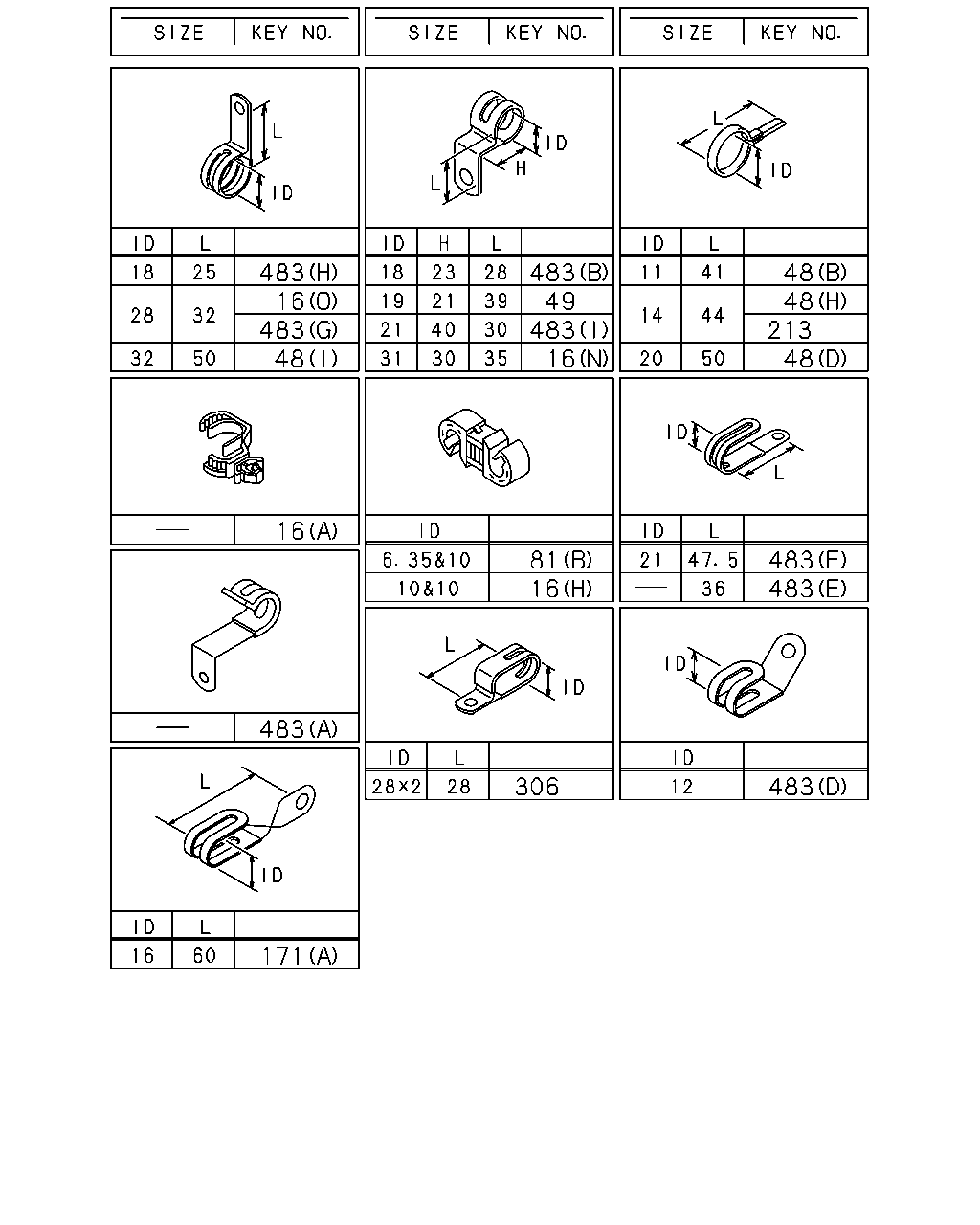

483 483 48 483 483 483 483 483 483 16 16 171 306 81 16 49 16 48 48 213 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS WHEEL BASE 2800MM(28W) (E) ID=5-12 L=18	1-09709-287-0	01	1	1408-1408
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1102-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1102-
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1102-
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1102-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1102-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1102-1310
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
16	CLIP; HARNESS (G) ID=19 H=21 L=24	5-09700-360-0	01	1	1102-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1102-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1311-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1409-
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	03	1	1408-1408
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	01	1	1409-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1311-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1102-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1102-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1102-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
48	CLIP; FRAME HARNESS (F) ID=17.5X2 L=25	5-09700-358-0	01	1	1102-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1102-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (H) ID=14 L=44	9-09917-427-0	07	1	1102-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1102-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1102-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1102-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1102-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1102-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1102-
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	1102-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1102-
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1102-
483	CLIP; ENG HARNESS (C) ID=21 L=24	1-09701-201-0	01	1	1102-1310
483	CLIP; ENG HARNESS (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1311-
483	CLIP; ENG HARNESS (A)	1-09987-281-0	01	1	1102-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1102-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1102-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1102-
483	CLIP; ENG HARNESS (E) L=36	8-94224-891-1	01	1	1102-

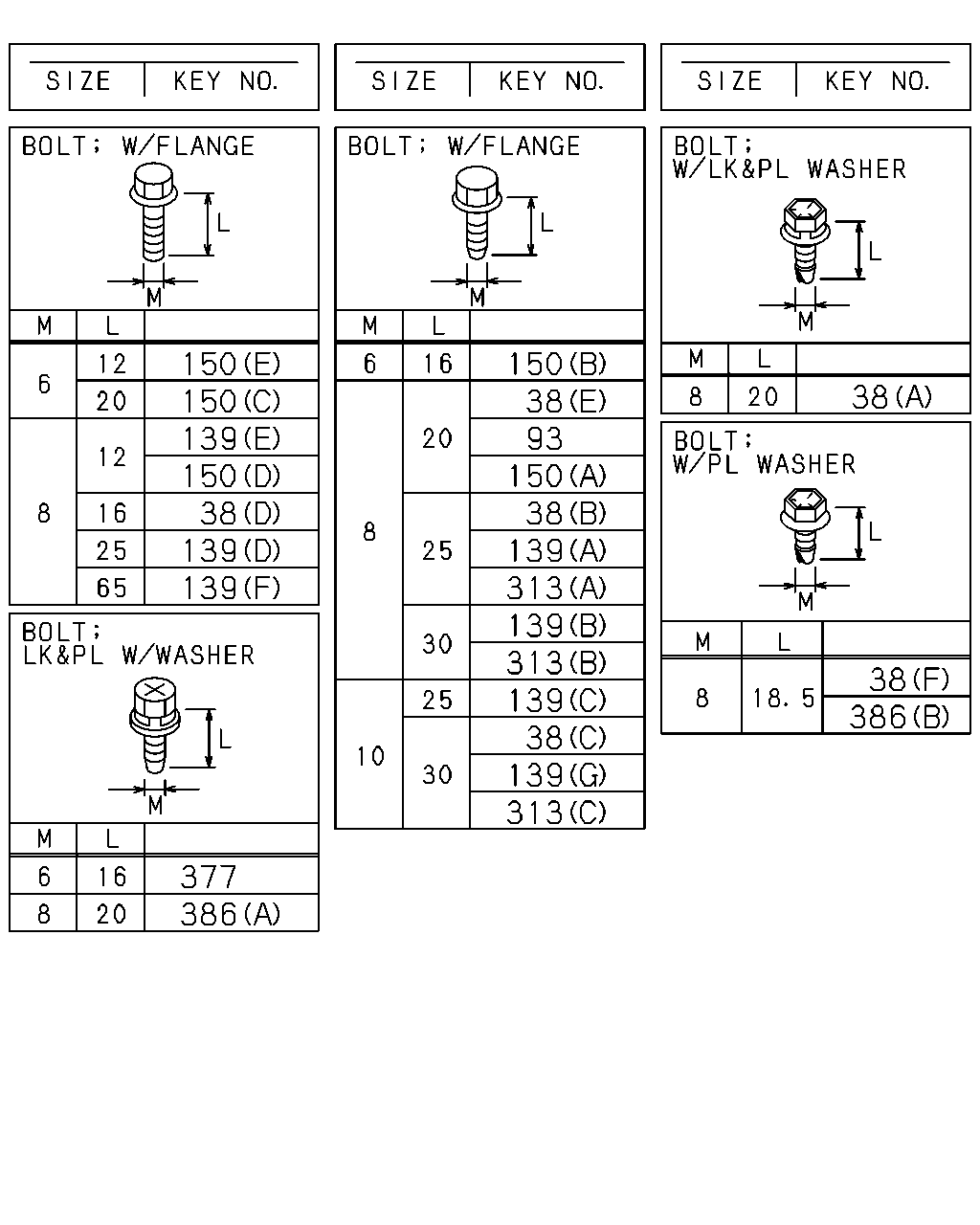

150 139 139 38 150 139 150 377 386 150 38 93 150 313 139 139 139 38 38 313 139 38 38 386 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (D) M8X16 FLANGE	0-28050-816-0	03	1	1102-
38	BOLT; CLIP,HARNESS (E) M8X20 FLANGE	0-28650-820-0	01	1	1102-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1102-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1102-
38	BOLT; CLIP,HARNESS (C) M10X30 FLANGE	0-28651-030-0	01	1	1102-
38	BOLT; CLIP,HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1102-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1102-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1102-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1102-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	1102-1310
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1102-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1102-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1102-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1102-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1102-1405
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1102-1405
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1406-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1102-1407
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1408-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) M8X65 FLANGE	1-09044-072-1	01	1	1102-
150	BOLT; CLIP (C) M6X20 FLANGE	0-28050-620-0	02	1	1102-1310
150	BOLT; CLIP (E) M6X12 FLANGE	0-28050-612-0	02	1	1311-
150	BOLT; CLIP (D) M8X12 FLANGE	0-28050-812-0	01	1	1102-
150	BOLT; CLIP (B) M6X16 FLANGE	0-28650-616-0	01	1	1102-1312
150	BOLT; CLIP (B) M6X16 FLANGE	0-28650-616-0	02	1	1401-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1102-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1102-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1102-
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1102-1310
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1311-1407
313	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1408-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1102-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1102-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-

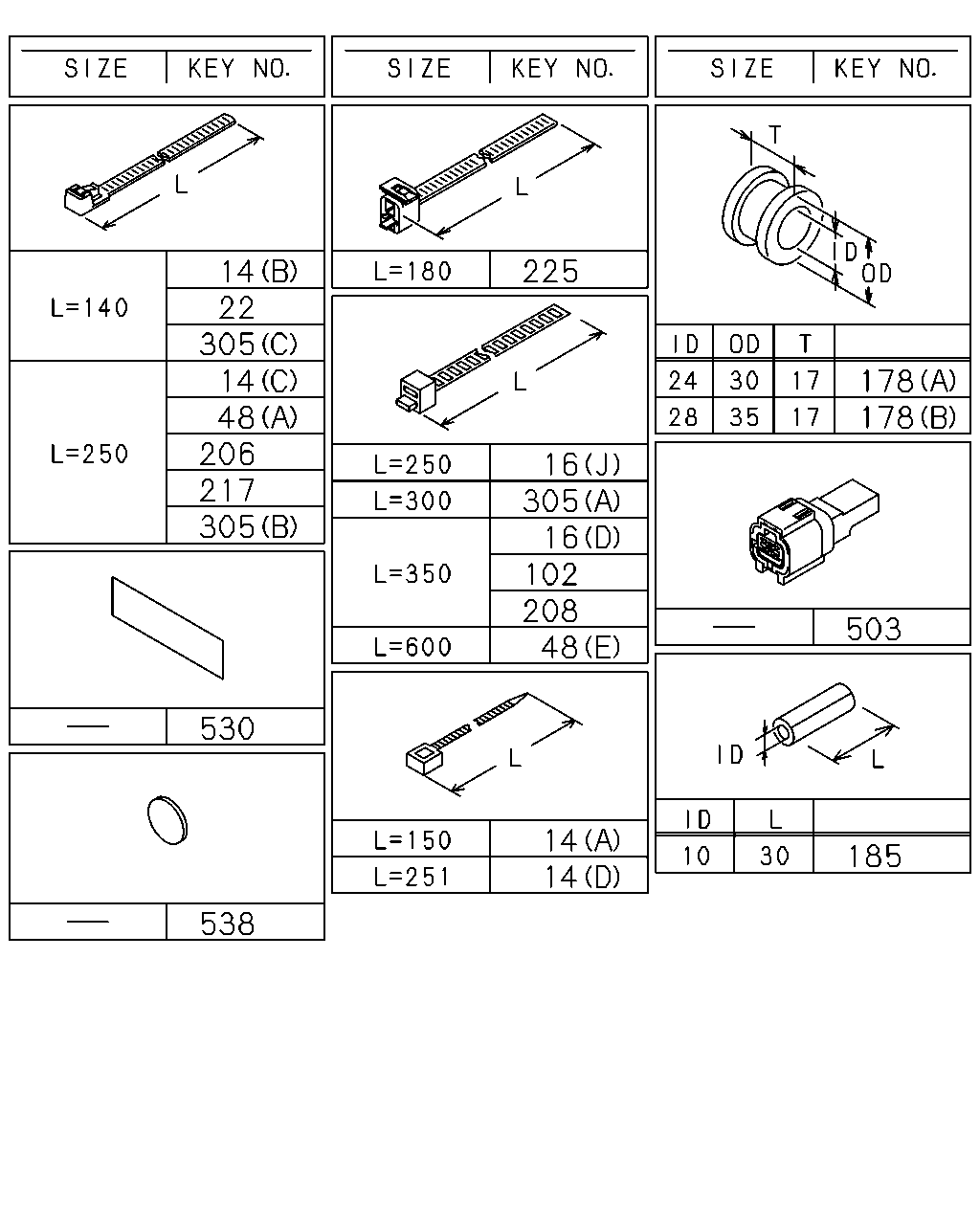

14 22 305 14 48 206 217 305 225 16 305 16 102 208 48 14 14 530 538 178 178 503 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1102-1109
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1102-1310
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1311-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	1102-1310
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	03	1	1311-1407
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1102-
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	1102-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1102-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-1310
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-1310
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1311-
16	CLIP; HARNESS WHEEL BASE 2800MM(28W) (E) ID=5-12 L=18	1-09709-287-0	01	1	1408-1408
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1102-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1102-
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1102-
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1102-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1102-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1102-1310
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
16	CLIP; HARNESS (G) ID=19 H=21 L=24	5-09700-360-0	01	1	1102-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1102-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1311-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1102-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1409-
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	03	1	1408-1408
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	01	1	1409-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1311-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1102-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1102-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1102-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
48	CLIP; FRAME HARNESS (F) ID=17.5X2 L=25	5-09700-358-0	01	1	1102-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1102-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (H) ID=14 L=44	9-09917-427-0	07	1	1102-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1102-
102	CLIP; BAND L=350	1-09707-183-0	02	1	1102-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	1102-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1102-1310
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1311-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	04	1	1102-1310
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	03	1	1311-
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1102-1310
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1102-1405
206	CLIP; FUEL TANK HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=250	5-09707-030-1	03	1	1406-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1102-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1102-
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	1102-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1102-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	01	1	1102-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	1102-1409
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	02	1	1102-1409
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1102-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1102-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1102-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1102-

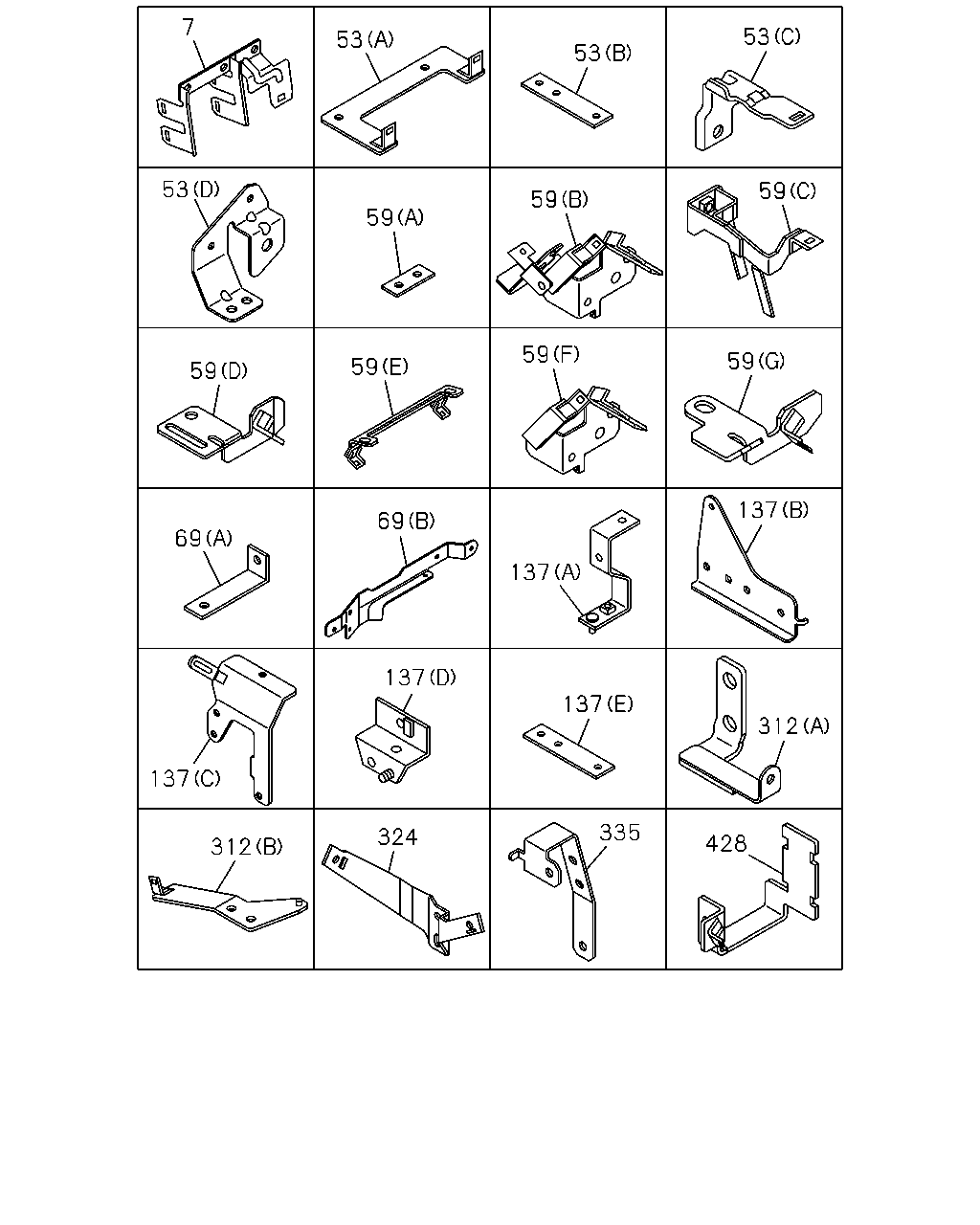

7 53 53 53 53 59 59 59 59 59 59 59 69 69 137 137 312 137 137 137 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1102-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98084-699-0	01	1	1102-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1102-1310
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1311-1407
53	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) L=170	1-47479-380-0	01	1	1408-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1102-
53	BRACKET; HARNESS (A)	8-98125-300-1	01	1	1102-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1102-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1102-
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	1102-1401
59	BRACKET; FRAME HARNESS (F)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	1102-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1102-
69	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	1102-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1102-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	1102-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1102-
137	BRACKET; HARNESS CLAMP (E)	8-98170-409-0	01	1	1102-
137	BRACKET; HARNESS CLAMP (D)	8-98058-354-1	01	1	1102-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	1102-
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	1102-
312	BRACKET; CLIP HARNESS (B)	8-98143-865-0	01	1	1102-1310
312	BRACKET; CLIP HARNESS (B)	8-98224-098-0	01	1	1311-
324	BRACKET; CLIP	8-98061-654-2	01	1	1102-
324	BRACKET; CLIP	8-98061-653-2	01	1	1102-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1102-1310
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W)	8-97619-097-1	01	1	1311-
428	BRACKET	8-98116-461-0	01	1	1102-

16 16 16 16 16 16 16 16 116 16 171 81 223 235 470 48 48 48 223 235 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS WHEEL BASE 2800MM(28W) (E) ID=5-12 L=18	1-09709-287-0	01	1	1408-1408
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS (L) ID=11 L=16	0-95235-025-0	02	1	1102-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1102-
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1102-
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1102-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1102-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1102-1310
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
16	CLIP; HARNESS (G) ID=19 H=21 L=24	5-09700-360-0	01	1	1102-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1102-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1102-1310
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	1102-1310
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1311-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1102-1310
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1311-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1409-
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	03	1	1408-1408
48	CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (H) ID=14 L=44	9-09917-427-0	01	1	1409-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1102-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1311-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1102-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1102-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1102-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1102-
48	CLIP; FRAME HARNESS (F) ID=17.5X2 L=25	5-09700-358-0	01	1	1102-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1102-1310
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	04	1	1102-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1102-1201
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1202-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (H) ID=14 L=44	9-09917-427-0	07	1	1102-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=14 L=44	9-09917-427-0	10	1	1102-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1102-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1102-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1102-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1102-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1102-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1102-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1102-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) OD=9 H=6	1-09709-178-0	02	1	1102-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1102-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1102-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1102-
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1102-
483	CLIP; ENG HARNESS (C) ID=21 L=24	1-09701-201-0	01	1	1102-1310
483	CLIP; ENG HARNESS (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1311-
483	CLIP; ENG HARNESS (A)	1-09987-281-0	01	1	1102-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1102-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1102-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1102-
483	CLIP; ENG HARNESS (E) L=36	8-94224-891-1	01	1	1102-

127 139 524 184 84 524 219 515 294 525 47 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1102-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1102-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1102-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1102-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	1102-1310
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1102-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1102-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1102-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1102-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1102-1405
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1102-1405
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1406-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1102-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1102-1407
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1408-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) M8X65 FLANGE	1-09044-072-1	01	1	1102-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1102-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1102-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1102-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1102-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1102-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1102-1310
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1102-1310
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1102-1310
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1102-1310
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1102-1310
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1102-1310
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1311-1407
294	NUT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1408-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1102-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1102-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1102-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1102-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1102-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
