2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#6113) — 341 parça

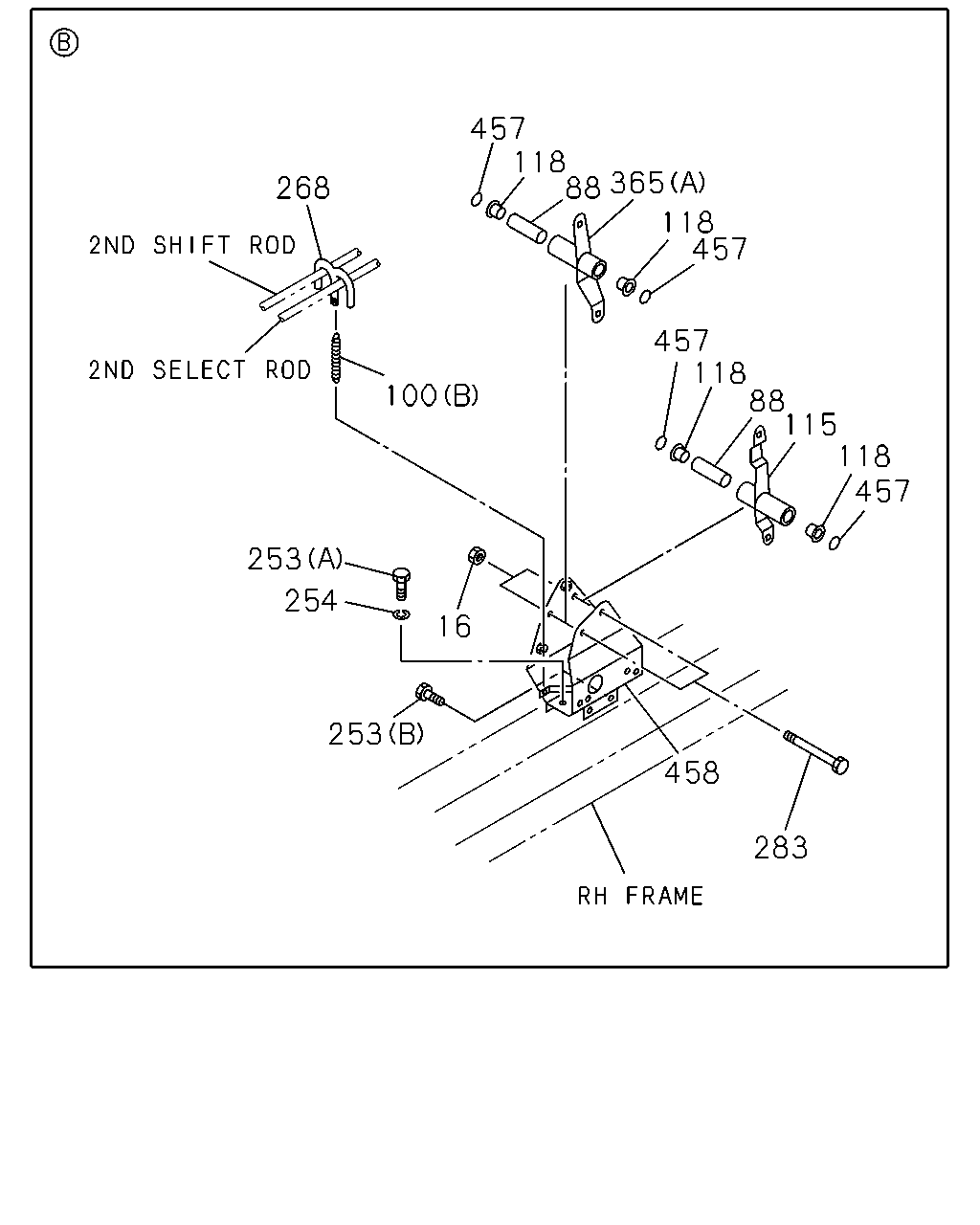

çizim 38144
457 118 88 365 268 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B C
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9905-0301 ● ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0302-0602 ● ● ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9905-0301 ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0302- ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9905-0301 ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 0302- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9905-0301 ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 0302- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9905-0104 ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-769-0 01 1 0105-0301 ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0302- ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9905-0301 ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0302- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9905-0301 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0302- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9905-0301 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0302-0512 ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9905-0301 ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0302-0603 ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0604- ● ● ●
268 BRACKET; LINK ROD 1-33657-216-0 01 1 9905-0301 ● ●
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0302- ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9905-0301 ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0302- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9905-0104 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-0 01 1 0105-0301 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0302- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9905-0301 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9905-0301 ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302- ● ● ●
457 GASKET 1-09623-594-0 04 1 9905-0301 ● ●
457 GASKET 1-09623-594-0 04 1 0302- ● ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 9905-0301 ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0302- ● ● ●

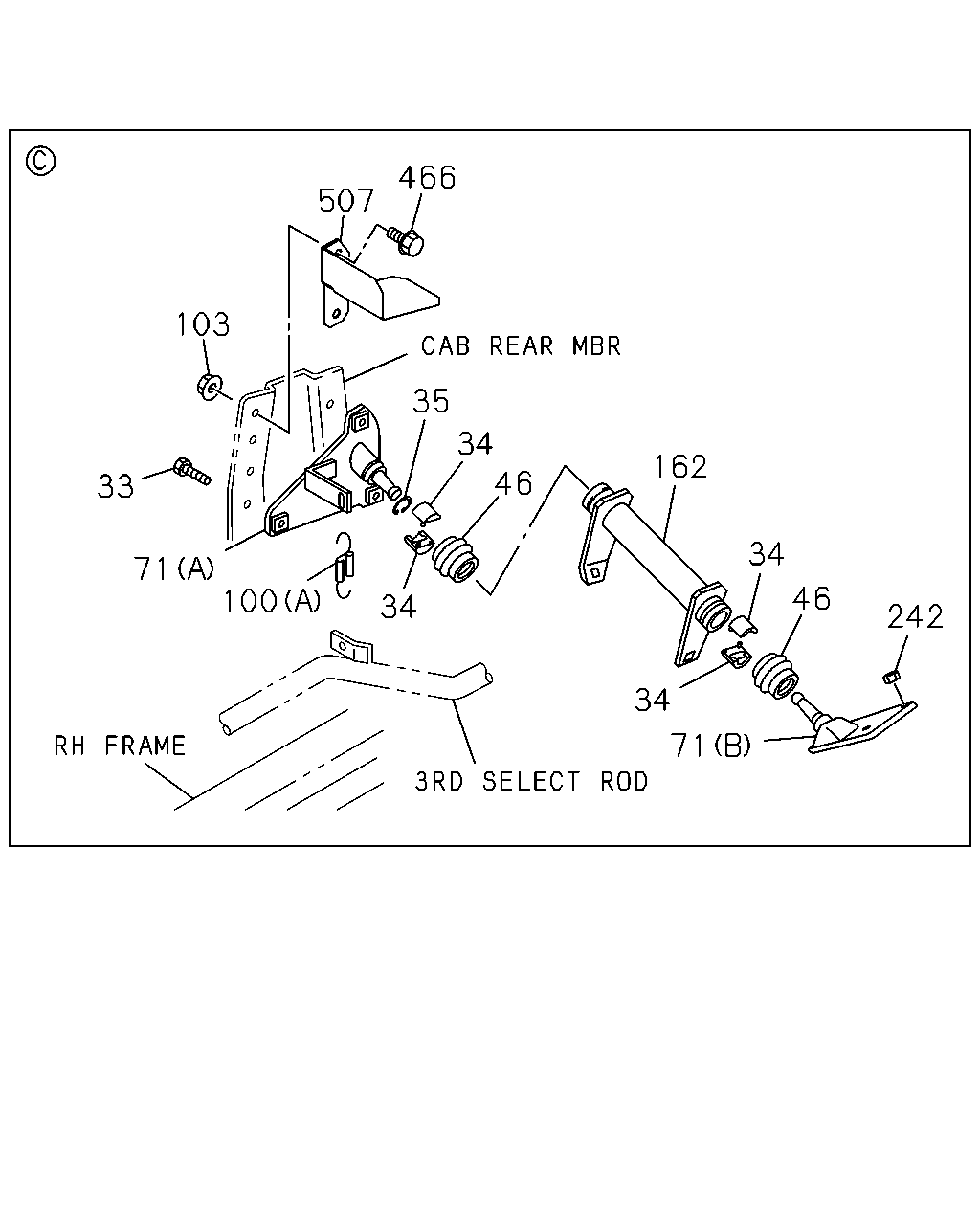

çizim 38145
466 507 103 35 34 162 46 33 34 71 100 46 34 242 34 71
BalonParca AdiParca NoAdetTipApplied Date A B C
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 9905-0301 ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0302-0512 ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0601-1003 ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 9905-0301 ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0302- ● ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 9905-0301 ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0302- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 9905-0301 ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 0302-0503 ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0504- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 9905-0301 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0302- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-657-1 01 1 9905-0301 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-657-1 01 1 0302- ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9905-0301 ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 0302- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9905-0301 ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 0302- ● ● ●
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ● ●
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
162 LEVER; RELAY 1-33651-625-0 01 1 9905-0301 ● ●
162 LEVER; RELAY 1-33651-625-1 01 1 0302- ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 9905-0301 ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0302-0602 ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ● ●
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0301 ● ●
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0302-0512 ● ● ●
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
507 PROTECTOR; HEAT 1-14181-315-0 01 1 9905-0301 ● ●
507 PROTECTOR; HEAT 1-14181-315-0 01 1 0302- ● ● ●

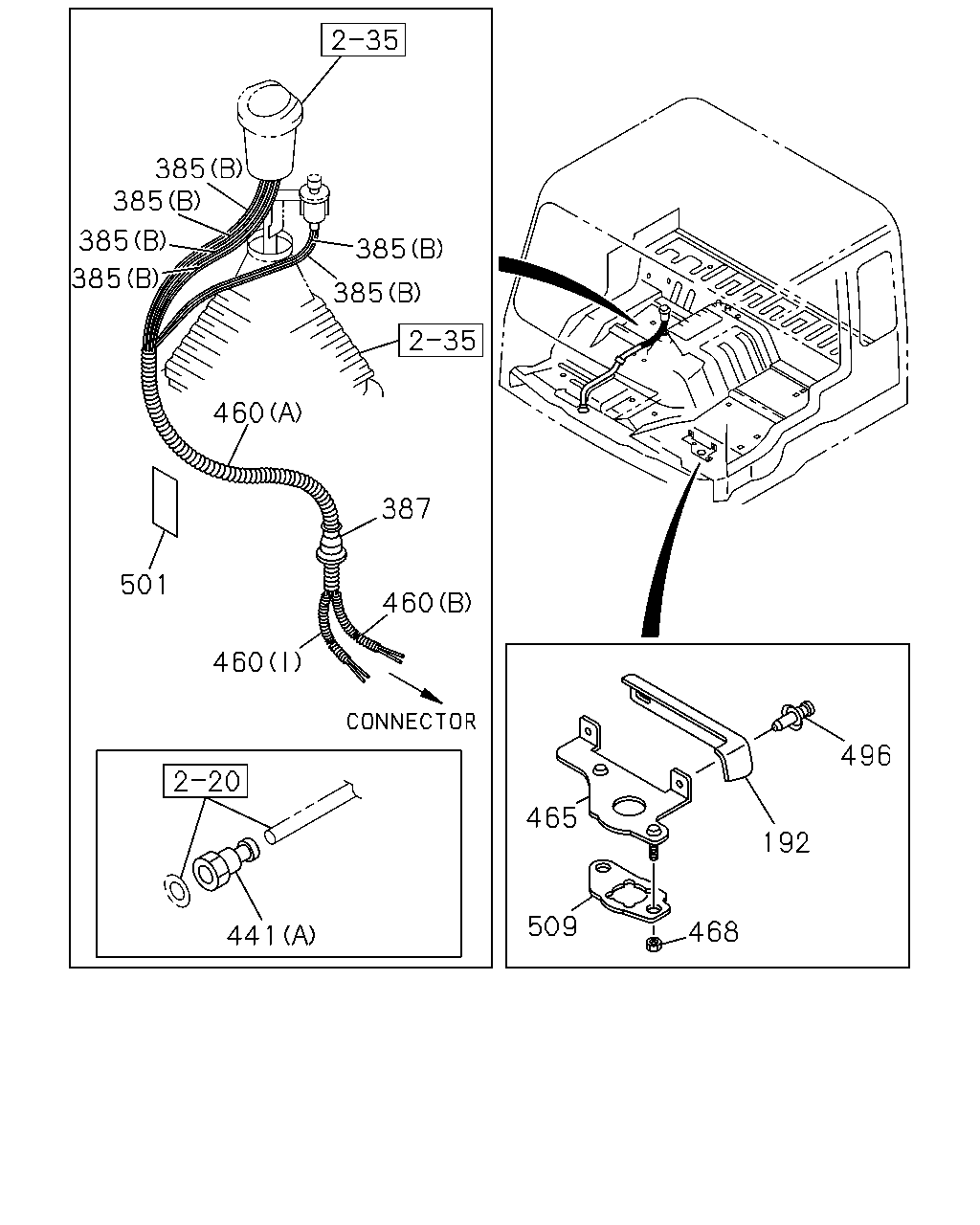

çizim 38169
385 385 385 385 385 385 460 387 501 460 460 496 465 192 509 468 441
BalonParca AdiParca NoAdetTipApplied Date A B C
192 COVER 1-79907-090-0 01 1 9905-0301 ● ●
192 COVER 1-79907-090-0 01 1 0302- ● ● ●
385 TUBE; NYLON
(B) L=1640 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3000 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603- ● ●
385 TUBE; NYLON
(B) L=1640 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3100 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(B) L=1640 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3500 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(B) L=1640 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3100 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-0602 ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1640 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0005-0103 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1640 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0005-0103 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603- ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603- ● ●
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-0301 ●
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302- ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 9905-0301 ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0302- ● ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9905-0301 ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0302- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 9905-0301 ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0302-0804 ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 9911-0301 ● ●
460 TUBE; CORRUGATE
(I) L=250 ID=10 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0804- ● ● ●
460 TUBE; CORRUGATE
(F) L=750 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0107 ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0108-0301 ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 9905-0104 ● ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0105-0301 ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0302-0803 ● ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0804- ● ● ●
460 TUBE; CORRUGATE
(G) L=300 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-0107 ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0108-0301 ● ●
460 TUBE; CORRUGATE
(A) L=1030 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-0103 ● ●
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304 ● ● ●
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-0602 ● ● ●
460 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603- ● ● ●
460 TUBE; CORRUGATE
(C) L=2400 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 9905-9910 ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2400 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 9911-0103 ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0301 ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603- ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0301 ● ●
460 TUBE; CORRUGATE
(H) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(H) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0603- ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2400 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 9911-0103 ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603- ● ●
465 BRACKET; CONNECTOR 1-47477-823-1 01 1 9905-0104 ● ●
465 BRACKET; CONNECTOR 1-47478-772-0 01 1 0105-0301 ● ●
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0302- ● ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9905-0301 ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0302- ● ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0104-0301 ● ●
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 9905-0301 ● ●
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0302- ● ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9905-0301 ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 0302-0503 ● ● ●
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0504- ● ● ●
509 SEAL; BRKT 1-47477-825-2 01 1 9905-0301 ● ●
509 SEAL; BRKT 1-47477-825-2 01 1 0302-0401 ● ● ●
509 SEAL; BRKT 1-47479-978-0 01 1 0402- ● ● ●

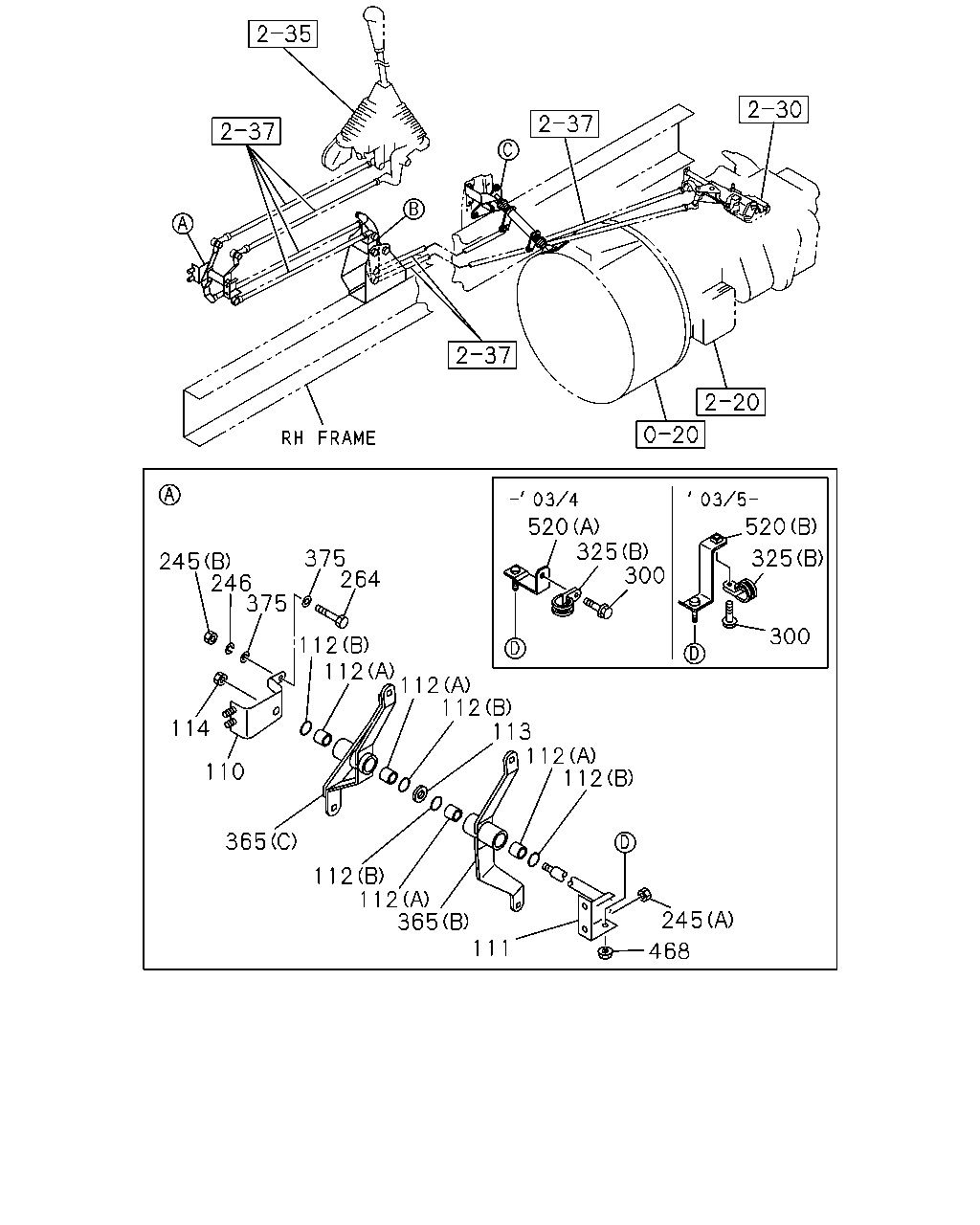

çizim 38225
520 520 325 300 325 375 264 245 246 375 300 112 112 112 112 113 112 112 114 110 365 112 112 365 111 245 468
BalonParca AdiParca NoAdetTipApplied Date A B C
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 9905-0301 ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0302- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-468-0 01 1 9905-0301 ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0302- ● ● ●
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 9905-0301 ● ●
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0302- ● ● ●
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 9905-0301 ● ●
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0302- ● ● ●
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 9905-0301 ● ●
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0302-0605 ● ● ●
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9905-0301 ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0302-0602 ● ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 9905-0301 ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0302-0602 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-1304 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305- ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 9905-0301 ● ●
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0302- ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 9905-0301 ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0302- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 9905-0301 ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 0302-0302 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0302- ● ● ●
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0104-0301 ● ●
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-0904 ● ● ●
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 9905-0301 ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0302- ● ● ●
325 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0104-0107 ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-0301 ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-0606 ● ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 9911-0301 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9905-0104 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-0 01 1 0105-0301 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0302- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9905-0301 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9905-0301 ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302- ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 9905-0301 ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0302- ● ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9905-0301 ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0302- ● ● ●
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0104-0301 ● ●
520 BRACKET; NYLON TUBE
(A) 		1-79996-545-0 01 1 0104-0301 ● ●
520 BRACKET; NYLON TUBE
(A) 		1-79996-545-0 01 1 0302-0304 ● ● ●
520 BRACKET; NYLON TUBE
(B) 		1-79996-628-0 01 1 0305- ● ● ●

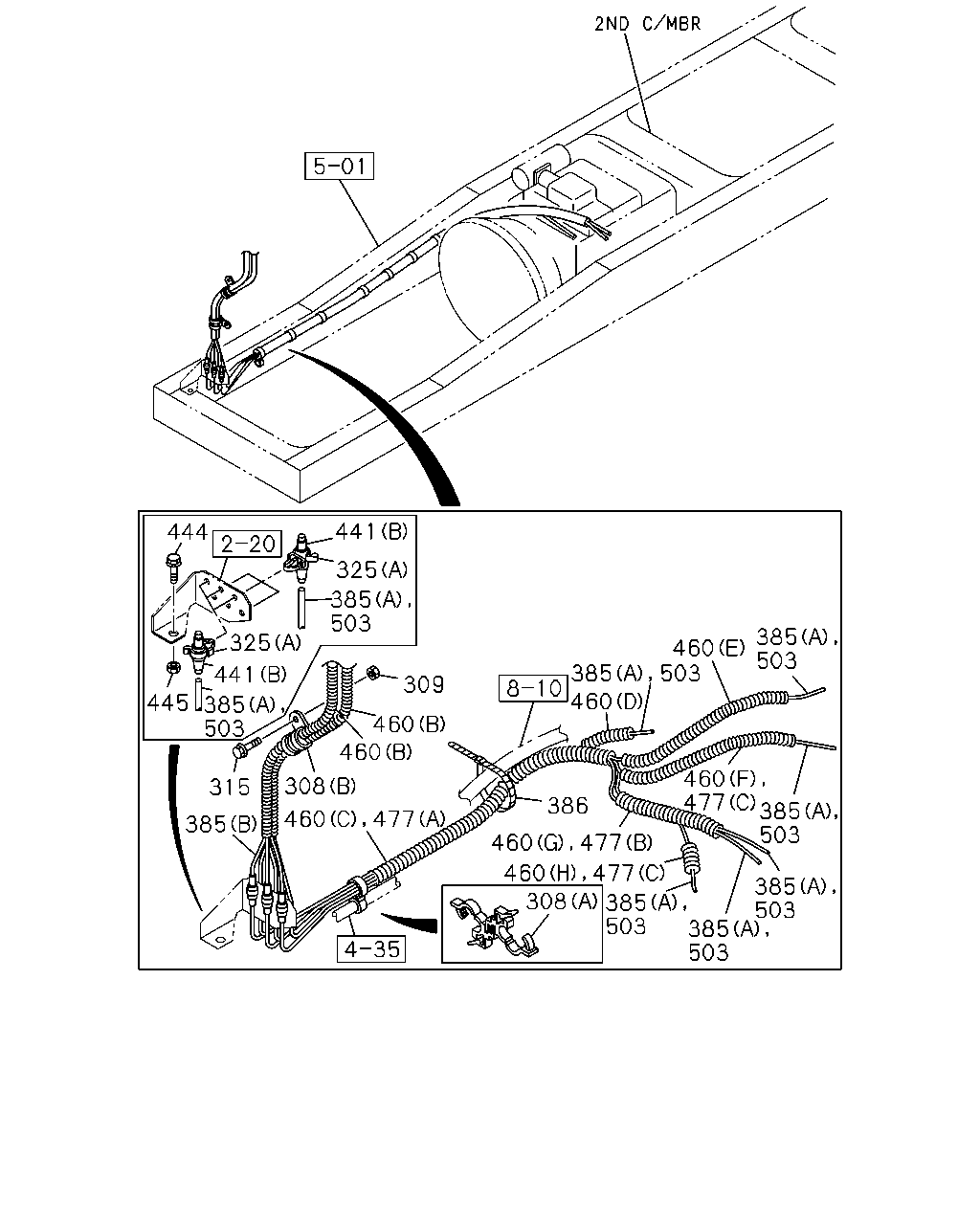

çizim 99658
441 444 325 385 503 325 385 503 460 503 385 460 441 309 445 385 503 460 460 460 477 385 503 308 315 385 386 460 385 503 308 503 385 503 460 477 477 477 385
BalonParca AdiParca NoAdetTipApplied Date A B C
308 CLIP; PIPE
(A) ID=15 & 15 		1-09709-282-1 01 1 0603- ● ● ●
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 9905-0301 ● ●
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0302-0602 ● ● ●
308 CLIP; PIPE
(B) ID=18 L=28 		1-09701-067-0 01 1 0104-0107 ● ●
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-0301 ● ●
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-0606 ● ● ●
308 CLIP; PIPE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0104-0301 ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0104-0301 ● ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 9905-0301 ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0302- ● ● ●
325 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0104-0107 ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-0301 ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-0606 ● ● ●
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 9911-0301 ● ●
385 TUBE; NYLON
(B) L=1640 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3000 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603- ● ●
385 TUBE; NYLON
(B) L=1640 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3100 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(B) L=1640 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3500 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0108-0301 ● ●
385 TUBE; NYLON
(B) L=1640 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304 ● ● ●
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-0602 ● ● ●
385 TUBE; NYLON
(B) SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603- ● ● ●
385 TUBE; NYLON
(A) L=3100 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104-0107 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-0602 ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1640 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0005-0103 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1640 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0005-0103 ● ●
385 TUBE; NYLON
EXC. CLUTCH BRAKE(BBG) (B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603- ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9905-0103 ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104-0301 ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0602 ● ● ●
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603- ● ●
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-0301 ●
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302- ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 07 1 9905-9910 ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 09 1 9911-0103 ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 08 1 0104-0301 ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 08 1 0302-0304 ● ● ●
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0305- ● ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9905-0301 ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0302- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 9905-0301 ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0302-0804 ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 9911-0301 ● ●
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28680-825-0 01 1 9905-0301 ● ●
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 9905-0301 ● ●
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
460 TUBE; CORRUGATE
(I) L=250 ID=10 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0804- ● ● ●
460 TUBE; CORRUGATE
(F) L=750 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0107 ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0108-0301 ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 9905-0104 ● ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0105-0301 ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0302-0803 ● ● ●
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0804- ● ● ●
460 TUBE; CORRUGATE
(G) L=300 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-0107 ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0108-0301 ● ●
460 TUBE; CORRUGATE
(A) L=1030 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-0103 ● ●
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304 ● ● ●
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-0602 ● ● ●
460 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603- ● ● ●
460 TUBE; CORRUGATE
(C) L=2400 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 9905-9910 ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2400 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 9911-0103 ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13 		1-87410-092-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(G) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0301 ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(F) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603- ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 		1-83129-031-1 01 1 9905-0301 ● ●
460 TUBE; CORRUGATE
(H) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(H) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0603- ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2400 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 9911-0103 ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0104-0301 ● ●
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0302-0602 ● ● ●
460 TUBE; CORRUGATE
(C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603- ● ●
477 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 02 1 0603- ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603- ●
503 TUBE; NYLON
SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603- ●
503 TUBE; NYLON
SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603- ●
503 TUBE; NYLON
SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603- ●
503 TUBE; NYLON
SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
