◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#61124) — 29 parça

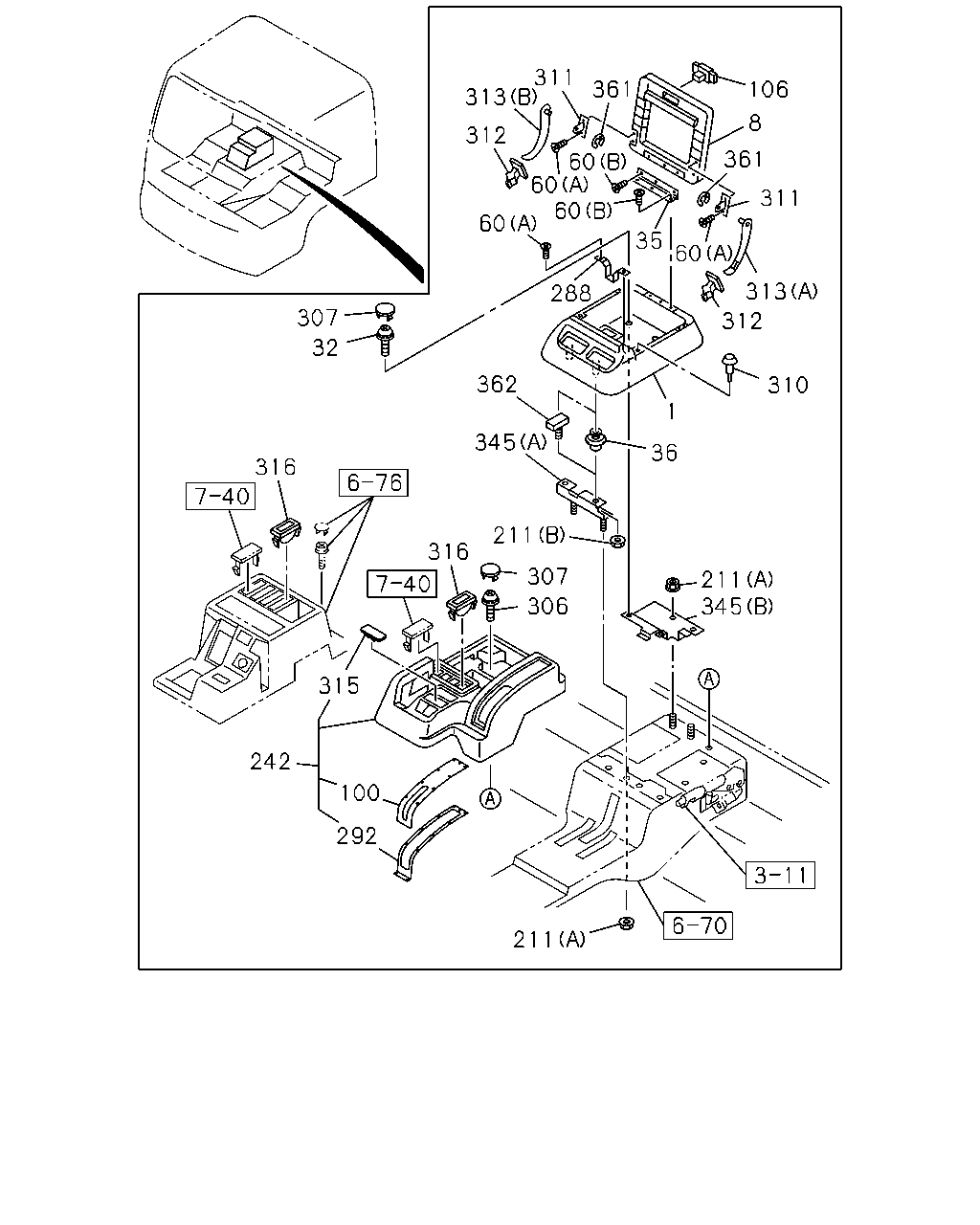

çizim 174161
313 311 361 60 60 312 60 60 60 35 288 312 313 311 361 8 106 310 36 1 345 362 307 32 316 316 211 307 306 211 345 211 292 242 315 100
BalonParca AdiParca NoAdetTipApplied Date
1 BOX; PARCEL
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-710-0 01 1 1102-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-712-0 01 1 1102-
32 SCREW; PARCEL BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X16 		0-38050-616-0 02 1 1102-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 01 1 1102-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-09984-190-0 02 1 1102-
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1102-
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14 		8-94279-325-0 04 1 1102-
100 RUBBER; CONSOLE,FRT 8-97535-034-0 01 1 1102-1107
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 1108-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-312-0 01 1 1102-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) M8 FLANGE 		0-91180-108-0 04 1 1102-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) M8 FLANGE 		8-94279-518-0 02 1 1102-
242 TRAY ASM; CTR CONSOLE
GRAY 		8-97409-818-1 01 1 1102-
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-190-0 01 1 1102-
292 RETAINER; COVER 1-72538-162-1 01 1 1311-
306 SCREW; TRAY
M6X16 		0-38050-616-0 03 1 1102-
307 COVER; HOLE,CTR CONSOLE
GRAY 		8-97407-951-0 02 1 1102-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-951-0 02 1 1102-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 1102-
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-188-2 02 1 1102-
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-186-1 02 1 1102-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-184-3 01 1 1102-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-185-3 01 1 1102-
315 COVER; HOLE,SW
GRAY 		8-97409-339-0 01 1 1108-
316 BOX; COIN 8-94482-280-2 02 1 1102-1203
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-232-1 01 1 1102-
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-233-0 01 1 1102-
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5 		9-09185-405-0 02 1 1102-
362 STUD; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-308-0 02 1 1102-
