◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#6112) — 66 parça

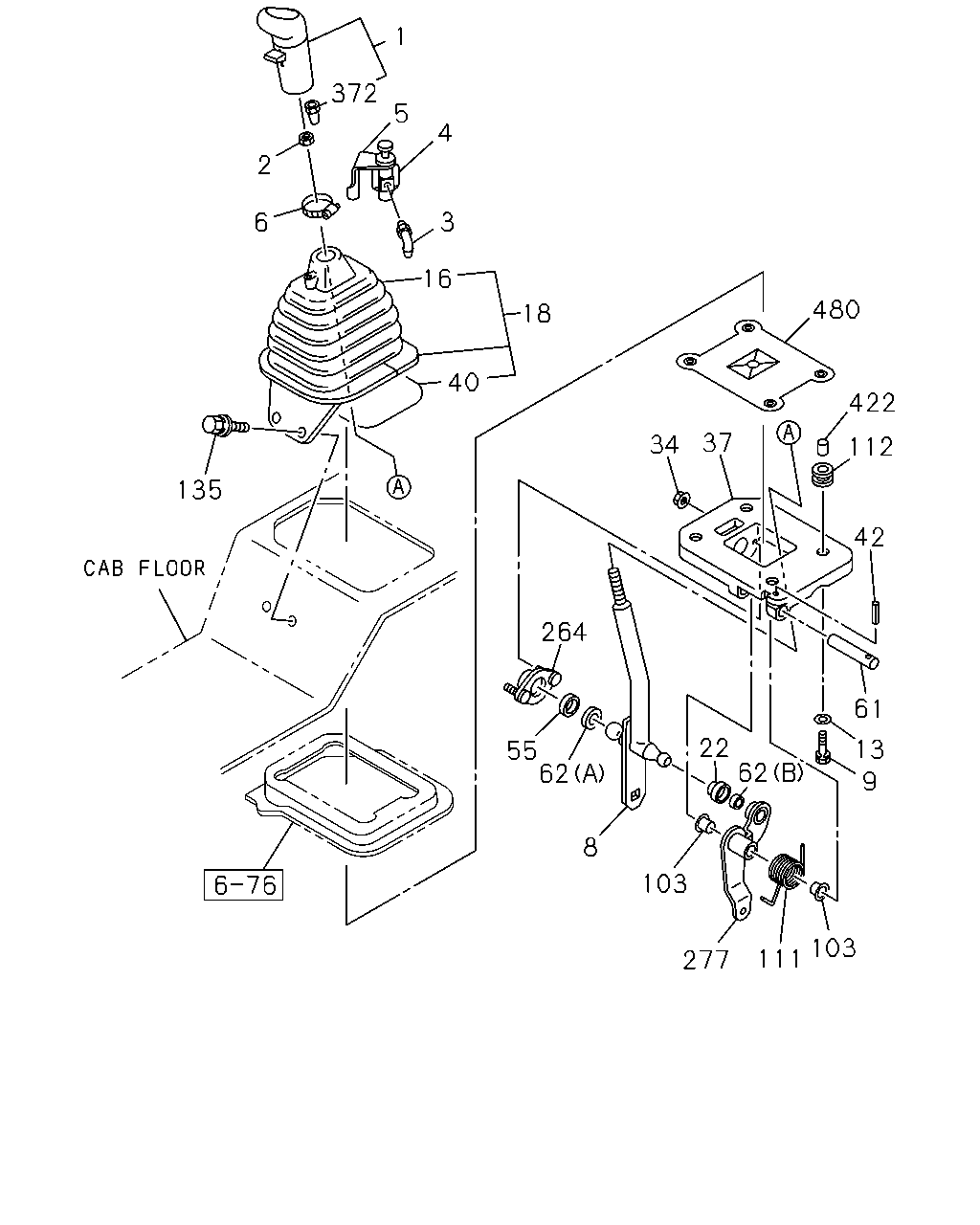

çizim 38168
1 372 5 4 2 3 6 16 480 18 40 422 37 34 112 135 42 264 61 22 62 13 55 62 9 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9905-0804 ●
1 KNOB; CHANGE LEVER 8-98120-381-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER 8-98224-283-0 01 1 1402- ●
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 9905-0301 ●
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 0302-0804 ● ●
1 KNOB; CHANGE LEVER 8-98120-384-0 01 1 0805-1401 ● ●
1 KNOB; CHANGE LEVER 8-98224-285-0 01 1 1402- ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9905-0301 ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0302- ● ● ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 9905-0301 ● ●
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 9905-0301 ● ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 9905-0301 ● ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 9905-0301 ● ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9905-0301 ● ●
8 LEVER; CHANGE 1-33613-349-0 01 1 0302- ● ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0301 ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9905-0301 ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0302-0605 ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ● ● ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9905-0301 ● ●
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 0302- ● ● ●
18 BOOT; CHANGE LEVER 1-79996-435-1 01 1 9905-0301 ● ●
18 BOOT; CHANGE LEVER 1-79996-435-2 01 1 0302- ● ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905-0301 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0302- ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-0301 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0302-0602 ● ● ●
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905-0301 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0302-0802 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0803- ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905-0301 ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0302- ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905-0301 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0302- ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905-0301 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0302-0802 ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905-0301 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0302- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905-0301 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0302- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905-0301 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0302- ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905-0301 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0302- ● ● ●
111 SPRING 1-09585-133-1 01 1 9905-0301 ● ●
111 SPRING 1-09585-133-1 01 1 0302- ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905-0301 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0302-0810 ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0301 ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0302-0904 ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905-0301 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 0302- ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905-0301 ● ●
277 LEVER; RELAY 1-33651-636-1 01 1 0302- ● ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9905-0301 ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 0302-0804 ● ● ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805- ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905-0301 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0302- ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905-0301 ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 0302-0810 ● ● ●
480 RUBBER; COVER 8-98119-365-0 01 1 0811- ● ● ●
