◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#61115) — 14 parça

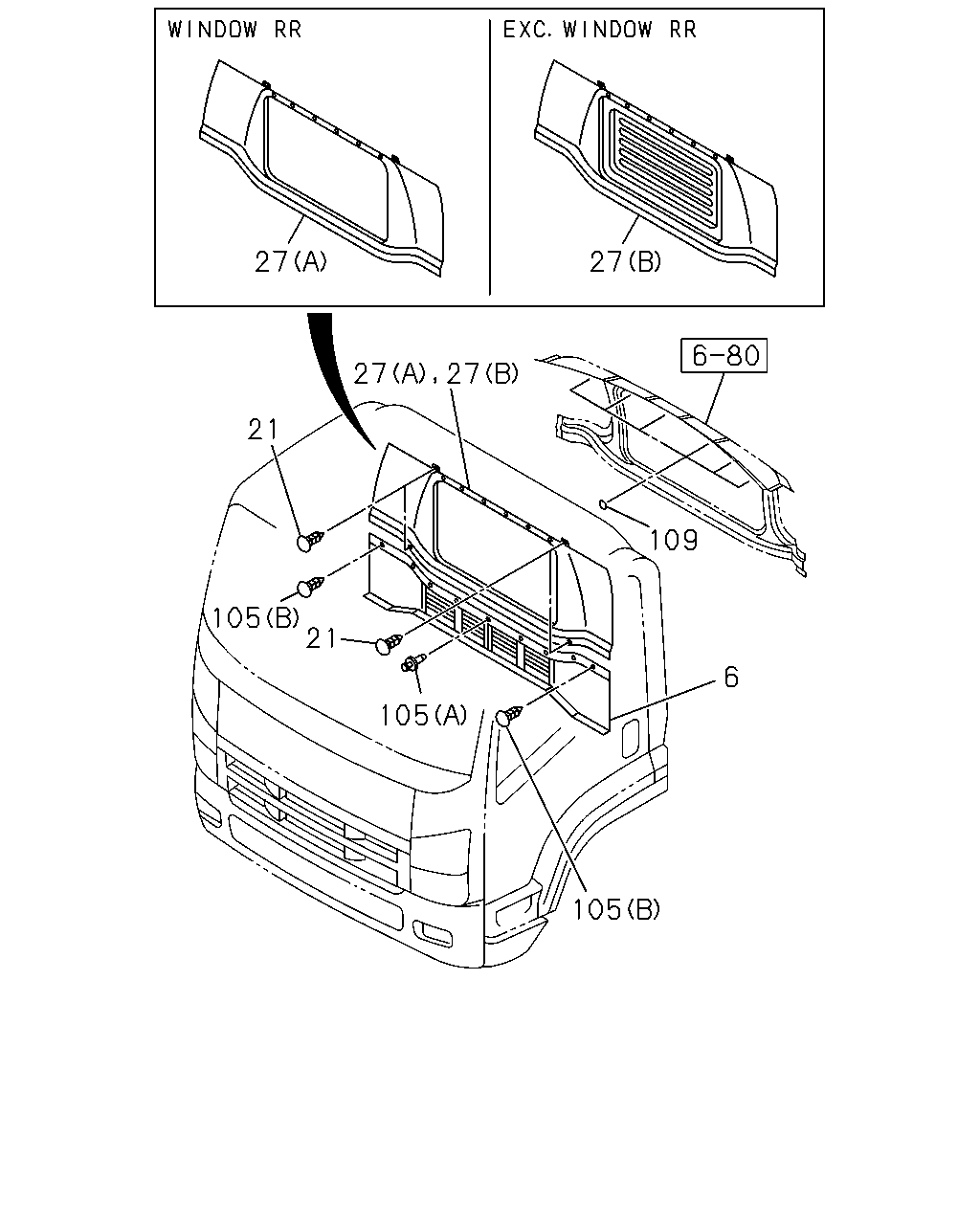

çizim 174143
27 27 21 21 105 105 109 6 105 27 27
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-490-1 01 1 1102-1310
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-457-1 01 1 1102-1310
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1311-
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1102-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97422-492-1 01 1 1102-1310
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97422-496-1 01 1 1102-1310
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1102-1310
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1311-
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> (A) DARK GRAY 		8-97407-463-2 01 1 1102-1310
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 1311-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1102-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1102-
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1102-
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1102-
