Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

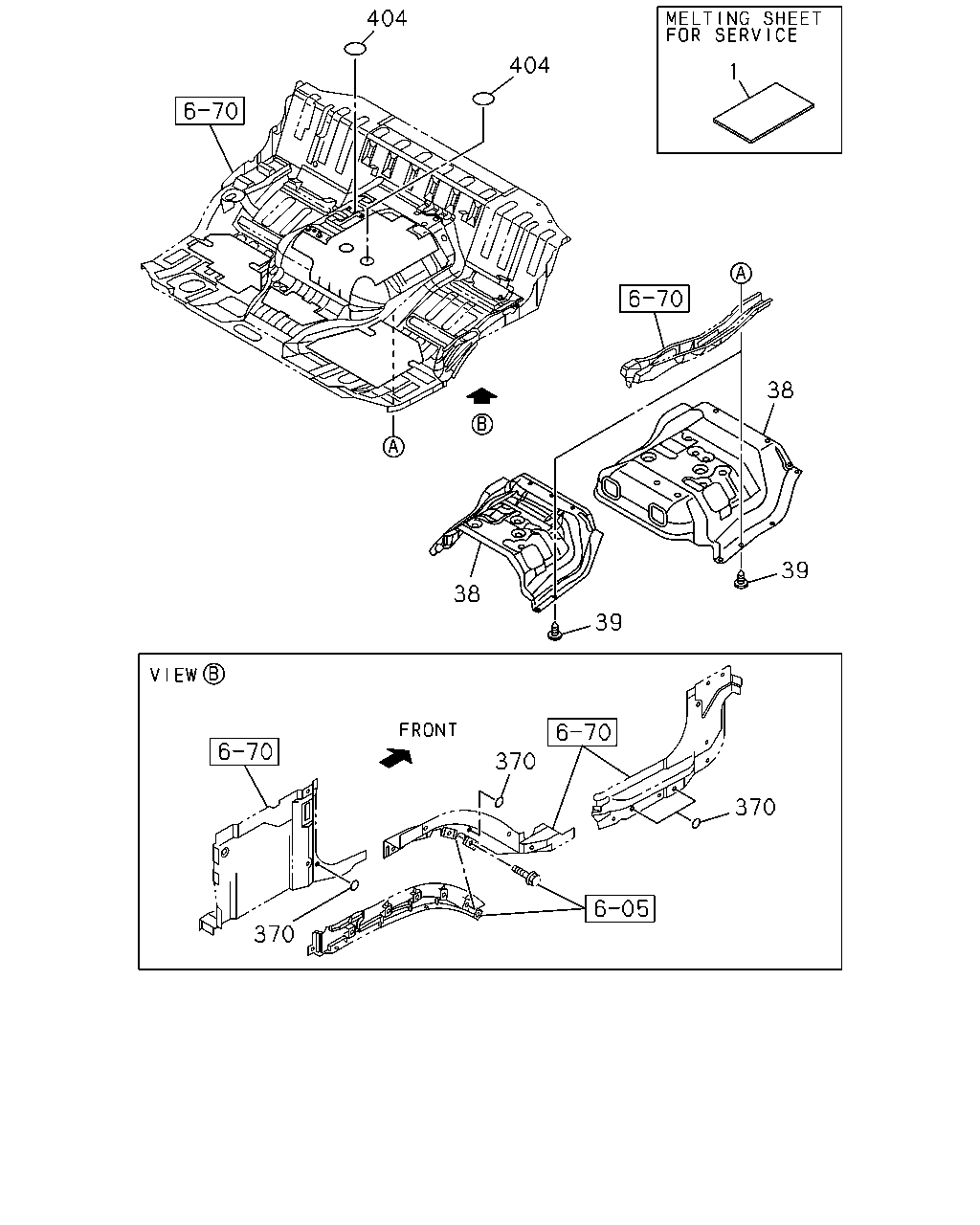

6-76 — FLOOR EQUIPMENT AND SEALING
(#61111) — 11 parça
404
404
1
38
39
39
38
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1102-
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98180-258-0
01
1
1102-1310
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-97586-181-6
01
1
1102-1310
38
INSULATOR; ENG COVER
8-97586-181-6
01
1
1311-1311
38
INSULATOR; ENG COVER
8-98240-136-1
01
1
1311-
39
CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
17
1
1102-1310
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
19
1
1311-
39
CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
19
1
1102-1310
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1102-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1102-
