Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

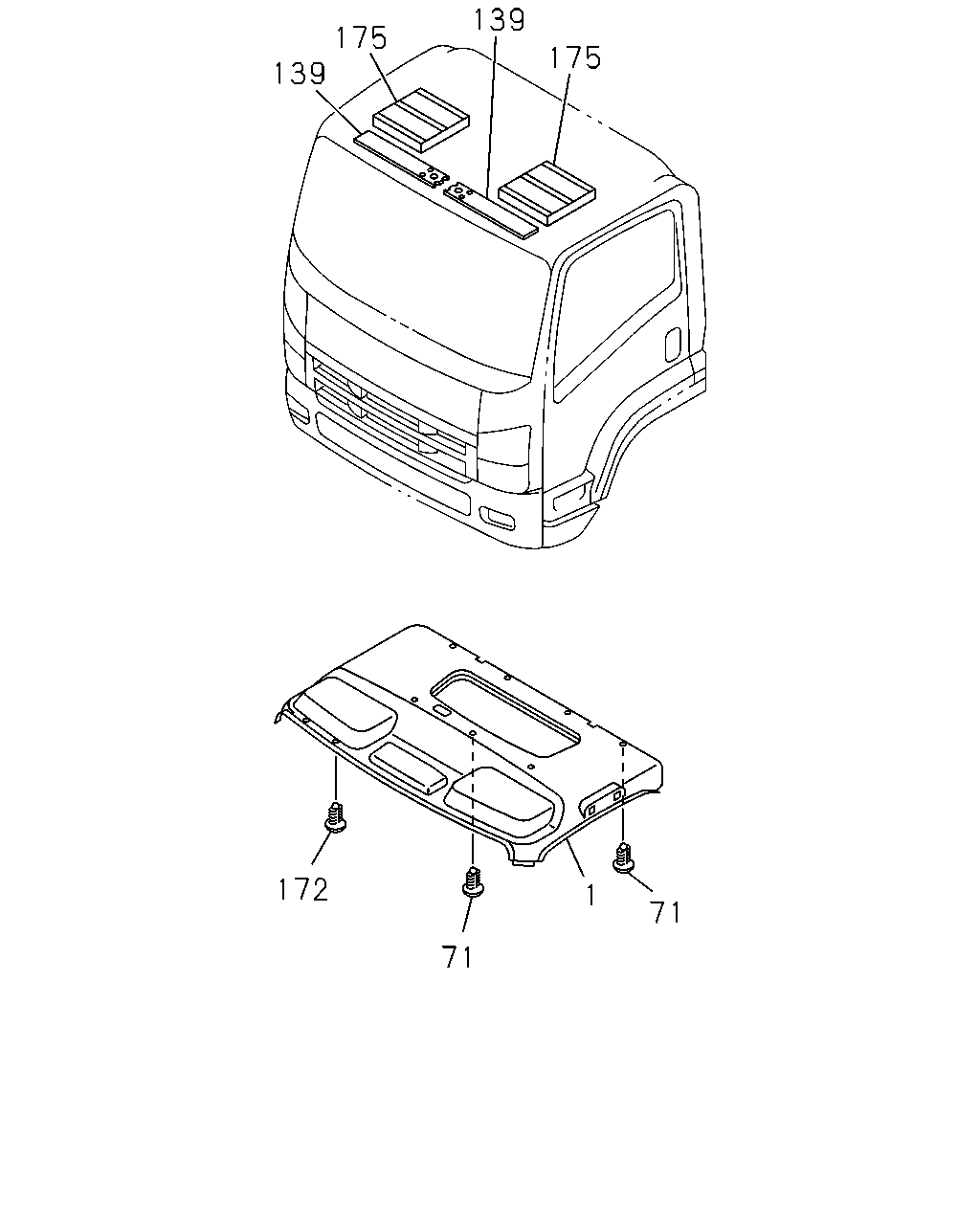

6-66 — HEAD LINING AND TRIM
(#61108) — 12 parça
139
175
139
175
71
1
71
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97409-819-2
01
1
1102-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97426-660-0
01
1
1307-
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97409-825-2
01
1
1102-1306
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-666-0
01
1
1307-
1
LINING; HD
RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97409-822-2
01
1
1102-1306
1
LINING; HD
RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-663-0
01
1
1307-
1
LINING; HD
EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97409-821-2
01
1
1102-1306
1
LINING; HD
EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-662-0
01
1
1307-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1102-
139
SEAL; ROOF
8-98169-116-0
02
1
1102-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1102-
175
CUSHION; HEAD LINING
8-98030-965-2
02
1
1102-
