◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#61107) — 8 parça

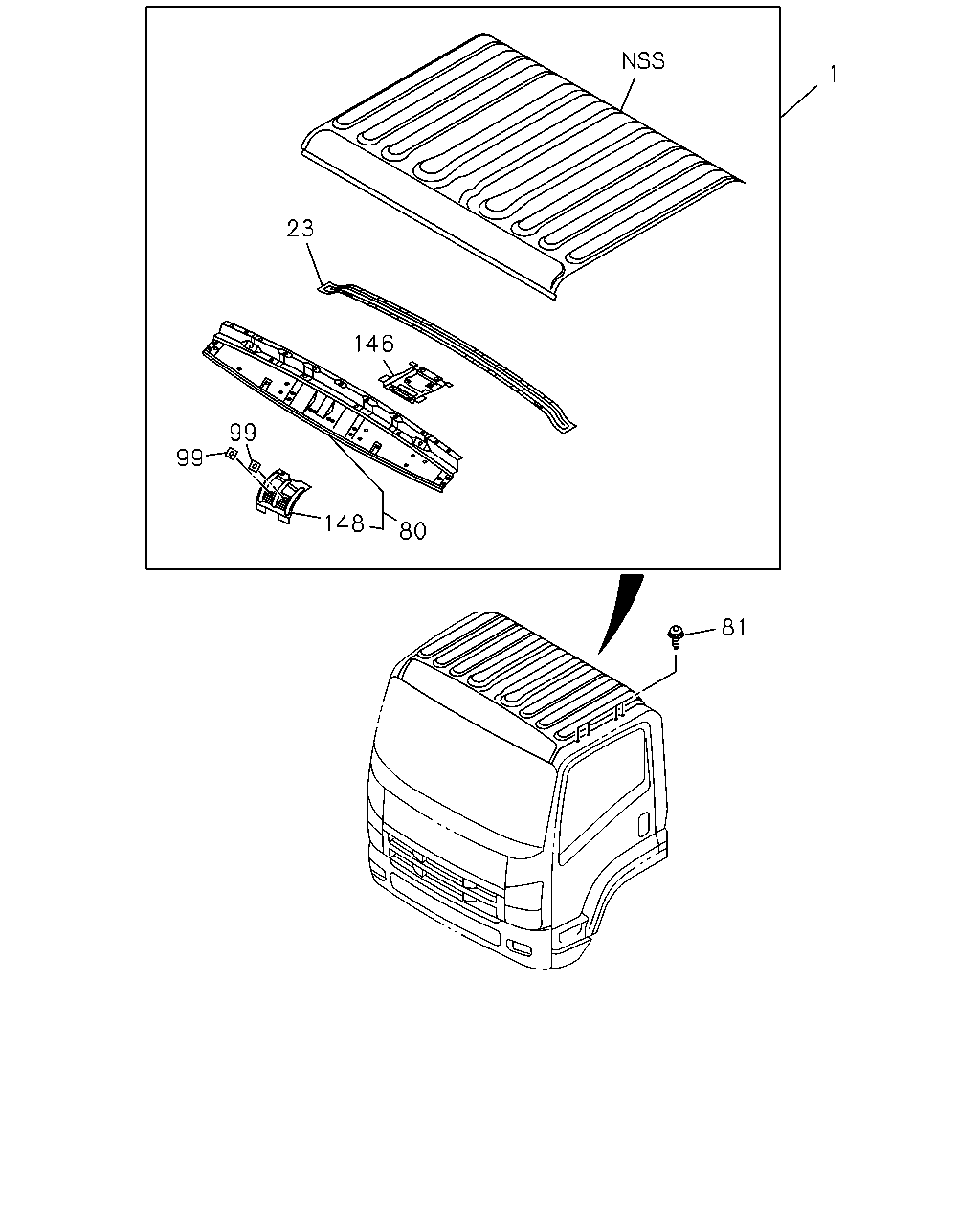

çizim 174122
1 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98151-762-1 01 1 1102-
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98094-783-1 01 1 1102-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1102-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98047-270-2 01 1 1102-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1102-
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1102-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1102-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-013-0 01 1 1102-
