6-20 — SIDE PANEL AND STEP (#61100) — 46 parça

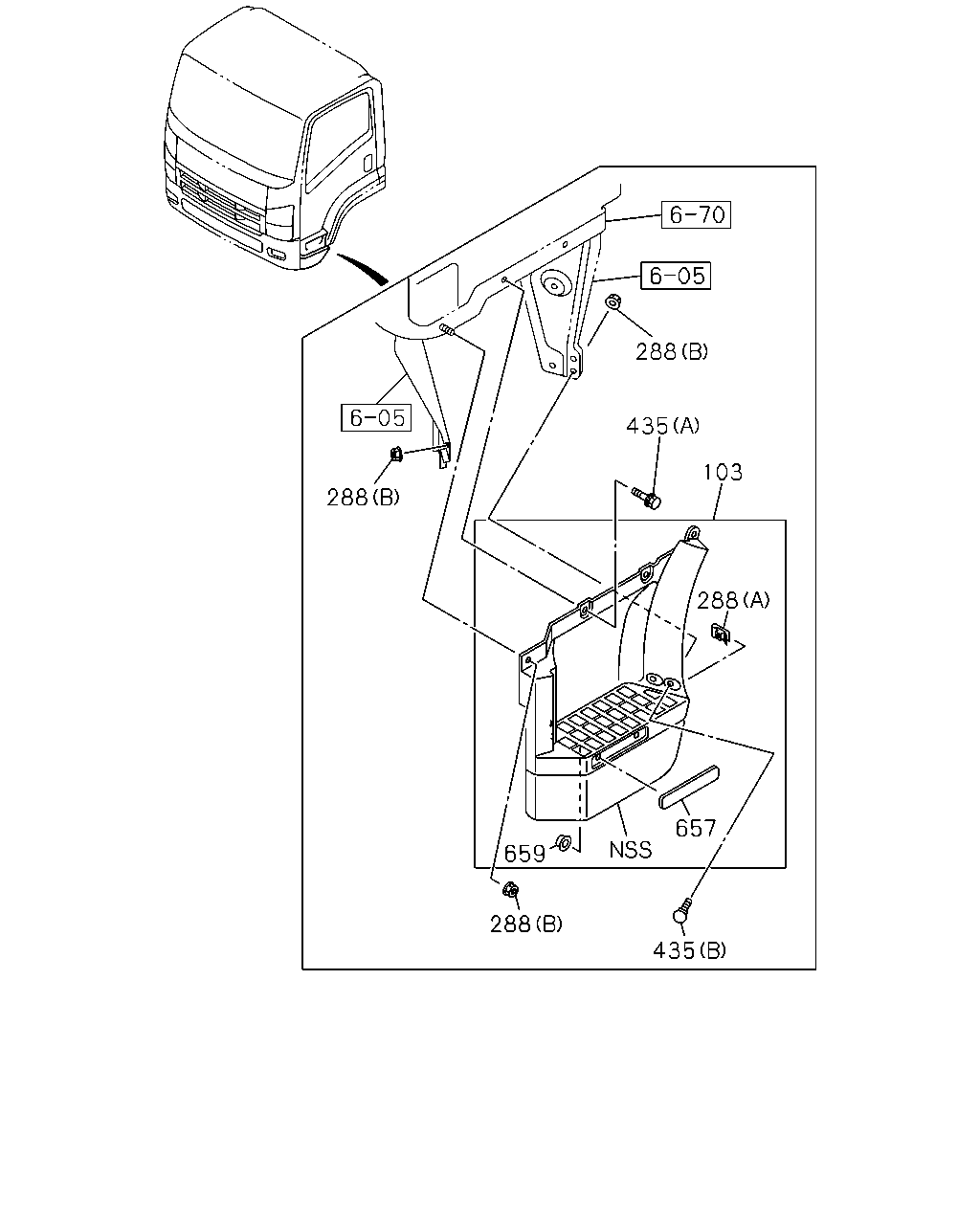

çizim 174131
288 288 435 103 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-326-3 01 1 1102-
103 PLATE; STEP 8-98037-325-3 01 1 1102-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1102-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1102-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1102-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1102-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1102-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1102-

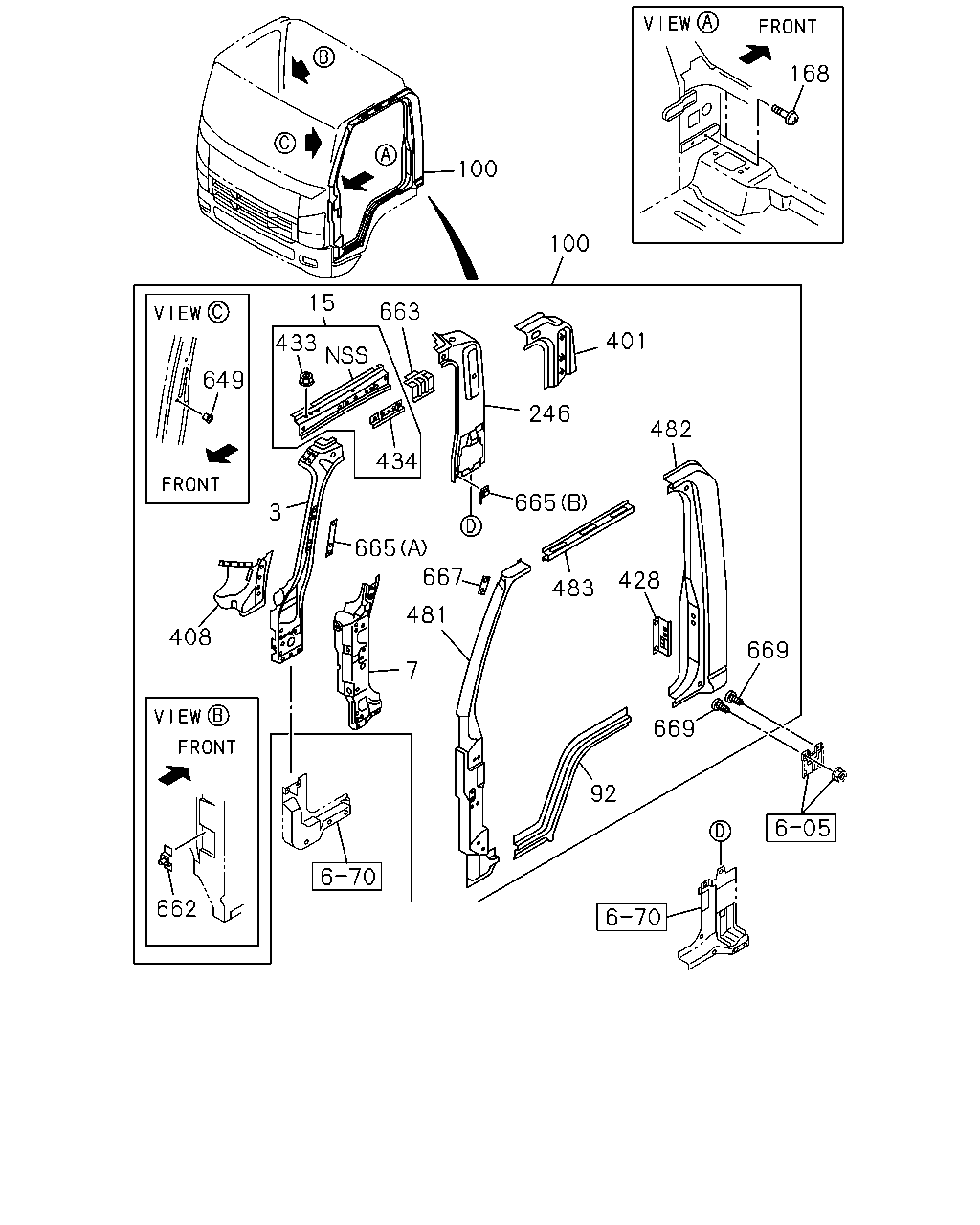

çizim 174146
100 100 168 649 15 433 663 434 246 401 482 665 665 3 408 662 7 481 667 483 428 669 669 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1102-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1102-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1102-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1102-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1102-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1102-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1102-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1102-
100 PANEL ASM; BODY SIDE 8-97586-056-4 01 1 1102-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-025-7 01 1 1102-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97410-855-5 01 1 1102-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1102-
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1102-
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1102-
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 1102-
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1102-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1102-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1102-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1102-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1102-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1102-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1102-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-911-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-715-1 01 1 1102-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1102-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1102-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1102-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1102-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1102-
662 BRACKET; DUCT 8-97584-611-1 01 1 1102-
663 BRACKET; AIR 8-97585-208-2 01 1 1102-
663 BRACKET; AIR 8-97585-207-2 01 1 1102-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1102-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1102-
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 1102-
669 STUD; FENDER
M6X18 		8-98013-113-1 04 1 1102-
