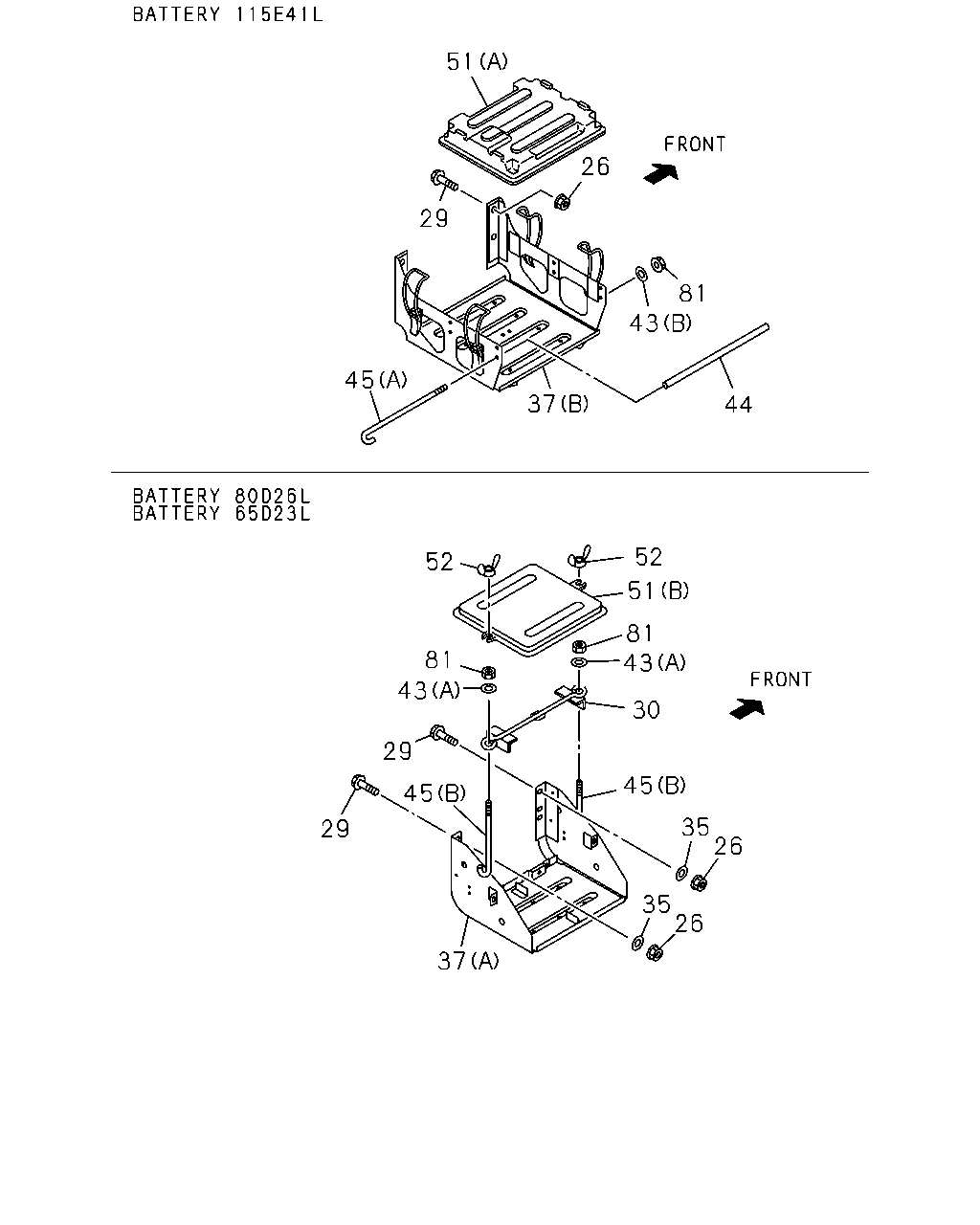

26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1102-1512 |
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1601- |
| |
29 |
BOLT; BRKT TO FRAME
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1102-1512 |
| |
29 |
BOLT; BRKT TO FRAME
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1601- |
| |
30 |
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
5-53615-004-1 |
01 |
1 |
1102-1512 |
| |
30 |
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
|
5-53615-004-1 |
01 |
1 |
1601- |
| |
35 |
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
1102-1512 |
| |
35 |
WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA>
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
1601- |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98091-497-0 |
01 |
1 |
1102-1310 |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98091-497-0 |
01 |
1 |
1311-1405 |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(B)
|
8-98261-636-0 |
01 |
1 |
1406- |
| |
37 |
BRACKET; BATTERY
BATTERY 65D23L<8EJ>
(A)
|
8-97384-068-2 |
01 |
1 |
1102- |
| |
37 |
BRACKET; BATTERY
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
1102- |
| |
43 |
WASHER; PL,CLAMP
BATTERY 115E41L<8MA>
(B)
ID=8.4 OD=16
|
0-91610-508-0 |
02 |
1 |
1102- |
| |
43 |
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(A)
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1102-1512 |
| |
43 |
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA>
(A)
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1601- |
| |
44 |
SPACER; BATTERY
BATTERY 115E41L<8MA>
|
8-98261-682-0 |
02 |
1 |
1406- |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA>
(A)
L=430
|
8-97134-740-0 |
02 |
1 |
1102- |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
L=120
|
9-53616-615-0 |
02 |
1 |
1102-1512 |
| |
45 |
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA>
(B)
L=120
|
9-53616-615-0 |
02 |
1 |
1601- |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
(A)
|
1-53612-037-2 |
01 |
1 |
1102- |
| |
51 |
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
8-97120-747-0 |
01 |
1 |
1102-1512 |
| |
51 |
COVER; BATTERY
EXC. BATTERY 115E41L<8MA>
(B)
|
8-97120-747-0 |
01 |
1 |
1601- |
| |
52 |
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1102-1512 |
| |
52 |
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA>
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1601- |
| |
81 |
NUT; BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1102-1512 |
| |
81 |
NUT; BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1601- |
