5-01 — FRAME AND OTHER PARTS (#61090) — 124 parça

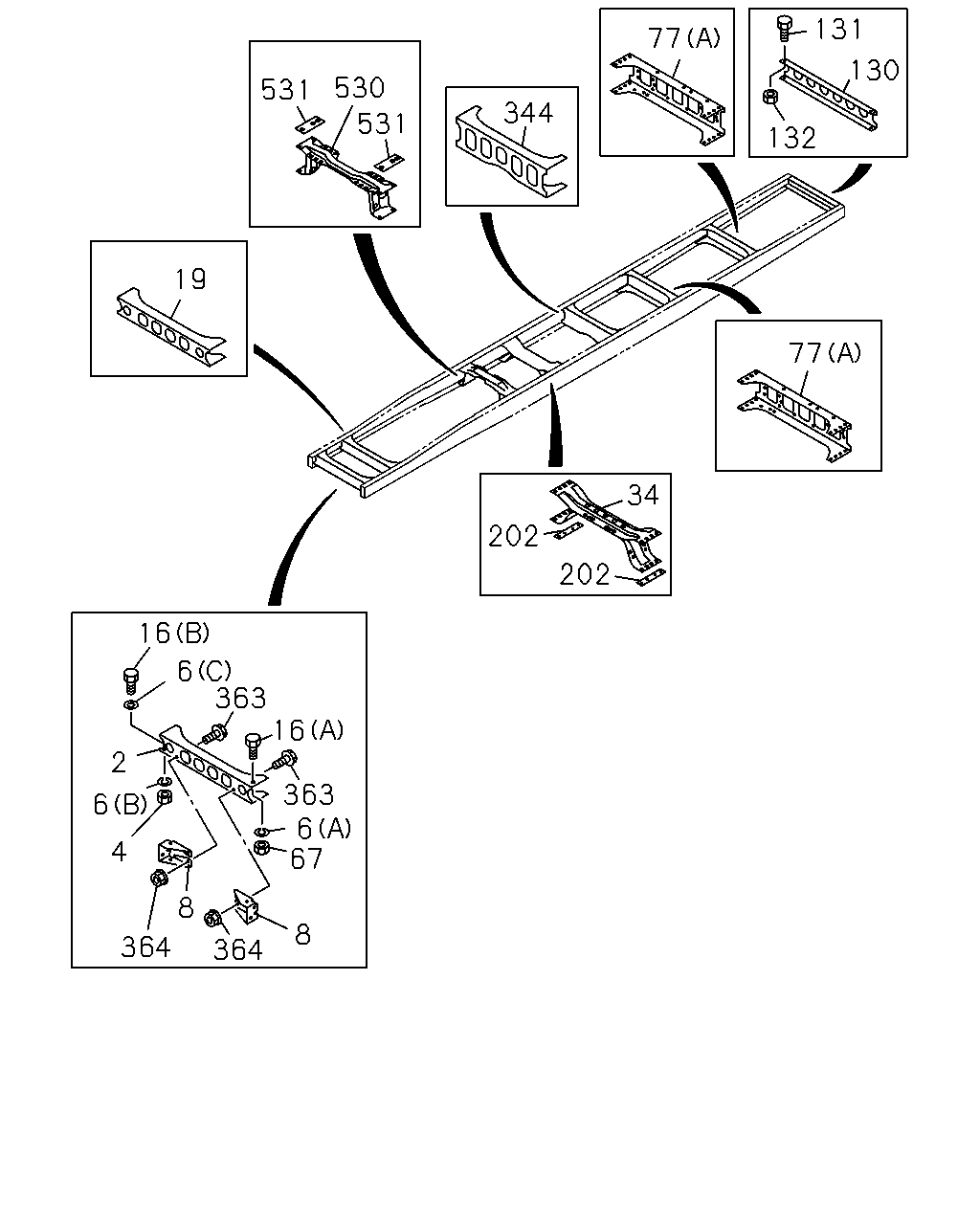

çizim 174093
531 530 531 344 77 131 130 132 77 19 16 6 363 16 363 6 67 8 364 364 4 6 2 34 202 202 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1102-1407 ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1408- ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1102- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1102-1407 ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1408- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1102- ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1102- ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 1102-1407 ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1408- ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 1102-1407 ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1408- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1102-1407 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1408- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1102- ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1102-1407 ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1408- ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1102-1407 ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1408- ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1102-1407 ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1408- ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97609-475-2 01 1 1408-
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-478-4 01 1 1408-
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97610-935-1 02 1 1102- ● ●
130 MEMBER; CROSS,END 8-97609-476-0 01 1 1408-
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1102- ● ●
131 BOLT; END C/MBR
M10X30 W/LK WASHER 		0-50541-030-0 04 1 1408-
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1102- ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1102-1407 ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1408- ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1102-1407 ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1408- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1102- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1102-1407 ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1408- ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1102-1407 ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1408- ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1102-1407 ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1408- ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1102-1407 ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1408- ● ●

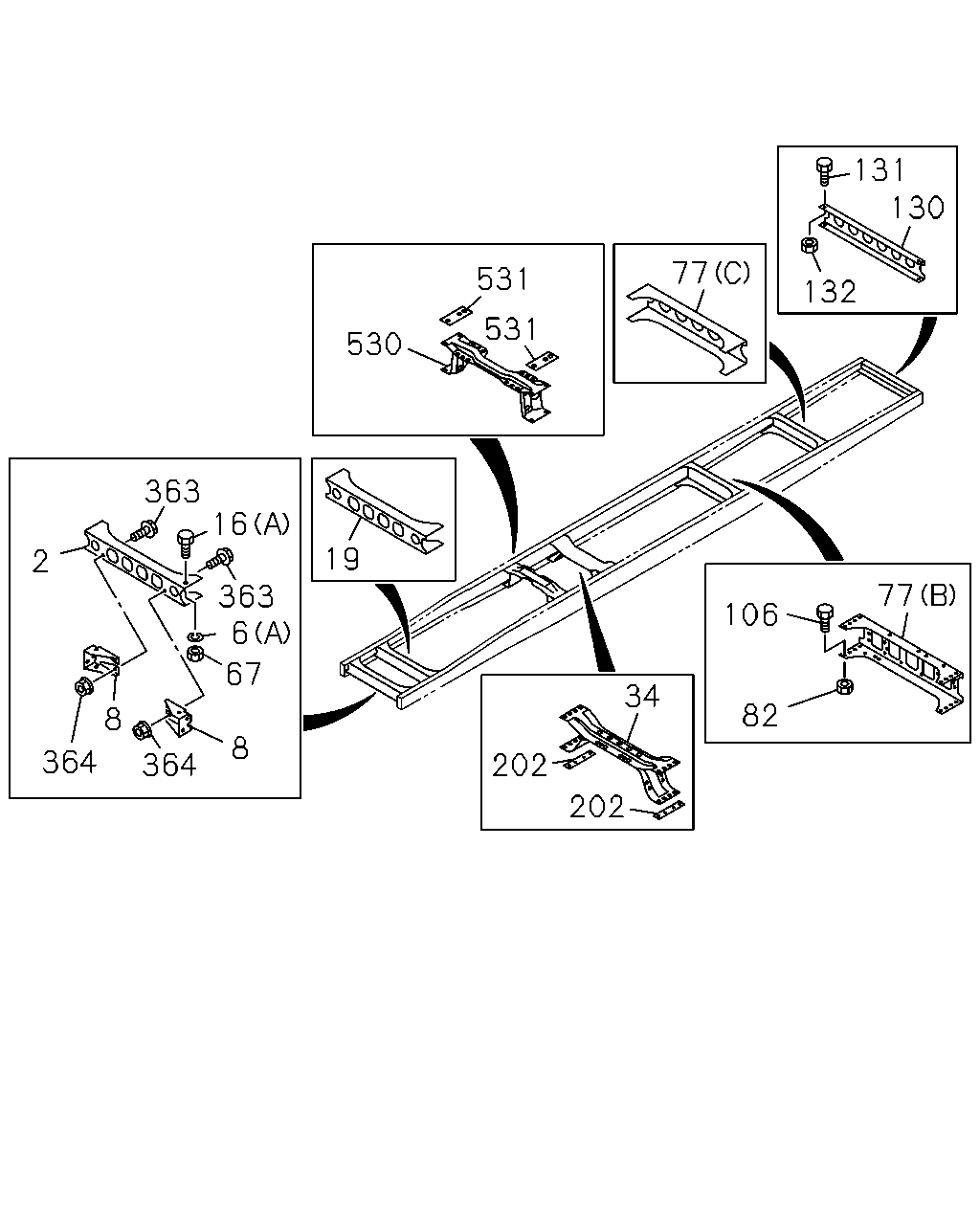

çizim 174103
530 531 77 131 132 130 106 77 82 202 202 34 19 67 363 8 364 364 363 2 16 6 531 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1102-1407 ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1408- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1102-1407 ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1408- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1102- ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1102- ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 1102-1407 ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1408- ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 1102-1407 ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1408- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1102-1407 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1408- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1102- ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1102-1407 ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 1408- ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1102-1407 ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1408- ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1102-1407 ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1408- ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97609-475-2 01 1 1408-
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-478-4 01 1 1408-
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97610-935-1 02 1 1102- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1102-1407 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1408- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1102-1407 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1408- ● ●
130 MEMBER; CROSS,END 8-97609-476-0 01 1 1408-
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1102- ● ●
131 BOLT; END C/MBR
M10X30 W/LK WASHER 		0-50541-030-0 04 1 1408-
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1102- ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1102-1407 ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1408- ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1102-1407 ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1408- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1102-1407 ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1408- ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1102-1407 ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1408- ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1102-1407 ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1408- ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1102-1407 ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1408- ● ●

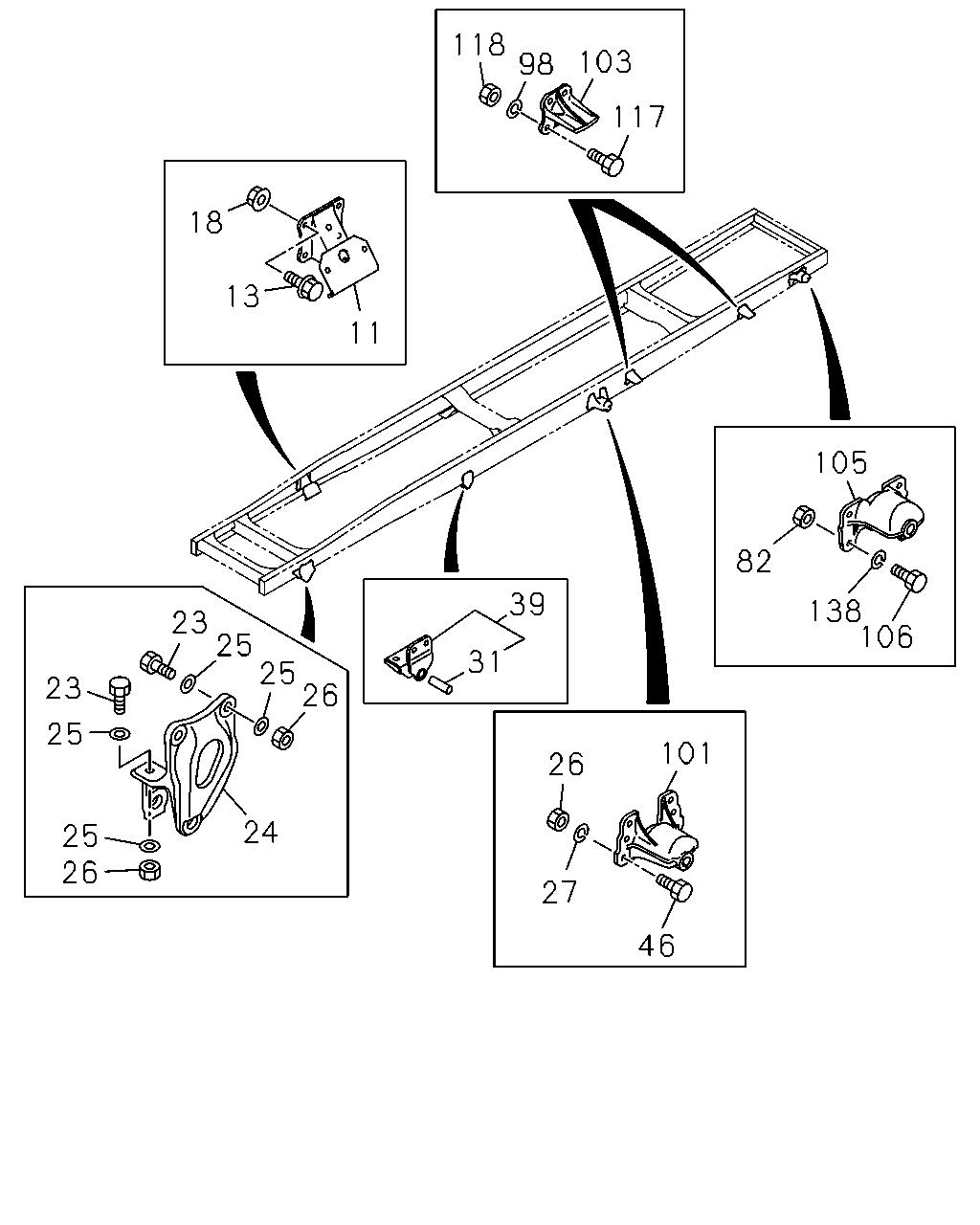

çizim 464759
118 98 18 13 117 103 105 82 138 106 27 26 101 46 24 26 25 25 23 23 25 25 26 11 39 31
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1408-
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1102- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1102-1407 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1408- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1102-1407 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1408- ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1102-1407 ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1408- ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1102-1407 ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1408- ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1102-1407 ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1408- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1102-1407 ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1408- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1102-1407 ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1408- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1102-1407 ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1408- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1102-1407 ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1408- ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1102-1407 ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1408- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1102-1407 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1408- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1102-1407 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1408- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1102-1407 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1408- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1102-1407 ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1408- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1102-1407 ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1408- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1102-1407 ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1408- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1102-1407 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1408- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1102-1407 ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1408- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1102-1407 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1408- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1102-1407 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1408- ● ●
