◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11363 - FORWARD800 MEXICO ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#61089) — 36 parça

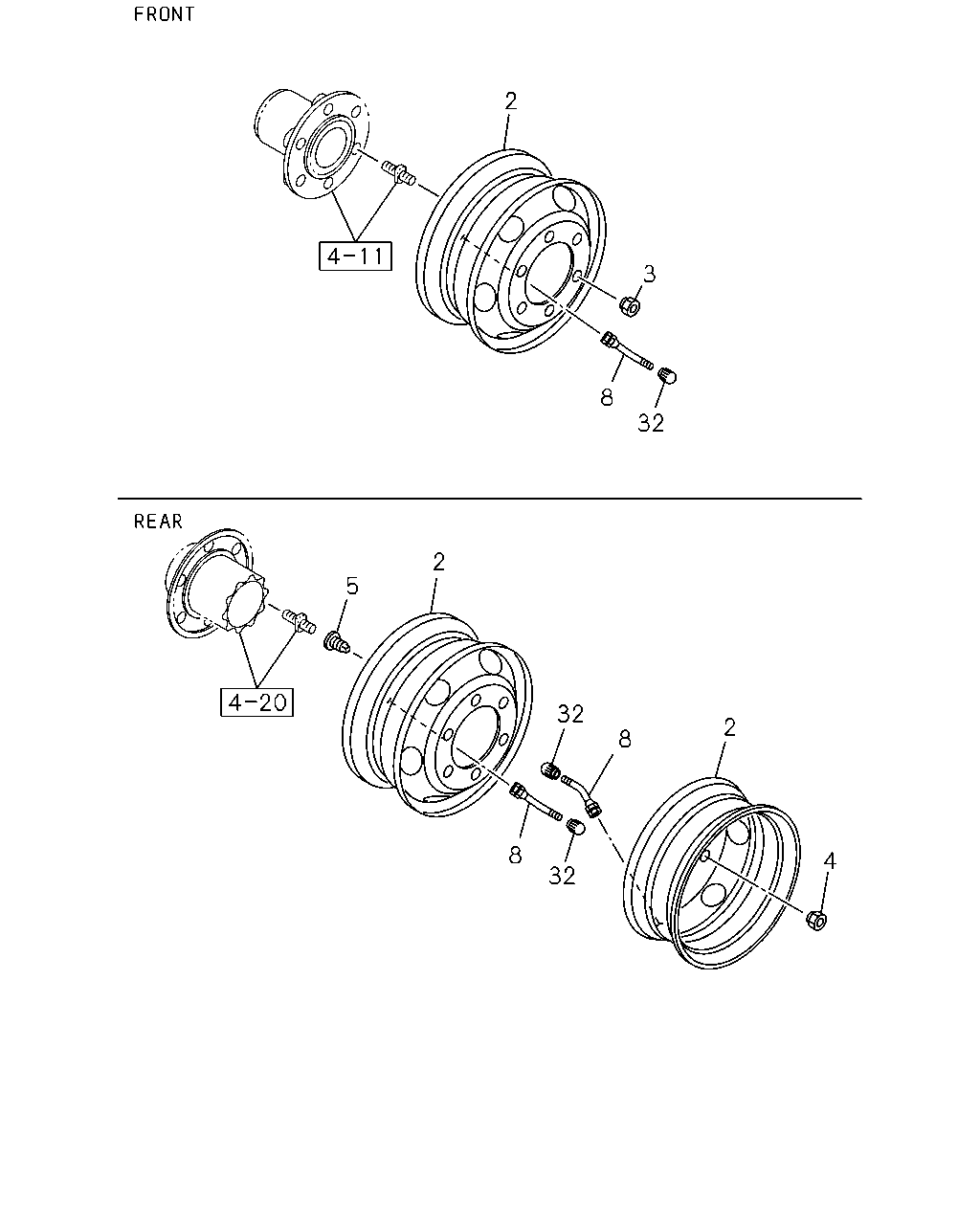

çizim 174112
2 3 32 8 2 5 32 8 32 8 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) FRONT,REAR 		1-42350-625-0 06 1 1102-
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-625-0 01 1 1102-1202
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-625-0 01 1 1102-1202
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) DISC WHEEL SPARE<N79> SPARE 		1-42350-625-0 01 1 1203-1211
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-625-0 01 1 1203-1211
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-625-0 01 1 1212-
2 WHEEL; DISC
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-625-0 01 1 1212-
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42350-767-0 06 1 1102-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-767-0 01 1 1102-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-767-0 01 1 1102-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 1102-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 1102-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 1102-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 1102-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1102-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1102-
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) FRONT,REAR 		1-42370-020-3 06 1 1102-
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1102-1202
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1203-1310
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1203-1310
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1311-
8 VALVE; TIRE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1311-
8 VALVE; TIRE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42370-007-1 06 1 1102-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE 		1-42370-007-1 01 1 1102-1202
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE 		1-42370-007-1 01 1 1203-1310
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-007-1 01 1 1203-1310
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-007-1 01 1 1311-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-007-1 01 1 1311-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1102-1202
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1203-1310
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1203-1310
32 CAP; VALVE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1311-
32 CAP; VALVE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1311-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1102-1202
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1203-1310
32 CAP; VALVE
DISC WHL 6STUD 6.75X19.5(136-12)(EAK),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
