4-20 — REAR AXLE CASE AND SHAFT (#61080) — 142 parça

49 72 60 73 64 63 59 58 63 64 67 74 65 66 60 73 72 49 66 65 67 71 58 59 1 10 38 43 37 143 9 76 75 74 74 21 16 24 20 15 8 1 9 143 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

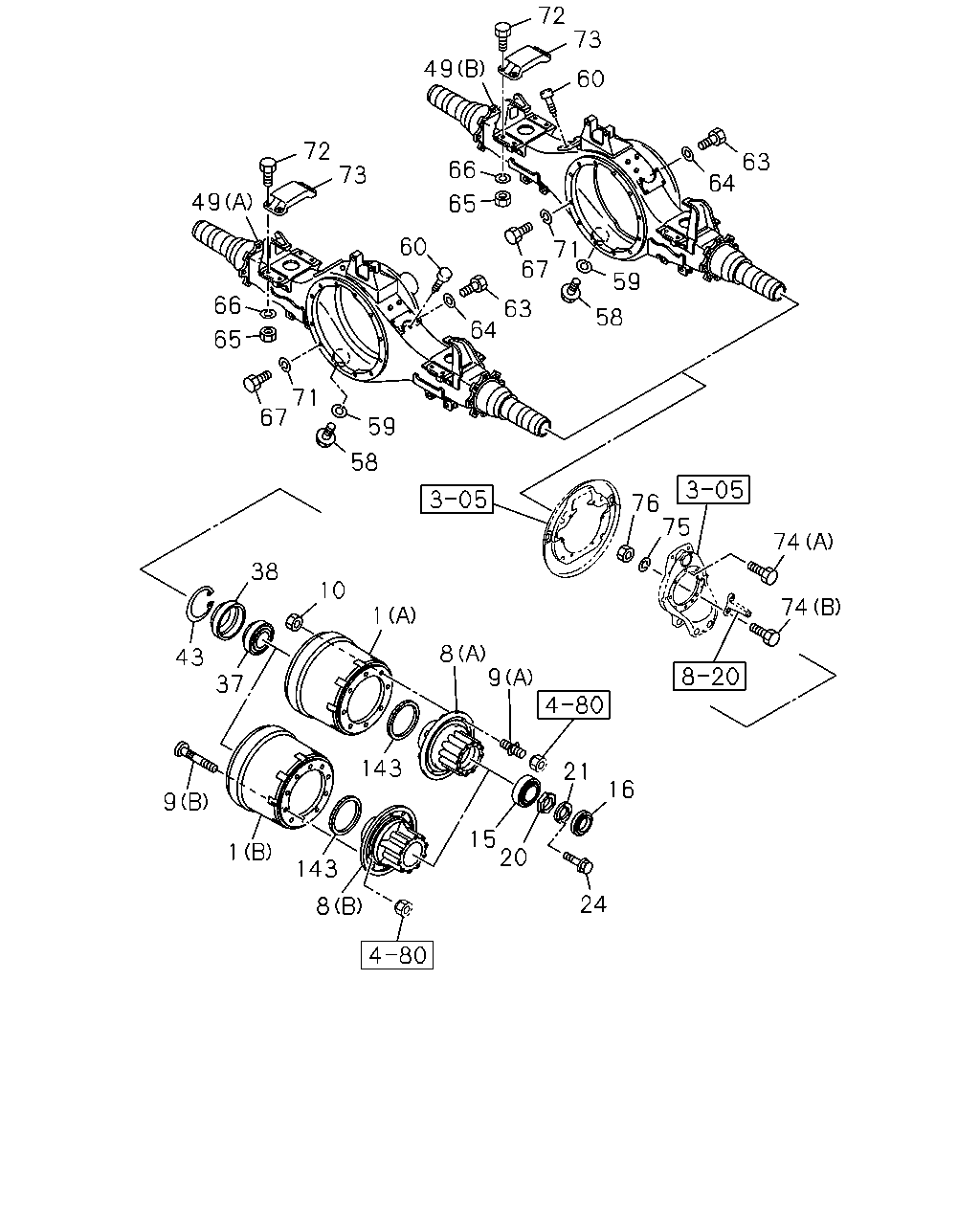

1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	1009-1302	●	●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	1009-1302	●	●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	1009-1302	●	●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	1009-1302	●	●
1	DRUM; BRK,RR (B)	1-42315-377-2	02	1	1303-	●	●
1	DRUM; BRK,RR (B)	1-42315-377-2	02	1	1303-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) FORWARD	1-42311-104-0	02	1	1009-1302	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) REARWARD	1-42311-105-0	02	1	1009-1302	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) REARWARD	1-42311-094-0	02	1	1009-1302	●	●
8	HUB; RR AXLE (B) REARWARD	1-42311-094-0	02	1	1303-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) FORWARD	1-42311-085-0	02	1	1009-1302	●	●
8	HUB; RR AXLE (B) FORWARD	1-42311-085-0	02	1	1303-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> (B) M22X109 RH THREAD	1-42337-076-1	20	1	1303-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> (B) M22X109 RH THREAD	1-42337-076-1	20	1	1303-	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1009-1302	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-	●
9	PIN; WHEEL,RR AXLE (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-		●
9	PIN; WHEEL,RR AXLE (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-		●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	1009-1302	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	1009-1302	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1009-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1009-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1009-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1009-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1009-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1009-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1009-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1009-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1009-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1009-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1009-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1009-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1009-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1009-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1009-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1009-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1009-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1009-	●	●
49	CASE; RR AXLE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-483-1	01	1	1303-	●
49	CASE; RR AXLE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-330-4	01	1	1303-	●
49	CASE; RR AXLE (B)	1-42190-538-0	01	1	1009-1302	●
49	CASE; RR AXLE MULTI LEAF SUSP RR<SAS> (B)	1-42190-538-0	01	1	1009-1302		●
49	CASE; RR AXLE FINAL GEAR 39/9 17.5"(W4R) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-42190-477-1	01	1	1303-		●
49	CASE; RR AXLE (A)	1-42190-489-0	01	1	1009-1302	●
49	CASE; RR AXLE MULTI LEAF SUSP RR<SAS> (A)	1-42190-489-0	01	1	1009-1302		●
49	CASE; RR AXLE (B)	1-42190-287-5	01	1	1303-	●
49	CASE; RR AXLE TAPER LEAF SUSP RR<SAT> (B)	1-42190-565-0	01	1	1009-1302		●
49	CASE; RR AXLE (B)	1-42190-565-1	01	1	1303-		●
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE(JR7) TAPER LEAF SUSP RR<SAT> (A)	1-42190-563-0	01	1	1009-1302		●
49	CASE; RR AXLE FINAL GEAR 39/9 17.5"(W4R) LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-42190-563-1	01	1	1303-1411		●
49	CASE; RR AXLE FINAL GEAR 39/9 17.5"(W4R) LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-42190-563-1	01	1	1412-		●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) (A)	1-42190-563-1	01	1	1412-		●
49	CASE; RR AXLE TAPER LEAF SUSP RR<SAT> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-42190-670-0	01	1	1009-1302		●
49	CASE; RR AXLE FINAL GEAR 43/11 16.5"(W6E) (A)	1-42190-670-1	01	1	1303-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1009-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1009-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1009-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1009-	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1009-1412	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-1509	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1510-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1009-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1009-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1009-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1009-	●	●
65	NUT M14	0-91110-514-0	08	1	1009-	●	●
65	NUT M14	0-91110-514-0	08	1	1009-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1009-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1009-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1009-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1009-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1009-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1009-1302	●
67	BOLT; FINAL DRIVE SETTING MULTI LEAF SUSP RR<SAS> M16X40	0-20951-640-0	07	1	1009-1302		●
67	BOLT; FINAL DRIVE SETTING TAPER LEAF SUSP RR<SAT> LOAD SENSING PROPORTIONING VALVE(JR7) M16X40	0-20951-640-0	07	1	1009-1302		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1303-1411	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 17.5"(W4R) M16X40	0-20951-640-0	07	1	1303-1411		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1412-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/9 17.5"(W4R) M16X40	0-20951-640-0	07	1	1412-		●
67	BOLT; FINAL DRIVE SETTING TAPER LEAF SUSP RR<SAT> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) M16X40	0-20951-640-0	06	1	1009-1302		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/11 16.5"(W6E) M16X40	0-20951-640-0	06	1	1303-		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1009-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1009-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1009-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1009-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1009-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1009-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	12	1	1009-	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X80	9-92621-480-0	04	1	1009-1504	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X60	1-09040-084-0	04	1	1505-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1009-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1009-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1009-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1009-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1009-	●	●
143	RING; EXCITER	1-42319-173-0	02	1	1009-	●	●

30 30 33 33 25 25 25 25 33 30 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

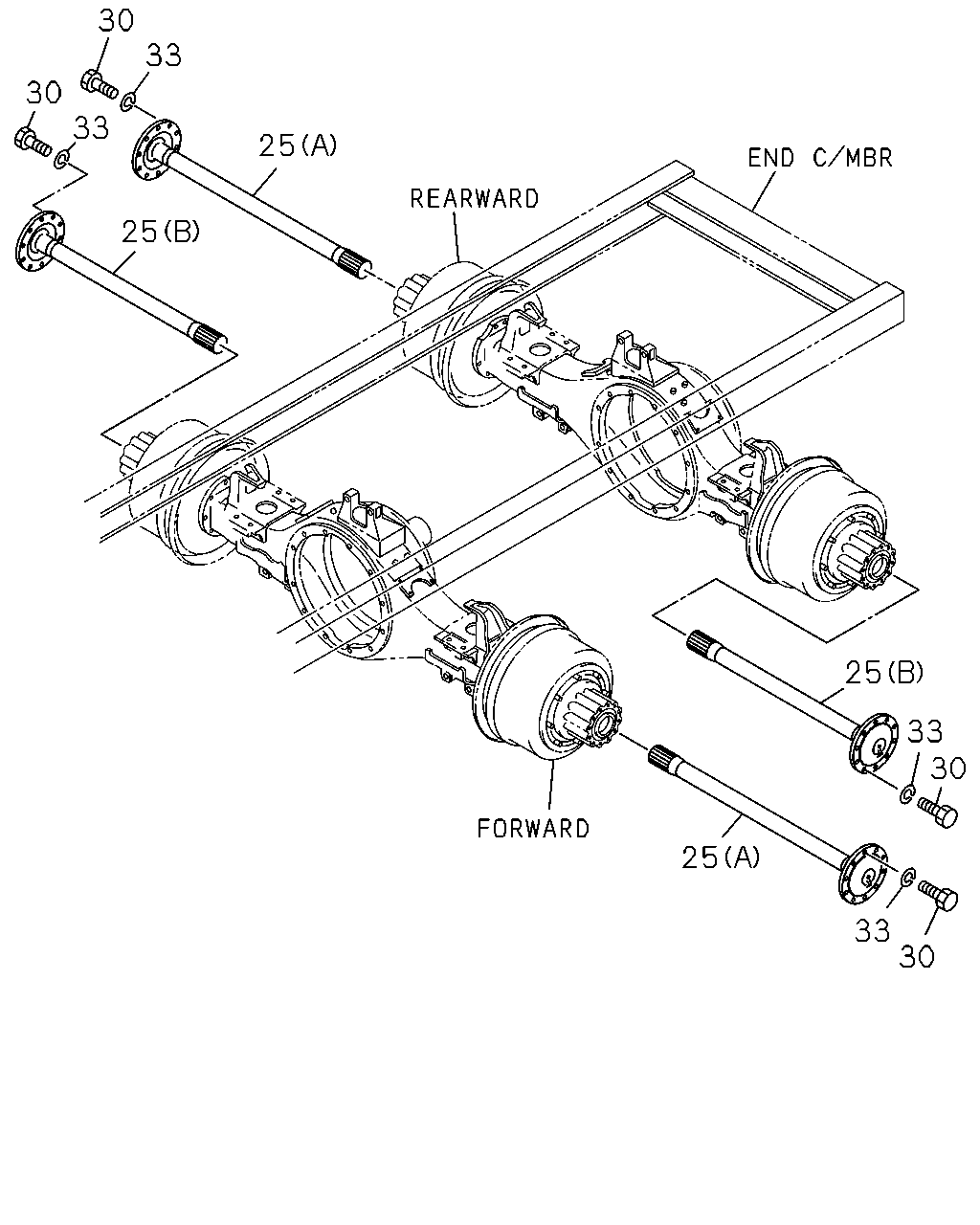

25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR (B) L=990	8-98146-166-0	01	1	1303-1411	●
25	SHAFT; AXLE,RR (B) L=990	8-98146-166-0	01	1	1303-1411	●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1303-1411		●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1303-1411		●
25	SHAFT; AXLE,RR (B) L=990	8-98146-166-0	01	1	1412-	●
25	SHAFT; AXLE,RR (B) L=990	8-98146-166-0	01	1	1412-	●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1412-		●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1412-		●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR (A) L=1110	8-98146-167-0	01	1	1303-1411	●
25	SHAFT; AXLE,RR (A) L=1110	8-98146-167-0	01	1	1303-1411	●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1303-1411		●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1303-1411		●
25	SHAFT; AXLE,RR (A) L=1110	8-98146-167-0	01	1	1412-	●
25	SHAFT; AXLE,RR (A) L=1110	8-98146-167-0	01	1	1412-	●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1412-		●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1412-		●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (A) L=1121	8-98146-160-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (A) L=1121	8-98146-160-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (A) L=1121	8-98146-160-0	01	1	1303-		●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (A) L=1121	8-98146-160-0	01	1	1303-		●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (B) L=976	8-98146-161-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (B) L=976	8-98146-161-0	01	1	1009-1302	●	●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (B) L=976	8-98146-161-0	01	1	1303-		●
25	SHAFT; AXLE,RR FINAL GEAR 43/11 16.5"(W6E) (B) L=976	8-98146-161-0	01	1	1303-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1009-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1009-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1009-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1009-	●	●
