4-10 — FRONT AXLE (#61078) — 185 parça

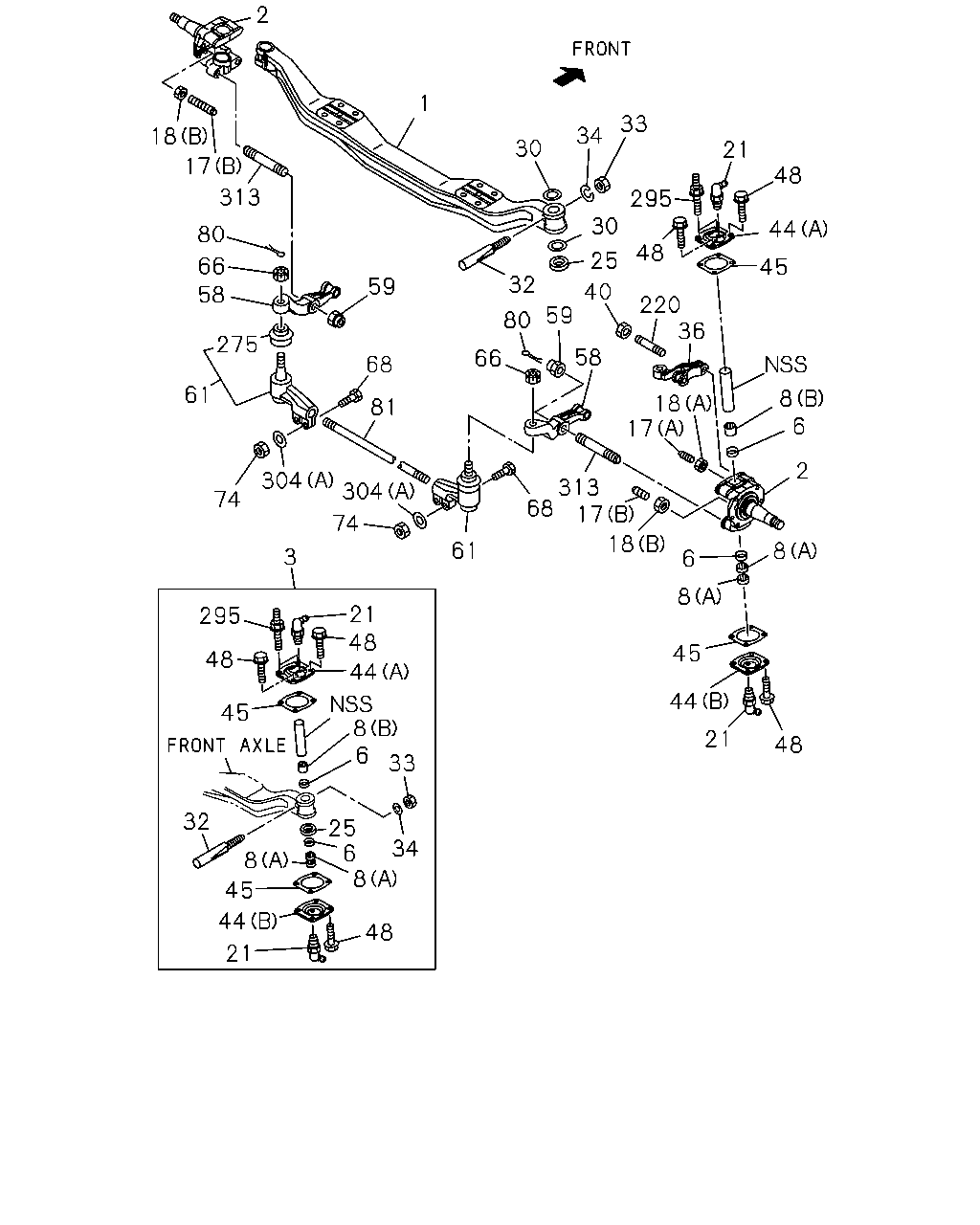

çizim 168541
2 18 17 313 80 66 58 275 61 74 304 304 74 61 81 68 59 1 30 32 80 66 68 313 17 18 6 8 45 44 21 48 8 2 6 8 45 44 48 21 295 48 220 36 18 17 58 59 40 25 30 34 33 21 48 44 8 6 33 34 8 6 25 48 21 44 45 8 32 45 48 295 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1009-1302 ● ●
1 AXLE; FRT 1-43111-178-3 01 1 1303- ● ●
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1009-1302 ● ●
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1009- ● ●
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1009- ● ●
3 KING PIN SET 1-87831-349-3 02 1 1009- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1009- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1009- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1009- ● ●
17 BOLT; STOPPER KNUCKLE
SINGAPORE EQUIPMENT(WQ3) (B) M18X43 		1-09009-190-0 02 1 1412- ●
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1009- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X38 		1-09009-164-0 02 1 1009-1411 ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X38 		1-09009-164-0 02 1 1412- ●
17 BOLT; STOPPER KNUCKLE
EXC. SINGAPORE EQUIPMENT(WQ3) (B) M18X38 		1-09009-164-0 02 1 1412- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1009- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1009- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1009- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1009- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1009- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1009- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1009- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1009- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1009- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1009- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1009- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1009- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1009- ● ●
58 ARM; TIE ROD
SINGAPORE EQUIPMENT(WQ3) 		8-98145-592-0 01 1 1412- ●
58 ARM; TIE ROD
SINGAPORE EQUIPMENT(WQ3) 		8-98145-593-0 01 1 1412- ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1009-1411 ● ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1412- ●
58 ARM; TIE ROD
EXC. SINGAPORE EQUIPMENT(WQ3) 		1-43134-049-4 01 1 1412- ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1009-1411 ● ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1412- ●
58 ARM; TIE ROD
EXC. SINGAPORE EQUIPMENT(WQ3) 		1-43135-049-4 01 1 1412- ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1009- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1009-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1009-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1009- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1009- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1009- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1009- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1009-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1009- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1009-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1303- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009- ● ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1009- ● ●

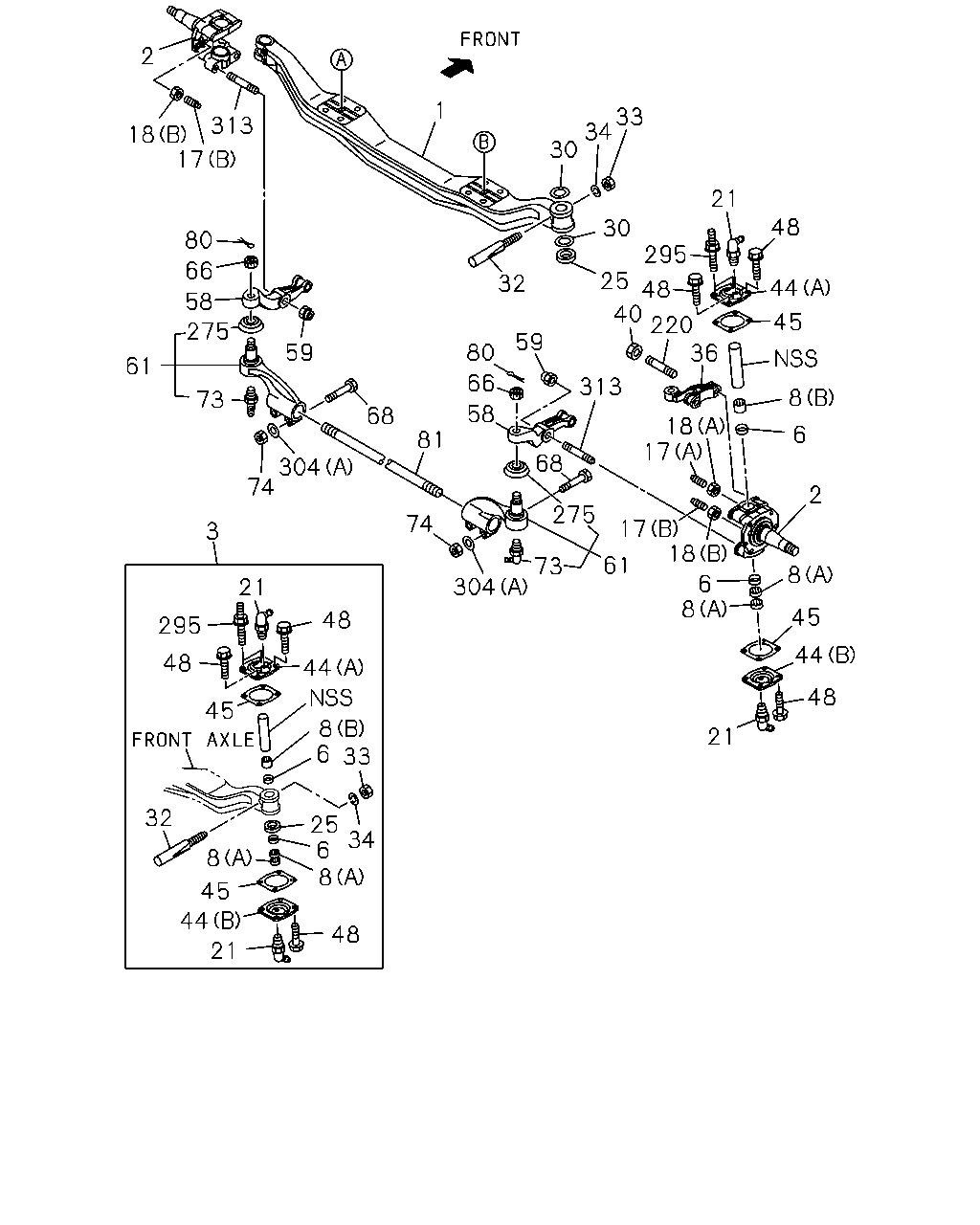

çizim 168563
48 44 45 8 2 6 8 45 44 48 21 295 220 48 36 18 17 17 61 6 18 8 21 48 8 6 25 34 33 6 8 44 48 21 3 295 48 45 32 8 45 44 21 313 68 59 80 66 58 275 74 304 81 68 304 74 73 275 58 66 80 61 17 18 313 2 1 33 34 30 30 25 32 40 73 59
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1009-1302 ● ●
1 AXLE; FRT 1-43111-178-3 01 1 1303- ● ●
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1009-1302 ● ●
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1009- ● ●
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1009- ● ●
3 KING PIN SET 1-87831-349-3 02 1 1009- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1009- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1009- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1009- ● ●
17 BOLT; STOPPER KNUCKLE
SINGAPORE EQUIPMENT(WQ3) (B) M18X43 		1-09009-190-0 02 1 1412- ●
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1009- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X38 		1-09009-164-0 02 1 1009-1411 ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X38 		1-09009-164-0 02 1 1412- ●
17 BOLT; STOPPER KNUCKLE
EXC. SINGAPORE EQUIPMENT(WQ3) (B) M18X38 		1-09009-164-0 02 1 1412- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1009- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1009- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1009- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1009- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1009- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1009- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1009- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1009- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1009- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1009- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1009- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1009- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1009- ● ●
58 ARM; TIE ROD
SINGAPORE EQUIPMENT(WQ3) 		8-98145-592-0 01 1 1412- ●
58 ARM; TIE ROD
SINGAPORE EQUIPMENT(WQ3) 		8-98145-593-0 01 1 1412- ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1009-1411 ● ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1412- ●
58 ARM; TIE ROD
EXC. SINGAPORE EQUIPMENT(WQ3) 		1-43134-049-4 01 1 1412- ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1009-1411 ● ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1412- ●
58 ARM; TIE ROD
EXC. SINGAPORE EQUIPMENT(WQ3) 		1-43135-049-4 01 1 1412- ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1009- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1009-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1009-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1009- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1009- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1009- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1009- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1009-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1009- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1009-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1303- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009- ● ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1009- ● ●

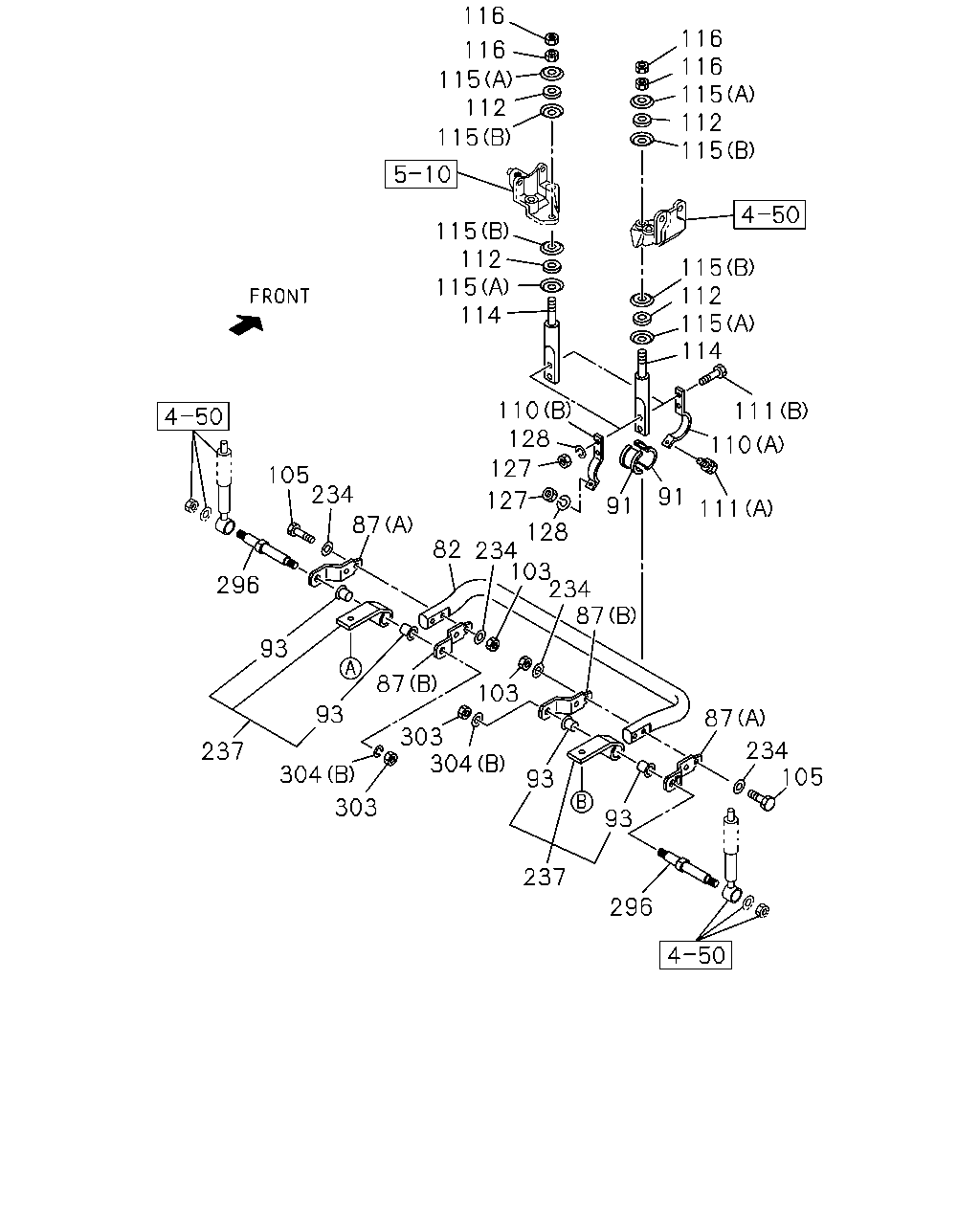

çizim 168639
111 110 111 114 115 112 115 115 112 15 116 116 116 116 115 112 115 115 112 115 114 110 128 27 127 234 82 87 234 105 296 93 93 237 304 303 237 93 93 296 105 234 87 91 91 234 103 87 128 304 303 103 87
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-134-1 01 1 1303- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1303- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1303- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1303- ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1303- ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1303- ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1303- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1303- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1303- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1303- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1303- ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1303- ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-072-2 02 1 1303- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1303- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1303- ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1303- ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1303- ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1303- ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1303- ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1303- ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1303- ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1303- ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1303- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1009- ● ●

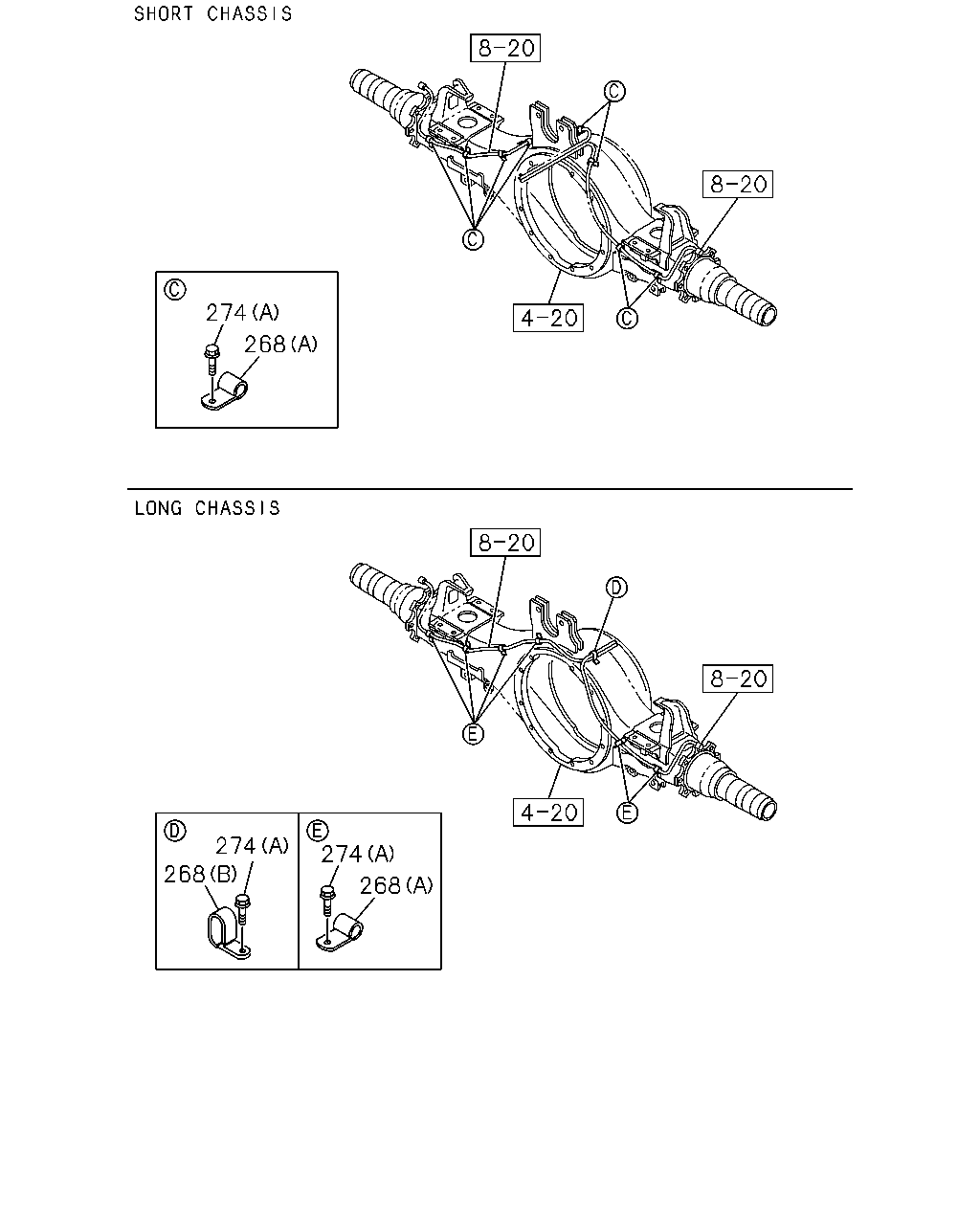

çizim 336406
274 268 274 268 268 274
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1303- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1009-1302 ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1303- ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1009-1302 ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1303- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1303- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1009-1302 ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1303- ●
çizim 337088
267 274 272 265 295
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 1009- ● ●
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 1009- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1009- ● ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1009- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1303- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1009-1302 ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1303- ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
