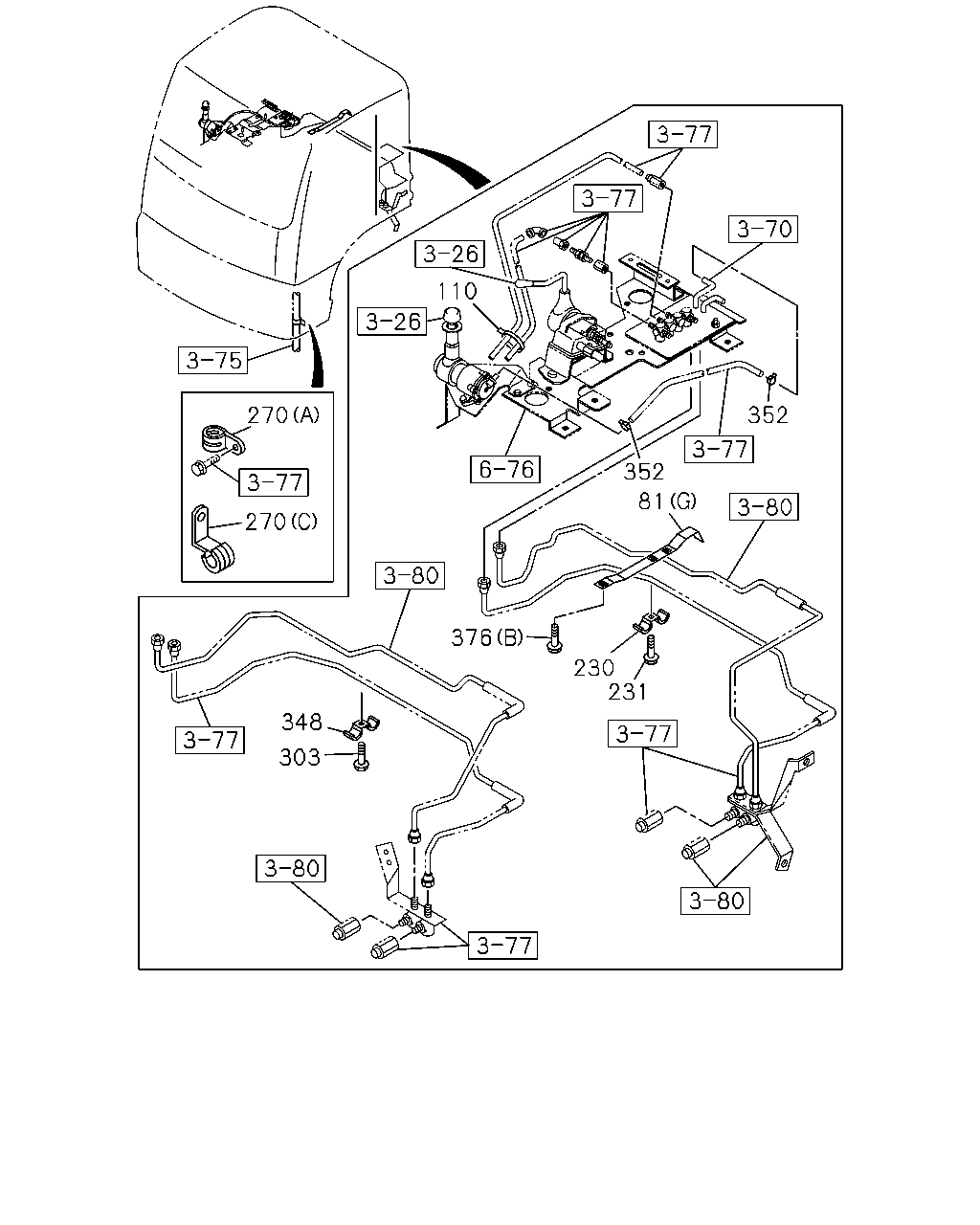

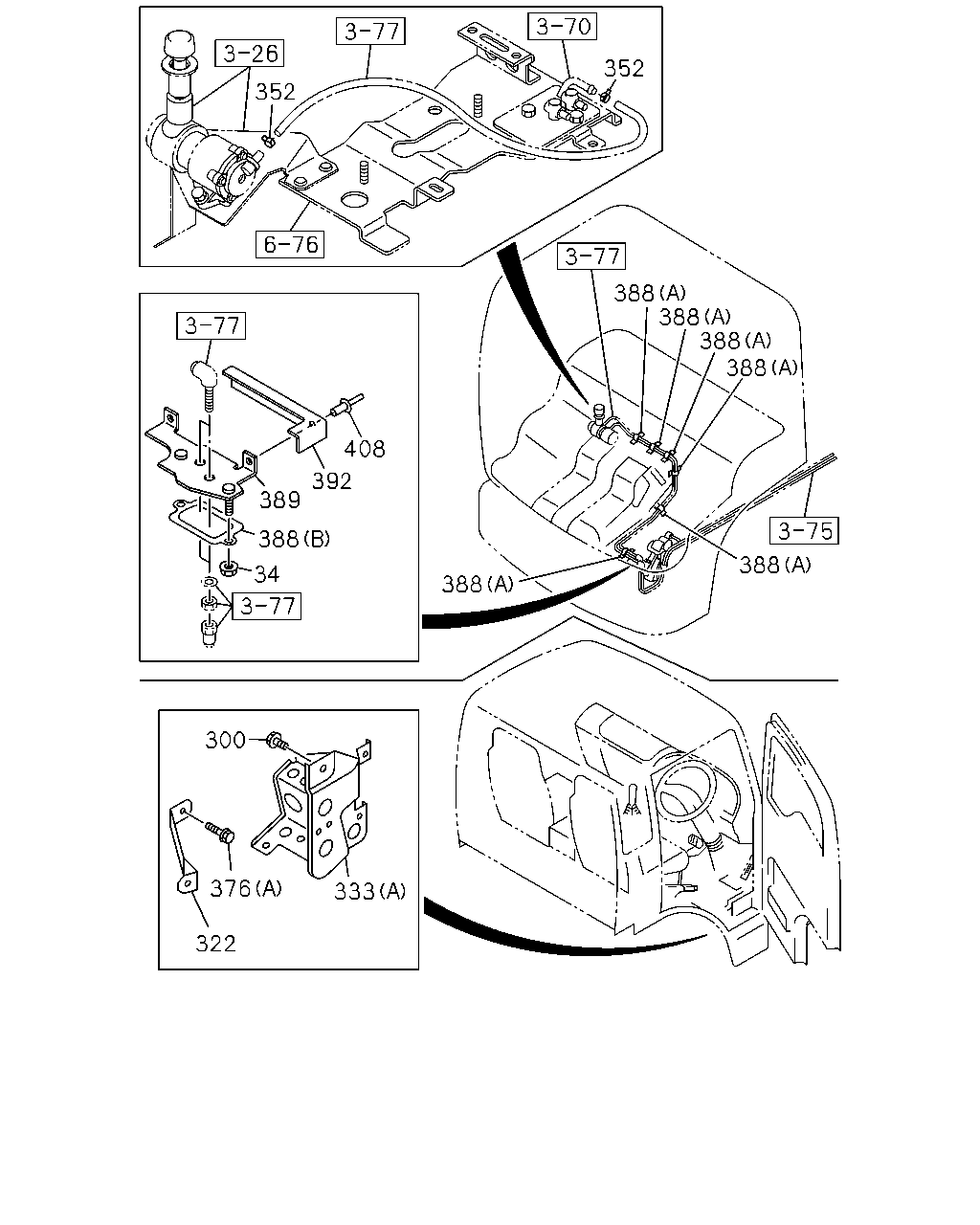

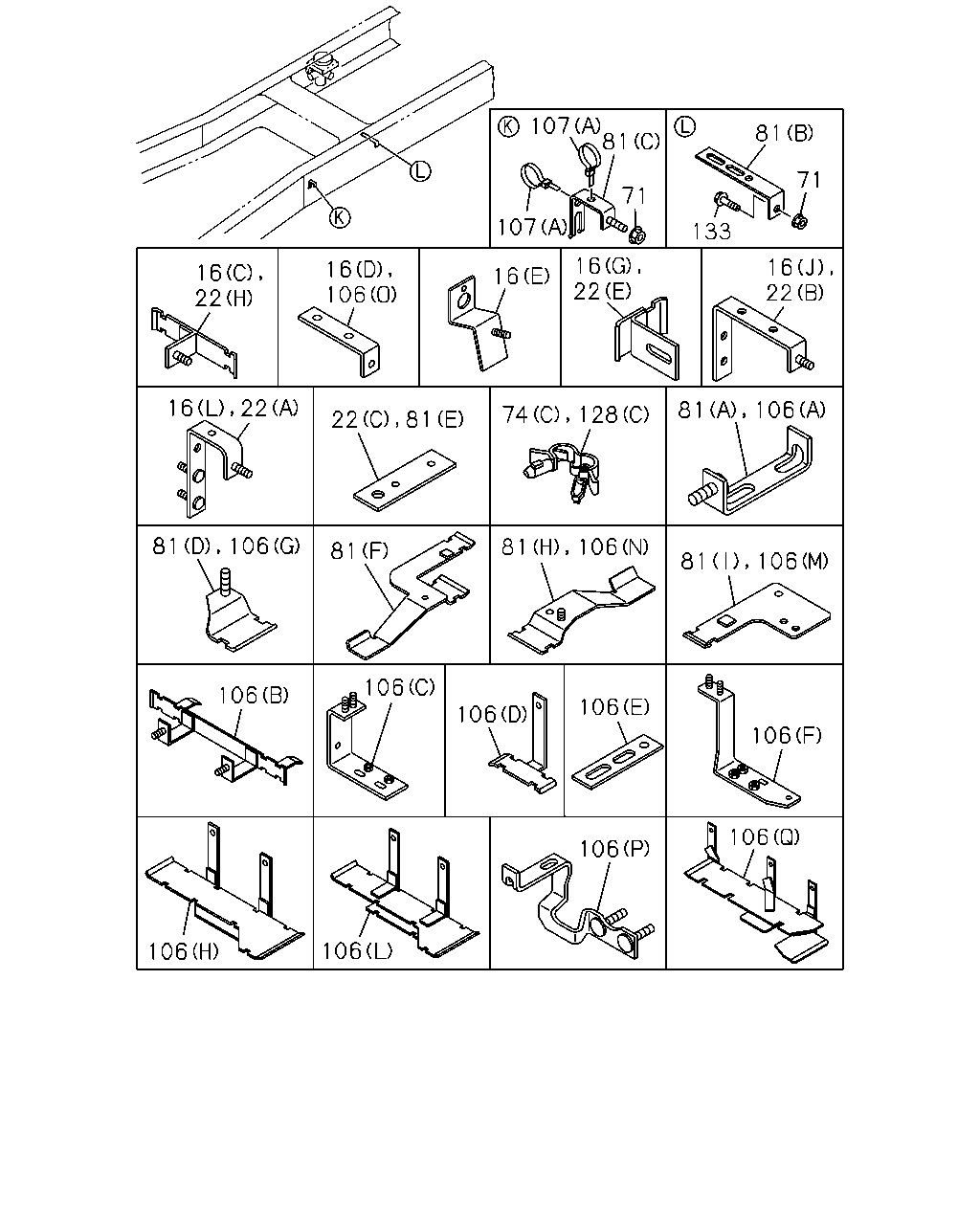

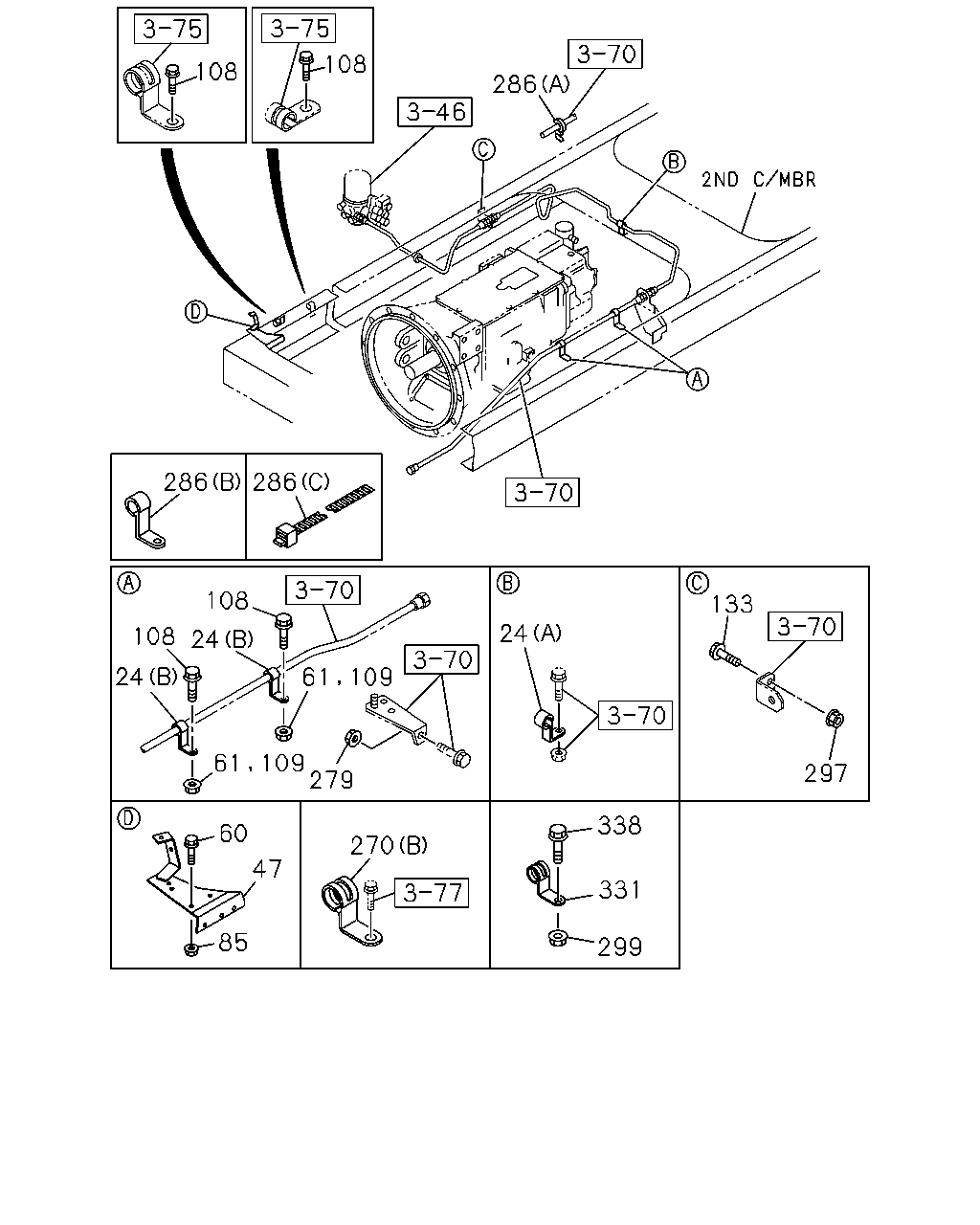

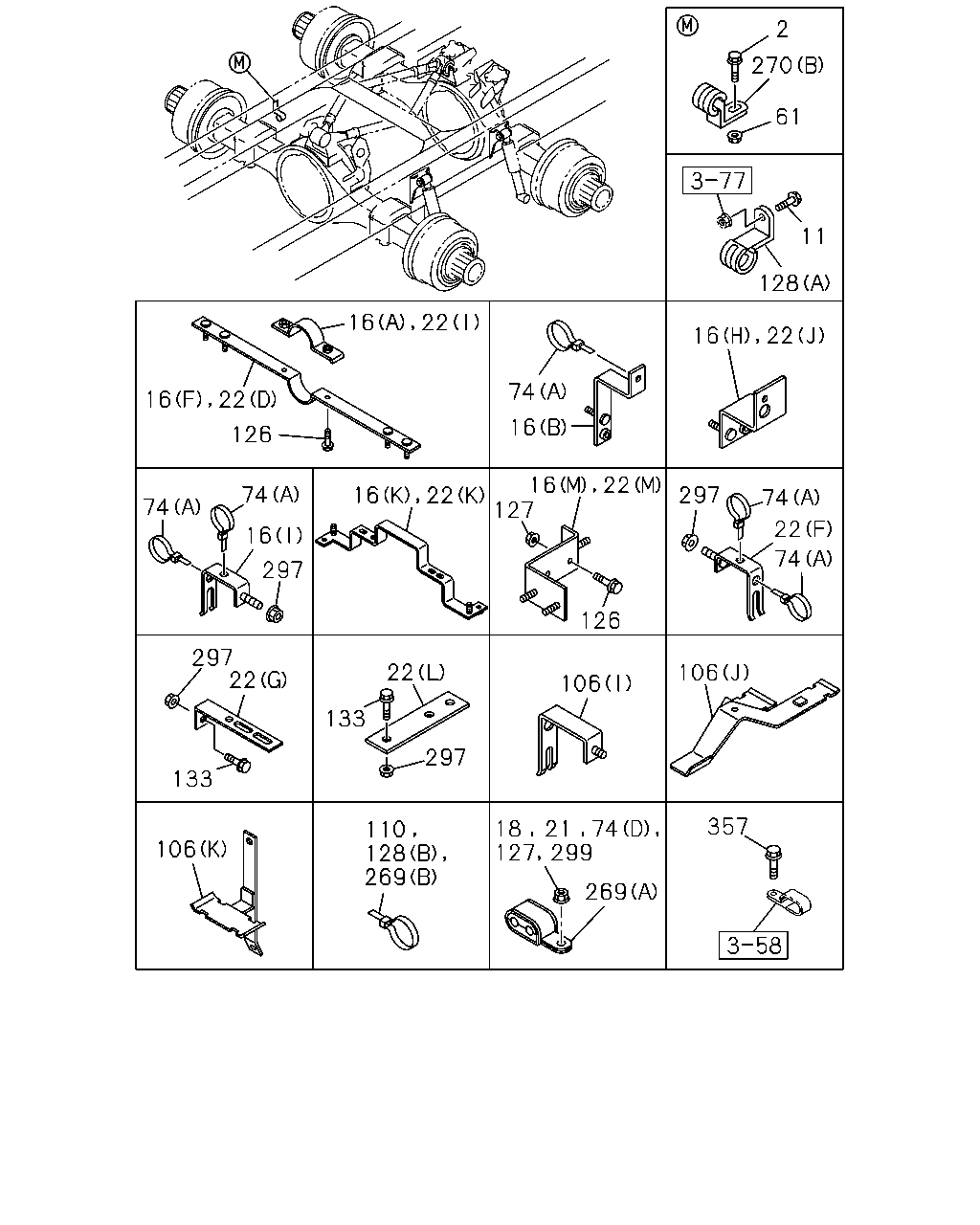

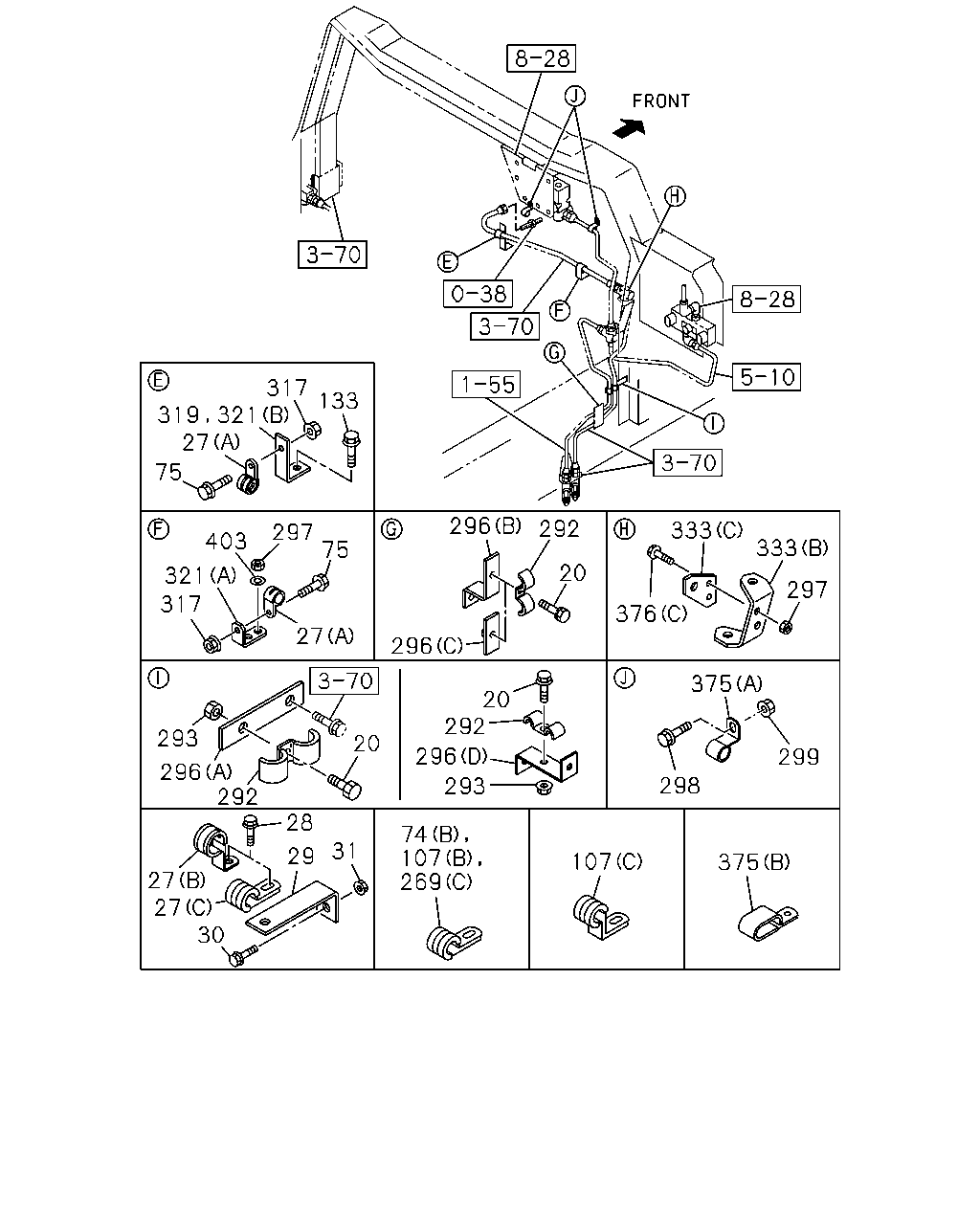

3-78 — FIXING PARTS; AIR PIPING (#61076) — 796 parça

16 22 16 106 107 107 71 81 81 71 133 16 22 16 16 22 106 81 128 74 81 22 22 16 81 106 81 81 106 81 106 106 106 106 106 106 106 106 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98142-172-0	01	1	1412-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	1009-1302		●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) (I)	1-47479-381-2	04	1	1009-1302	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1009-1302		●
16	BRACKET; PIPE CLIP (L)	1-47479-329-0	01	1	1303-		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	06	1	1009-1302		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1303-		●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1009-1302	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	02	1	1009-1302	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1303-1411	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1303-1411	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1412-	●	●
16	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-721-0	01	1	1412-	●
16	BRACKET; PIPE CLIP (K)	1-47479-898-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1009-		●
16	BRACKET; PIPE CLIP EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (H)	1-47479-722-1	01	1	1009-	●
16	BRACKET; PIPE CLIP LOAD SENSING PROPORTIONING VALVE(JR7) (E)	1-47471-081-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1009-1302	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1009-1302	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1303-	●
16	BRACKET; PIPE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	07	1	1009-1302	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1303-	●
22	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98142-173-0	01	1	1412-	●
22	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	01	1	1412-	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	05	1	1009-1302		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	02	1	1303-	●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1009-		●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	07	1	1009-1302		●
22	BRACKET; CLIP WHEEL BASE 5300MM(53W) (F)	1-47479-381-2	07	1	1009-1302	●
22	BRACKET; CLIP (L) L=150	1-47471-217-0	02	1	1303-	●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1009-	●	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	1009-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1009-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1009-	●	●
22	BRACKET; CLIP (K)	1-47479-898-0	01	1	1009-	●	●
22	BRACKET; CLIP (G) L=100 H=30	1-47477-645-2	01	1	1009-1302	●
22	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	08	1	1009-1302	●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1009-	●
22	BRACKET; CLIP (C) L=130	1-47478-959-0	02	1	1009-1302	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	1009-1302	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	1303-1411	●
22	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J)	1-47479-722-1	01	1	1412-	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1009-	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1009-1302	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1303-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=350	1-09707-183-0	04	1	1412-1511	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) L=350	1-09707-183-0	01	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	22	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	1009-1302		●
74	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	03	1	1303-		●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	14	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1303-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1009-1302	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302		●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	17	1	1009-1302	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	18	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	21	1	1303-	●
81	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98052-412-0	01	1	1412-	●
81	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98052-414-0	01	1	1412-	●
81	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	8-98061-758-0	01	1	1009-1302		●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> (A)	8-98061-758-0	01	1	1009-1302		●
81	BRACKET; CLIP (G)	1-47477-483-0	01	1	1303-1304		●
81	BRACKET; CLIP (G)	1-47477-483-0	01	1	1305-		●
81	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G)	1-47477-483-0	01	1	1305-	●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> (A)	1-47471-274-0	01	1	1009-1302		●
81	BRACKET; CLIP (A)	1-47471-274-0	01	1	1009-1302	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1009-	●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	1009-1302	●	●
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1303-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	1009-1302	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1009-1302	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1303-1411	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1412-		●
81	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F)	8-98043-314-0	01	1	1412-	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (F)	1-47471-108-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (Q)	8-98243-283-0	01	1	1412-	●
106	BRACKET; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (P)	8-98302-600-0	01	1	1505-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (N)	8-98052-410-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (O) L=82 B=20	8-98259-390-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98052-408-0	01	1	1412-1412	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98297-188-0	01	1	1501-	●
106	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W) (A)	8-98061-758-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> (A)	8-98061-758-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> (A)	1-47471-274-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (A)	1-47471-274-0	01	1	1009-1302	●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (L)	8-97609-025-0	01	1	1303-		●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (K)	1-47471-060-0	01	1	1303-		●
106	BRACKET; TUBE CLIP (H)	8-97615-493-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	1009-1302	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1303-1504	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1505-		●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98061-758-0	01	1	1505-	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1009-1302	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1303-1411	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1412-		●
106	BRACKET; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J)	8-98043-312-0	01	1	1412-	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP EXC. BRAKE SYSTEM HSA(SLD) (E)	1-47477-514-3	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1009-1302	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1303-1411	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1412-		●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47479-754-0	01	1	1412-	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (C) ID=25 H=30 L=35	1-09700-875-0	01	1	1412-	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1412-	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-		●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	13	1	1303-	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	14	1	1303-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302		●
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302	●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	1303-	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	03	1	1303-		●
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=39 H=28 L=32	1-09701-263-0	02	1	1303-	●
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) ID=28 L=40	1-09701-261-0	01	1	1303-	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1303-1411	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1412-	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1412-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1009-1302	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	1303-		●
107	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1009-1302		●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1411	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1411	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-		●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-	●
107	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-	●
128	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=13-18 L=18	1-09709-291-0	01	1	1412-	●
128	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (B) L=350	1-09707-183-0	09	1	1009-1302		●
128	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1303-1411	●
128	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1412-	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	11	1	1009-1302		●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	10	1	1303-1411		●
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	10	1	1412-		●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-	●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (B) L=350	1-09707-183-0	01	1	1009-	●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (B) L=350	1-09707-183-0	12	1	1009-1302	●
128	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	14	1	1009-1411	●
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	14	1	1412-	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	04	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
133	BOLT; BRKT BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1009-1302	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1303-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1009-1302		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-1302	●
133	BOLT; BRKT EXC. BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1412-		●
133	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●

317 319 75 27 321 133 403 321 317 297 75 27 293 296 292 20 28 31 29 27 27 30 74 107 269 107 375 299 298 375 297 333 376 333 296 292 20 296 20 292 296 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1411		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1412-		●
20	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
20	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-1411	●
20	BOLT; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1411		●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1412-		●
27	CLIP; FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1412-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1009-1302		●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1009-1302	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1303-	●	●
27	CLIP; FLEX HOSE (C) ID=26 L=27	1-09701-006-0	01	1	1009-1411	●
27	CLIP; FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> (C) ID=26 L=27	1-09701-006-0	01	1	1412-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1009-1411		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1412-		●
28	BOLT; CLIP,FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	1009-1411	●
28	BOLT; CLIP,FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	1009-		●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	1009-1411	●
29	BRACKET; CLIP,AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> L=95	1-82699-085-0	01	1	1412-	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
30	BOLT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●	●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-		●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1411	●
31	NUT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1412-	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=350	1-09707-183-0	04	1	1412-1511	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) L=350	1-09707-183-0	01	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	22	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	1009-1302		●
74	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	03	1	1303-		●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	14	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1303-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1009-1302	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302		●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	17	1	1009-1302	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	18	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	21	1	1303-	●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (C) ID=25 H=30 L=35	1-09700-875-0	01	1	1412-	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1412-	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-		●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	13	1	1303-	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	14	1	1303-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302		●
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302	●
107	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	1303-	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	03	1	1303-		●
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=39 H=28 L=32	1-09701-263-0	02	1	1303-	●
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) ID=28 L=40	1-09701-261-0	01	1	1303-	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1009-1302	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1303-1411	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1412-	●
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1412-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1009-1302	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	1303-		●
107	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1009-1302		●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1411	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-1411	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-		●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-	●
107	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	04	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
133	BOLT; BRKT BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1009-1302	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1303-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1009-1302		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-1302	●
133	BOLT; BRKT EXC. BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1412-		●
133	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1303-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1303-	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1009-1302	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1303-	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1009-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1009-1302	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	1303-		●
292	CLIP; AIR PIPE MIXER TRUCK<RA2> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1009-1302		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1303-1411		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1412-		●
292	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1412-	●
292	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-1302		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-1302	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1303-1411	●
292	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1412-	●
293	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
293	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	1009-1302	●	●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	1303-	●
296	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (C) L=50	1-47475-299-2	01	1	1009-1302		●
296	BRACKET; CLIP (D)	1-47479-698-0	01	1	1303-		●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	1009-1411	●
296	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=85 H=40	1-47476-676-0	01	1	1412-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	10	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1303-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1009-	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	15	1	1009-1302	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	16	1	1009-1302	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1411	●	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	07	1	1412-	●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	1009-1302		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1009-1302		●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-	●	●
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1009-1302		●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1009-1302		●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1009-1302	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1303-	●	●
321	BRACKET; CLIP SMOOTHER-G(C1W) (A)	1-47477-337-1	01	1	1009-1302	●
321	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47477-337-1	01	1	1303-	●
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	1009-1302		●
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1303-1411		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HSA(SLD) (A)	8-98169-062-0	01	1	1303-1411	●
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1412-		●
333	BRACKET; BRK AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (A)	8-98169-062-0	01	1	1412-	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1009-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1009-1302	●	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	1009-1302		●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1009-1302		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1304		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-		●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-	●
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
403	WASHER; PL SMOOTHER-G(C1W) D=12	0-91614-612-0	01	1	1212-	●

270 270 348 303 376 110 352 352 81 230 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98052-412-0	01	1	1412-	●
81	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98052-414-0	01	1	1412-	●
81	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	8-98061-758-0	01	1	1009-1302		●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> (A)	8-98061-758-0	01	1	1009-1302		●
81	BRACKET; CLIP (G)	1-47477-483-0	01	1	1303-1304		●
81	BRACKET; CLIP (G)	1-47477-483-0	01	1	1305-		●
81	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G)	1-47477-483-0	01	1	1305-	●
81	BRACKET; CLIP WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> (A)	1-47471-274-0	01	1	1009-1302		●
81	BRACKET; CLIP (A)	1-47471-274-0	01	1	1009-1302	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1009-	●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	1009-1302	●	●
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1303-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	1009-1302	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1009-1302	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1303-1411	●	●
81	BRACKET; CLIP (F)	8-98043-314-0	01	1	1412-		●
81	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F)	8-98043-314-0	01	1	1412-	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	1009-	●	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	1303-1304		●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	1305-		●
110	CLIP; BAND,NYLON TUBE FULL TRAILER PIPING<Z25> L=140	5-09707-031-1	02	1	1305-	●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	1303-1304		●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	1305-		●
230	CLIP; PIPE,AIR FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	1305-	●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1304		●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-		●
231	BOLT; CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1303-1304		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1303-1304		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1305-	●
270	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1009-1302	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	1303-		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1304		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-		●
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	1303-1304		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	1305-		●
348	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	1305-	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1009-1302	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1303-1304		●
352	CLIP; EXH HOSE EXC. FULL TRAILER PIPING<Z25> ID=14	8-94238-572-0	02	1	1303-1304	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1305-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1304		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-		●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-	●
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●

108 108 286 286 286 24 108 24 108 24 60 47 85 270 338 331 299 297 109 61 109 61 279 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-	●	●
47	BRACKET; PIPE CLIP	1-47471-389-0	01	1	1009-1302	●	●
47	BRACKET; PIPE CLIP	8-98226-739-0	01	1	1303-	●	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1303-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1303-	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-1302	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
108	BOLT; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	05	1	1412-	●
108	BOLT; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
108	BOLT; TUBE CLIP BRAKE SYSTEM HSA(SLD) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1411	●	●
108	BOLT; TUBE CLIP BRAKE SYSTEM HSA(SLD) M8X20 FLANGE	0-28650-820-0	01	1	1303-1411	●
108	BOLT; TUBE CLIP EXC. FULL TRAILER PIPING<Z25> M8X20 FLANGE	0-28650-820-0	01	1	1303-1411	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1412-		●
108	BOLT; TUBE CLIP BRAKE SYSTEM HSA(SLD) M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
108	BOLT; TUBE CLIP EXC. FULL TRAILER PIPING<Z25> M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
108	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
108	BOLT; TUBE CLIP EXC. BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1412-		●
108	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-1302	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-	●	●
108	BOLT; TUBE CLIP EXC. BRAKE SYSTEM HSA(SLD) M8X20 FLANGE	0-28650-820-0	03	1	1009-1302		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-	●	●
109	NUT; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	04	1	1412-	●
109	NUT; TUBE CLIP BRAKE SYSTEM HSA(SLD) M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1412-		●
109	NUT; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-	●
109	NUT; TUBE CLIP EXC. BRAKE SYSTEM HSA(SLD) M8 FLANGE	0-91180-108-0	03	1	1009-1302		●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	04	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
133	BOLT; BRKT BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1009-1302	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1303-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1009-1302		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-1302	●
133	BOLT; BRKT EXC. BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1412-		●
133	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1303-1304		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1303-1304		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1305-	●
270	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1009-1302	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	1303-		●
279	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1505-	●
279	NUT; BRKT BRAKE SYSTEM HSA(SLD) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1411		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1412-1504		●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1412-1504	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1505-		●
279	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	07	1	1505-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1303-1411	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	06	1	1412-1504	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	06	1	1505-	●
279	NUT; BRKT EXC. BRAKE SYSTEM HSA(SLD) M8 FLANGE	0-91180-108-0	09	1	1009-1302		●
286	CLIP; NYLON TUBE (B) ID=16 L=50 H=25	1-09700-838-0	01	1	1303-		●
286	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	02	1	1303-		●
286	CLIP; NYLON TUBE (A) ID=15 & 7	1-09709-311-0	01	1	1009-1302		●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1009-1302	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1303-	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	10	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1303-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1009-	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	15	1	1009-1302	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	16	1	1009-1302	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1411	●	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	07	1	1412-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1009-1302		●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=13 H=75 L=25	1-09700-601-0	02	1	1412-	●
331	CLIP; NYLON TUBE ID=13 H=75 L=25	1-09700-601-0	01	1	1009-1411	●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=13 H=75 L=25	1-09700-601-0	01	1	1412-	●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1411	●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●

352 352 408 392 389 388 34 300 376 333 322 388 388 388 388 388 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	1009-1302	●	●
34	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	1303-	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1009-1302	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1411		●
300	BOLT; TUBE CLIP BRAKE SYSTEM HSA(SLD) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1411	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1412-1510		●
300	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1412-1510	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1511-		●
300	BOLT; TUBE CLIP CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1511-	●
322	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1)	8-98152-740-1	01	1	1009-1302		●
322	BRACKET; CLIP	8-98152-740-1	01	1	1009-1302	●
322	BRACKET; CLIP	8-98227-231-0	01	1	1303-	●	●
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	1009-1302		●
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1303-1411		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HSA(SLD) (A)	8-98169-062-0	01	1	1303-1411	●
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1412-		●
333	BRACKET; BRK AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (A)	8-98169-062-0	01	1	1412-	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1009-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1009-1302	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1009-1302	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1303-1304		●
352	CLIP; EXH HOSE EXC. FULL TRAILER PIPING<Z25> ID=14	8-94238-572-0	02	1	1303-1304	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1305-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1304		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-		●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1305-	●
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
388	SEAL (B)	1-47478-174-1	01	1	1009-1302	●	●
388	SEAL EXC. FULL TRAILER PIPING<Z25> (B)	1-47478-174-1	01	1	1303-	●
388	SEAL (A) 180X40	1-72498-019-1	07	1	1009-1302	●	●
388	SEAL EXC. FULL TRAILER PIPING<Z25> (A) 180X40	1-72498-019-1	07	1	1303-	●
389	BRACKET; UNION	1-47479-166-1	01	1	1009-1302	●	●
389	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25>	1-47479-166-1	01	1	1303-	●
392	COVER; BRKT	1-79907-090-0	01	1	1009-1302	●	●
392	COVER; BRKT EXC. FULL TRAILER PIPING<Z25>	1-79907-090-0	01	1	1303-	●
408	FASTENER; COVER D8X13.5	1-09987-248-1	02	1	1009-1302	●	●
408	FASTENER; COVER EXC. FULL TRAILER PIPING<Z25> D8X13.5	1-09987-248-1	02	1	1303-	●

16 126 22 16 22 2 270 61 11 128 16 22 74 16 74 74 16 297 297 22 133 106 133 110 128 269 297 22 16 22 16 127 126 106 18 21 127 299 269 357 106 297 74 22 74 22 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1303-	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-		●
11	BOLT; CLIP BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
16	BRACKET; PIPE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98142-172-0	01	1	1412-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	1009-1302		●
16	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W) (I)	1-47479-381-2	04	1	1009-1302	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1009-1302		●
16	BRACKET; PIPE CLIP (L)	1-47479-329-0	01	1	1303-		●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	06	1	1009-1302		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1303-		●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1009-1302	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	02	1	1009-1302	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1303-1411	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1303-1411	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1412-	●	●
16	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-721-0	01	1	1412-	●
16	BRACKET; PIPE CLIP (K)	1-47479-898-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1009-		●
16	BRACKET; PIPE CLIP EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (H)	1-47479-722-1	01	1	1009-	●
16	BRACKET; PIPE CLIP LOAD SENSING PROPORTIONING VALVE(JR7) (E)	1-47471-081-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1009-1302	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1009-1302	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1303-	●
16	BRACKET; PIPE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	07	1	1009-1302	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1303-	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	1009-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-	●
22	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98142-173-0	01	1	1412-	●
22	BRACKET; CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	01	1	1412-	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	05	1	1009-1302		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	02	1	1303-	●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1009-		●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	07	1	1009-1302		●
22	BRACKET; CLIP WHEEL BASE 5300MM(53W) (F)	1-47479-381-2	07	1	1009-1302	●
22	BRACKET; CLIP (L) L=150	1-47471-217-0	02	1	1303-	●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1009-	●	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	1009-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1009-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1009-	●	●
22	BRACKET; CLIP (K)	1-47479-898-0	01	1	1009-	●	●
22	BRACKET; CLIP (G) L=100 H=30	1-47477-645-2	01	1	1009-1302	●
22	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	08	1	1009-1302	●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1009-	●
22	BRACKET; CLIP (C) L=130	1-47478-959-0	02	1	1009-1302	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	1009-1302	●	●
22	BRACKET; CLIP (J)	1-47479-722-1	01	1	1303-1411	●
22	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J)	1-47479-722-1	01	1	1412-	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1009-	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1303-	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-1302	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=350	1-09707-183-0	04	1	1412-1511	●
74	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) L=350	1-09707-183-0	01	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (A) L=350	1-09707-183-0	01	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W) (A) L=350	1-09707-183-0	22	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	1009-1302		●
74	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	03	1	1303-		●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	14	1	1009-1302		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1303-		●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1009-1302	●	●
74	CLIP; NYLON TUBE (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302		●
74	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	17	1	1009-1302	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1303-	●
74	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	18	1	1009-1302	●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	21	1	1303-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (F)	1-47471-108-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (Q)	8-98243-283-0	01	1	1412-	●
106	BRACKET; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (P)	8-98302-600-0	01	1	1505-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (N)	8-98052-410-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (O) L=82 B=20	8-98259-390-0	01	1	1412-	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98052-408-0	01	1	1412-1412	●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (M)	8-98297-188-0	01	1	1501-	●
106	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W) (A)	8-98061-758-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> (A)	8-98061-758-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> (A)	1-47471-274-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (A)	1-47471-274-0	01	1	1009-1302	●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (L)	8-97609-025-0	01	1	1303-		●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (K)	1-47471-060-0	01	1	1303-		●
106	BRACKET; TUBE CLIP (H)	8-97615-493-0	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	1009-1302	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1303-1504	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1505-		●
106	BRACKET; TUBE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98061-758-0	01	1	1505-	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1009-1302	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1303-1411	●	●
106	BRACKET; TUBE CLIP (J)	8-98043-312-0	01	1	1412-		●
106	BRACKET; TUBE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J)	8-98043-312-0	01	1	1412-	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP EXC. BRAKE SYSTEM HSA(SLD) (E)	1-47477-514-3	01	1	1009-1302		●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1009-1302	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1303-1411	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	1412-		●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47479-754-0	01	1	1412-	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	1303-1304		●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	1305-		●
110	CLIP; BAND,NYLON TUBE FULL TRAILER PIPING<Z25> L=140	5-09707-031-1	02	1	1305-	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
126	BOLT; CLIP BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1009-1302	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
127	NUT; CLIP BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-	●
127	NUT; CLIP BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	07	1	1009-1302		●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	09	1	1009-1302		●
127	NUT; CLIP BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1009-1302	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	1303-		●
127	NUT; CLIP BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	12	1	1009-1302	●
127	NUT; CLIP BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	04	1	1303-1411	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1412-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302	●
128	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=13-18 L=18	1-09709-291-0	01	1	1412-	●
128	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (B) L=350	1-09707-183-0	09	1	1009-1302		●
128	CLIP; NYLON TUBE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1303-1411	●
128	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (C) ID=5-12 L=18	1-09709-287-0	02	1	1412-	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	11	1	1009-1302		●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	10	1	1303-1411		●
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	10	1	1412-		●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-	●
128	CLIP; NYLON TUBE LOAD SENSING PROPORTIONING VALVE(JR7) (B) L=350	1-09707-183-0	01	1	1009-	●
128	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (B) L=350	1-09707-183-0	12	1	1009-1302	●
128	CLIP; NYLON TUBE WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	14	1	1009-1411	●
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	14	1	1412-	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	04	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-	●
133	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
133	BOLT; BRKT BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1009-1302	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1303-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-		●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1303-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1303-1411	●
133	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1009-1302		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-1302	●
133	BOLT; BRKT EXC. BRAKE SYSTEM HSA(SLD) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1411	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1412-		●
133	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1303-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1303-	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1009-1302	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1303-	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1009-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1009-1302	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	1303-		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1303-1304		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1305-	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1303-1304		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1305-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1305-	●
270	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-		●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1303-	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1009-1302	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	1303-		●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1303-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●	●
297	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	10	1	1009-1302		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1303-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1009-	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	15	1	1009-1302	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	16	1	1009-1302	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-1411	●	●
297	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	07	1	1412-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1009-1302		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
