Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#61075) — 293 parça

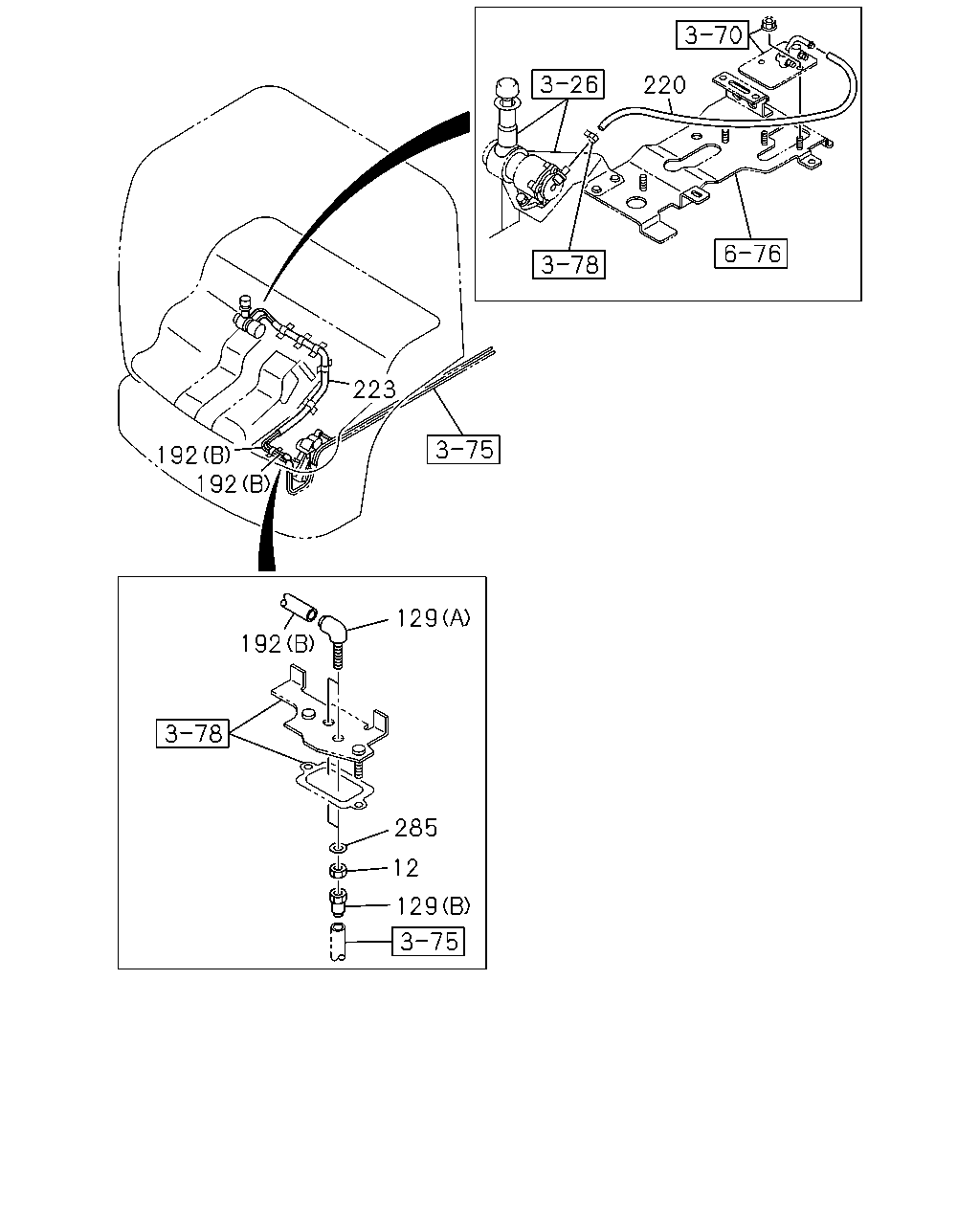

220 223 192 192 192 129 285 12 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; CONNECTOR M20	0-91111-520-0	02	1	1009-1302	●	●
12	NUT; CONNECTOR EXC. FULL TRAILER PIPING<Z25> M20	0-91111-520-0	02	1	1303-		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	02	1	1303-1304		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1305-		●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1303-1304		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1305-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1009-1302	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	1303-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
285	WASHER; PL,CONNECTOR ID=21	0-91610-520-0	02	1	1009-1302	●	●
285	WASHER; PL,CONNECTOR EXC. FULL TRAILER PIPING<Z25> ID=21	0-91610-520-0	02	1	1303-		●

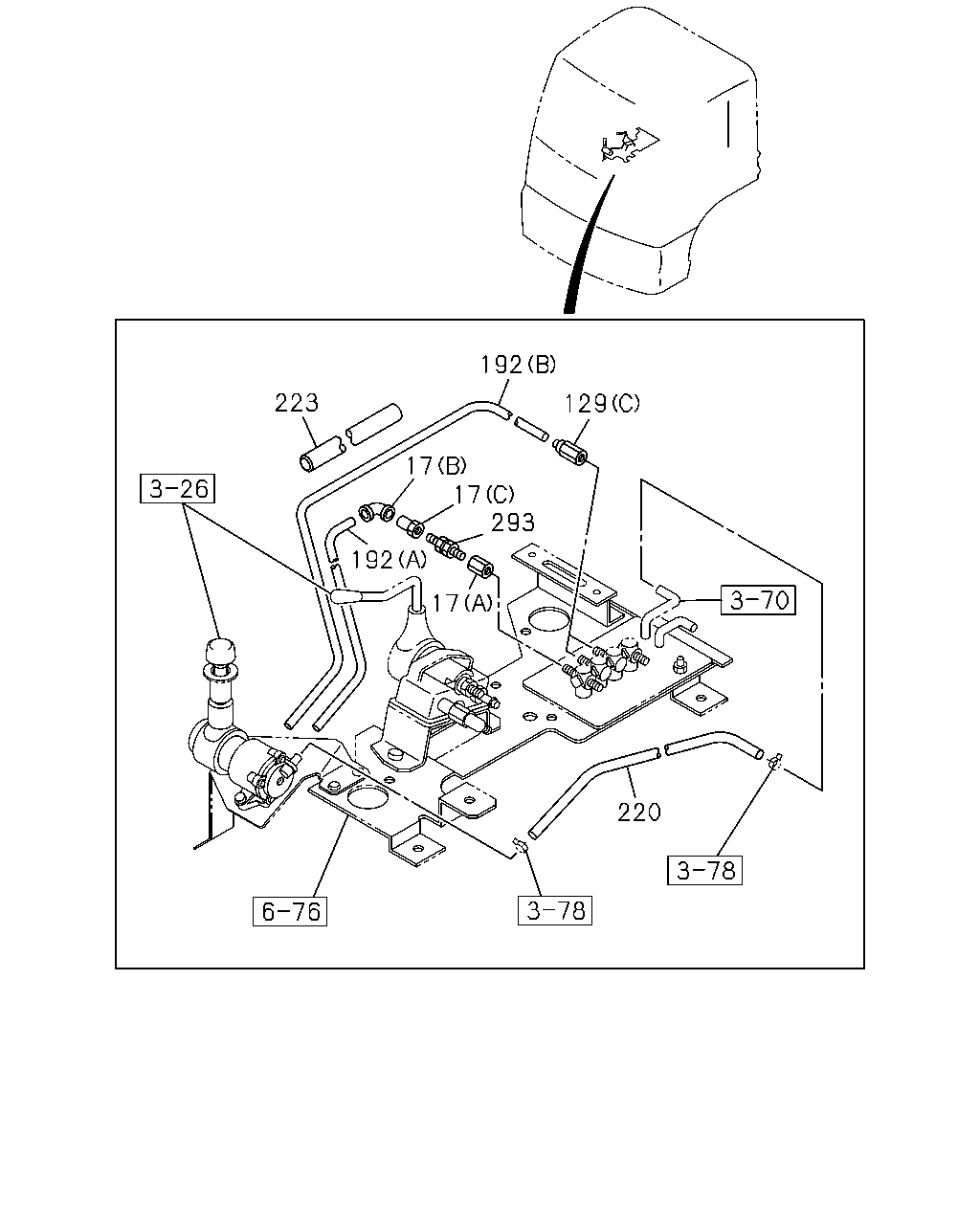

192 223 17 293 17 192 17 220 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1303-1304	●
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1305-		●
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1303-1304	●
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (D)	1-47470-609-0	01	1	1305-		●
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1303-1304	●
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (B)	8-97633-775-0	01	1	1305-		●
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1303-1304	●
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (C)	8-97633-777-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	02	1	1303-1304		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1305-		●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1303-1304		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1305-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1009-1302	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	1303-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
293	VALVE; CHECK	1-48410-479-1	01	1	1303-1304	●
293	VALVE; CHECK	1-48410-479-1	01	1	1305-	●
293	VALVE; CHECK FULL TRAILER PIPING<Z25>	1-48410-479-1	01	1	1305-		●

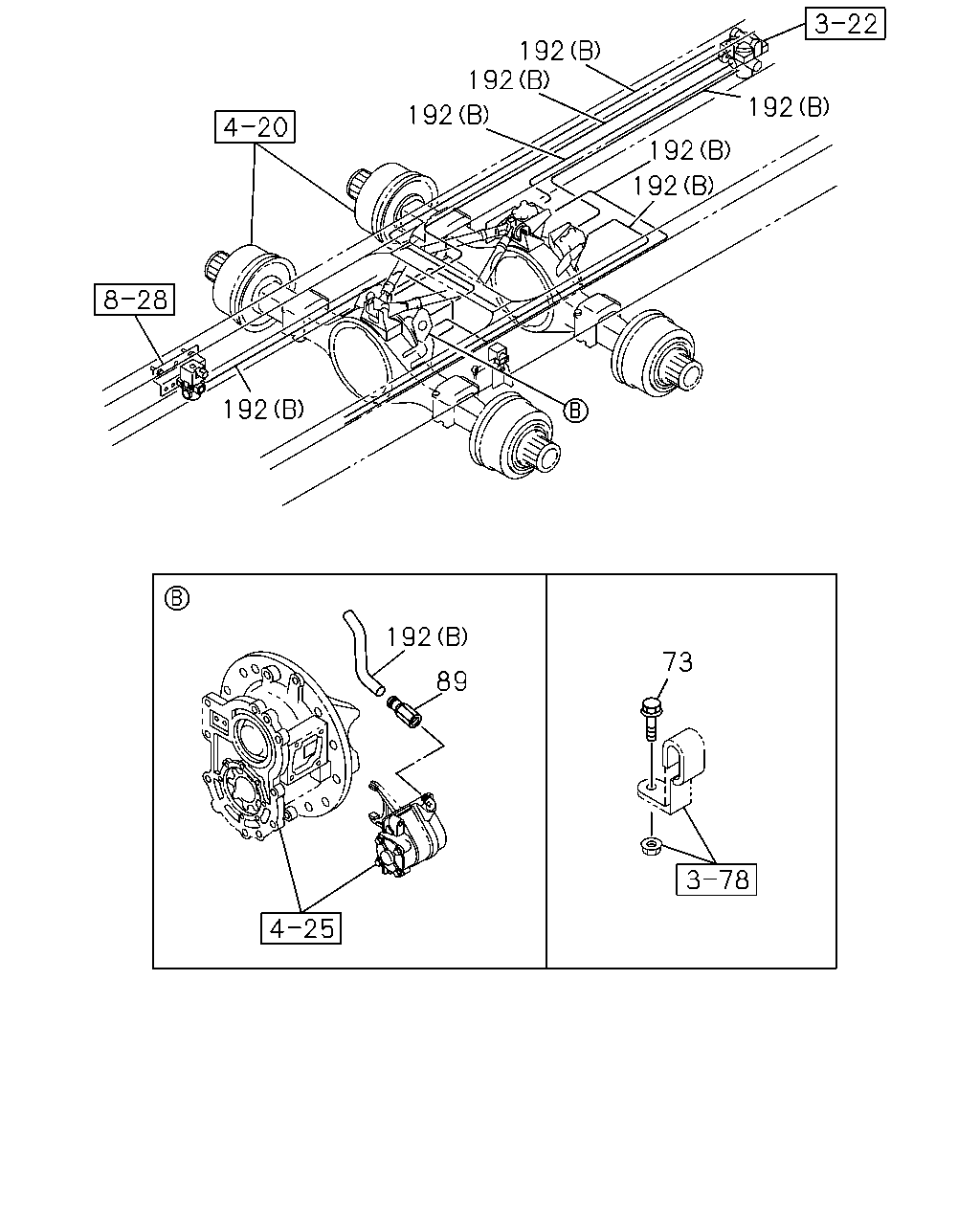

192 192 192 192 192 192 192 73 89 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●

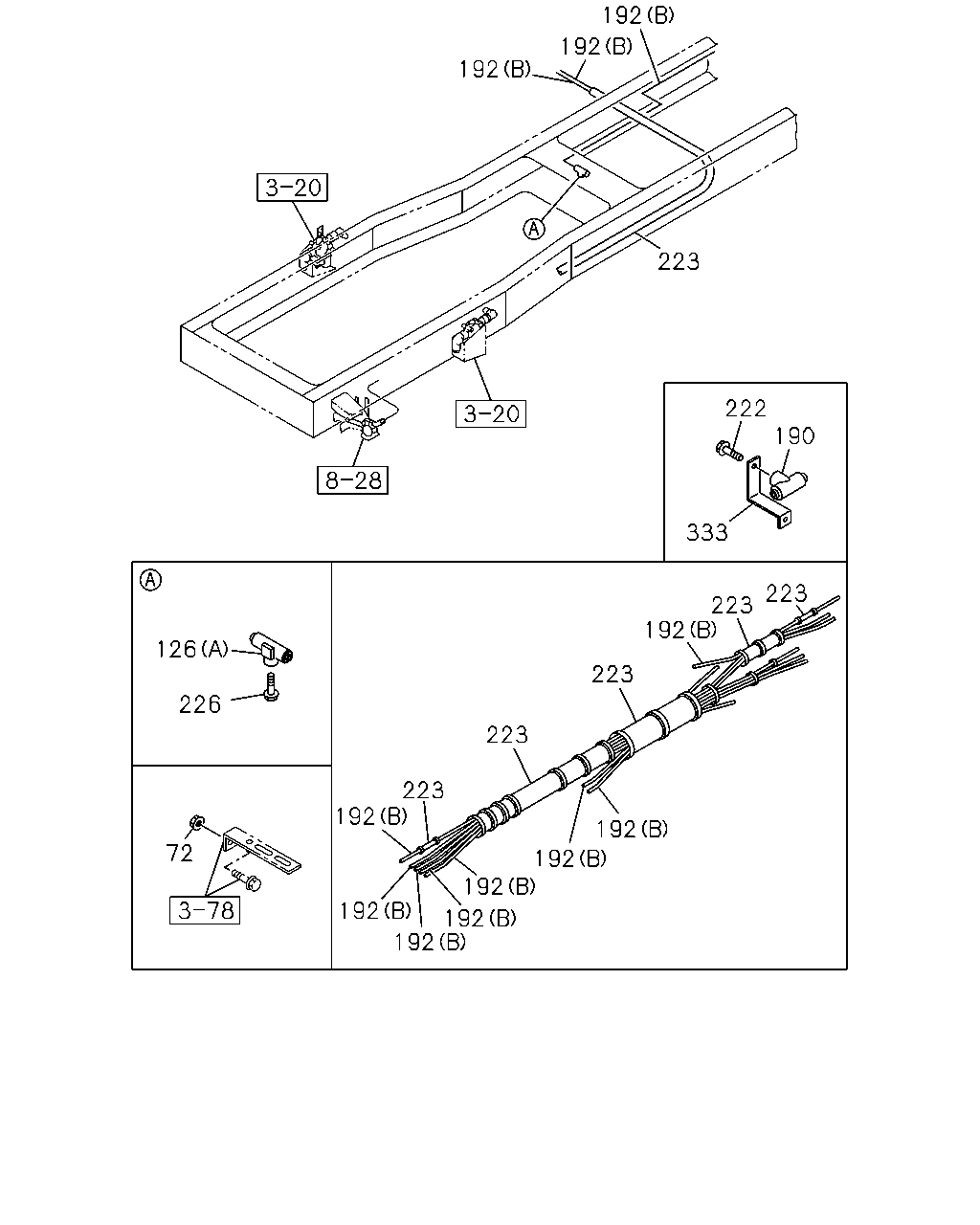

192 192 192 223 126 72 226 192 223 223 192 23 223 192 192 192 192 192 192 223 222 333 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE	0-91180-108-0	01	1	1009-		●
126	UNION; NYLON TUBE (D)	1-09661-610-1	01	1	1303-	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302	●	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-		●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1009-	●	●
190	UNION; 3 WAY EXC. BRAKE SYSTEM HSA(SLD) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302	●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
222	BOLT; CONNECTOR EXC. BRAKE SYSTEM HSA(SLD) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	05	1	1009-1102	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1303-1411		●
226	BOLT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1304	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-	●
226	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-		●
333	BRACKET; CONNECTOR EXC. BRAKE SYSTEM HSA(SLD)	1-47479-248-0	01	1	1009-1302	●

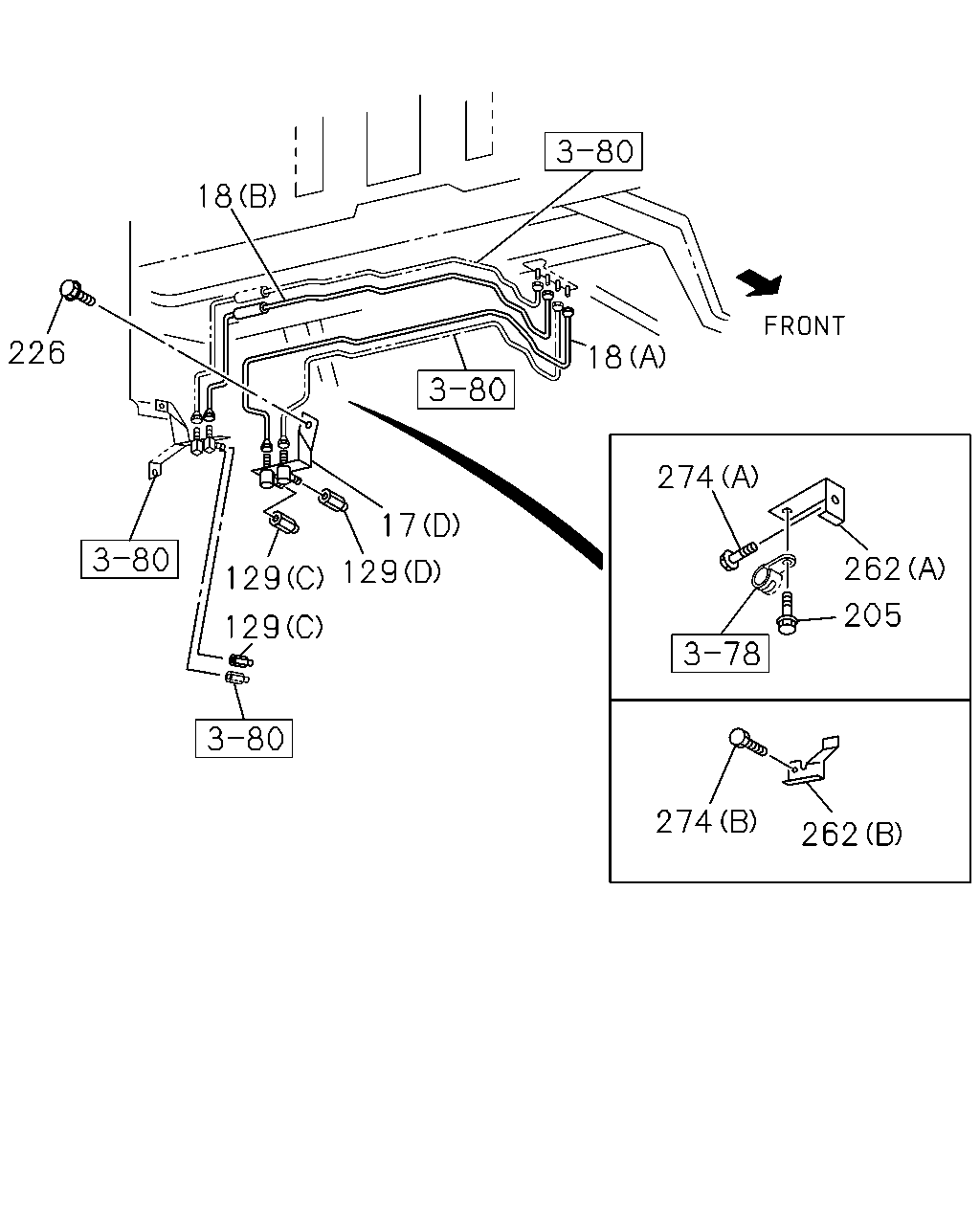

226 129 129 129 17 18 274 274 262 205 262 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1303-1304	●
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1305-		●
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1303-1304	●
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (D)	1-47470-609-0	01	1	1305-		●
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1303-1304	●
17	UNION; AIR PIPE (B)	8-97633-775-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (B)	8-97633-775-0	01	1	1305-		●
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1303-1304	●
17	UNION; AIR PIPE (C)	8-97633-777-0	01	1	1305-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (C)	8-97633-777-0	01	1	1305-		●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (A) L=1749	1-49121-758-1	01	1	1305-		●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (B) L=1845	1-49122-059-1	01	1	1305-		●
18	PIPE; AIR,UNION TO UNION (A) L=1885	1-49121-759-1	01	1	1303-	●
18	PIPE; AIR,UNION TO UNION (B) L=1937	1-49122-060-1	01	1	1303-	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=61 DIN8 & M20 ELBOW	1-09661-015-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1303-1304	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1305-		●
129	CONNECTOR; NYLON TUBE (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1009-1302	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	02	1	1303-1304		●
129	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW	8-98078-117-0	01	1	1305-		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1303-1304	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1305-	●
205	BOLT; TUBE CLIP FULL TRAILER PIPING<Z25> M8X16 FLANGE	0-28050-816-0	02	1	1305-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	05	1	1009-1102	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1303-1411		●
226	BOLT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1304	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-	●
226	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-		●
262	BRACKET (A)	1-79996-143-0	01	1	1303-1304	●
262	BRACKET (A)	1-79996-143-0	01	1	1305-	●
262	BRACKET FULL TRAILER PIPING<Z25> (A)	1-79996-143-0	01	1	1305-		●
262	BRACKET (B)	1-79996-144-0	01	1	1303-1304	●
262	BRACKET (B)	1-79996-144-0	01	1	1305-	●
262	BRACKET FULL TRAILER PIPING<Z25> (B)	1-79996-144-0	01	1	1305-		●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1303-1304	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1305-	●
274	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	01	1	1305-		●
274	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1304	●
274	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1305-	●
274	BOLT; BRKT FULL TRAILER PIPING<Z25> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1305-		●

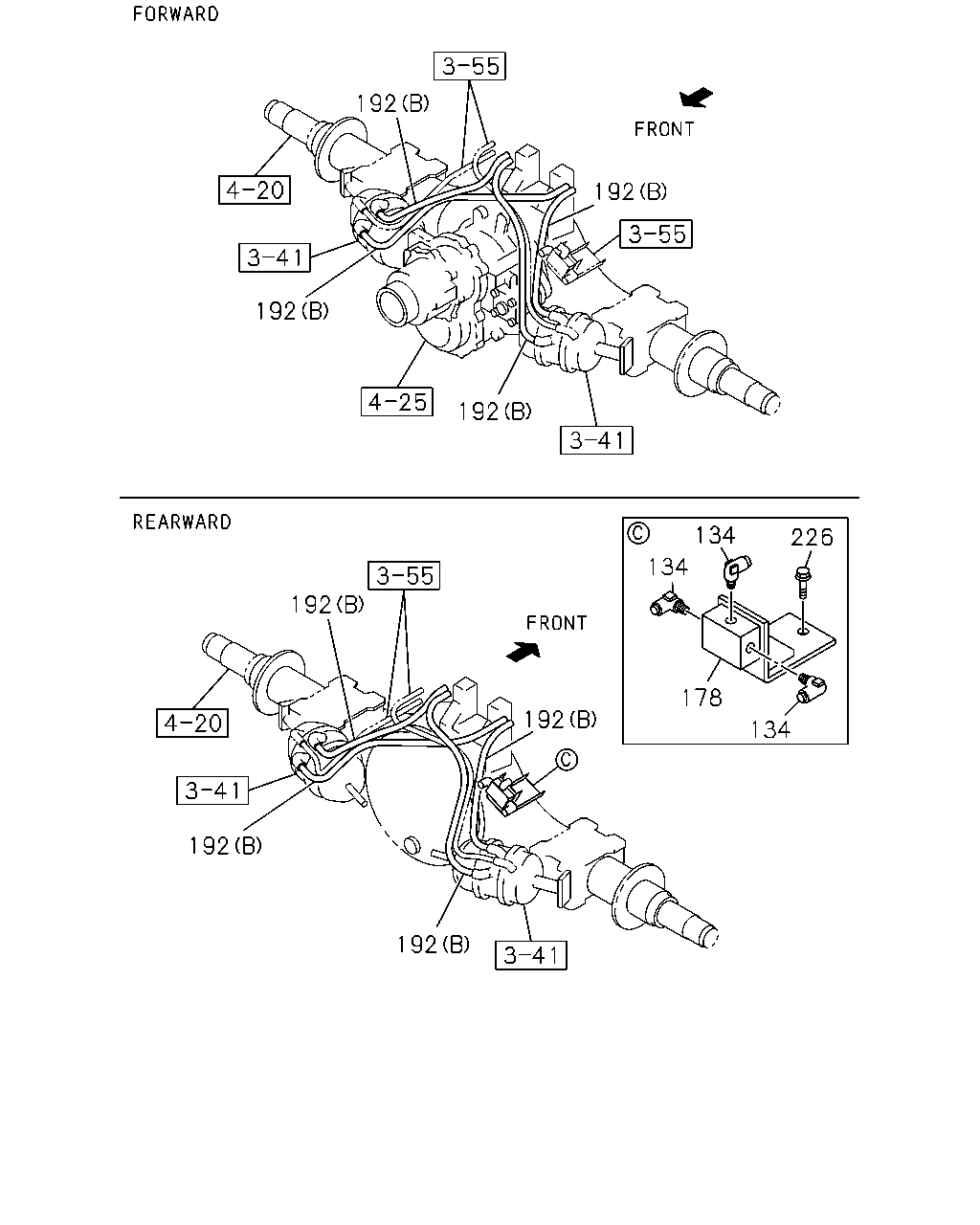

192 192 192 192 192 192 192 192 178 134 134 134 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1302	●	●
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1303-1411		●
134	CONNECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1412-		●
178	BRACKET; UNION	8-98153-830-0	01	1	1009-1302	●	●
178	BRACKET; UNION	8-98153-830-0	01	1	1303-1411		●
178	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98153-830-0	01	1	1412-		●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	05	1	1009-1102	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1303-1411		●
226	BOLT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1304	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-	●
226	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-		●

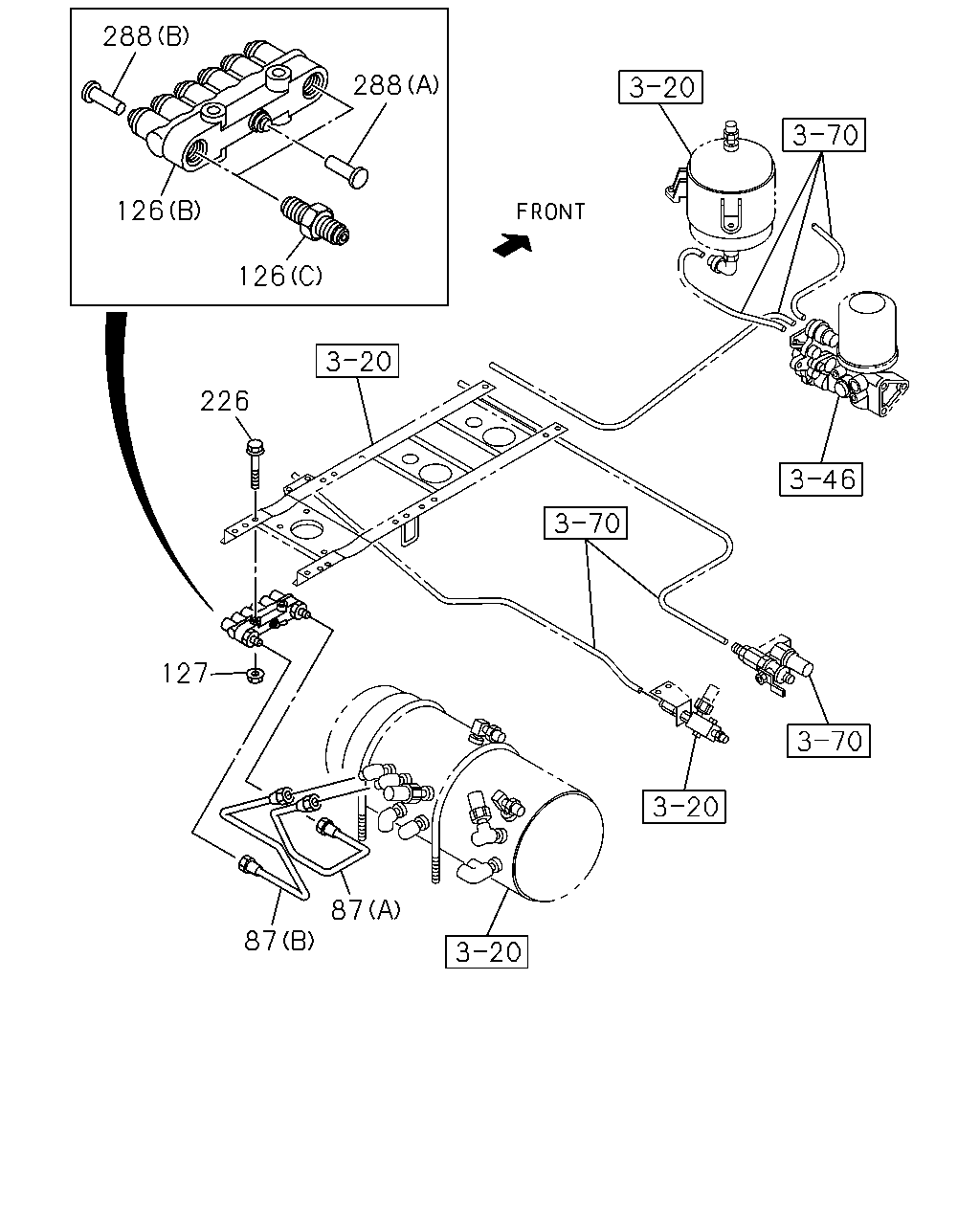

288 126 126 288 226 127 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=429	8-98239-053-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=543	8-98239-054-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=425	1-49124-670-0	01	1	1009-1302	●
87	PIPE; AIR,AIR TANK TO UNION (C) L=667	1-49123-982-0	01	1	1303-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=541	1-49124-671-0	01	1	1009-1302	●
87	PIPE; AIR,AIR TANK TO UNION (D) L=661	8-98135-177-0	01	1	1303-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=561	1-49124-520-0	01	1	1009-1302		●
87	PIPE; AIR,AIR TANK TO UNION (A) L=559	8-98239-051-0	01	1	1303-1411		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (A) L=559	8-98239-051-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=426	1-49124-521-0	01	1	1009-1302		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=424	8-98239-052-0	01	1	1303-1411		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (B) L=424	8-98239-052-0	01	1	1412-		●
126	UNION; NYLON TUBE (D)	1-09661-610-1	01	1	1303-	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302	●	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-		●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1009-	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	05	1	1009-1102	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1303-1411		●
226	BOLT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1304	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-	●
226	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-		●
288	PLUG (C) OD=12	1-09661-617-0	01	1	1303-	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1009-	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1009-1302	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1303-		●

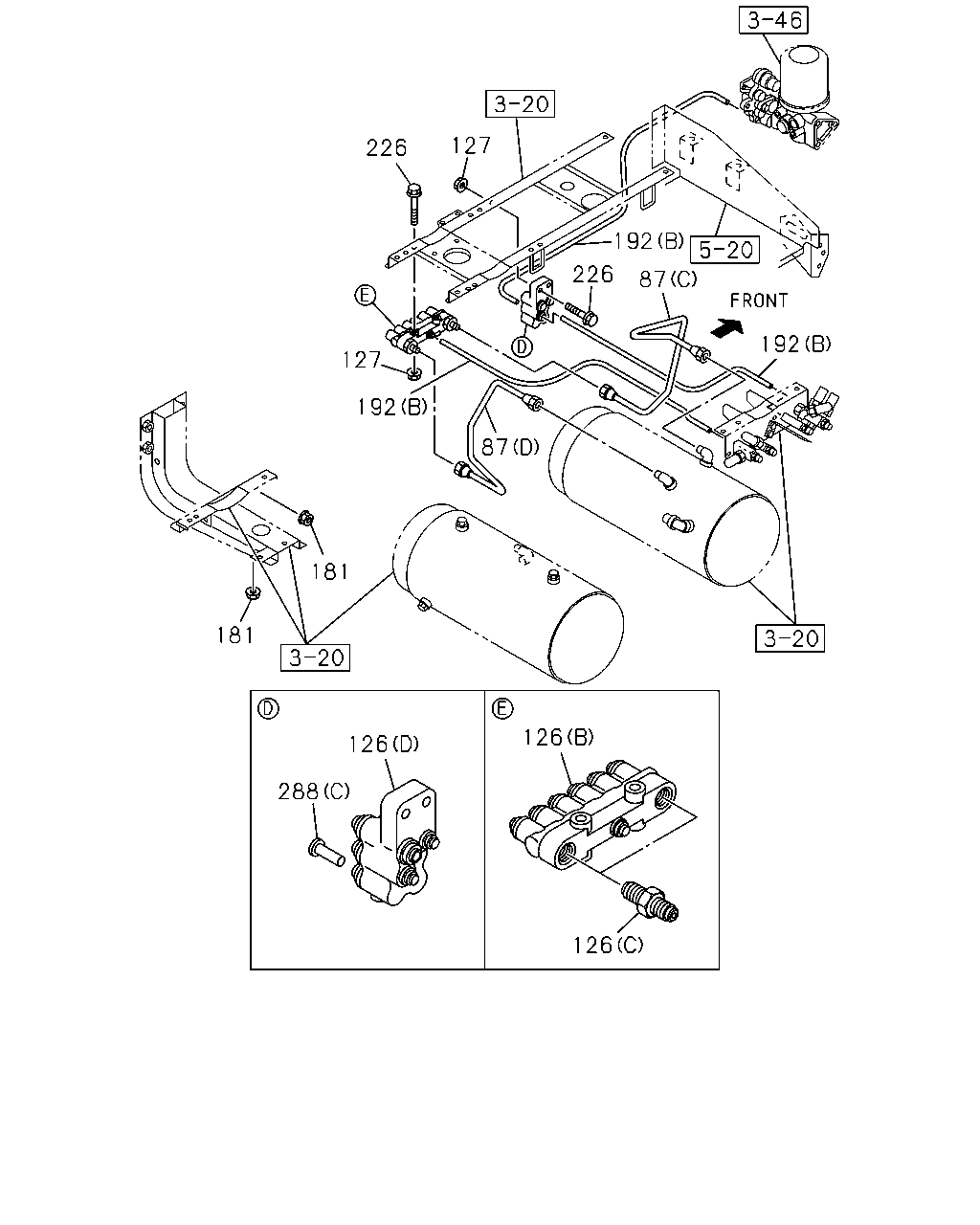

127 226 127 192 87 226 192 87 192 126 126 126 288 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=429	8-98239-053-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=543	8-98239-054-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=425	1-49124-670-0	01	1	1009-1302	●
87	PIPE; AIR,AIR TANK TO UNION (C) L=667	1-49123-982-0	01	1	1303-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=541	1-49124-671-0	01	1	1009-1302	●
87	PIPE; AIR,AIR TANK TO UNION (D) L=661	8-98135-177-0	01	1	1303-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=561	1-49124-520-0	01	1	1009-1302		●
87	PIPE; AIR,AIR TANK TO UNION (A) L=559	8-98239-051-0	01	1	1303-1411		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (A) L=559	8-98239-051-0	01	1	1412-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=426	1-49124-521-0	01	1	1009-1302		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=424	8-98239-052-0	01	1	1303-1411		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (B) L=424	8-98239-052-0	01	1	1412-		●
126	UNION; NYLON TUBE (D)	1-09661-610-1	01	1	1303-	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302	●	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-		●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1009-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1009-	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
181	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	1303-	●
192	TUBE; NYLON (A) L=200 OD=12	1-49216-861-1	01	1	1303-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1303-		●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	05	1	1009-1102	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	1103-1302	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	04	1	1303-1411		●
226	BOLT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE	0-28050-816-0	04	1	1412-		●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1304	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-	●
226	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-		●
288	PLUG (C) OD=12	1-09661-617-0	01	1	1303-	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1009-	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1009-1302	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
