Sayfa 3-75 - Isuzu EPC

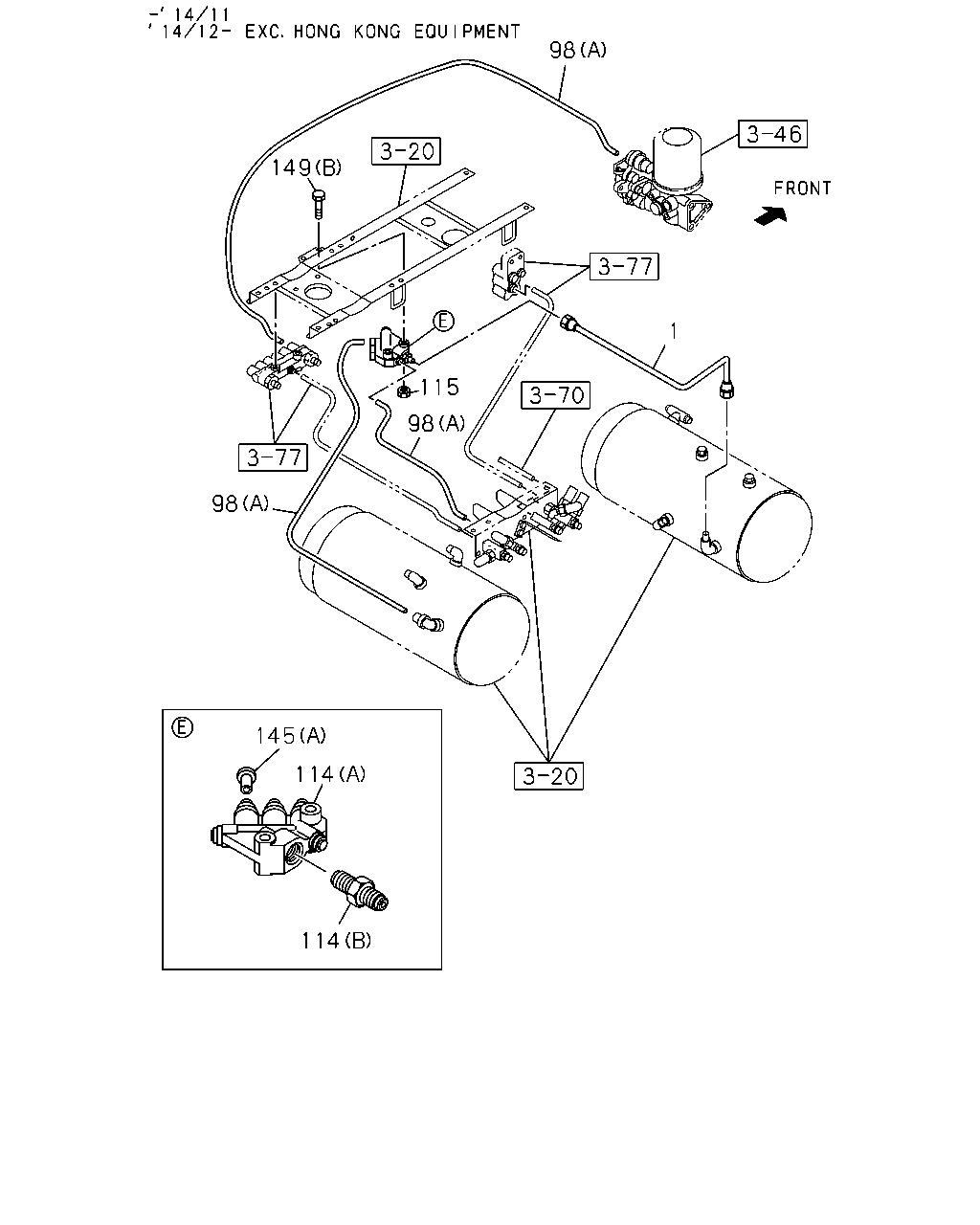

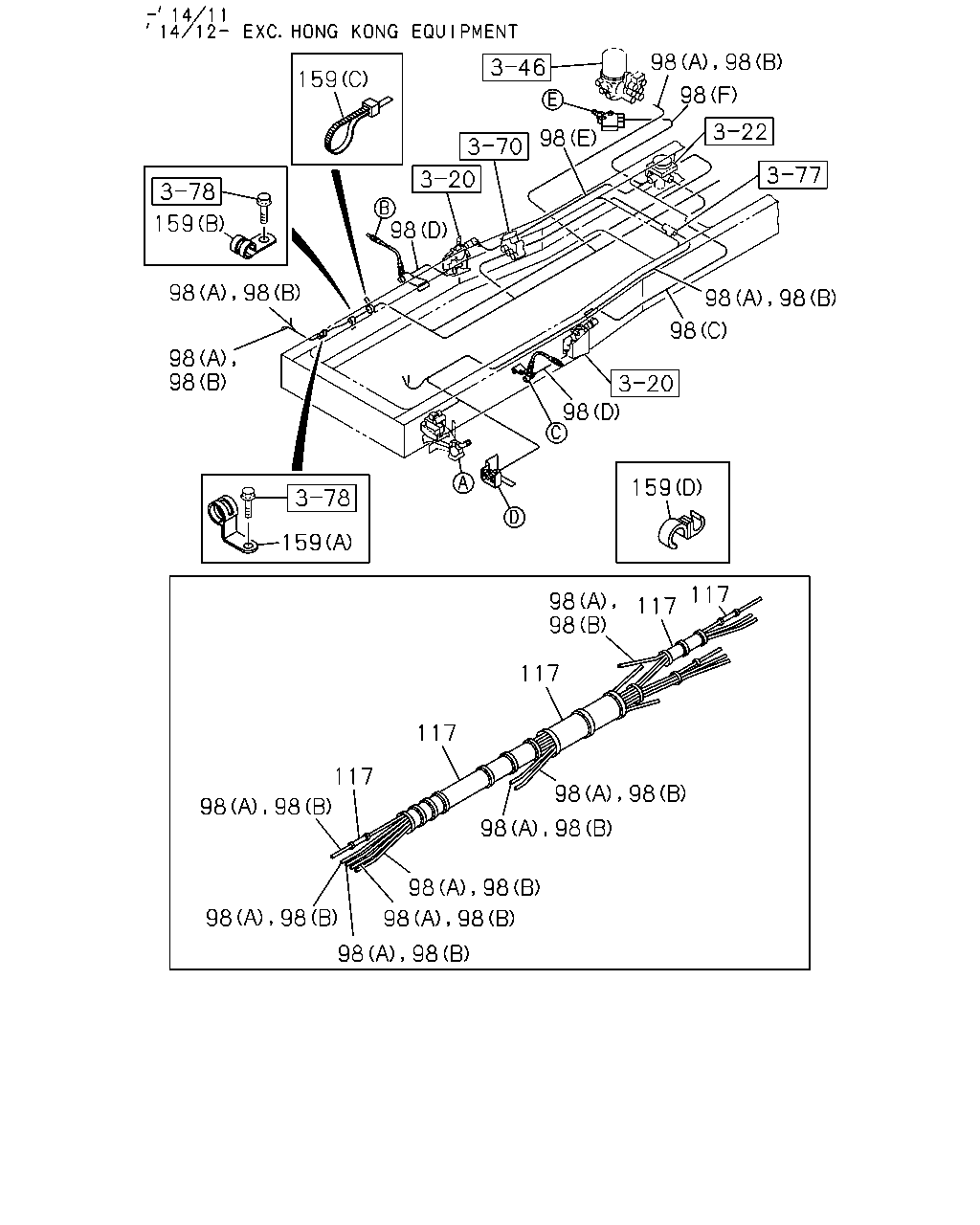

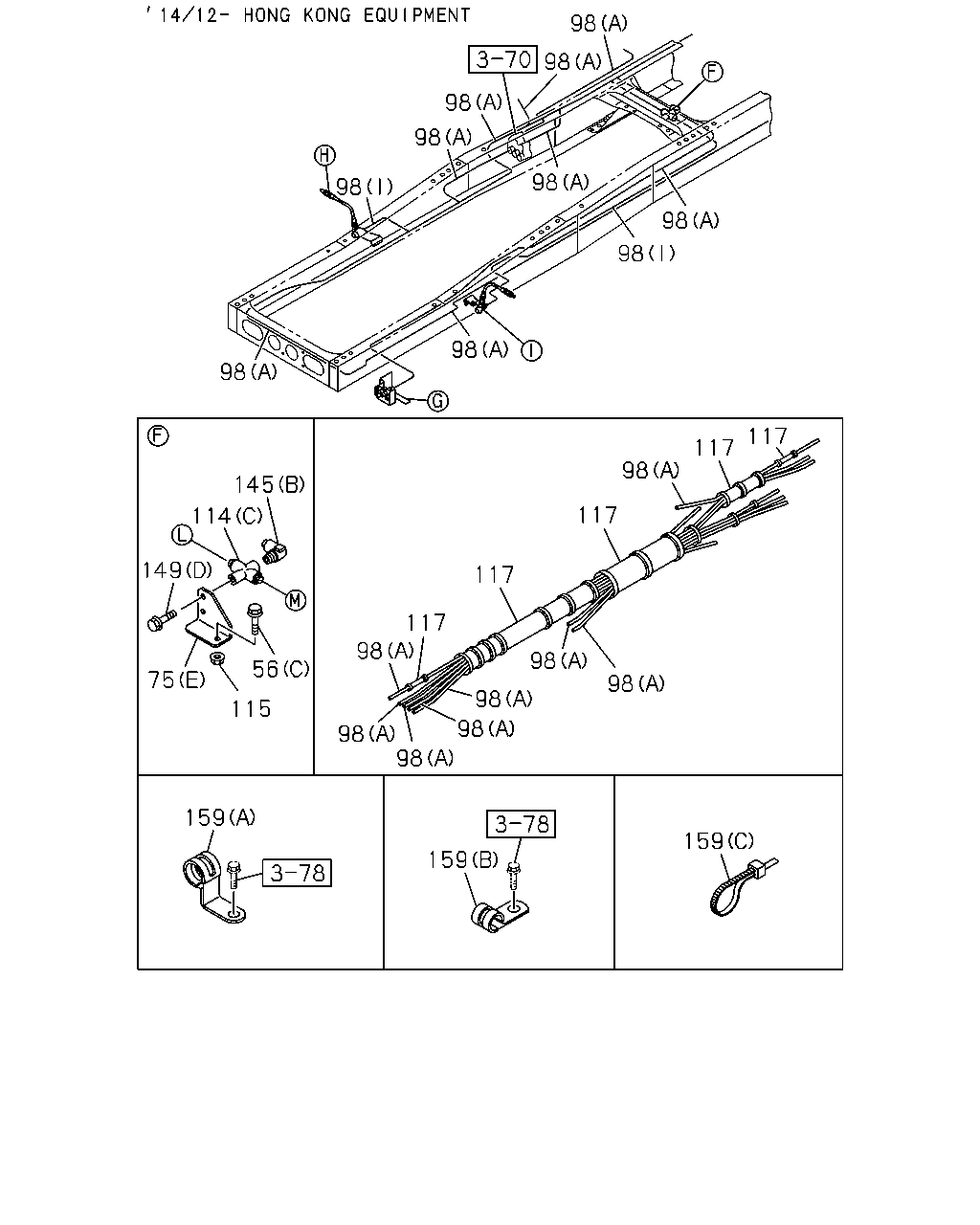

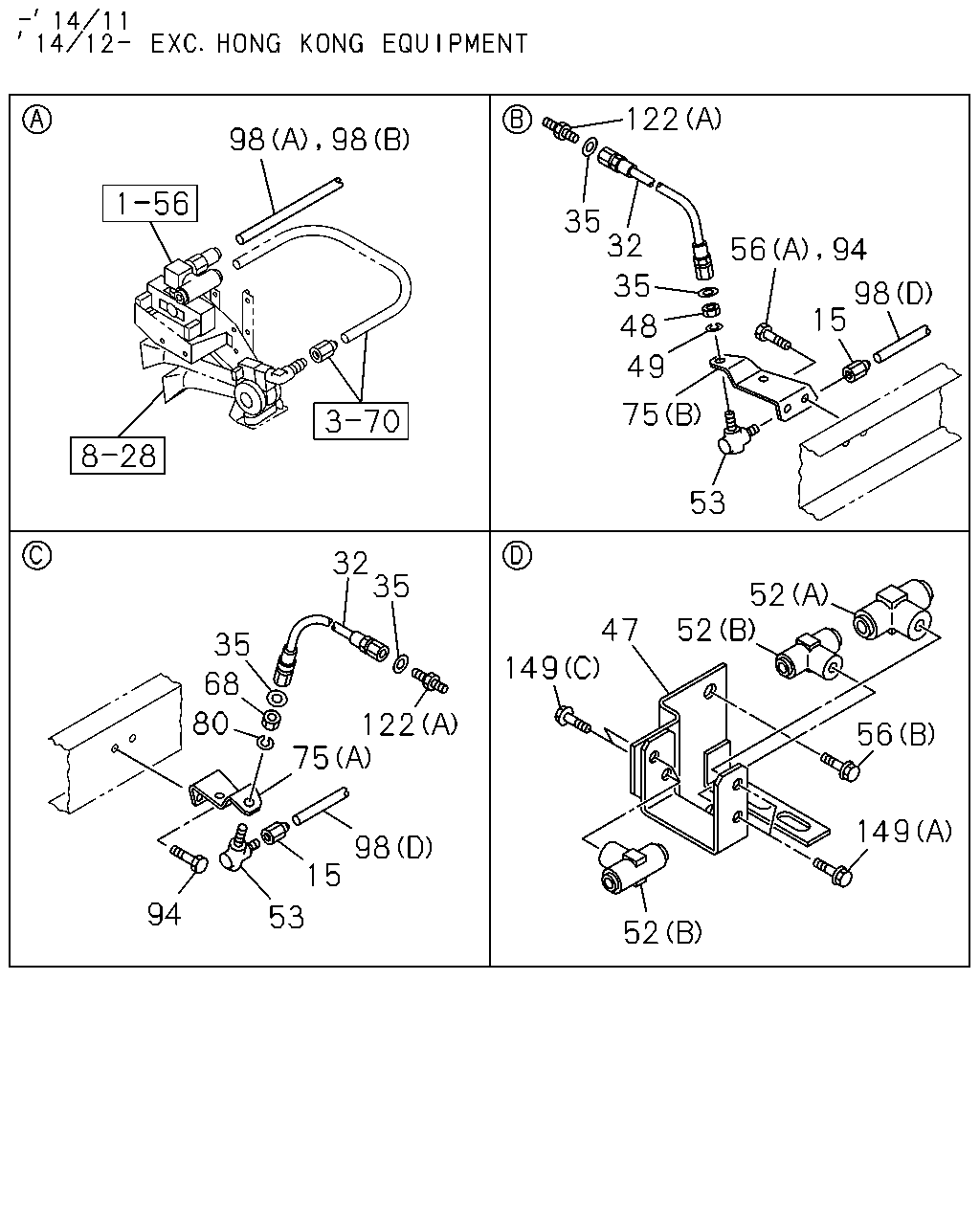

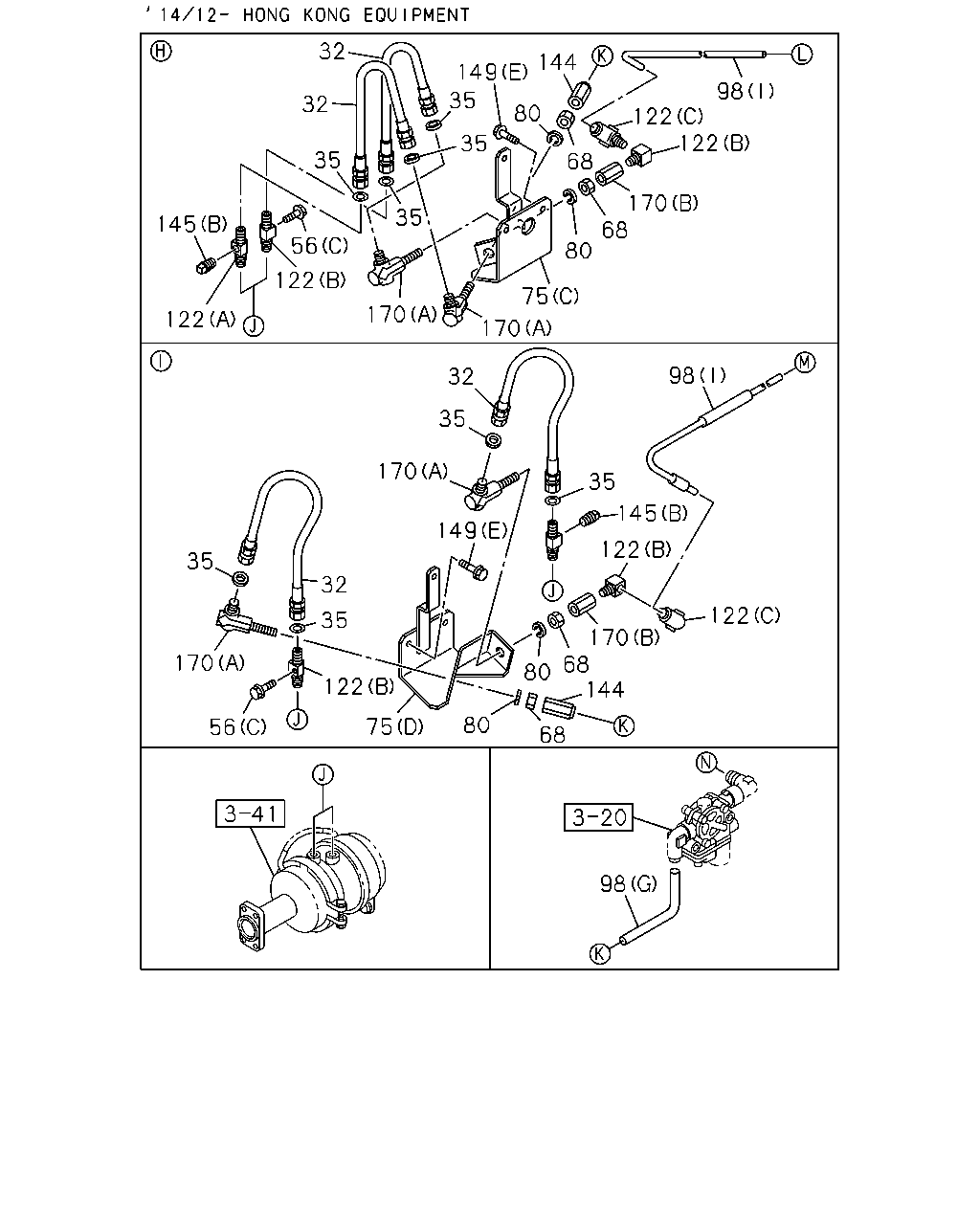

3-75 — BRAKE PIPING; AIR,FRONT (#61074) — 398 parça

122 56 15 98 94 98 98 32 122 52 47 52 52 56 149 98 15 53 94 80 35 35 75 149 35 35 32 48 75 53 49 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-1302	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1303-1411		●
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1412-		●
32	HOSE; FLEX,FRT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=470	0-57847-470-1	04	1	1412-		●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1009-1411	●	●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1412-	●
32	HOSE; FLEX,FRT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=430	0-57847-430-1	02	1	1412-		●
35	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	08	1	1412-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1411	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1412-	●
35	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	04	1	1412-		●
47	BRACKET; PIPE UNION	8-97636-508-0	01	1	1303-	●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	8-97636-508-0	01	1	1303-		●
48	NUT; UNION BRKT M20	0-91111-520-0	01	1	1009-1302	●	●
48	NUT; UNION BRKT M20	0-91111-520-0	01	1	1303-1411		●
48	NUT; UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	01	1	1412-		●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1009-1302	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1303-1411		●
49	WASHER; LK,UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	01	1	1412-		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-		●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-		●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1009-1302	●	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1303-1411		●
53	UNION; ELBOW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20 & M20 ELBOW	1-09654-128-1	02	1	1412-		●
56	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
56	BOLT; UNION BRKT EXC. BRAKE SYSTEM HSA(SLD) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
56	BOLT; UNION BRKT (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-	●
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-		●
68	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-		●
68	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-		●
68	NUT; UNION M20	0-91111-520-0	01	1	1009-1302	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	1303-1411		●
68	NUT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	1-47471-145-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98176-142-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98235-169-0	01	1	1412-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1009-1302	●	●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-47479-765-1	01	1	1412-		●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1009-1302	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-766-1	01	1	1412-		●
80	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-		●
80	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1009-1302	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1303-1411		●
80	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	01	1	1412-		●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1302	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411		●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-1411		●
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-		●
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1009-	●	●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) M8X35 FLANGE	0-28650-835-0	04	1	1412-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
149	BOLT; UNION (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-		●

159 159 98 98 98 98 159 98 98 98 98 98 98 98 98 98 98 98 98 98 98 117 117 117 117 117 98 98 159 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-	●	●
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FULL FLOATING CAB(W16) (C) L=350	1-09707-183-0	01	1	1412-		●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	17	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	12	1	1412-		●
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=39 L=33	8-98009-359-0	02	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=21 L=24	8-98019-191-0	01	1	1412-		●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (B) ID=35 L=33	1-09700-945-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1009-1302		●
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	03	1	1303-	●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302		●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1303-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-1302	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	14	1	1303-	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-		●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (B) ID=24 L=27	1-09700-809-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	02	1	1303-	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (B) ID=35 L=33	1-09700-945-0	03	1	1009-1302	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	1009-1302	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (C) L=350	1-09707-183-0	08	1	1009-1302	●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) L=350	1-09707-183-0	08	1	1303-		●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (D) ID=12 & 15	1-09709-281-1	01	1	1009-1302	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	09	1	1009-1302		●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1303-1411		●
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-		●
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-		●

98 149 115 98 98 145 114 114 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	1303-	●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
114	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1412-		●
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	1303-	●
114	UNION; NYLON TUBE (B) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-	●
115	NUT; TUBE UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	1303-	●
145	PLUG EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
145	PLUG (A) OD=12	1-09661-617-0	01	1	1303-	●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) M8X35 FLANGE	0-28650-835-0	04	1	1412-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
149	BOLT; UNION (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-		●

98 98 98 98 98 98 98 98 98 98 145 114 149 75 56 115 117 117 117 117 117 98 98 98 98 98 98 98 98 159 159 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
56	BOLT; UNION BRKT EXC. BRAKE SYSTEM HSA(SLD) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
56	BOLT; UNION BRKT (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-	●
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	1-47471-145-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98176-142-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98235-169-0	01	1	1412-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1009-1302	●	●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-47479-765-1	01	1	1412-		●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1009-1302	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-766-1	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
114	UNION; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1412-		●
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	1303-	●
114	UNION; NYLON TUBE (B) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-	●
115	NUT; TUBE UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	1303-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-	●	●
145	PLUG EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
145	PLUG (A) OD=12	1-09661-617-0	01	1	1303-	●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) M8X35 FLANGE	0-28650-835-0	04	1	1412-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
149	BOLT; UNION (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-		●
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FULL FLOATING CAB(W16) (C) L=350	1-09707-183-0	01	1	1412-		●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	17	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1412-		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	12	1	1412-		●
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=39 L=33	8-98009-359-0	02	1	1412-		●
159	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=21 L=24	8-98019-191-0	01	1	1412-		●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (B) ID=35 L=33	1-09700-945-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1009-1302		●
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	03	1	1303-	●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1009-1302		●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1303-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-1302	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	14	1	1303-	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-		●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (B) ID=24 L=27	1-09700-809-0	02	1	1009-1302	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	02	1	1303-	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (B) ID=35 L=33	1-09700-945-0	03	1	1009-1302	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	1009-1302	●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (C) L=350	1-09707-183-0	08	1	1009-1302	●
159	CLIP; NYLON TUBE BRAKE SYSTEM HSA(SLD) (C) L=350	1-09707-183-0	08	1	1303-		●
159	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA(SLD) (D) ID=12 & 15	1-09709-281-1	01	1	1009-1302	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	09	1	1009-1302		●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1303-1411		●
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-		●
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-		●

32 32 35 35 149 35 80 122 144 145 122 122 56 35 170 170 75 80 170 68 122 98 32 98 35 122 149 170 35 145 122 170 68 80 144 68 80 32 35 122 75 56 170 35 98 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=470	0-57847-470-1	04	1	1412-		●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1009-1411	●	●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	1412-	●
32	HOSE; FLEX,FRT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=430	0-57847-430-1	02	1	1412-		●
35	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	08	1	1412-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1411	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1412-	●
35	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	04	1	1412-		●
56	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
56	BOLT; UNION BRKT EXC. BRAKE SYSTEM HSA(SLD) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
56	BOLT; UNION BRKT (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-	●
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-		●
68	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-		●
68	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-		●
68	NUT; UNION M20	0-91111-520-0	01	1	1009-1302	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	1303-1411		●
68	NUT; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	1-47471-145-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98176-142-0	01	1	1412-		●
75	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98235-169-0	01	1	1412-		●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1009-1302	●	●
75	BRACKET; UNION (A)	1-47479-765-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-47479-765-1	01	1	1412-		●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1009-1302	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	1303-1411		●
75	BRACKET; UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-766-1	01	1	1412-		●
80	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-		●
80	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1009-1302	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1303-1411		●
80	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1009-	●	●
144	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-		●
144	ADAPTER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1412-		●
145	PLUG EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-		●
145	PLUG (A) OD=12	1-09661-617-0	01	1	1303-	●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) M8X35 FLANGE	0-28650-835-0	04	1	1412-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
149	BOLT; UNION (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-		●
170	UNION; FLARE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-		●
170	UNION; FLARE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-		●
170	UNION; FLARE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1412-		●
170	UNION; FLARE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1412-		●

52 52 47 149 56 149 52 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION	8-97636-508-0	01	1	1303-	●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	8-97636-508-0	01	1	1303-		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-		●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-		●
56	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
56	BOLT; UNION BRKT EXC. BRAKE SYSTEM HSA(SLD) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
56	BOLT; UNION BRKT (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-	●
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE	0-28051-230-0	02	1	1303-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G)	8-98169-619-0	02	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98234-168-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I)	8-98240-190-0	01	1	1412-		●
98	TUBE; NYLON EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (H)	8-98240-191-0	01	1	1412-		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (C)	8-98227-255-0	01	1	1303-		●
98	TUBE; NYLON WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-494-0	01	1	1009-1302	●
98	TUBE; NYLON (F)	8-98149-527-0	01	1	1303-	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA(SLD) (C)	8-98176-364-0	01	1	1009-1302	●
98	TUBE; NYLON WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B)	8-98176-376-0	01	1	1009-1302	●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302	●
98	TUBE; NYLON (E) L=2220 OD=12	1-49222-731-0	01	1	1009-1302		●
98	TUBE; NYLON BRAKE SYSTEM HSA(SLD) (E)	8-98227-254-0	01	1	1303-		●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1009-1302	●	●
98	TUBE; NYLON (D) L=170 OD=12	1-49222-063-0	02	1	1303-1411		●
98	TUBE; NYLON HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=170 OD=12	1-49222-063-0	02	1	1412-		●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
149	BOLT; UNION EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) M8X35 FLANGE	0-28650-835-0	04	1	1412-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
149	BOLT; UNION (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
